IslandPath Analysis: Bartonella bacilliformis KC583

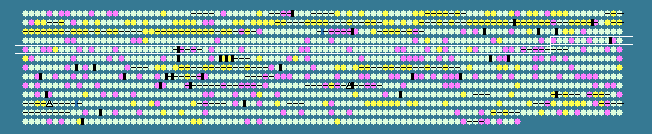

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.00 STD DEV: 4.11
Bartonella bacilliformis KC583, complete genome - 1..1445021
1283 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
389	 32.34	-1	408419..409324	-	301	121602799	-	BARBAKC583_0408	-	hypothetical protein
390	 37.68	0	410045..412921	-	958	121602305	-	BARBAKC583_0410	-	sensory box-containing diguanylate cyclase/cyclic diguanylate phosphodiesterase
391	 39.01	0	413366..414634	-	422	121601771	-	BARBAKC583_0411	-	M16 family peptidase
392	 34.49	-1	415015..415707	-	230	121601956	-	BARBAKC583_0412	-	HAD family hydrolase
393	 39.67	0	416018..417154	+	378	121602378	ccrMIM	BARBAKC583_0413	-	modification methylase CcrMI
394	 38.65	0	417244..418296	-	350	121602108	mutY	BARBAKC583_0414	-	A/G-specific adenine glycosylase
395	 31.62	-1	418329..418445	+	38	121602473	-	BARBAKC583_0415	-	hypothetical protein
396	 35.56	0	418517..419011	+	164	121602860	-	BARBAKC583_0416	-	hypothetical protein
397	 36.41	0	419106..419756	+	216	121602418	-	BARBAKC583_0417	-	DSBA-like thioredoxin domain-containing protein
398	 41.56	0	419941..422628	+	895	121601968	ppdK	BARBAKC583_0418	-	pyruvate phosphate dikinase
399	 35.51	0	423656..424252	+	198	121602729	sodB	BARBAKC583_0420	-	superoxide dismutase
400	 37.88	0	424345..426435	-	696	121602456	-	BARBAKC583_0421	-	peptidase, S9A/B/C family protein
401	 21.28	-2	427036..427176	-	46	121601955	-	BARBAKC583_0422	-	hypothetical protein
402	 41.20	0	427263..427694	+	143	121602360	-	BARBAKC583_0423	-	Ros/MucR family transcriptional regulator
403	 37.75	0	427808..428215	-	135	121601721	sufE	BARBAKC583_0424	-	cysteine desulfuration protein SufE
404	 32.23	-1	428340..428702	-	120	121602754	-	BARBAKC583_0425	-	hypothetical protein
405	 32.86	-1	429266..430111	+	281	121602040	-	BARBAKC583_0426	-	peptidoglycan binding domain-containing protein
406	 44.07	+1	430337..430513	+	58	121602820	-	BARBAKC583_0427	-	hypothetical protein
407	 39.64	0	430531..431196	+	221	121602270	feuP	BARBAKC583_0428	-	transcriptional regulator FeuP
408	 38.40	0	431193..432614	+	473	121602486	feuQ	BARBAKC583_0429	-	sensor histidine kinase FeuQ
409	 37.51	0	432728..433564	+	278	121601826	-	BARBAKC583_0430	-	putative cytochrome c-type biogenesis protein CycH
410	 34.17	-1	433763..434239	+	158	121602569	cycJ	BARBAKC583_0431	-	cytochrome c-type biogenesis protein CcmE
411	 36.67	0	434255..436234	+	659	121602094	cycK	BARBAKC583_0432	-	cytochrome c-type biogenesis protein CycK
412	 33.78	-1	436237..436680	+	147	121602425	cycL	BARBAKC583_0433	-	cytochrome c-type biogenesis protein CycL
413	 40.97	0	436882..438399	+	505	121601816	-	BARBAKC583_0434	-	protease Do family protein
414	 40.47	0	438476..439162	+	228	121602059	-	BARBAKC583_0435	-	DNA-binding response regulator
415	 38.68	0	439159..440541	+	460	121602674	-	BARBAKC583_0436	-	sensor histidine kinase
416	 23.81	-2	440609..440734	+	41	121602620	-	BARBAKC583_0437	-	hypothetical protein
417	 37.55	0	440857..443178	-	773	121602141	-	BARBAKC583_0438	-	putative non-motile and phage-resistance protein
418	 38.17	0	443458..446085	-	875	121602086	pepN	BARBAKC583_0439	-	aminopeptidase N
419	 41.55	0	446164..446991	-	275	121602683	-	BARBAKC583_0440	-	uracil-DNA glycosylase
420	 38.47	0	447202..447960	-	252	121601877	thiD	BARBAKC583_0441	-	phosphomethylpyrimidine kinase
421	 37.13	0	447951..448556	-	201	121602509	thiE	BARBAKC583_0442	-	thiamine-phosphate pyrophosphorylase
422	 40.96	0	448553..449326	-	257	121601799	thiG	BARBAKC583_0443	-	thiazole synthase
423	 35.86	0	449331..449528	-	65	121602362	thiS	BARBAKC583_0444	-	sulfur carrier protein ThiS
424	 39.43	0	449532..450482	-	316	121601887	-	BARBAKC583_0445	-	thiamine biosynthesis oxidoreductase
425	 40.41	0	450479..452314	-	611	121602460	thiC	BARBAKC583_0446	-	thiamine biosynthesis protein ThiC
426	 38.49	0	453146..454366	-	406	121601793	-	BARBAKC583_0447	-	porin family protein
427	 34.05	-1	455541..455819	+	92	121602300	-	BARBAKC583_0449	-	hypothetical protein
428	 37.78	0	455883..456107	+	74	121602837	-	BARBAKC583_0450	-	hypothetical protein
429	 33.96	-1	456224..456382	+	52	121602254	-	BARBAKC583_0451	-	hypothetical protein
430	 41.00	0	456477..458420	-	647	121602680	-	BARBAKC583_0452	-	hypothetical protein
431	 36.95	0	459089..459862	+	257	121602079	-	BARBAKC583_0453	-	N-acetylmuramoyl-L-alanine amidase family protein
432	 27.69	-2	459877..460071	-	64	121602429	-	BARBAKC583_0454	-	hypothetical protein
433	 38.36	0	460068..460862	-	264	121601677	hmuV	BARBAKC583_0455	-	hemin importer ATP-binding subunit
434	 37.69	0	460855..461955	-	366	121602651	hmuU	BARBAKC583_0456	-	hemin ABC transporter, permease protein
435	 36.95	0	461952..462863	-	303	121601903	hmuT	BARBAKC583_0457	-	hemin ABC transporter, periplasmic hemin-binding protein
436	 36.11	0	462881..463924	-	347	121602119	hmuS	BARBAKC583_0458	-	hemin transport protein HmuS
437	 25.76	-2	463995..464126	+	43	121602615	-	BARBAKC583_0459	-	hypothetical protein
438	 36.98	0	464173..466368	-	731	121602899	-	BARBAKC583_0460	-	TonB-dependent heme/hemoglobin receptor family protein
439	 39.08	0	467633..469597	-	654	121602660	-	BARBAKC583_0462	-	transglycosylase
440	 40.00	0	469596..469760	+	54	121602118	-	BARBAKC583_0463	-	hypothetical protein
441	 39.55	0	469973..470857	+	294	121601860	dapA	BARBAKC583_0464	-	dihydrodipicolinate synthase
442	 36.69	0	470876..471352	+	158	121601796	smpB	BARBAKC583_0465	-	SsrA-binding protein
443	 41.05	0	471387..472073	-	228	121602333	-	BARBAKC583_0466	-	uracil DNA glycosylase family protein
444	 41.10	0	472472..472870	+	132	121602158	rpoZ	BARBAKC583_0467	-	DNA-directed RNA polymerase subunit omega
445	 38.58	0	472998..475226	+	742	121602722	relA	BARBAKC583_0468	-	GTP pyrophosphokinase
446	 40.07	0	475242..475820	+	192	121602216	pyrE	BARBAKC583_0469	-	orotate phosphoribosyltransferase
447	 34.99	0	475914..476516	+	200	121602052	-	BARBAKC583_0470	-	hypothetical protein
448	 32.84	-1	476513..476914	+	133	121602634	acpS	BARBAKC583_0471	-	4'-phosphopantetheinyl transferase
449	 37.68	0	476982..477764	+	260	121602533	lepB	BARBAKC583_0472	-	signal peptidase I
450	 41.67	0	477775..478482	+	235	121602768	rnc	BARBAKC583_0473	-	ribonuclease III
451	 39.29	0	478475..479380	+	301	121602370	era	BARBAKC583_0474	-	GTP-binding protein Era
452	 40.65	0	479383..480120	+	245	121601946	recO	BARBAKC583_0475	-	DNA repair protein RecO
453	 39.48	0	480157..481002	+	281	121602550	panC	BARBAKC583_0476	-	pantoate--beta-alanine ligase
454	 42.16	0	481014..481829	+	271	121602112	panB	BARBAKC583_0477	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
455	 34.03	-1	482811..483671	-	286	121602749	-	BARBAKC583_0479	-	aminomethyltransferase
456	 42.23	0	483735..485060	+	441	121602035	-	BARBAKC583_0480	-	dihydroorotase
457	 37.92	0	485478..486980	+	500	121602424	cysS	BARBAKC583_0481	-	cysteinyl-tRNA synthetase
458	 38.91	0	487389..489272	+	627	121602194	-	BARBAKC583_0482	-	ABC transporter, permease/ATP-binding protein
459	 40.92	0	489384..490082	+	232	121602598	psd	BARBAKC583_0483	-	phosphatidylserine decarboxylase
460	 39.29	0	490091..490930	+	279	121601710	pssA	BARBAKC583_0484	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
461	 38.67	0	491013..491762	-	249	121602443	-	BARBAKC583_0485	-	short chain dehydrogenase/reductase family oxidoreductase
462	 40.24	0	491765..493255	-	496	121601755	cvpA1	BARBAKC583_0486	-	amidophosphoribosyltransferase
463	 33.16	-1	493343..493906	-	187	121601989	cvpA2	BARBAKC583_0487	-	CvpA protein
464	 34.19	-1	494201..494668	-	155	121601900	cvpA	BARBAKC583_0488	-	CvpA protein
465	 41.85	0	494823..496196	-	457	121601948	radA	BARBAKC583_0489	-	DNA repair protein RadA
466	 38.12	0	496209..497711	-	500	121602539	dnaB	BARBAKC583_0490	-	replicative DNA helicase
467	 37.22	0	498165..498704	-	179	121601657	rplI	BARBAKC583_0491	-	ribosomal protein L9
468	 33.84	-1	498730..499710	-	326	121602521	-	BARBAKC583_0492	-	hypothetical protein
469	 38.15	0	499866..500114	-	82	121602413	rpsR	BARBAKC583_0493	-	30S ribosomal protein S18
470	 42.58	0	500114..500524	-	136	121601858	rpsF	BARBAKC583_0494	-	30S ribosomal protein S6
471	 35.37	0	500881..501468	+	195	121602911	-	BARBAKC583_0495	-	PAP2 superfamily protein
472	 41.90	0	501535..502479	+	314	121601676	fabD	BARBAKC583_0496	-	malonyl CoA-acyl carrier protein transacylase
473	 39.57	0	502498..503235	+	245	121602121	fabG	BARBAKC583_0497	-	3-ketoacyl-(acyl-carrier-protein) reductase
474	 39.66	0	503494..503730	+	78	121602848	acpP	BARBAKC583_0498	-	acyl carrier protein
475	 44.42	+1	503840..505102	+	420	121602502	fabF	BARBAKC583_0499	-	3-oxoacyl-(acyl carrier protein) synthase II
476	 33.33	-1	505068..505199	+	43	121601886	-	BARBAKC583_0500	-	hypothetical protein
477	 38.02	0	505211..506320	+	369	121601894	-	BARBAKC583_0501	-	hypothetical protein
478	 35.59	0	506402..507067	+	221	121602105	-	BARBAKC583_0502	-	guanylate kinase
479	 40.43	0	507118..507948	-	276	121602690	ksgA	BARBAKC583_0503	-	dimethyladenosine transferase
480	 40.55	0	507939..508949	-	336	121602284	pdxA	BARBAKC583_0504	-	4-hydroxythreonine-4-phosphate dehydrogenase
481	 34.56	-1	508949..509926	-	325	121602042	-	BARBAKC583_0505	-	SurA domain-containing protein
482	 34.93	0	510034..512409	-	791	121602732	-	BARBAKC583_0506	-	organic solvent tolerance protein
483	 36.90	0	512422..513513	-	363	121601841	-	BARBAKC583_0507	-	YjgP/YjgQ permease
484	 35.26	0	513510..514700	-	396	121602513	-	BARBAKC583_0508	-	YjgP/YjgQ permease
485	 37.78	0	515077..515526	+	149	121602532	holC	BARBAKC583_0509	-	DNA polymerase III subunit chi
486	 35.00	0	515526..515705	+	59	121602623	-	BARBAKC583_0510	-	hypothetical protein
487	 32.20	-1	515698..515961	+	87	121601769	-	BARBAKC583_0511	-	hypothetical protein
488	 37.38	0	516533..518980	+	815	121602465	-	BARBAKC583_0512	-	putative adhesin/invasin
39.00	MEAN

4.11	STD DEV
