IslandPathversion 1.0

IslandPath Analysis: Bartonella bacilliformis KC583

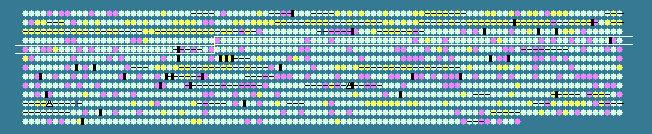

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.00 STD DEV: 4.11
Bartonella bacilliformis KC583, complete genome - 1..1445021
1283 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
333	 32.58	-1	348936..349199	-	87	121601675	-	BARBAKC583_0353	-	hypothetical protein
334	 40.00	0	349418..349642	+	74	121602396	nrdH	BARBAKC583_0354	-	glutaredoxin-like protein NrdH
335	 38.93	0	349642..350034	+	130	121602259	nrdI	BARBAKC583_0355	-	ribonucleotide reductase stimulatory protein
336	 37.47	0	350022..352172	+	716	121602719	nrdE	BARBAKC583_0356	-	ribonucleotide-diphosphate reductase subunit alpha
337	 36.10	0	352185..353159	+	324	121602770	nrdF	BARBAKC583_0358	-	ribonucleotide-diphosphate reductase subunit beta
338	 36.91	0	353156..354022	-	288	121601994	-	BARBAKC583_0357	-	HemK family methyltransferase
339	 40.65	0	354019..355098	-	359	121602027	prfA	BARBAKC583_0359	-	peptide chain release factor 1
340	 36.93	0	355283..355699	-	138	121602581	fur	BARBAKC583_0360	-	ferric uptake regulation protein
341	 39.88	0	355713..358445	-	910	121602737	secA	BARBAKC583_0361	-	preprotein translocase subunit SecA
342	 37.03	0	358846..359793	+	315	121602142	-	BARBAKC583_0362	-	peptidyl-prolyl cis-trans isomerase domain-containing protein
343	 41.73	0	359895..361133	+	412	121602876	argJ	BARBAKC583_0363	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
344	 39.61	0	361255..361668	+	137	121602402	mutT	BARBAKC583_0364	-	mutator mutT protein
345	 37.24	0	362009..363364	+	451	121601867	-	BARBAKC583_0365	-	dicarboxylate/amino acid:cation (Na+ or H+) symporter (DAACS) family protein
346	 38.72	0	363387..364277	-	296	121602556	-	BARBAKC583_0366	-	hypothetical protein
347	 40.74	0	364495..365250	+	251	121601823	-	BARBAKC583_0367	-	comF family protein
348	 35.27	0	365290..365547	+	85	121602498	grxC	BARBAKC583_0368	-	glutaredoxin 3
349	 38.55	0	365565..366311	-	248	121602909	ubiG	BARBAKC583_0369	-	3-demethylubiquinone-9 3-methyltransferase
350	 41.47	0	366495..367748	+	417	121602341	-	BARBAKC583_0370	-	aspartate kinase
351	 40.10	0	368168..369526	-	452	121602122	nhaA	BARBAKC583_0371	-	Na+/H+ antiporter NhaA
352	 34.27	-1	369647..371350	-	567	121602854	-	BARBAKC583_0372	-	hypothetical protein
353	 36.16	0	371869..372540	+	223	121602031	-	BARBAKC583_0373	-	hypothetical protein
354	 41.21	0	372545..373966	+	473	121602708	engA	BARBAKC583_0374	-	GTP-binding protein EngA
355	 40.18	0	374282..374719	+	145	121602317	-	BARBAKC583_0375	-	hypothetical protein
356	 36.89	0	374721..375479	+	252	121602220	atpB	BARBAKC583_0376	-	F0F1 ATP synthase subunit A
357	 41.56	0	375534..375764	+	76	121602464	-	BARBAKC583_0377	-	F0F1 ATP synthase subunit C
358	 36.21	0	375972..376457	+	161	121602545	-	BARBAKC583_0378	-	F0F1 ATP synthase subunit B'
359	 36.46	0	376469..376948	+	159	121602072	-	BARBAKC583_0379	-	F0F1 ATP synthase subunit B
360	 37.65	0	377343..379565	-	740	121602631	glyS	BARBAKC583_0380	-	glycyl-tRNA synthetase subunit beta
361	 40.27	0	379558..380508	-	316	121602247	glyQ	BARBAKC583_0381	-	glycyl-tRNA synthetase subunit alpha
362	 36.34	0	380574..382304	-	576	121602403	-	BARBAKC583_0382	-	TPR repeat-containing protein
363	 39.04	0	382394..383410	-	338	121602666	-	BARBAKC583_0383	-	polyprenyl synthetase
364	 39.65	0	383672..384463	+	263	121601931	-	BARBAKC583_0384	-	methyltransferase domain-containing protein
365	 40.61	0	384566..385417	+	283	121602669	-	BARBAKC583_0385	-	S49 family peptidase
366	 33.86	-1	385496..385684	+	62	121602099	-	BARBAKC583_0386	-	hypothetical protein
367	 39.78	0	385681..386595	+	304	121602449	ispE	BARBAKC583_0387	-	4-diphosphocytidyl-2C-methyl-D-erythritol kinase
368	 42.60	0	386884..387552	+	222	121601736	rnhB	BARBAKC583_0388	-	ribonuclease HII
369	 40.19	0	387549..388511	+	320	121602316	-	BARBAKC583_0389	-	Sua5/YciO/YrdC family protein
370	 38.94	0	388514..389923	+	469	121601876	-	BARBAKC583_0390	-	FAD-binding protein
371	 34.30	-1	390075..390593	+	172	121601919	-	BARBAKC583_0391	-	hypothetical protein
372	 41.41	0	390863..392137	-	424	121602480	purD	BARBAKC583_0392	-	phosphoribosylamine--glycine ligase
373	 38.01	0	392230..393234	+	334	121602063	ubiA	BARBAKC583_0393	-	prenyltransferase
374	 39.51	0	393315..393962	-	215	121602642	pdxH	BARBAKC583_0394	-	pyridoxamine 5'-phosphate oxidase
375	 39.44	0	394256..395155	+	299	121602693	-	BARBAKC583_0395	-	DnaJ family protein
376	 42.25	0	395293..396111	+	272	121602192	-	BARBAKC583_0396	-	enoyl-(acyl carrier protein) reductase
377	 42.28	0	396240..397334	+	364	121601775	aroC	BARBAKC583_0397	-	chorismate synthase
378	 37.65	0	397345..398457	+	370	121602555	ribBA	BARBAKC583_0398	-	riboflavin biosynthesis protein RibBA
379	 34.51	-1	398465..398719	+	84	121601831	xseB	BARBAKC583_0399	-	exodeoxyribonuclease VII small subunit
380	 42.62	0	398917..400833	+	638	121602344	dxs	BARBAKC583_0400	-	1-deoxy-D-xylulose-5-phosphate synthase
381	 38.65	0	400841..401593	+	250	121601957	-	BARBAKC583_0401	-	hemolysin A
382	 39.55	0	401583..402836	+	417	121602231	-	BARBAKC583_0402	-	tRNA (Uracil-5-)-methyltransferase
383	 41.23	0	402896..404314	-	472	121602797	-	BARBAKC583_0403	-	TldD/PmbA family protein
384	 37.96	0	404424..404963	-	179	121602641	-	BARBAKC583_0404	-	invasion associated locus B family protein
385	 38.03	0	405361..406296	+	311	121602050	cyoE	BARBAKC583_0405	-	protoheme IX farnesyltransferase
386	 38.95	0	406484..407533	+	349	121601859	ispH	BARBAKC583_0406	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
387	 23.81	-2	407646..407771	+	41	121602549	-	BARBAKC583_0407	-	hypothetical protein
388	 41.45	0	407962..408429	+	155	121602209	rnhA	BARBAKC583_0409	-	ribonuclease HI
389	 32.34	-1	408419..409324	-	301	121602799	-	BARBAKC583_0408	-	hypothetical protein
390	 37.68	0	410045..412921	-	958	121602305	-	BARBAKC583_0410	-	sensory box-containing diguanylate cyclase/cyclic diguanylate phosphodiesterase
391	 39.01	0	413366..414634	-	422	121601771	-	BARBAKC583_0411	-	M16 family peptidase
392	 34.49	-1	415015..415707	-	230	121601956	-	BARBAKC583_0412	-	HAD family hydrolase
393	 39.67	0	416018..417154	+	378	121602378	ccrMIM	BARBAKC583_0413	-	modification methylase CcrMI
394	 38.65	0	417244..418296	-	350	121602108	mutY	BARBAKC583_0414	-	A/G-specific adenine glycosylase
395	 31.62	-1	418329..418445	+	38	121602473	-	BARBAKC583_0415	-	hypothetical protein
396	 35.56	0	418517..419011	+	164	121602860	-	BARBAKC583_0416	-	hypothetical protein
397	 36.41	0	419106..419756	+	216	121602418	-	BARBAKC583_0417	-	DSBA-like thioredoxin domain-containing protein
398	 41.56	0	419941..422628	+	895	121601968	ppdK	BARBAKC583_0418	-	pyruvate phosphate dikinase
399	 35.51	0	423656..424252	+	198	121602729	sodB	BARBAKC583_0420	-	superoxide dismutase
400	 37.88	0	424345..426435	-	696	121602456	-	BARBAKC583_0421	-	peptidase, S9A/B/C family protein
401	 21.28	-2	427036..427176	-	46	121601955	-	BARBAKC583_0422	-	hypothetical protein
402	 41.20	0	427263..427694	+	143	121602360	-	BARBAKC583_0423	-	Ros/MucR family transcriptional regulator
403	 37.75	0	427808..428215	-	135	121601721	sufE	BARBAKC583_0424	-	cysteine desulfuration protein SufE
404	 32.23	-1	428340..428702	-	120	121602754	-	BARBAKC583_0425	-	hypothetical protein
405	 32.86	-1	429266..430111	+	281	121602040	-	BARBAKC583_0426	-	peptidoglycan binding domain-containing protein
406	 44.07	+1	430337..430513	+	58	121602820	-	BARBAKC583_0427	-	hypothetical protein
407	 39.64	0	430531..431196	+	221	121602270	feuP	BARBAKC583_0428	-	transcriptional regulator FeuP
408	 38.40	0	431193..432614	+	473	121602486	feuQ	BARBAKC583_0429	-	sensor histidine kinase FeuQ
409	 37.51	0	432728..433564	+	278	121601826	-	BARBAKC583_0430	-	putative cytochrome c-type biogenesis protein CycH
410	 34.17	-1	433763..434239	+	158	121602569	cycJ	BARBAKC583_0431	-	cytochrome c-type biogenesis protein CcmE
411	 36.67	0	434255..436234	+	659	121602094	cycK	BARBAKC583_0432	-	cytochrome c-type biogenesis protein CycK
412	 33.78	-1	436237..436680	+	147	121602425	cycL	BARBAKC583_0433	-	cytochrome c-type biogenesis protein CycL
413	 40.97	0	436882..438399	+	505	121601816	-	BARBAKC583_0434	-	protease Do family protein
414	 40.47	0	438476..439162	+	228	121602059	-	BARBAKC583_0435	-	DNA-binding response regulator
415	 38.68	0	439159..440541	+	460	121602674	-	BARBAKC583_0436	-	sensor histidine kinase
416	 23.81	-2	440609..440734	+	41	121602620	-	BARBAKC583_0437	-	hypothetical protein
417	 37.55	0	440857..443178	-	773	121602141	-	BARBAKC583_0438	-	putative non-motile and phage-resistance protein
418	 38.17	0	443458..446085	-	875	121602086	pepN	BARBAKC583_0439	-	aminopeptidase N
419	 41.55	0	446164..446991	-	275	121602683	-	BARBAKC583_0440	-	uracil-DNA glycosylase
420	 38.47	0	447202..447960	-	252	121601877	thiD	BARBAKC583_0441	-	phosphomethylpyrimidine kinase
421	 37.13	0	447951..448556	-	201	121602509	thiE	BARBAKC583_0442	-	thiamine-phosphate pyrophosphorylase
422	 40.96	0	448553..449326	-	257	121601799	thiG	BARBAKC583_0443	-	thiazole synthase
423	 35.86	0	449331..449528	-	65	121602362	thiS	BARBAKC583_0444	-	sulfur carrier protein ThiS
424	 39.43	0	449532..450482	-	316	121601887	-	BARBAKC583_0445	-	thiamine biosynthesis oxidoreductase
425	 40.41	0	450479..452314	-	611	121602460	thiC	BARBAKC583_0446	-	thiamine biosynthesis protein ThiC
426	 38.49	0	453146..454366	-	406	121601793	-	BARBAKC583_0447	-	porin family protein
427	 34.05	-1	455541..455819	+	92	121602300	-	BARBAKC583_0449	-	hypothetical protein
428	 37.78	0	455883..456107	+	74	121602837	-	BARBAKC583_0450	-	hypothetical protein
429	 33.96	-1	456224..456382	+	52	121602254	-	BARBAKC583_0451	-	hypothetical protein
430	 41.00	0	456477..458420	-	647	121602680	-	BARBAKC583_0452	-	hypothetical protein
431	 36.95	0	459089..459862	+	257	121602079	-	BARBAKC583_0453	-	N-acetylmuramoyl-L-alanine amidase family protein
432	 27.69	-2	459877..460071	-	64	121602429	-	BARBAKC583_0454	-	hypothetical protein
39.00	MEAN

4.11	STD DEV
