IslandPath Analysis: Bartonella bacilliformis KC583

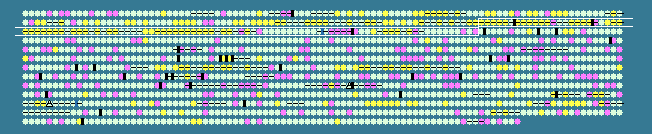

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.00 STD DEV: 4.11
Bartonella bacilliformis KC583, complete genome - 1..1445021
1283 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
177	 48.88	+2	187140..187673	-	177	121602826	-	BARBAKC583_0178	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
178	 49.12	+2	188468..188581	+	37	121602053	-	BARBAKC583_0179	-	hypothetical protein
179	 45.52	+1	188775..189578	-	267	121602610	-	BARBAKC583_0180	-	hypothetical protein
180	 46.67	+1	189905..190024	+	39	121602169	-	BARBAKC583_0181	-	hypothetical protein
181	 43.80	+1	190035..190607	-	190	121602762	-	BARBAKC583_0182	-	DsbB domain-containing protein
182	 39.61	0	190620..191240	-	206	121602780	-	BARBAKC583_0183	-	hypothetical protein
183	 43.24	+1	192709..192930	-	73	121602906	-	BARBAKC583_0185	-	hypothetical protein
184	 43.68	+1	192958..193614	-	218	121601674	-	BARBAKC583_0186	-	hypothetical protein
185	 51.08	+2	193655..196021	-	788	121602385	-	BARBAKC583_0187	-	putative DNA primase/helicase
186	 43.33	+1	196703..196822	+	39	121601653	-	BARBAKC583_0189	-	hypothetical protein
187	 46.61	+1	196797..197813	-	338	121602601	-	BARBAKC583_0188	-	hypothetical protein
188	 54.85	+2	197896..198225	+	109	121602058	-	BARBAKC583_0190	-	hypothetical protein
189	 30.95	-1	198315..198440	+	41	121602428	-	BARBAKC583_0191	-	hypothetical protein
190	 40.95	0	198720..199034	+	104	121601912	-	BARBAKC583_0192	-	hypothetical protein
191	 41.79	0	199345..199758	+	137	121601711	-	BARBAKC583_0193	-	hypothetical protein
192	 47.62	+2	199764..199952	+	62	121602420	-	BARBAKC583_0194	-	hypothetical protein
193	 42.79	0	199958..200158	+	66	121602781	-	BARBAKC583_0195	-	hypothetical protein
194	 45.80	+1	200489..201226	+	245	121602812	-	BARBAKC583_0196	-	putative exonuclease
195	 52.08	+2	201257..201400	+	47	121602277	-	BARBAKC583_0197	-	hypothetical protein
196	 33.33	-1	202279..202434	-	51	121601927	-	BARBAKC583_0199	-	hypothetical protein
197	 36.26	0	202405..202575	+	56	121602188	-	BARBAKC583_0200	-	hypothetical protein
198	 47.30	+2	202726..204021	+	431	121602447	murA	BARBAKC583_0201	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
199	 44.99	+1	204599..205447	-	282	121601893	-	BARBAKC583_0202	-	hypothetical protein
200	 44.29	+1	205450..206088	-	212	121602028	-	BARBAKC583_0203	-	5,10-methenyltetrahydrofolate synthetase
201	 44.44	+1	207002..207640	-	212	121602717	-	BARBAKC583_0204	-	TPR repeat-containing protein
202	 45.24	+1	208027..208152	-	41	121602010	rpmJ	BARBAKC583_0205	-	50S ribosomal protein L36
203	 46.85	+1	208634..208855	-	73	121602790	-	BARBAKC583_0206	-	hypothetical protein
204	 49.79	+2	208863..209105	-	80	121602204	-	BARBAKC583_0207	-	hypothetical protein
205	 44.79	+1	209516..210667	-	383	121602783	purK	BARBAKC583_0208	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
206	 49.00	+2	210676..211173	-	165	121601760	purE	BARBAKC583_0209	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
207	 51.22	+2	211621..211743	+	40	121602386	-	BARBAKC583_0210	-	hypothetical protein
208	 38.81	0	212182..212400	+	72	121602253	infA	BARBAKC583_0211	-	translation initiation factor IF-1
209	 42.68	0	212877..213539	+	220	121602672	maf2	BARBAKC583_0212	-	septum formation protein Maf
210	 44.26	+1	213698..213880	+	60	121601685	-	BARBAKC583_0213	-	hypothetical protein
211	 57.26	+2	214274..214390	+	38	121602376	-	BARBAKC583_0214	-	hypothetical protein
212	 39.47	0	214740..214853	+	37	121602139	-	BARBAKC583_0215	-	hypothetical protein
213	 45.10	+1	214858..217458	+	866	121602872	clpB	BARBAKC583_0216	-	chaperone ClpB
214	 42.42	0	217705..217902	+	65	121602890	-	BARBAKC583_0217	-	hypothetical protein
215	 43.06	0	218734..218949	+	71	121601688	-	BARBAKC583_0219	-	hypothetical protein
216	 44.78	+1	219843..220043	+	66	121602211	-	BARBAKC583_0221	-	hypothetical protein
217	 38.36	0	220520..220678	+	52	121602706	-	BARBAKC583_0223	-	hypothetical protein
218	 38.99	0	220931..221089	+	52	121601976	-	BARBAKC583_0224	-	hypothetical protein
219	 39.17	0	222089..222208	+	39	121602882	-	BARBAKC583_0225	-	hypothetical protein
220	 41.74	0	223488..223844	+	118	121602401	-	BARBAKC583_0226	-	hypothetical protein
221	 45.41	+1	225008..226216	+	402	121602586	-	BARBAKC583_0227	-	PBSX family phage terminase large subunit
222	 46.26	+1	226952..228838	+	628	121601756	-	BARBAKC583_0228	-	hypothetical protein
223	 45.82	+1	229424..230368	+	314	121602751	-	BARBAKC583_0229	-	hypothetical protein
224	 44.22	+1	230650..231825	+	391	121602056	-	BARBAKC583_0230	-	hypothetical protein
225	 47.62	+2	231904..232029	+	41	121601654	-	BARBAKC583_0231	-	hypothetical protein
226	 43.90	+1	232244..233227	+	327	121602546	-	BARBAKC583_0232	-	hypothetical protein
227	 44.67	+1	233396..234859	+	487	121602014	-	BARBAKC583_0233	-	hypothetical protein
228	 49.86	+2	234856..235890	+	344	121602759	-	BARBAKC583_0234	-	hypothetical protein
229	 43.94	+1	235887..237065	+	392	121602136	-	BARBAKC583_0235	-	hypothetical protein
230	 44.62	+1	237065..237259	+	64	121602853	-	BARBAKC583_0236	-	hypothetical protein
231	 44.10	+1	237259..237453	+	64	121602577	-	BARBAKC583_0237	-	hypothetical protein
232	 43.21	+1	237453..238424	+	323	121601916	-	BARBAKC583_0238	-	hypothetical protein
233	 38.54	0	238814..239101	+	95	121602030	-	BARBAKC583_0239	-	hypothetical protein
234	 45.85	+1	239158..239820	+	220	121602073	-	BARBAKC583_0240	-	phage lysozyme
235	 44.84	+1	239817..240068	+	83	121601804	-	BARBAKC583_0241	-	hypothetical protein
236	 36.17	0	240061..240201	+	46	121602528	-	BARBAKC583_0242	-	hypothetical protein
237	 33.07	-1	240712..241098	+	128	121602366	-	BARBAKC583_0243	-	hypothetical protein
238	 44.44	+1	241442..241558	+	38	121601763	-	BARBAKC583_0244	-	hypothetical protein
239	 36.00	0	241613..241837	+	74	121602789	-	BARBAKC583_0245	-	hypothetical protein
240	 27.91	-2	242017..242145	+	42	121602230	-	BARBAKC583_0246	-	hypothetical protein
241	 41.32	0	242345..242995	+	216	121602492	-	BARBAKC583_0247	-	hypothetical protein
242	 41.28	0	243152..243667	-	171	121601942	-	BARBAKC583_0248	-	hypothetical protein
243	 40.04	0	243884..244912	-	342	121602353	-	BARBAKC583_0249	-	sensor histidine kinase
244	 42.14	0	244912..245706	-	264	121601883	-	BARBAKC583_0250	-	two-component response regulator
245	 37.92	0	245912..246151	+	79	121602471	-	BARBAKC583_0251	-	hypothetical protein
246	 37.41	0	246542..246688	+	48	121602793	-	BARBAKC583_0253	-	hypothetical protein
247	 37.61	0	246688..246804	+	38	121601746	-	BARBAKC583_0254	-	hypothetical protein
248	 40.61	0	247061..248503	+	480	121602455	-	BARBAKC583_0255	-	sensor histidine kinase
249	 41.32	0	248644..250584	-	646	121601904	-	BARBAKC583_0256	-	M23 peptidase domain-containing protein
250	 40.38	0	250710..250865	-	51	121602036	-	BARBAKC583_0257	-	hypothetical protein
251	 41.45	0	258644..259111	+	155	121602124	-	BARBAKC583_0264	-	hypothetical protein
252	 35.01	0	259768..260124	-	118	121601783	-	BARBAKC583_0265	-	putative HTH-type transcriptional regulator ygjM
253	 34.06	-1	260121..260396	-	91	121602060	-	BARBAKC583_0266	-	hypothetical protein
254	 32.54	-1	260508..260633	-	41	121602915	-	BARBAKC583_0267	-	hypothetical protein
255	 28.33	-2	260690..260809	-	39	121602123	-	BARBAKC583_0268	-	hypothetical protein
256	 31.06	-1	261102..261233	-	43	121602850	-	BARBAKC583_0270	-	hypothetical protein
257	 40.17	0	261273..262427	+	384	121601651	-	BARBAKC583_0271	-	phosphoserine aminotransferase
258	 39.88	0	263748..264389	-	213	121602525	-	BARBAKC583_0273	-	resolvase/recombinase
259	 42.86	0	264605..264856	+	83	121602636	-	BARBAKC583_0274	-	putative DNA-binding transcriptional regulator
260	 42.11	0	264853..265251	+	132	121602619	-	BARBAKC583_0275	-	hypothetical protein
261	 44.88	+1	265664..265966	-	100	121601752	-	BARBAKC583_0276	-	putative addiction module antidote protein
262	 44.44	+1	265997..266320	-	107	121602412	-	BARBAKC583_0277	-	putative addiction module killer protein
263	 42.81	0	266629..266934	+	101	121602203	-	BARBAKC583_0278	-	hypothetical protein
264	 36.27	0	266931..267236	+	101	121602350	-	BARBAKC583_0279	-	hypothetical protein
265	 43.59	+1	267431..267664	+	77	121601646	-	BARBAKC583_0280	-	hypothetical protein
266	 29.82	-2	267624..267737	+	37	121602727	-	BARBAKC583_0282	-	hypothetical protein
267	 36.26	0	267730..268002	-	90	121602110	-	BARBAKC583_0281	-	hypothetical protein
268	 37.26	0	268002..268688	-	228	121602595	-	BARBAKC583_0283	-	putative partition protein ParA
269	 41.40	0	269682..270971	+	429	121602411	purA	BARBAKC583_0285	-	adenylosuccinate synthetase
270	 36.13	0	271223..272722	+	499	121602864	-	BARBAKC583_0286	-	hypothetical protein
271	 39.25	0	272773..273684	-	303	121602451	rpoH2	BARBAKC583_0287	-	RNA polymerase factor sigma-32
272	 40.85	0	273827..274837	-	336	121601705	-	BARBAKC583_0288	-	RluA family pseudouridine synthase
273	 40.04	0	274875..276305	-	476	121602647	-	BARBAKC583_0289	-	aldehyde dehydrogenase (NAD) family protein
274	 18.12	-2	276479..276616	+	45	121601909	-	BARBAKC583_0290	-	hypothetical protein
275	 38.64	0	276703..279321	+	872	121602778	-	BARBAKC583_0291	-	FtsK/SpoIIIE family protein
276	 34.29	-1	279902..280318	-	138	121602506	mscL	BARBAKC583_0292	-	large conductance mechanosensitive channel protein
39.00	MEAN

4.11	STD DEV
