IslandPath Analysis: Bartonella bacilliformis KC583

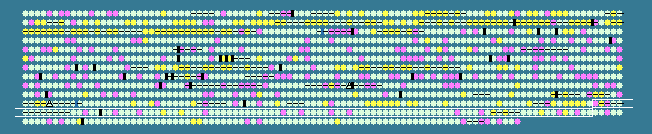

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.00 STD DEV: 4.11
Bartonella bacilliformis KC583, complete genome - 1..1445021
1283 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1096	 33.33	-1	1217862..1217981	-	39	121602818	-	BARBAKC583_1177	-	hypothetical protein
1097	 42.59	0	1218053..1219543	-	496	121602225	hisS	BARBAKC583_1178	-	histidyl-tRNA synthetase
1098	 31.52	-1	1219787..1219951	-	54	121602364	-	BARBAKC583_1179	-	hypothetical protein
1099	 40.36	0	1220076..1222010	+	644	121601789	-	BARBAKC583_1180	-	hypothetical protein
1100	 39.87	0	1221988..1222140	+	50	121602775	-	BARBAKC583_1181	-	hypothetical protein
1101	 41.81	0	1222382..1222888	-	168	121602343	-	BARBAKC583_1182	-	hypothetical protein
1102	 40.98	0	1223631..1225553	+	640	121602442	-	BARBAKC583_1183	-	hypothetical protein
1103	 40.82	0	1225871..1226017	-	48	121601689	-	BARBAKC583_1184	-	hypothetical protein
1104	 40.13	0	1227258..1227566	-	102	121602243	-	BARBAKC583_1187	-	hypothetical protein
1105	 39.32	0	1230094..1230210	-	38	121602092	-	BARBAKC583_1189	-	hypothetical protein
1106	 39.02	0	1230210..1232144	+	644	121602182	-	BARBAKC583_1190	-	hypothetical protein
1107	 37.07	0	1232586..1233521	+	311	121602895	gpsA	BARBAKC583_1191	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
1108	 38.10	0	1234097..1235524	-	475	121602005	pheP	BARBAKC583_1192	-	phenylalanine-specific permease PheP
1109	 40.72	0	1236145..1236699	-	184	121602764	bioY	BARBAKC583_1193	-	biotin transport protein BioY
1110	 35.78	0	1236696..1237349	-	217	121602496	-	BARBAKC583_1194	-	putative biotin ABC transporter, permease protein
1111	 34.95	0	1237346..1238026	-	226	121601922	-	BARBAKC583_1195	-	putative biotin ABC transporter, ATP-binding protein BioM
1112	 35.71	0	1238072..1239499	-	475	121602408	aroP	BARBAKC583_1196	-	aromatic amino acid transport protein AroP
1113	 38.46	0	1239821..1239937	-	38	121601733	-	BARBAKC583_1197	-	hypothetical protein
1114	 38.50	0	1241514..1242617	-	367	121601664	dcd	BARBAKC583_1200	-	2'-deoxycytidine 5'-triphosphate deaminase
1115	 41.23	0	1242933..1244768	+	611	121602207	mutL	BARBAKC583_1201	-	DNA mismatch repair protein
1116	 34.62	-1	1244890..1245123	+	77	121602772	-	BARBAKC583_1202	-	hypothetical protein
1117	 39.41	0	1245173..1246192	-	339	121601998	lpxK	BARBAKC583_1203	-	tetraacyldisaccharide 4'-kinase
1118	 37.91	0	1246196..1247506	-	436	121602543	kdtA	BARBAKC583_1204	-	3-deoxy-D-manno-octulosonic-acid transferase
1119	 39.29	0	1247520..1248275	-	251	121601847	-	BARBAKC583_1205	-	hypothetical protein
1120	 34.19	-1	1248358..1248591	-	77	121602438	-	BARBAKC583_1206	-	hypothetical protein
1121	 40.39	0	1249426..1250757	-	443	121601889	-	BARBAKC583_1208	-	TldD/PmbA family protein
1122	 41.76	0	1251214..1251771	-	185	121602303	-	BARBAKC583_1209	-	putative methyltransferase
1123	 38.80	0	1251752..1253251	-	499	121601745	-	BARBAKC583_1210	-	RNA pseudouridine synthase
1124	 43.85	+1	1253413..1253859	+	148	121602446	-	BARBAKC583_1211	-	cytidine and deoxycytidylate deaminase zinc-binding protein
1125	 39.81	0	1254328..1257243	-	971	121601879	ileS	BARBAKC583_1212	-	isoleucyl-tRNA synthetase
1126	 40.94	0	1257486..1258340	-	284	121602037	-	BARBAKC583_1213	-	omp25/ropB family outer membrane protein
1127	 42.97	0	1258483..1259385	-	300	121602865	-	BARBAKC583_1214	-	omp25/ropB family outer membrane protein
1128	 37.83	0	1259526..1260371	-	281	121602149	-	BARBAKC583_1215	-	omp25/ropB family outer membrane protein
1129	 37.00	0	1260812..1261138	-	108	121602383	-	BARBAKC583_1216	-	hypothetical protein
1130	 38.30	0	1261996..1263909	+	637	121601645	-	BARBAKC583_1217	-	hypothetical protein
1131	 32.46	-1	1263890..1264003	+	37	121601637	-	BARBAKC583_1218	-	hypothetical protein
1132	 37.36	0	1264067..1264687	-	206	121602332	-	BARBAKC583_1219	-	3'-5' exonuclease domain-containing protein
1133	 39.48	0	1264659..1266074	-	471	121601716	-	BARBAKC583_1220	-	hypothetical protein
1134	 38.47	0	1266148..1267023	-	291	121602138	mutM	BARBAKC583_1221	-	formamidopyrimidine-DNA glycosylase
1135	 40.85	0	1267071..1268321	-	416	121602856	-	BARBAKC583_1222	-	metalloprotease
1136	 39.06	0	1268349..1269203	-	284	121602731	-	BARBAKC583_1223	-	cell wall hydrolase family protein
1137	 37.62	0	1269493..1270215	-	240	121601959	phoU	BARBAKC583_1224	-	phosphate transport system regulatory protein PhoU
1138	 39.92	0	1270238..1270996	-	252	121602785	pstB	BARBAKC583_1225	-	phosphate ABC transporter, ATP-binding protein
1139	 39.29	0	1271037..1272329	-	430	121602070	pstA	BARBAKC583_1226	-	phosphate ABC transporter, permease protein PstA
1140	 38.06	0	1272326..1273786	-	486	121601770	pstC	BARBAKC583_1227	-	phosphate ABC transporter, permease protein PstC
1141	 38.30	0	1273849..1274895	-	348	121602675	pstS	BARBAKC583_1228	-	phosphate ABC transporter, periplasmic phosphate-binding protein
1142	 38.87	0	1275042..1275980	-	312	121602356	gshB	BARBAKC583_1229	-	glutathione synthetase
1143	 39.04	0	1276069..1276857	+	262	121602481	-	BARBAKC583_1231	-	molybdopterin biosynthesis protein MoeB
1144	 33.33	-1	1277527..1277655	-	42	121601911	-	BARBAKC583_1232	-	hypothetical protein
1145	 38.53	0	1279398..1279955	-	185	121602041	-	BARBAKC583_1235	-	cytochrome c family protein
1146	 40.03	0	1280060..1280791	+	243	121602753	kdsB	BARBAKC583_1236	-	3-deoxy-manno-octulosonate cytidylyltransferase
1147	 30.83	-1	1280868..1280987	-	39	121602187	-	BARBAKC583_1237	-	hypothetical protein
1148	 39.42	0	1281536..1283440	+	634	121602189	dnaX	BARBAKC583_1238	-	DNA polymerase III subunits gamma and tau
1149	 36.70	0	1283455..1283781	+	108	121602892	-	BARBAKC583_1239	-	hypothetical protein
1150	 41.58	0	1283819..1284424	+	201	121601748	recR	BARBAKC583_1240	-	recombination protein RecR
1151	 41.38	0	1284661..1285368	+	235	121602470	-	BARBAKC583_1241	-	glycoprotease family protein
1152	 35.37	0	1285361..1285852	+	163	121602482	-	BARBAKC583_1242	-	ribosomal-protein-alanine acetyltransferase
1153	 40.81	0	1285884..1287260	+	458	121601992	miaB	BARBAKC583_1243	-	tRNA-i(6)A37 thiotransferase enzyme MiaB
1154	 39.62	0	1287417..1288529	+	370	121602301	-	BARBAKC583_1244	-	PhoH family protein
1155	 34.80	-1	1288537..1289013	+	158	121601777	-	BARBAKC583_1245	-	hypothetical protein
1156	 39.30	0	1289116..1290138	+	340	121602803	corC	BARBAKC583_1246	-	magnesium and cobalt efflux protein CorC
1157	 37.64	0	1290101..1291726	+	541	121602264	lnt	BARBAKC583_1247	-	apolipoprotein N-acyltransferase
1158	 37.20	0	1291877..1292290	+	137	121602273	-	BARBAKC583_1248	-	DNA-binding protein
1159	 41.37	0	1292414..1293694	+	426	121602665	metK	BARBAKC583_1249	-	S-adenosylmethionine synthetase
1160	 37.18	0	1293681..1294382	+	233	121602477	trmB	BARBAKC583_1250	-	tRNA (guanine-N(7))-methyltransferase
1161	 37.14	0	1294526..1295155	+	209	121601902	-	BARBAKC583_1251	-	hypothetical protein
1162	 40.64	0	1295204..1296817	+	537	121602814	nusA	BARBAKC583_1252	-	transcription elongation factor NusA
1163	 39.31	0	1296819..1297454	+	211	121601829	-	BARBAKC583_1253	-	hypothetical protein
1164	 40.20	0	1297451..1299997	+	848	121602354	infB	BARBAKC583_1254	-	translation initiation factor IF-2
1165	 36.47	0	1300079..1300525	+	148	121601742	rbfA	BARBAKC583_1255	-	ribosome-binding factor A
1166	 39.25	0	1300529..1301491	+	320	121602518	truB	BARBAKC583_1256	-	tRNA pseudouridine synthase B
1167	 39.26	0	1301958..1302227	+	89	121601958	rpsO	BARBAKC583_1257	-	ribosomal protein S15
1168	 40.69	0	1302482..1304683	+	733	121602640	pnp	BARBAKC583_1258	-	polynucleotide phosphorylase/polyadenylase
1169	 37.94	0	1304756..1305754	+	332	121602517	-	BARBAKC583_1259	-	methyltransferase domain-containing protein
1170	 39.74	0	1305772..1307082	-	436	121602788	hslU	BARBAKC583_1260	-	ATP-dependent protease ATP-binding subunit
1171	 41.24	0	1307083..1307664	-	193	121602221	-	BARBAKC583_1261	-	ATP-dependent protease peptidase subunit
1172	 39.29	0	1307865..1308854	+	329	121602132	-	BARBAKC583_1262	-	putative L-asparaginase
1173	 35.24	0	1309034..1309978	+	314	121601663	coaA	BARBAKC583_1263	-	pantothenate kinase
1174	 38.98	0	1309992..1311389	+	465	121602823	-	BARBAKC583_1264	-	cytosol aminopeptidase family protein
1175	 41.75	0	1311517..1312371	+	284	121602676	-	BARBAKC583_1265	-	NLP/P60 family protein
1176	 39.96	0	1312752..1313309	+	185	121602573	-	BARBAKC583_1266	-	hypothetical protein
1177	 35.36	0	1313362..1313805	-	147	121602083	irr	BARBAKC583_1267	-	iron response regulator Irr
1178	 41.18	0	1314115..1314624	+	169	121602833	fabA	BARBAKC583_1268	-	3-hydroxydecanoyl-(acyl carrier protein) dehydratase
1179	 42.83	0	1314680..1315900	+	406	121602377	-	BARBAKC583_1269	-	3-oxoacyl-(acyl carrier protein) synthase I
1180	 39.56	0	1315948..1316766	+	272	121601782	-	BARBAKC583_1270	-	enoyl-(acyl carrier protein) reductase
1181	 44.25	+1	1316934..1317107	-	57	121602804	-	BARBAKC583_1271	-	hypothetical protein
1182	 40.32	0	1317110..1317481	-	123	121602245	cyoD	BARBAKC583_1272	-	cytochrome o ubiquinol oxidase, subunit IV
1183	 37.99	0	1317481..1318146	-	221	121602479	cyoC	BARBAKC583_1273	-	cytochrome o ubiquinol oxidase, subunit III
1184	 39.62	0	1318143..1320161	-	672	121601749	cyoB	BARBAKC583_1274	-	cytochrome o ubiquinol oxidase, subunit I
1185	 39.51	0	1320256..1321227	-	323	121602293	cyoA	BARBAKC583_1275	-	cytochrome o ubiquinol oxidase, subunit II
1186	 35.64	0	1321332..1321808	-	158	121601715	aroQ	BARBAKC583_1276	-	3-dehydroquinate dehydratase
1187	 42.83	0	1321846..1322982	-	378	121602459	recF	BARBAKC583_1277	-	recombination protein F
1188	 39.48	0	1323016..1324137	-	373	121601944	dnaN	BARBAKC583_1278	-	DNA polymerase III subunit beta
1189	 39.68	0	1324320..1325894	-	524	121602078	dnaA	BARBAKC583_1279	-	chromosomal replication initiation protein
1190	 32.61	-1	1326118..1326255	-	45	121602795	-	BARBAKC583_1280	-	hypothetical protein
1191	 44.19	+1	1326576..1326842	-	88	121602324	rpsT	BARBAKC583_1281	-	30S ribosomal protein S20
1192	 40.74	0	1327051..1329738	-	895	121601798	acnA	BARBAKC583_1282	-	aconitate hydratase
1193	 25.64	-2	1329919..1330035	+	38	121602849	-	BARBAKC583_1283	-	hypothetical protein
1194	 39.55	0	1330032..1330658	+	208	121602130	ccmA	BARBAKC583_1284	-	cytochrome c biogenesis protein CcmA
1195	 37.99	0	1330655..1331320	+	221	121602283	ccmB	BARBAKC583_1285	-	heme exporter protein CcmB
39.00	MEAN

4.11	STD DEV
