IslandPathversion 1.0

IslandPath Analysis: Azoarcus sp. BH72

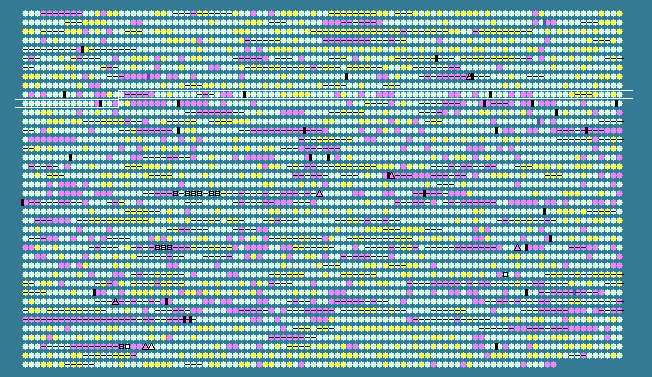

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.83 STD DEV: 4.13
Azoarcus sp. BH72, complete genome - 1..4376040
3989 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
917	 68.17	0	983320..985311	-	663	119897209	dctS	azo0918	-	two-component sensor kinase
918	 60.30	-1	985540..986544	+	334	119897210	dctP2	azo0919	-	c4-dicarboxylate-binding periplasmic protein
919	 63.23	-1	986612..987310	+	232	119897211	dctQ2	azo0920	-	putative TRAP-type C4-dicarboxylate transport system, small permease
920	 62.86	-1	987325..988611	+	428	119897212	dctM2	azo0921	-	putative TRAP-type C4-dicarboxylate transport system, large permease
921	 64.04	0	988762..989409	+	215	119897213	dedA	azo0922	-	DedA protein
922	 61.50	-1	989496..989921	+	141	119897214	ndk	azo0923	-	nucleoside diphosphate kinase
923	 64.98	0	990009..991136	+	375	119897215	-	azo0924	-	hypothetical protein
924	 68.63	0	991136..991951	+	271	119897216	pilF	azo0925	-	putative type 4 pilus biogenesis protein
925	 73.60	+1	991948..992856	+	302	119897217	-	azo0926	-	transcriptional regulator
926	 67.95	0	992856..994103	+	415	119897218	ispG	azo0927	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
927	 66.74	0	994138..995439	+	433	119897219	hisS	azo0928	-	histidyl-tRNA synthetase
928	 69.30	0	995426..996070	+	214	119897220	-	azo0929	-	hypothetical protein
929	 68.15	0	996074..997216	+	380	119897221	-	azo0930	-	hypothetical protein
930	 67.04	0	997232..998560	+	442	119897222	engA	azo0931	-	GTP-binding protein EngA
931	 58.44	-2	998667..998909	+	80	119897223	hfq	azo0932	-	RNA-binding regulatory protein
932	 65.44	0	998991..1000130	+	379	119897224	hflX1	azo0933	-	GTP-binding subunit of protease specific for phage lambda
933	 64.41	0	1000148..1001389	+	413	119897225	hflK	azo0934	-	putative Hflk protein
934	 61.34	-1	1001389..1002270	+	293	119897226	hflC	azo0935	-	hypothetical protein
935	 54.84	-2	1002278..1002463	+	61	119897227	-	azo0936	-	hypothetical protein
936	 68.66	0	1002471..1003625	+	384	119897228	hisZ	azo0937	-	ATP phosphoribosyltransferase regulatory subunit
937	 65.22	0	1003629..1004939	+	436	119897229	purA	azo0938	-	adenylosuccinate synthetase
938	 68.18	0	1005674..1008655	+	993	119897230	vacB	azo0939	-	exoribonuclease II
939	 70.46	0	1008648..1009412	+	254	119897231	-	azo0940	-	tRNA/rRNA methyltransferase
940	 69.82	0	1009579..1010880	+	433	119897232	-	azo0941	-	nitrate regulatory protein
941	 65.71	0	1011215..1012474	+	419	119897233	nasF	azo0942	-	nitrate transport system, periplasmic-binding protein
942	 68.27	0	1012491..1013423	+	310	119897234	nasE	azo0943	-	putative nitrate transport system, permease protein
943	 66.42	0	1013436..1014230	+	264	119897235	nasD	azo0944	-	putative nitrate transport system, ATP-binding protein
944	 72.55	+1	1014601..1015365	+	254	119897236	cobA1	azo0945	-	uroporphyrin-III C-methyltransferase
945	 69.15	0	1015380..1016627	+	415	119897237	nasC	azo0946	-	putative nitrate reductase small subunit
946	 73.23	+1	1016664..1019438	+	924	119897238	nasA	azo0947	-	nitrate reductase
947	 74.07	+1	1019477..1020664	+	395	119897239	-	azo0948	-	putative methyl-accepting chemotaxis protein
948	 76.29	+2	1020736..1021629	+	297	119897240	-	azo0949	-	hypothetical protein
949	 70.54	0	1021632..1023464	+	610	119897241	-	azo0950	-	GGEF/EAL/PAS/PAC-domain-containing protein
950	 66.94	0	1023516..1023875	+	119	119897242	-	azo0951	-	phosphomannose protein
951	 69.43	0	1024028..1024933	+	301	119897243	-	azo0952	-	hypothetical protein
952	 70.18	0	1024961..1025785	-	274	119897244	nfsA	azo0953	-	putative oxygen-insentive NADPH nitroreductase
953	 61.61	-1	1025891..1026424	-	177	119897245	isiB	azo0954	-	flavodoxin
954	 71.51	0	1026770..1027678	-	302	119897246	gufA	azo0955	-	putative cation transporter protein
955	 68.21	0	1027781..1029013	-	410	119897247	cfa1	azo0956	-	cyclopropane fatty acyl phospholipid synthase
956	 70.74	0	1029315..1031303	+	662	119897248	dnaX	azo0957	-	DNA polymerase III subunit tau
957	 62.42	-1	1031349..1031678	+	109	119897249	-	azo0958	-	hypothetical protein
958	 69.33	0	1031759..1032358	+	199	119897250	recR	azo0959	-	recombination protein RecR
959	 66.16	0	1032540..1033133	+	197	119897251	petA1	azo0960	-	ubiquinol-cytochrome c reductase iron-sulfur protein
960	 62.49	-1	1033137..1034405	+	422	119897252	petB	azo0961	-	ubiquinol-cytochrome c reductase cytochrome b protein
961	 63.89	0	1034402..1035157	+	251	119897253	petC	azo0962	-	putative ubiquinol-cytochrome c reductase cytochrome c1 protein
962	 60.13	-1	1035265..1035861	+	198	119897254	sspA2	azo0963	-	stringent starvation protein A
963	 64.40	0	1035915..1036355	+	146	119897255	sspB	azo0964	-	ClpXP protease specificity-enhancing factor
964	 68.30	0	1036339..1037562	-	407	119897256	-	azo0965	-	glycosyltransferase
965	 64.42	0	1037729..1038217	+	162	119897257	-	azo0966	-	hypothetical protein
966	 70.34	0	1038235..1039485	-	416	119897258	dadA1	azo0967	-	D-amino acid dehydrogenase small subunit
967	 64.67	0	1039663..1040664	+	333	119897259	cbbF	azo0968	-	fructose-1,6-bisphosphatase
968	 70.66	0	1040676..1042403	+	575	119897260	-	azo0969	-	outer membrane protein
969	 67.49	0	1042491..1043462	+	323	119897261	-	azo0970	-	hypothetical protein
970	 67.12	0	1043538..1044428	+	296	119897262	-	azo0971	-	ABC transporter permease
971	 68.68	0	1044430..1045224	+	264	119897263	-	azo0972	-	ABC transporter ATP-binding protein
972	 62.89	-1	1045436..1045726	+	96	119897264	groES1	azo0973	-	chaperonin GroES
973	 63.88	0	1045775..1047424	+	549	119897265	groEL	azo0974	-	chaperonin GroEL
974	 67.25	0	1047710..1048396	+	228	119897266	basR	azo0975	-	two-component response regulatory protein
975	 68.15	0	1048371..1049858	+	495	119897267	basS	azo0976	-	putative two-component system histidine kinase
976	 58.90	-2	1050037..1050345	+	102	119897268	-	azo0977	-	hypothetical protein
977	 65.21	0	1050342..1052060	+	572	119897269	actP	azo0978	-	acetate permease
978	 69.20	0	1052174..1052845	-	223	119897270	tctD	azo0979	-	transcriptional regulatory protein
979	 67.15	0	1053183..1054436	+	417	119897271	hemA	azo0980	-	glutamyl-tRNA reductase
980	 67.31	0	1054469..1055554	+	361	119897272	prfA	azo0981	-	peptide chain release factor 1
981	 67.03	0	1055551..1056387	+	278	119897273	hemK	azo0982	-	HemK protein
982	 62.35	-1	1056474..1056797	+	107	119897274	-	azo0983	-	hypothetical protein
983	 68.94	0	1056828..1057925	-	365	119897275	-	azo0984	-	hypothetical protein
984	 64.34	0	1057916..1058776	-	286	119897276	-	azo0985	-	hypothetical protein
985	 63.04	-1	1058789..1059091	-	100	119897277	-	azo0986	-	hypothetical protein
986	 66.25	0	1059121..1059837	-	238	119897278	-	azo0987	-	hypothetical protein
987	 67.13	0	1060017..1061303	-	428	119897279	-	azo0988	-	putative serine/threonine protein kinase
988	 67.91	0	1061310..1062752	-	480	119897280	argH	azo0989	-	argininosuccinate lyase
989	 66.37	0	1062841..1063866	+	341	119897281	algZ	azo0990	-	putative alginate biosynthesis protein AlgZ/FimS
990	 69.16	0	1063863..1064624	+	253	119897282	algR	azo0991	-	alginate biosynthesis regulatory protein AlgR
991	 69.35	0	1064654..1067407	-	917	119897283	ppc	azo0992	-	phosphoenolpyruvate carboxylase
992	 72.45	+1	1067713..1068663	+	316	119897284	hemC	azo0993	-	porphobilinogen deaminase
993	 72.06	+1	1068679..1069476	+	265	119897285	hemD	azo0994	-	HemD protein
994	 72.43	+1	1069486..1070682	+	398	119897286	hemX	azo0995	-	uroporphyrin-III C-methyltransferase
995	 71.50	0	1070695..1071894	+	399	119897287	hemY	azo0996	-	HemY protein
996	 71.94	0	1072050..1072769	+	239	119897288	glcC	azo0997	-	glc operon transcriptional activator
997	 69.67	0	1072863..1074362	+	499	119897289	glcD1	azo0998	-	glycolate oxidase subunit GlcD
998	 67.35	0	1074367..1074513	+	48	119897290	-	azo0999	-	hypothetical protein
999	 72.22	+1	1074510..1075571	+	353	119897291	glcE	azo1000	-	glycolate oxidase FAD binding subunit
1000	 69.48	0	1075575..1076819	+	414	119897292	glcF	azo1001	-	glycolate oxidase iron-sulfur subunit
1001	 66.28	0	1076945..1077721	+	258	119897293	-	azo1002	-	putative phosphoprotein phosphatase
1002	 68.98	0	1077900..1079021	+	373	119897294	pntAA	azo1003	-	NAD(P) transhydrogenase, subunit alpha part 1
1003	 65.37	0	1079035..1079343	+	102	119897295	pntAB	azo1004	-	NAD(P) transhydrogenase,subunit alpha part 2
1004	 66.38	0	1079340..1080719	+	459	119897296	pntB	azo1005	-	NAD(P) transhydrogenase, subunit beta
1005	 69.23	0	1080834..1081184	+	116	119897297	-	azo1006	-	hypothetical protein
1006	 70.40	0	1081178..1083613	-	811	119897298	-	azo1007	-	signaling protein
1007	 68.15	0	1083711..1085195	-	494	119897299	rhlE2	azo1008	-	putative ATP-dependent RNA helicase
1008	 69.04	0	1085393..1086487	-	364	119897300	-	azo1009	-	putative RNA 2'-O-ribose methyltransferase
1009	 67.90	0	1086606..1087658	+	350	119897301	tas	azo1010	-	oxidoreductase Tas
1010	 69.33	0	1087666..1088040	-	124	119897302	-	azo1011	-	hypothetical protein
1011	 68.82	0	1088233..1089531	+	432	119897303	ugpB	azo1012	-	putative glycerol-3-phosphate-binding periplasmic protein
1012	 70.40	0	1089536..1090285	+	249	119897304	ugpQ	azo1013	-	cytoplasmic glycerophosphodiester phosphodiesterase
1013	 63.65	-1	1090402..1091427	+	341	119897305	ispB	azo1014	-	octaprenyl-diphosphate synthase
1014	 70.41	0	1091631..1092566	+	311	119897306	-	azo1015	-	LysR family transcriptional regulator
1015	 66.75	0	1092645..1093793	+	382	119897307	lldA	azo1016	-	L-lactate dehydrogenase
1016	 63.09	-1	1093840..1094649	-	269	119897308	comL	azo1017	-	competence lipoprotein precursor
67.83	MEAN

4.13	STD DEV
