IslandPathversion 1.0

IslandPath Analysis: Azoarcus sp. BH72

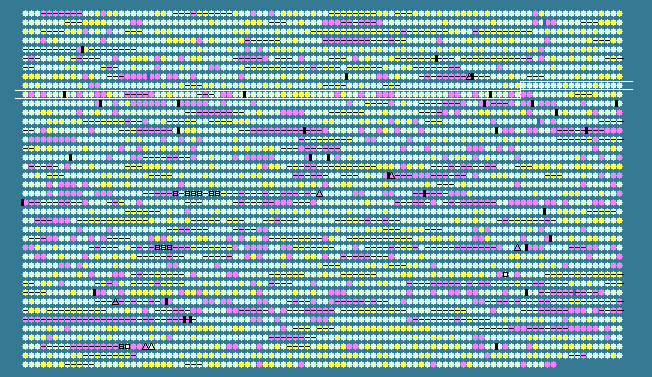

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.83 STD DEV: 4.13
Azoarcus sp. BH72, complete genome - 1..4376040
3989 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
884	 68.87	0	947097..948500	+	467	119897176	murC	azo0885	-	UDP-N-acetylmuramate--L-alanine ligase
885	 68.52	0	948497..949411	+	304	119897177	ddl	azo0886	-	D-alanine--D-alanine ligase
886	 71.24	0	949404..950234	+	276	119897178	FtsQ	azo0887	-	putative cell division protein FtsQ
887	 66.59	0	950231..951460	+	409	119897179	FtsA	azo0888	-	cell division protein FtsA
888	 67.54	0	951602..952744	+	380	119897180	FtsZ	azo0889	-	cell division protein FtsZ
889	 66.02	0	952910..953833	+	307	119897181	lpxC	azo0890	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
890	 66.67	0	953868..954056	+	62	119897182	-	azo0891	-	hypothetical protein
891	 72.03	+1	954061..954489	-	142	119897183	-	azo0892	-	hypothetical protein
892	 64.65	0	954595..957324	+	909	119897184	secA	azo0893	-	preprotein translocase subunit SecA
893	 70.99	0	957401..958882	+	493	119897185	-	azo0894	-	GAF-domain-containing protein
894	 68.60	0	958968..960209	+	413	119897186	argJ	azo0895	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
895	 69.68	0	960324..961154	+	276	119897187	-	azo0896	-	putative phosphoprotein phosphatase
896	 71.76	0	961167..962186	+	339	119897188	-	azo0897	-	hypothetical protein
897	 68.71	0	962191..963855	-	554	119897189	-	azo0898	-	putative serine/threonine protein kinase
898	 69.73	0	963863..964384	-	173	119897190	-	azo0899	-	hypothetical protein
899	 65.10	0	964488..964871	-	127	119897191	apaG	azo0900	-	ApaG
900	 65.14	0	965057..966433	+	458	119897192	purB	azo0901	-	adenylosuccinate lyase
901	 65.09	0	966512..966829	+	105	119897193	-	azo0902	-	hypothetical protein
902	 63.67	-1	966923..967855	-	310	119897194	secF	azo0903	-	preprotein translocase subunit SecF
903	 67.73	0	967876..969750	-	624	119897195	secD	azo0904	-	preprotein translocase subunit SecD
904	 62.73	-1	969851..970180	-	109	119897196	yajC	azo0905	-	preprotein translocase subunit YajC
905	 67.86	0	970362..971201	+	279	119897197	-	azo0906	-	putative signal transduction protein
906	 66.22	0	971214..972326	-	370	119897198	tgt	azo0907	-	queuine tRNA-ribosyltransferase
907	 68.79	0	972316..973353	-	345	119897199	queA	azo0908	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
908	 68.19	0	973554..974405	-	283	119897200	nhaR	azo0909	-	LysR family transcriptional regulator
909	 66.37	0	974584..974925	+	113	119897201	-	azo0910	-	hypothetical protein
910	 61.26	-1	974987..975652	+	221	119897202	yccA	azo0911	-	carrier/transport protein
911	 65.97	0	975796..977517	+	573	119897203	rosB	azo0912	-	putative potassium/proton antiporter
912	 65.47	0	977524..978858	-	444	119897204	ytfL2	azo0913	-	hemolysin
913	 63.66	-1	979395..980357	+	320	119897205	terC	azo0914	-	putative tellurium resistance protein
914	 63.25	-1	980435..981400	+	321	119897206	accA	azo0915	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
915	 72.68	+1	981412..982758	+	448	119897207	tilS	azo0916	-	putative tRNA(Ile)-lysidine synthetase
916	 64.36	0	982714..983319	-	201	119897208	-	azo0917	-	two-component response regulator
917	 68.17	0	983320..985311	-	663	119897209	dctS	azo0918	-	two-component sensor kinase
918	 60.30	-1	985540..986544	+	334	119897210	dctP2	azo0919	-	c4-dicarboxylate-binding periplasmic protein
919	 63.23	-1	986612..987310	+	232	119897211	dctQ2	azo0920	-	putative TRAP-type C4-dicarboxylate transport system, small permease
920	 62.86	-1	987325..988611	+	428	119897212	dctM2	azo0921	-	putative TRAP-type C4-dicarboxylate transport system, large permease
921	 64.04	0	988762..989409	+	215	119897213	dedA	azo0922	-	DedA protein
922	 61.50	-1	989496..989921	+	141	119897214	ndk	azo0923	-	nucleoside diphosphate kinase
923	 64.98	0	990009..991136	+	375	119897215	-	azo0924	-	hypothetical protein
924	 68.63	0	991136..991951	+	271	119897216	pilF	azo0925	-	putative type 4 pilus biogenesis protein
925	 73.60	+1	991948..992856	+	302	119897217	-	azo0926	-	transcriptional regulator
926	 67.95	0	992856..994103	+	415	119897218	ispG	azo0927	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
927	 66.74	0	994138..995439	+	433	119897219	hisS	azo0928	-	histidyl-tRNA synthetase
928	 69.30	0	995426..996070	+	214	119897220	-	azo0929	-	hypothetical protein
929	 68.15	0	996074..997216	+	380	119897221	-	azo0930	-	hypothetical protein
930	 67.04	0	997232..998560	+	442	119897222	engA	azo0931	-	GTP-binding protein EngA
931	 58.44	-2	998667..998909	+	80	119897223	hfq	azo0932	-	RNA-binding regulatory protein
932	 65.44	0	998991..1000130	+	379	119897224	hflX1	azo0933	-	GTP-binding subunit of protease specific for phage lambda
933	 64.41	0	1000148..1001389	+	413	119897225	hflK	azo0934	-	putative Hflk protein
934	 61.34	-1	1001389..1002270	+	293	119897226	hflC	azo0935	-	hypothetical protein
935	 54.84	-2	1002278..1002463	+	61	119897227	-	azo0936	-	hypothetical protein
936	 68.66	0	1002471..1003625	+	384	119897228	hisZ	azo0937	-	ATP phosphoribosyltransferase regulatory subunit
937	 65.22	0	1003629..1004939	+	436	119897229	purA	azo0938	-	adenylosuccinate synthetase
938	 68.18	0	1005674..1008655	+	993	119897230	vacB	azo0939	-	exoribonuclease II
939	 70.46	0	1008648..1009412	+	254	119897231	-	azo0940	-	tRNA/rRNA methyltransferase
940	 69.82	0	1009579..1010880	+	433	119897232	-	azo0941	-	nitrate regulatory protein
941	 65.71	0	1011215..1012474	+	419	119897233	nasF	azo0942	-	nitrate transport system, periplasmic-binding protein
942	 68.27	0	1012491..1013423	+	310	119897234	nasE	azo0943	-	putative nitrate transport system, permease protein
943	 66.42	0	1013436..1014230	+	264	119897235	nasD	azo0944	-	putative nitrate transport system, ATP-binding protein
944	 72.55	+1	1014601..1015365	+	254	119897236	cobA1	azo0945	-	uroporphyrin-III C-methyltransferase
945	 69.15	0	1015380..1016627	+	415	119897237	nasC	azo0946	-	putative nitrate reductase small subunit
946	 73.23	+1	1016664..1019438	+	924	119897238	nasA	azo0947	-	nitrate reductase
947	 74.07	+1	1019477..1020664	+	395	119897239	-	azo0948	-	putative methyl-accepting chemotaxis protein
948	 76.29	+2	1020736..1021629	+	297	119897240	-	azo0949	-	hypothetical protein
949	 70.54	0	1021632..1023464	+	610	119897241	-	azo0950	-	GGEF/EAL/PAS/PAC-domain-containing protein
950	 66.94	0	1023516..1023875	+	119	119897242	-	azo0951	-	phosphomannose protein
951	 69.43	0	1024028..1024933	+	301	119897243	-	azo0952	-	hypothetical protein
952	 70.18	0	1024961..1025785	-	274	119897244	nfsA	azo0953	-	putative oxygen-insentive NADPH nitroreductase
953	 61.61	-1	1025891..1026424	-	177	119897245	isiB	azo0954	-	flavodoxin
954	 71.51	0	1026770..1027678	-	302	119897246	gufA	azo0955	-	putative cation transporter protein
955	 68.21	0	1027781..1029013	-	410	119897247	cfa1	azo0956	-	cyclopropane fatty acyl phospholipid synthase
956	 70.74	0	1029315..1031303	+	662	119897248	dnaX	azo0957	-	DNA polymerase III subunit tau
957	 62.42	-1	1031349..1031678	+	109	119897249	-	azo0958	-	hypothetical protein
958	 69.33	0	1031759..1032358	+	199	119897250	recR	azo0959	-	recombination protein RecR
959	 66.16	0	1032540..1033133	+	197	119897251	petA1	azo0960	-	ubiquinol-cytochrome c reductase iron-sulfur protein
960	 62.49	-1	1033137..1034405	+	422	119897252	petB	azo0961	-	ubiquinol-cytochrome c reductase cytochrome b protein
961	 63.89	0	1034402..1035157	+	251	119897253	petC	azo0962	-	putative ubiquinol-cytochrome c reductase cytochrome c1 protein
962	 60.13	-1	1035265..1035861	+	198	119897254	sspA2	azo0963	-	stringent starvation protein A
963	 64.40	0	1035915..1036355	+	146	119897255	sspB	azo0964	-	ClpXP protease specificity-enhancing factor
964	 68.30	0	1036339..1037562	-	407	119897256	-	azo0965	-	glycosyltransferase
965	 64.42	0	1037729..1038217	+	162	119897257	-	azo0966	-	hypothetical protein
966	 70.34	0	1038235..1039485	-	416	119897258	dadA1	azo0967	-	D-amino acid dehydrogenase small subunit
967	 64.67	0	1039663..1040664	+	333	119897259	cbbF	azo0968	-	fructose-1,6-bisphosphatase
968	 70.66	0	1040676..1042403	+	575	119897260	-	azo0969	-	outer membrane protein
969	 67.49	0	1042491..1043462	+	323	119897261	-	azo0970	-	hypothetical protein
970	 67.12	0	1043538..1044428	+	296	119897262	-	azo0971	-	ABC transporter permease
971	 68.68	0	1044430..1045224	+	264	119897263	-	azo0972	-	ABC transporter ATP-binding protein
972	 62.89	-1	1045436..1045726	+	96	119897264	groES1	azo0973	-	chaperonin GroES
973	 63.88	0	1045775..1047424	+	549	119897265	groEL	azo0974	-	chaperonin GroEL
974	 67.25	0	1047710..1048396	+	228	119897266	basR	azo0975	-	two-component response regulatory protein
975	 68.15	0	1048371..1049858	+	495	119897267	basS	azo0976	-	putative two-component system histidine kinase
976	 58.90	-2	1050037..1050345	+	102	119897268	-	azo0977	-	hypothetical protein
977	 65.21	0	1050342..1052060	+	572	119897269	actP	azo0978	-	acetate permease
978	 69.20	0	1052174..1052845	-	223	119897270	tctD	azo0979	-	transcriptional regulatory protein
979	 67.15	0	1053183..1054436	+	417	119897271	hemA	azo0980	-	glutamyl-tRNA reductase
980	 67.31	0	1054469..1055554	+	361	119897272	prfA	azo0981	-	peptide chain release factor 1
981	 67.03	0	1055551..1056387	+	278	119897273	hemK	azo0982	-	HemK protein
982	 62.35	-1	1056474..1056797	+	107	119897274	-	azo0983	-	hypothetical protein
983	 68.94	0	1056828..1057925	-	365	119897275	-	azo0984	-	hypothetical protein
67.83	MEAN

4.13	STD DEV
