IslandPath Analysis: Azoarcus sp. BH72

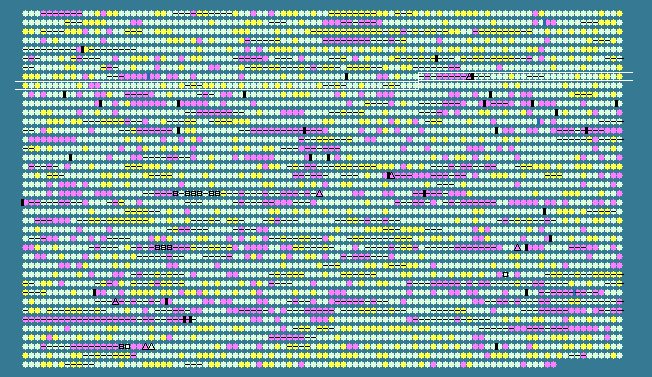

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 67.83   STD DEV: 4.13
Azoarcus sp. BH72, complete genome - 1..4376040
3989 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
767	 70.68	0	820018..820914	+	298	119897059	FtsX	azo0768	-	putative cell division protein FtsX
768	 60.11	-1	821109..821672	+	187	119897060	ahpC	azo0769	-	alkyl hydroperoxide reductase subunit C
769	 64.61	0	821802..823355	+	517	119897061	ahpF	azo0770	-	alkyl hydroperoxide reductase subunit F
770	 52.57	-2	824754..826058	-	434	119897062	-	azo0771	-	C-5 cytosine-specific DNA methylase
771	 59.78	-1	826594..827043	-	149	119897063	rnhA1	azo0772	-	RnhA1 protein
772	 58.59	-2	827040..827819	-	259	119897064	-	azo0773	-	hypothetical protein
773	 53.02	-2	828127..828822	-	231	119897065	-	azo0774	-	hypothetical protein
774	 63.16	-1	829733..830302	-	189	119897066	-	azo0775	-	putative resolvase
775	 60.14	-1	830685..832355	-	556	119897067	-	azo0776	-	putative integrase
776	 65.80	0	832729..833076	+	115	119897068	-	azo0777	-	hypothetical protein
777	 65.26	0	833091..834440	+	449	119897069	-	azo0778	-	hypothetical protein
778	 66.26	0	834440..835423	+	327	119897070	ybeZ	azo0779	-	PhoH-like protein
779	 69.43	0	835416..836174	+	252	119897071	-	azo0780	-	putative metalloprotease
780	 65.13	0	836270..837115	+	281	119897072	corC	azo0781	-	putative magnesium and cobalt efflux protein
781	 71.29	0	837115..838629	+	504	119897073	lnt	azo0782	-	putative apolipoprotein N-acyltransferase
782	 73.86	+1	838754..839893	+	379	119897074	-	azo0783	-	membrane fusion protein
783	 69.22	0	839904..842957	+	1017	119897075	-	azo0784	-	RND efflux transporter, permease protein
784	 64.40	0	843084..844010	+	308	119897076	glyQ	azo0785	-	glycyl-tRNA synthetase subunit alpha
785	 69.83	0	844007..846094	+	695	119897077	glyS	azo0786	-	glycyl-tRNA synthetase, beta chain
786	 66.10	0	846144..846677	+	177	119897078	-	azo0787	-	D,D-heptose 1,7-bisphosphate phosphatase
787	 68.51	0	846695..847453	+	252	119897079	-	azo0788	-	acyltransferase
788	 65.42	0	847542..848102	-	186	119897080	-	azo0789	-	phasin
789	 65.77	0	848399..849175	-	258	119897081	paaF1	azo0790	-	enoyl-CoA hydratase
790	 67.36	0	849202..849774	-	190	119897082	-	azo0791	-	hypothetical protein
791	 67.88	0	849771..850349	-	192	119897083	-	azo0792	-	hypothetical protein
792	 67.43	0	850359..850880	-	173	119897084	-	azo0793	-	phosphatase
793	 71.49	0	850880..851875	-	331	119897085	-	azo0794	-	sugar-phosphate isomerase
794	 68.85	0	852075..854042	+	655	119897086	-	azo0795	-	putative glutathione-regulated potassium-efflux system protein
795	 67.90	0	854050..854697	-	215	119897087	-	azo0796	-	hypothetical protein
796	 70.82	0	854732..855430	-	232	119897088	-	azo0797	-	hypothetical protein
797	 71.75	0	855418..856656	-	412	119897089	-	azo0798	-	hypothetical protein
798	 76.74	+2	856671..857057	-	128	119897090	-	azo0799	-	hypothetical protein
799	 70.73	0	857054..857644	-	196	119897091	-	azo0800	-	hypothetical protein
800	 74.39	+1	857641..859065	-	474	119897092	-	azo0801	-	hypothetical protein
801	 72.31	+1	859072..860277	-	401	119897093	gspF1	azo0802	-	general secretion pathway protein F
802	 70.61	0	860274..861974	-	566	119897094	gspE1	azo0803	-	general secretion pathway protein E
803	 71.54	0	861980..862615	-	211	119897095	-	azo0804	-	hypothetical protein
804	 67.58	0	862681..864423	-	580	119897096	gspD1	azo0805	-	general secretion pathway protein D
805	 68.23	0	864497..865330	+	277	119897097	-	azo0806	-	ABC transporter ATP-binding protein
806	 67.30	0	865327..866118	+	263	119897098	-	azo0807	-	hypothetical protein
807	 64.77	0	866118..866591	+	157	119897099	-	azo0808	-	hypothetical protein
808	 67.02	0	866632..867492	+	286	119897100	vacJ	azo0809	-	putative surface lipoprotein
809	 68.06	0	867498..868145	+	215	119897101	-	azo0810	-	hypothetical protein
810	 72.70	+1	868216..868497	+	93	119897102	-	azo0811	-	hypothetical protein
811	 67.34	0	868505..869401	+	298	119897103	-	azo0812	-	ABC transporter ATP-binding protein
812	 62.92	-1	869394..870194	+	266	119897104	-	azo0813	-	ABC-2 type transporter permease protein
813	 64.34	0	870223..870480	+	85	119897105	-	azo0814	-	BolA-like protein
814	 68.27	0	870517..871767	+	416	119897106	murA	azo0815	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
815	 68.87	0	871799..872206	-	135	119897107	rnk	azo0816	-	putative regulator of nucleoside diphosphate kinase
816	 66.07	0	872316..872990	+	224	119897108	hisG	azo0817	-	ATP phosphoribosyltransferase catalytic subunit
817	 68.65	0	872987..874297	+	436	119897109	hisD	azo0818	-	histidinol dehydrogenase
818	 70.53	0	874352..875542	-	396	119897110	aspC	azo0819	-	hypothetical protein
819	 64.72	0	875655..877499	-	614	119897111	pckG	azo0820	-	phosphoenolpyruvate carboxykinase
820	 66.80	0	877831..880107	+	758	119897112	maeB1	azo0821	-	malic enzyme
821	 69.39	0	880162..881298	+	378	119897113	-	azo0822	-	hypothetical protein
822	 66.31	0	881699..882541	+	280	119897114	pbpG	azo0823	-	D-alanyl-D-alanine carboxypeptidase
823	 67.66	0	882604..883407	-	267	119897115	allR	azo0824	-	negative regulator of allantoin and glyoxylate utilization operons
824	 73.87	+1	883506..883727	+	73	119897116	-	azo0825	-	hypothetical protein
825	 70.98	0	883724..884674	+	316	119897117	-	azo0826	-	glycerate dehydrogenase
826	 65.87	0	884876..886135	+	419	119897118	-	azo0827	-	hypothetical protein
827	 75.78	+1	886288..887790	+	500	119897119	-	azo0828	-	pseudouridylate synthase
828	 66.67	0	887858..888337	-	159	119897120	nuoB1	azo0829	-	NADH-quinone oxidoreductase chain B
829	 71.41	0	888370..889254	-	294	119897121	-	azo0830	-	AraC family transcriptional regulator
830	 69.26	0	889332..889562	-	76	119897122	-	azo0831	-	hypothetical protein
831	 71.67	0	890060..891259	-	399	119897123	-	azo0832	-	ABC transporter permease protein
832	 72.29	+1	891269..892477	-	402	119897124	-	azo0833	-	ABC transporter permease protein
833	 71.19	0	892474..893181	-	235	119897125	-	azo0834	-	ABC transporter ATP-binding protein
834	 72.15	+1	893195..894343	-	382	119897126	-	azo0835	-	membrane fusion protein
835	 66.49	0	894555..896288	-	577	119897127	glnS	azo0836	-	glutaminyl-tRNA synthetase
836	 69.01	0	896453..896836	+	127	119897128	-	azo0837	-	CrcB family protein
837	 72.15	+1	896956..897630	+	224	119897129	-	azo0838	-	outer membrane protein
838	 71.13	0	897685..900981	-	1098	119897130	-	azo0839	-	SWI/SNF family helicase
839	 65.36	0	901163..903079	-	638	119897131	thiC	azo0840	-	thiamine biosynthesis protein ThiC
840	 69.12	0	903169..904023	-	284	119897132	thiD1	azo0841	-	phosphomethylpyrimidine kinase
841	 72.97	+1	904277..905893	+	538	119897133	ecaA	azo0842	-	putative carbonic anhydrase precursor
842	 69.16	0	905906..907309	-	467	119897134	-	azo0843	-	putative transcriptional regulator
843	 74.56	+1	907471..907926	+	151	119897135	-	azo0844	-	hypothetical protein
844	 68.88	0	908009..908686	+	225	119897136	-	azo0845	-	putative transcriptional regulator
845	 73.19	+1	908683..909771	+	362	119897137	-	azo0846	-	membrane fusion protein
846	 67.85	0	909768..912986	+	1072	119897138	-	azo0847	-	RND efflux transporter, permease protein
847	 66.21	0	913062..913715	+	217	119897139	pcm1	azo0848	-	putative protein-L-isoaspartate O-methyltransferase
848	 66.05	0	913724..914047	+	107	119897140	-	azo0849	-	putative sulfurtransferase protein
849	 69.70	0	914066..915382	+	438	119897141	tolC	azo0850	-	putative outer membrane efflux protein
850	 73.41	+1	915379..916623	-	414	119897142	waaA	azo0851	-	3-deoxy-D-manno-octulosonic-acid transferase
851	 64.78	0	916809..917816	+	335	119897143	wbnF	azo0852	-	putative nucleotide sugar epimerase
852	 68.92	0	917838..918635	+	265	119897144	apaH	azo0853	-	diadenosine tetraphosphatase
853	 71.46	0	918645..919436	-	263	119897145	plsC	azo0854	-	putative 1-acyl-sn-glycerol-3-phosphate acyltransferase
854	 66.14	0	919508..920266	-	252	119897146	-	azo0855	-	hypothetical protein
855	 71.31	0	920383..921654	+	423	119897147	-	azo0856	-	glycosyltransferase
856	 66.45	0	921718..922653	+	311	119897148	-	azo0857	-	putative carbohydrate kinase
857	 71.94	0	922647..923120	+	157	119897149	slyB	azo0858	-	putative outer membrane protein SlyB
858	 67.94	0	923122..923514	-	130	119897150	dgkA	azo0859	-	diacylglycerol kinase
859	 70.85	0	923623..924912	-	429	119897151	-	azo0860	-	hypothetical protein
860	 69.38	0	924919..925803	-	294	119897152	prmA	azo0861	-	ribosomal protein L11 methyltransferase
861	 64.83	0	925814..927175	-	453	119897153	accC1	azo0862	-	acetyl-CoA carboxylase biotin carboxylase subunit
862	 73.64	+1	927168..927296	-	42	119897154	-	azo0863	-	hypothetical protein
863	 64.90	0	927305..927757	-	150	119897155	accB	azo0864	-	biotin carboxyl carrier protein of acetyl-CoA carboxylase
864	 66.06	0	927813..928310	-	165	119897156	aroQ	azo0865	-	3-dehydroquinate dehydratase
865	 67.23	0	928372..928908	-	178	119897157	-	azo0866	-	putative thioredoxin
866	 68.99	0	928905..929594	-	229	119897158	-	azo0867	-	hypothetical protein
67.83	MEAN

4.13	STD DEV
