IslandPath Analysis: Azoarcus sp. BH72

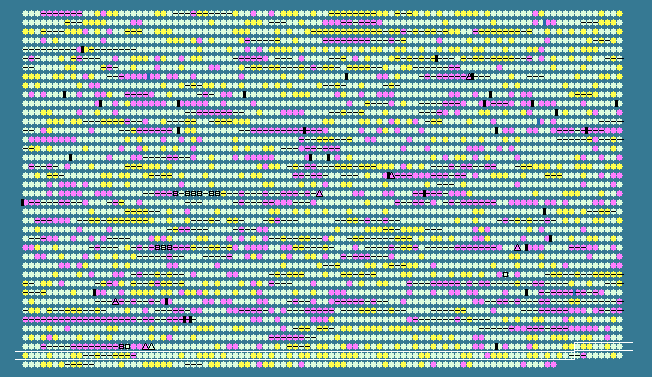

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.83 STD DEV: 4.13
Azoarcus sp. BH72, complete genome - 1..4376040
3989 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3793	 70.89	0	4156109..4156321	+	70	119900085	hupI	azo3796	-	rubredoxin protein
3794	 74.07	+1	4156321..4156887	+	188	119900086	hupJ	azo3797	-	hydrogenase expression/formation protein
3795	 76.24	+2	4156888..4157994	+	368	119900087	hupK	azo3798	-	putative hydrogenase expression/formation protein HupK
3796	 69.28	0	4157987..4158331	+	114	119900088	hypA	azo3799	-	hydrogenase nickel inorporation protein hypA
3797	 70.45	0	4158470..4159393	+	307	119900089	hypB	azo3800	-	hydrogenase accessory protein HypB
3798	 73.54	+1	4159390..4161762	+	790	119900090	hypF	azo3801	-	hydrogenase maturation protein HypF
3799	 68.33	0	4161767..4162006	+	79	119900091	hypC	azo3802	-	hydrogenase assembly chaperon HypC
3800	 69.47	0	4162003..4163145	+	380	119900092	hypD	azo3803	-	hydrogenase expression/formation protein HypD
3801	 72.17	+1	4163214..4164266	+	350	119900093	hypE	azo3804	-	hydrogenase expression/formation protein hypE
3802	 69.82	0	4164280..4165737	+	485	119900094	hoxA	azo3805	-	hydrogenase transcriptional regulatory protein
3803	 69.36	0	4165753..4166049	-	98	119900095	-	azo3806	-	hypothetical protein
3804	 71.18	0	4166203..4167198	+	331	119900096	hoxB	azo3807	-	ferredoxin hydrogenase, small subunit
3805	 72.73	+1	4167356..4168807	+	483	119900097	hoxC	azo3808	-	ferredoxin hydrogenase, large subunit
3806	 69.91	0	4168926..4170437	+	503	119900098	-	azo3809	-	hypothetical protein
3807	 68.83	0	4170469..4171854	+	461	119900099	hoxJ	azo3810	-	hydrogen uptake histidine-kinase
3808	 65.86	0	4171861..4172355	-	164	119900100	ntaB	azo3811	-	nitrilotriacetate monooxygenase
3809	 74.21	+1	4172470..4173570	+	366	119900101	mutY	azo3812	-	putative A/G-specific adenine glycosylase
3810	 71.50	0	4173767..4174366	-	199	119900102	-	azo3813	-	ATP-dependent protease La
3811	 68.73	0	4174401..4175030	-	209	119900103	ubiX	azo3814	-	aromatic acid decarboxylase
3812	 68.84	0	4175247..4175798	+	183	119900104	-	azo3815	-	phasin
3813	 72.06	+1	4175897..4176934	-	345	119900105	-	azo3816	-	AraC family transcriptional regulator
3814	 71.23	0	4177099..4178040	+	313	119900106	-	azo3817	-	hypothetical protein
3815	 69.94	0	4178048..4179208	-	386	119900107	livK5	azo3818	-	putative leucine-specific binding protein
3816	 74.79	+1	4179274..4180221	-	315	119900108	livM6	azo3819	-	putative branched-chain amino acid transport permease
3817	 72.49	+1	4180301..4181158	-	285	119900109	-	azo3820	-	ABC transporter permease protein
3818	 71.57	0	4181166..4182143	-	325	119900110	ncd2	azo3821	-	putative 2-nitropropane dioxygenase
3819	 63.15	-1	4182309..4182734	+	141	119900111	mscL	azo3822	-	large-conductance mechanosensitive channel
3820	 69.04	0	4182759..4183517	-	252	119900112	ycbL	azo3823	-	hypothetical protein
3821	 70.58	0	4183561..4184352	-	263	119900113	imp	azo3824	-	putative inositol monophosphatase protein
3822	 68.23	0	4184498..4185523	+	341	119900114	fbpA2	azo3825	-	putative ferric transport system, periplasmic-binding protein
3823	 69.64	0	4185569..4186576	+	335	119900115	fbpC2	azo3826	-	Fe3+-transporting ATPase
3824	 69.75	0	4186656..4188308	+	550	119900116	-	azo3827	-	putative ferrric transport system, permease protein
3825	 69.37	0	4188333..4189109	+	258	119900117	glpR	azo3828	-	putative glycerol-3-phosphate regulon repressor
3826	 69.69	0	4189133..4190521	+	462	119900118	eutB	azo3829	-	ethanolamine ammonia-lyase large subunit
3827	 75.39	+1	4190532..4191356	+	274	119900119	eutC	azo3830	-	putative ethanolamine ammonia-lyase small subunit
3828	 66.10	0	4191496..4192371	+	291	119900120	-	azo3831	-	hypothetical protein
3829	 66.79	0	4192520..4193338	-	272	119900121	-	azo3832	-	ABC-type tungstate transport system, permease component
3830	 73.10	+1	4193453..4194556	+	367	119900122	-	azo3833	-	putative molybdenum-binding protein
3831	 73.06	+1	4194613..4195911	-	432	119900123	-	azo3834	-	hypothetical protein
3832	 73.48	+1	4195950..4197269	-	439	119900124	pgtC	azo3835	-	putative regulatory lipoprotein
3833	 68.63	0	4197290..4199275	-	661	119900125	-	azo3836	-	TonB-dependent receptor
3834	 71.59	0	4199407..4200564	-	385	119900126	modC1	azo3837	-	putative molybdenum transport system, ATP-binding protein
3835	 68.14	0	4200561..4201241	-	226	119900127	modB1	azo3838	-	putative molybdenum transport system permease protein
3836	 66.27	0	4201261..4202022	-	253	119900128	modA1	azo3839	-	putative molybdate transport system, periplasmic-binding protein
3837	 68.00	0	4202077..4202904	-	275	119900129	modE	azo3840	-	putative molybdenum transport protein
3838	 66.67	0	4203085..4203513	+	142	119900130	modG	azo3841	-	putative molybdenum-pterin-binding-protein
3839	 75.34	+1	4203575..4204612	+	345	119900131	modC2	azo3842	-	putative molybdate transport system ATP-binding protein
3840	 74.94	+1	4204593..4205462	-	289	119900132	-	azo3843	-	hypothetical protein
3841	 68.69	0	4205489..4207765	-	758	119900133	-	azo3844	-	putative TonB-dependent receptor
3842	 73.91	+1	4208004..4208693	-	229	119900134	modB2	azo3845	-	putative molybdenum ABC transporter permease protein
3843	 70.36	0	4208693..4209478	-	261	119900135	modA2	azo3846	-	putative molybdate transport system substrate-binding protein
3844	 70.54	0	4209537..4209923	-	128	119900136	-	azo3847	-	hypothetical protein
3845	 73.69	+1	4210313..4212361	+	682	119900137	yhjG	azo3848	-	outer membrane protein
3846	 69.13	0	4212375..4214444	-	689	119900138	-	azo3849	-	GGDEF/EAL/PAS/PAC-domain-containing protein
3847	 77.37	+2	4214513..4216465	-	650	119900139	recD	azo3850	-	DNA helicase, ATP-dependent dsDNA/ssDNA exonuclease V subunit, ssDNA endonuclease
3848	 73.91	+1	4216462..4220187	-	1241	119900140	recB	azo3851	-	ATP-dependent exoDNAse beta subunit
3849	 67.97	0	4220373..4222526	+	717	119900141	irgA2	azo3852	-	putative TonB-dependent receptor
3850	 74.55	+1	4222614..4223768	+	384	119900142	-	azo3853	-	hypothetical protein
3851	 75.09	+1	4223747..4224304	+	185	119900143	ligT	azo3854	-	2'-5' RNA ligase
3852	 68.30	0	4224451..4226037	+	528	119900144	-	azo3855	-	putative alkaline phosphatase
3853	 70.75	0	4226137..4226919	+	260	119900145	-	azo3856	-	hypothetical protein
3854	 73.54	+1	4226936..4227793	-	285	119900146	paaG6	azo3857	-	putative enoyl-CoA hydratase paaG
3855	 74.39	+1	4227790..4231209	-	1139	119900147	recC	azo3858	-	DNA helicase, ATP-dependent dsDNA/ssDNA exonuclease V subunit, ssDNA endonuclease
3856	 71.44	0	4231262..4232182	-	306	119900148	yeaT	azo3859	-	LysR family transcriptional regulator
3857	 65.83	0	4232582..4233661	+	359	119900149	yeaU	azo3860	-	tartrate dehydrogenase
3858	 67.12	0	4233743..4233961	-	72	119900150	-	azo3861	-	hypothetical protein
3859	 69.09	0	4234040..4234657	-	205	119900151	-	azo3862	-	hypothetical protein
3860	 73.71	+1	4234851..4236512	+	553	119900152	-	azo3863	-	hypothetical protein
3861	 71.61	0	4236519..4236902	-	127	119900153	-	azo3864	-	cytochrome c family protein
3862	 68.64	0	4236962..4238632	-	556	119900154	exaA5	azo3865	-	putative quinoprotein ethanol dehydrogenase
3863	 66.89	0	4238668..4239555	-	295	119900155	-	azo3866	-	hypothetical protein
3864	 70.52	0	4239989..4240999	+	336	119900156	acoA2	azo3867	-	acetoin dehydrogenase, alpha subunit
3865	 66.57	0	4241016..4242053	+	345	119900157	acoB2	azo3868	-	acetoin dehydrogenase, beta subunit
3866	 68.29	0	4242264..4242509	+	81	119900158	-	azo3869	-	hypothetical protein
3867	 73.81	+1	4242513..4243226	+	237	119900159	-	azo3870	-	hypothetical protein
3868	 76.01	+1	4243226..4243996	+	256	119900160	-	azo3871	-	putative lipoate protein ligase
3869	 68.21	0	4244062..4244643	+	193	119900161	-	azo3872	-	hypothetical protein
3870	 66.60	0	4244733..4246307	+	524	119900162	-	azo3873	-	putative glucase dehydrogenase alpha subunit
3871	 66.50	0	4246369..4246983	+	204	119900163	-	azo3874	-	hypothetical protein
3872	 70.93	0	4247215..4249182	+	655	119900164	-	azo3875	-	sigma-54-dependent transcriptional regulator
3873	 65.85	0	4249321..4251393	+	690	119900165	-	azo3876	-	hypothetical protein
3874	 73.62	+1	4251398..4252432	+	344	119900166	-	azo3877	-	hypothetical protein
3875	 74.86	+1	4252437..4253474	+	345	119900167	-	azo3878	-	hypothetical protein
3876	 65.08	0	4253497..4254504	+	335	119900168	-	azo3879	-	hypothetical protein
3877	 68.88	0	4254527..4255069	+	180	119900169	-	azo3880	-	hypothetical protein
3878	 61.90	-1	4255159..4255536	+	125	119900170	-	azo3881	-	hypothetical protein
3879	 73.19	+1	4255546..4255974	+	142	119900171	-	azo3882	-	hypothetical protein
3880	 76.16	+2	4255979..4257190	+	403	119900172	-	azo3883	-	hypothetical protein
3881	 74.73	+1	4257210..4259045	+	611	119900173	-	azo3884	-	regulatory protein
3882	 69.91	0	4259097..4259867	+	256	119900174	-	azo3885	-	putative phosphoprotein phosphatase
3883	 70.18	0	4259941..4260594	+	217	119900175	-	azo3886	-	hypothetical protein
3884	 67.46	0	4260635..4261894	+	419	119900176	-	azo3887	-	hypothetical protein
3885	 72.35	+1	4261940..4263946	-	668	119900177	-	azo3888	-	putative serine/threonine kinase
3886	 75.07	+1	4264005..4264706	-	233	119900178	-	azo3889	-	hypothetical protein
3887	 69.13	0	4264709..4268281	-	1190	119900179	imcF	azo3890	-	ImcF-like protein
3888	 72.11	+1	4268313..4269617	-	434	119900180	ompA2	azo3891	-	hypothetical protein
3889	 70.41	0	4269682..4271016	-	444	119900181	impJ	azo3892	-	hypothetical protein
3890	 71.48	0	4271065..4271583	-	172	119900182	-	azo3893	-	hypothetical protein
3891	 71.00	0	4271852..4272913	+	353	119900183	sciA	azo3894	-	putative cytoplasmic protein
3892	 64.51	0	4272962..4273471	+	169	119900184	sciH	azo3895	-	putative cytoplasmic protein,SciH
67.83	MEAN

4.13	STD DEV
