IslandPath Analysis: Azoarcus sp. BH72

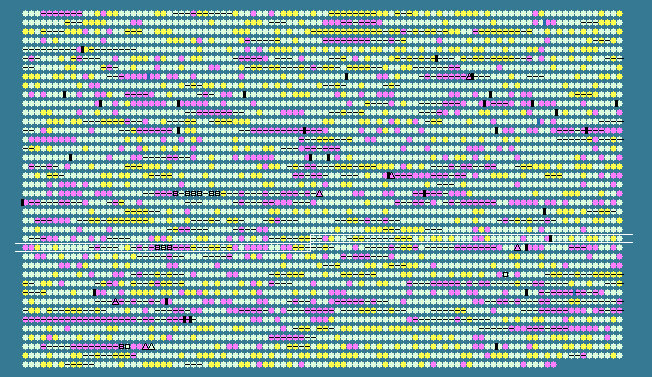

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.83 STD DEV: 4.13
Azoarcus sp. BH72, complete genome - 1..4376040
3989 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2549	 68.66	0	2819724..2820674	+	316	119898841	mdcF3	azo2550	-	putative malonate transporter
2550	 68.91	0	2821091..2821981	+	296	119898842	-	azo2551	-	hypothetical protein
2551	 63.15	-1	2822144..2823451	+	435	119898843	pilU1	azo2552	-	twitching motility protein
2552	 72.01	+1	2823562..2824104	+	180	119898844	-	azo2553	-	hypothetical protein
2553	 69.64	0	2824434..2825978	+	514	119898845	nodT	azo2554	-	putative outer membrane efflux protein
2554	 70.72	0	2825984..2826748	+	254	119898846	-	azo2555	-	HlyD family secretion protein
2555	 70.45	0	2826820..2832576	+	1918	119898847	-	azo2556	-	hypothetical protein
2556	 73.79	+1	2832576..2833937	+	453	119898848	-	azo2557	-	HlyD family secretion protein
2557	 71.78	0	2833940..2836051	+	703	119898849	-	azo2558	-	HlyD domain-containing protein
2558	 66.67	0	2836162..2836581	+	139	119898850	-	azo2559	-	hypothetical protein
2559	 64.91	0	2836767..2837564	+	265	119898851	-	azo2560	-	hypothetical protein
2560	 67.81	0	2837663..2839060	-	465	119898852	-	azo2561	-	hypothetical protein
2561	 65.67	0	2839343..2840350	+	335	119898853	ccp	azo2562	-	putative cytochrome c peroxidase
2562	 66.41	0	2840530..2840916	+	128	119898854	-	azo2563	-	hypothetical protein
2563	 74.65	+1	2840924..2841424	+	166	119898855	-	azo2564	-	putative RNA polymerase sigma factor
2564	 74.73	+1	2841421..2842239	+	272	119898856	-	azo2565	-	hypothetical protein
2565	 71.67	0	2842255..2843214	-	319	119898857	-	azo2566	-	hypothetical protein
2566	 67.96	0	2843306..2844313	-	335	119898858	-	azo2567	-	LysR family transcriptional regulator
2567	 72.90	+1	2844563..2845765	+	400	119898859	-	azo2568	-	membrane fusion protein
2568	 67.64	0	2845776..2848967	+	1063	119898860	-	azo2569	-	RND efflux transporter, permease protein
2569	 73.54	+1	2848984..2850510	+	508	119898861	opcM2	azo2570	-	outer membrane efflux protein
2570	 71.37	0	2850539..2851069	-	176	119898862	-	azo2571	-	hypothetical protein
2571	 66.20	0	2851066..2851710	-	214	119898863	-	azo2572	-	hypothetical protein
2572	 72.64	+1	2851794..2853032	-	412	119898864	fsr	azo2573	-	putative fosmidomycin resistance protein
2573	 70.10	0	2853125..2853910	+	261	119898865	-	azo2574	-	AraC family transcriptional regulator
2574	 70.39	0	2853962..2856457	-	831	119898866	gacS	azo2575	-	putative two-component hybrid sensor and regulator
2575	 69.14	0	2856467..2857276	-	269	119898867	dapB	azo2576	-	dihydrodipicolinate reductase
2576	 62.94	-1	2857314..2857823	-	169	119898868	omlA	azo2577	-	putative outer membrane lipoprotein OmlA
2577	 60.96	-1	2857844..2858281	+	145	119898869	fur	azo2578	-	putative ferric uptake regulation protein
2578	 71.70	0	2858307..2859974	-	555	119898870	recN	azo2579	-	DNA repair protein
2579	 65.31	0	2860012..2860896	-	294	119898871	ppnK	azo2580	-	inorganic polyphosphate/ATP-NAD kinase
2580	 64.53	0	2861000..2862028	+	342	119898872	hrcA	azo2581	-	heat-inducible transcription repressor
2581	 69.96	0	2862075..2863166	+	363	119898873	hemH	azo2582	-	ferrochelatase
2582	 64.99	0	2863166..2863522	+	118	119898874	-	azo2583	-	hypothetical protein
2583	 65.78	0	2863580..2864590	+	336	119898875	-	azo2584	-	hypothetical protein
2584	 62.12	-1	2864625..2865989	-	454	119898876	yloP	azo2585	-	putative protein kinase
2585	 64.76	0	2866089..2866193	+	34	119898877	-	azo2586	-	hypothetical protein
2586	 65.98	0	2866190..2867509	+	439	119898878	-	azo2587	-	N-ethylammeline chlorohydrolase
2587	 65.69	0	2867629..2868345	+	238	119898879	ompA1	azo2588	-	outer membrane protein A precursor
2588	 63.11	-1	2868451..2869152	+	233	119898880	ubiG	azo2589	-	3-demethylubiquinone-9 3-methyltransferase
2589	 70.76	0	2869577..2870845	-	422	119898881	-	azo2590	-	hypothetical protein
2590	 68.66	0	2871202..2873805	+	867	119898882	-	azo2591	-	hypothetical protein
2591	 67.54	0	2873818..2874735	+	305	119898883	-	azo2592	-	hypothetical protein
2592	 75.24	+1	2874754..2876877	+	707	119898884	-	azo2593	-	hypothetical protein
2593	 70.71	0	2876874..2878430	+	518	119898885	-	azo2594	-	hypothetical protein
2594	 68.53	0	2878452..2879951	+	499	119898886	-	azo2595	-	hypothetical protein
2595	 76.73	+2	2879974..2880957	+	327	119898887	-	azo2596	-	hypothetical protein
2596	 76.57	+2	2880971..2882566	+	531	119898888	-	azo2597	-	hypothetical protein
2597	 70.78	0	2882757..2884553	+	598	119898889	-	azo2598	-	hypothetical protein
2598	 70.63	0	2884563..2884940	-	125	119898890	abp1	azo2599	-	putative auxin-binding protein 1 precursor
2599	 74.02	+1	2885097..2885993	+	298	119898891	-	azo2600	-	LysR family transcriptional regulator
2600	 65.05	0	2886006..2886314	-	102	119898892	-	azo2601	-	putative ferredoxin subunit of nitrite reductase
2601	 62.40	-1	2886484..2886741	-	85	119898893	infA1	azo2602	-	translation initiation factor IF-1
2602	 60.29	-1	2886879..2887082	-	67	119898894	-	azo2603	-	cold shock-like protein
2603	 73.55	+1	2887497..2888339	+	280	119898895	-	azo2604	-	hypothetical protein
2604	 68.58	0	2888355..2888876	-	173	119898896	-	azo2605	-	hypothetical protein
2605	 67.35	0	2889090..2889527	+	145	119898897	-	azo2606	-	hypothetical protein
2606	 73.42	+1	2889532..2890509	-	325	119898898	panE2	azo2607	-	2-dehydropantoate 2-reductase
2607	 64.59	0	2890560..2891330	-	256	119898899	-	azo2608	-	hypothetical protein
2608	 66.15	0	2891520..2892491	-	323	119898900	-	azo2609	-	endonuclease/exonuclease/phosphatase family protein
2609	 67.65	0	2892605..2894734	-	709	119898901	fhuA2	azo2610	-	putative ferrichrome-iron TonB-dependent receptor
2610	 71.07	0	2894837..2895472	-	211	119898902	-	azo2611	-	hypothetical protein
2611	 69.55	0	2895707..2896642	-	311	119898903	-	azo2612	-	GAF/GGDEF-domain-containing protein
2612	 65.42	0	2896686..2897087	-	133	119898904	-	azo2613	-	hypothetical protein
2613	 64.04	0	2897216..2897596	-	126	119898905	-	azo2614	-	hypothetical protein
2614	 67.92	0	2897663..2898382	-	239	119898906	-	azo2615	-	hypothetical protein
2615	 70.42	0	2898514..2898939	-	141	119898907	-	azo2616	-	lactoylglutathione lyase
2616	 68.59	0	2898954..2899577	-	207	119898908	-	azo2617	-	HAD superfamily hydrolase
2617	 70.55	0	2899574..2900011	-	145	119898909	soxR	azo2618	-	redox-sensitive transcriptional activator
2618	 71.45	0	2900083..2900940	+	285	119898910	-	azo2619	-	putative methyltransferase
2619	 64.57	0	2900950..2901330	-	126	119898911	-	azo2620	-	hypothetical protein
2620	 64.25	0	2901512..2902048	-	178	119898912	-	azo2621	-	hypothetical protein
2621	 65.01	0	2902117..2903265	-	382	119898913	-	azo2622	-	hypothetical protein
2622	 50.62	-2	2903667..2904227	-	186	119898914	-	azo2623	-	hypothetical protein
2623	 60.23	-1	2904323..2904757	+	144	119898915	-	azo2624	-	putative transposase
2624	 66.67	0	2904840..2904950	+	36	119898916	-	azo2625	-	putative transposase
2625	 58.92	-2	2904985..2905281	+	98	119898917	-	azo2626	-	putative transposase
2626	 48.54	-2	2905435..2906151	-	238	119898918	-	azo2627	-	hypothetical protein
2627	 47.33	-2	2906296..2906745	-	149	119898919	-	azo2628	-	hypothetical protein
2628	 49.15	-2	2907060..2907413	-	117	119898920	-	azo2629	-	hypothetical protein
2629	 72.46	+1	2907867..2911886	-	1339	119898921	cobN	azo2630	-	cobaltochelatase
2630	 66.67	0	2911883..2912239	-	118	119898922	-	azo2631	-	hypothetical protein
2631	 69.70	0	2912250..2912711	-	153	119898923	-	azo2632	-	hypothetical protein
2632	 72.44	+1	2913014..2913775	+	253	119898924	tam	azo2633	-	trans-aconitate 2-methyltransferase
2633	 72.19	+1	2913806..2914276	-	156	119898925	-	azo2634	-	hypothetical protein
2634	 67.78	0	2914273..2914899	-	208	119898926	-	azo2635	-	hypothetical protein
2635	 71.81	0	2915051..2915770	-	239	119898927	-	azo2636	-	putative CbbY family protein
2636	 60.89	-1	2915888..2916406	-	172	119898928	-	azo2637	-	hypothetical protein
2637	 65.28	0	2916466..2918697	-	743	119898929	-	azo2638	-	ATPase
2638	 61.32	-1	2918694..2919161	-	155	119898930	-	azo2639	-	hypothetical protein
2639	 62.46	-1	2919238..2920236	+	332	119898931	mdcH	azo2640	-	putative transcriptional factor
2640	 52.98	-2	2920329..2921015	-	228	119898932	-	azo2641	-	hypothetical protein
2641	 57.58	-2	2921150..2921314	-	54	119898933	-	azo2642	-	hypothetical protein
2642	 65.25	0	2921344..2921907	-	187	119898934	-	azo2643	-	putative dual specificity protein phosphatase
2643	 66.49	0	2922087..2923211	+	374	119898935	draG2	azo2644	-	putative ADP-ribosyl-[dinitrogen reductase] hydrolase
2644	 62.08	-1	2923248..2923661	+	137	119898936	-	azo2645	-	hypothetical protein
2645	 57.49	-2	2923798..2924244	+	148	119898937	-	azo2646	-	hypothetical protein
2646	 73.87	+1	2924331..2925149	-	272	119898938	dlhH	azo2647	-	putative carboxymethylenebutenolidase
2647	 71.79	0	2925146..2926453	-	435	119898939	-	azo2648	-	MFS permease
2648	 69.94	0	2926624..2928333	-	569	119898940	-	azo2649	-	GGDEF family protein
67.83	MEAN

4.13	STD DEV
