IslandPathversion 1.0

IslandPath Analysis: Azoarcus sp. BH72

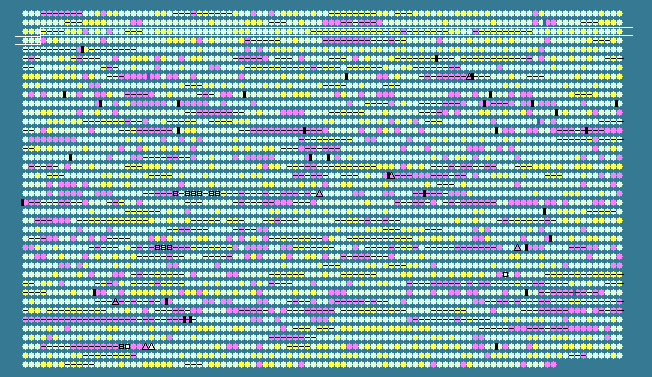

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.83 STD DEV: 4.13
Azoarcus sp. BH72, complete genome - 1..4376040
3989 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
204	 72.69	+1	226835..228079	-	414	119896496	hipO1	azo0205	-	hippurate hydrolase
205	 69.23	0	228076..228660	-	194	119896497	-	azo0206	-	AraC family transcriptional regulator
206	 68.91	0	228700..229056	+	118	119896498	-	azo0207	-	hypothetical protein
207	 67.65	0	229064..229267	-	67	119896499	-	azo0208	-	hypothetical protein
208	 71.63	0	229633..230862	-	409	119896500	agaE	azo0209	-	sarcosine oxidase, beta subunit
209	 73.83	+1	230859..232241	-	460	119896501	ooxA	azo0210	-	putative opine oxidase subunit A
210	 76.06	+1	232223..232552	-	109	119896502	-	azo0211	-	hypothetical protein
211	 61.51	-1	232564..233067	-	167	119896503	prp	azo0212	-	proline dehydrogenase transcriptional activator
212	 70.07	0	233142..234524	-	460	119896504	-	azo0213	-	hypothetical protein
213	 72.72	+1	235059..235934	-	291	119896505	-	azo0214	-	acetyltransferase
214	 70.51	0	236153..237637	+	494	119896506	aldH	azo0215	-	putative aldehyde dehydrogenase (NAD+)
215	 63.81	0	237835..238500	+	221	119896507	hadL	azo0216	-	haloalkanoic acid dehalogenase
216	 71.00	0	238541..239833	+	430	119896508	ordL	azo0217	-	FAD dependent oxidoreductase family protein
217	 69.40	0	239850..241457	+	535	119896509	dppA	azo0218	-	putative dipeptide transport system, periplasmic-binding protein
218	 71.37	0	241462..242418	+	318	119896510	dppB	azo0219	-	putative dipeptide transport system, permease protein
219	 72.37	+1	242415..243290	+	291	119896511	dppC	azo0220	-	ABC transporter, permease protein
220	 73.02	+1	243283..245109	+	608	119896512	dppD	azo0221	-	putative dipeptide transport system, ATP-binding protein
221	 71.22	0	245317..246789	+	490	119896513	gabD1	azo0222	-	succinate-semialdehyde dehydrogenase [NAD(P)+]
222	 68.29	0	247001..247369	+	122	119896514	-	azo0223	-	hypothetical protein
223	 77.75	+2	247500..248717	+	405	119896515	-	azo0224	-	outer membrane efflux protein
224	 71.86	0	248714..249310	+	198	119896516	-	azo0225	-	hypothetical protein
225	 73.39	+1	249307..250452	+	381	119896517	-	azo0226	-	hypothetical protein
226	 69.83	0	250466..253597	+	1043	119896518	czcA1	azo0227	-	putative cation efflux system protein
227	 68.69	0	253594..254088	+	164	119896519	-	azo0228	-	hypothetical protein
228	 66.02	0	254346..256517	+	723	119896520	fhuA1	azo0229	-	ferrichrome-iron TonB-dependent receptor
229	 68.93	0	256540..257289	+	249	119896521	-	azo0230	-	hypothetical protein
230	 67.24	0	257937..259160	+	407	119896522	-	azo0231	-	hypothetical protein
231	 68.09	0	259217..260059	+	280	119896523	exbB1	azo0232	-	putative biopolymer transport protein ExbB
232	 65.97	0	260085..260513	+	142	119896524	exbD1	azo0233	-	putative biopolymer transport protein ExbD
233	 65.02	0	260535..260960	+	141	119896525	exbD2	azo0234	-	putative biopolymer transport protein ExbD
234	 70.99	0	260989..261636	+	215	119896526	-	azo0235	-	hypothetical protein
235	 67.94	0	261880..262902	-	340	119896527	add	azo0236	-	adenosine deaminase
236	 73.89	+1	262974..263831	-	285	119896528	npd1	azo0237	-	putative NAD-dependent deacetylase
237	 73.39	+1	263828..264958	-	376	119896529	-	azo0238	-	hypothetical protein
238	 77.60	+2	264970..266250	-	426	119896530	-	azo0239	-	hypothetical protein
239	 67.54	0	266442..267473	+	343	119896531	dctP1	azo0240	-	putative C4-dicarboxylate-binding periplasmic protein
240	 67.48	0	267570..268058	+	162	119896532	dctQ1	azo0241	-	DctQ1 protein
241	 69.00	0	268055..269338	+	427	119896533	dctM1	azo0242	-	TRAP-type C4-dicarboxylate transport system, large permease component
242	 68.37	0	269367..270011	-	214	119896534	uidR	azo0243	-	TetR family transcriptional regulator
243	 71.74	0	270224..271426	+	400	119896535	-	azo0244	-	membrane fusion protein
244	 67.17	0	271438..274596	+	1052	119896536	-	azo0245	-	RND efflux transporter, permease protein
245	 73.15	+1	274611..276014	+	467	119896537	oprM1	azo0246	-	outer membrane efflux protein
246	 65.02	0	276172..276657	+	161	119896538	bfr1	azo0247	-	putative bacterioferritin
247	 65.13	0	276847..277365	+	172	119896539	dksA1	azo0248	-	dnaK suppressor protein
248	 73.58	+1	277409..277567	+	52	119896540	-	azo0249	-	hypothetical protein
249	 72.57	+1	277561..278289	-	242	119896541	-	azo0250	-	flavodoxin reductase
250	 78.23	+2	278417..279895	+	492	119896542	-	azo0251	-	hypothetical protein
251	 76.11	+2	279963..281318	+	451	119896543	-	azo0252	-	hypothetical protein
252	 71.73	0	281341..282051	-	236	119896544	-	azo0253	-	hypothetical protein
253	 75.11	+1	282048..282746	-	232	119896545	-	azo0254	-	polysaccharide deacetylase
254	 76.78	+2	282948..283649	-	233	119896546	-	azo0255	-	hypothetical protein
255	 73.80	+1	283646..286057	-	803	119896547	-	azo0256	-	hypothetical protein
256	 73.40	+1	286054..286632	-	192	119896548	-	azo0257	-	hypothetical protein
257	 71.92	0	286629..287561	-	310	119896549	-	azo0258	-	acetyltransferase
258	 75.64	+1	287558..287869	-	103	119896550	-	azo0259	-	hypothetical protein
259	 74.00	+1	287866..289215	-	449	119896551	-	azo0260	-	hypothetical protein
260	 74.46	+1	289232..289885	-	217	119896552	-	azo0261	-	hypothetical protein
261	 67.02	0	289885..290169	-	94	119896553	-	azo0262	-	hypothetical protein
262	 75.00	+1	290292..291683	-	463	119896554	-	azo0263	-	two-component system histidine kinase
263	 72.75	+1	291680..292336	-	218	119896555	qseB1	azo0264	-	transcriptional regulatory protein
264	 64.10	0	292491..292763	+	90	119896556	-	azo0265	-	hypothetical protein
265	 69.16	0	292777..293298	+	173	119896557	-	azo0266	-	cytochrome b561 family protein
266	 78.28	+2	293415..294473	+	352	119896558	czcB	azo0267	-	putative membrane fusion protein
267	 70.92	0	294470..297574	+	1034	119896559	czcA2	azo0268	-	putative cation efflux system protein
268	 72.06	+1	297571..297885	+	104	119896560	-	azo0269	-	hypothetical protein
269	 78.12	+2	297885..299159	+	424	119896561	-	azo0270	-	hypothetical protein
270	 64.78	0	299301..300887	-	528	119896562	-	azo0271	-	hypothetical protein
271	 72.40	+1	301090..301368	-	92	119896563	-	azo0272	-	hypothetical protein
272	 72.89	+1	301346..301972	-	208	119896564	sigW	azo0273	-	ECF family RNA polymerase sigma factor
273	 74.60	+1	301969..302409	-	146	119896565	-	azo0274	-	hypothetical protein
274	 70.18	0	302583..302924	+	113	119896566	-	azo0275	-	hypothetical protein
275	 68.36	0	303050..303640	+	196	119896567	-	azo0276	-	hypothetical protein
276	 59.31	-2	303727..304134	+	135	119896568	-	azo0277	-	hypothetical protein
277	 72.75	+1	304110..304865	-	251	119896569	-	azo0278	-	hypothetical protein
278	 75.93	+1	305070..305825	+	251	119896570	-	azo0279	-	hypothetical protein
279	 74.01	+1	305877..308081	+	734	119896571	-	azo0280	-	hypothetical protein
280	 71.94	0	308084..308728	+	214	119896572	-	azo0281	-	hypothetical protein
281	 76.46	+2	308721..309476	+	251	119896573	-	azo0282	-	hypothetical protein
282	 74.55	+1	309473..310132	-	219	119896574	-	azo0283	-	hypothetical protein
283	 76.71	+2	310129..311193	-	354	119896575	-	azo0284	-	putative Beta-ketoacyl synthase family protein
284	 66.30	0	311190..311462	-	90	119896576	-	azo0285	-	acyl carrier protein
285	 73.37	+1	311480..312718	-	412	119896577	-	azo0286	-	putative ABC transporter permease
286	 67.85	0	312733..313155	-	140	119896578	-	azo0287	-	hypothetical protein
287	 65.79	0	313152..313379	-	75	119896579	-	azo0288	-	hypothetical protein
288	 73.59	+1	313482..314405	-	307	119896580	-	azo0289	-	ABC transporter ATP-binding protein
289	 71.04	0	314413..315417	-	334	119896581	-	azo0290	-	hypothetical protein
290	 73.23	+1	315418..315813	-	131	119896582	-	azo0291	-	hypothetical protein
291	 71.08	0	315826..316980	-	384	119896583	darB	azo0292	-	3-oxoacyl-(acyl carrier protein) synthase III
292	 72.51	+1	316973..317914	-	313	119896584	darA	azo0293	-	dialkylrecorsinol condensing enzyme
293	 70.19	0	317928..319742	-	604	119896585	-	azo0294	-	putative penicillin-binding protein
294	 73.56	+1	320022..320456	+	144	119896586	-	azo0295	-	hypothetical protein
295	 68.60	0	320512..321492	-	326	119896587	-	azo0296	-	metallo-beta-lactamase superfamily protein
296	 72.75	+1	321614..321958	-	114	119896588	-	azo0297	-	hypothetical protein
297	 68.31	0	321964..322572	-	202	119896589	paaY	azo0298	-	phenyl acetic acid degradation protein
298	 67.93	0	322766..324430	-	554	119896590	paaZ	azo0299	-	dehydrogenase
299	 68.91	0	324719..325522	+	267	119896591	paaG1	azo0300	-	enoyl-CoA hydratase
300	 71.38	0	325526..327073	+	515	119896592	paaH1	azo0301	-	3-hydroxybutyryl-CoA dehydrogenase
301	 65.82	0	327066..327536	+	156	119896593	paaI	azo0302	-	phenylacetic acid degradation protein PaaI
302	 65.91	0	327612..328934	+	440	119896594	paaK	azo0303	-	phenylacetate--CoA ligase
303	 67.47	0	328992..329987	+	331	119896595	paaA	azo0304	-	phenylacetate-CoA oxygenase subunit PaaA
67.83	MEAN

4.13	STD DEV
