IslandPathversion 1.0

IslandPath Analysis: Azoarcus sp. BH72

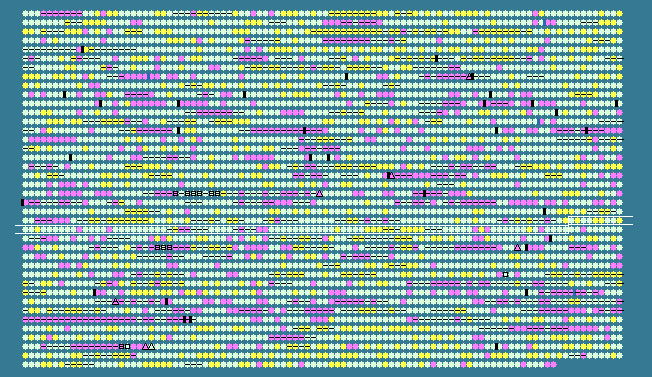

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.83 STD DEV: 4.13
Azoarcus sp. BH72, complete genome - 1..4376040
3989 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2392	 70.48	0	2632087..2632899	+	270	119898684	tauC	azo2393	-	putative sulfonate transport system, permease protein
2393	 72.57	+1	2632917..2633645	+	242	119898685	-	azo2394	-	hypothetical protein
2394	 67.64	0	2633703..2635040	+	445	119898686	phaE	azo2395	-	phenylacetate--CoA ligase
2395	 69.46	0	2635527..2637713	+	728	119898687	-	azo2396	-	putative TonB-dependent receptor
2396	 72.24	+1	2637720..2638544	-	274	119898688	-	azo2397	-	putative signaling protein
2397	 71.76	0	2638757..2639365	+	202	119898689	-	azo2398	-	hypothetical protein
2398	 68.81	0	2639458..2640438	+	326	119898690	cysK	azo2399	-	cysteine synthase A
2399	 66.13	0	2640828..2643044	+	738	119898691	-	azo2400	-	putative TonB-dependent receptor protein
2400	 71.40	0	2643054..2643623	+	189	119898692	-	azo2401	-	hypothetical protein
2401	 69.23	0	2643620..2646658	+	1012	119898693	barA	azo2402	-	putative sensor-regulator protein
2402	 67.77	0	2646655..2647560	+	301	119898694	wspR2	azo2403	-	two-component response regulator
2403	 74.37	+1	2647703..2649856	+	717	119898695	-	azo2404	-	hypothetical protein
2404	 68.49	0	2649868..2650305	-	145	119898696	ohr	azo2405	-	organic hydroperoxide resistance protein
2405	 70.18	0	2650430..2654014	-	1194	119898697	-	azo2406	-	2-oxoacid ferredoxin oxidoreductase
2406	 66.46	0	2654233..2654715	+	160	119898698	bkdR	azo2407	-	bkd operon transcriptional regulator
2407	 69.18	0	2654882..2657899	+	1005	119898699	-	azo2408	-	sensor protein
2408	 68.41	0	2657913..2659973	-	686	119898700	-	azo2409	-	putative sodium:solute sympoter
2409	 68.34	0	2660014..2662218	-	734	119898701	-	azo2410	-	DNA polymerase III epsilon chain-like protein
2410	 63.47	-1	2662346..2662720	-	124	119898702	yycF	azo2411	-	transcriptional regulatory protein
2411	 67.36	0	2662752..2665499	-	915	119898703	-	azo2412	-	two-component system sensor protein
2412	 65.66	0	2665499..2665696	-	65	119898704	-	azo2413	-	hypothetical protein
2413	 64.99	0	2665962..2667926	-	654	119898705	acsB	azo2414	-	acetyl-CoA synthetase
2414	 65.13	0	2668208..2669899	+	563	119898706	fumB	azo2415	-	putative fumarate hydratase
2415	 62.89	-1	2669865..2670155	-	96	119898707	-	azo2416	-	hypothetical protein
2416	 70.95	0	2670306..2671496	-	396	119898708	nnrS	azo2417	-	putative heme-Cu-containing membrane protein
2417	 68.77	0	2671716..2672762	+	348	119898709	gapB	azo2418	-	putative D-erythrose 4-phosphate dehydrogenase
2418	 68.54	0	2672763..2673671	-	302	119898710	nahR1	azo2419	-	putative LysR-type transcriptional regulator NahR
2419	 68.98	0	2673841..2674878	+	345	119898711	nagI	azo2420	-	gentisate 1,2-dioxygenase
2420	 66.53	0	2674933..2675643	+	236	119898712	nagK	azo2421	-	fumarylpyruvate hydrolase
2421	 66.75	0	2675686..2676879	+	397	119898713	nahG	azo2422	-	salicylate hydroxylase
2422	 67.91	0	2676985..2677626	+	213	119898714	nagL1	azo2423	-	maleylpyruvate isomerase
2423	 67.27	0	2677699..2678685	+	328	119898715	dctP3	azo2424	-	putative C4-dicarboxylate-binding periplasmic protein
2424	 66.27	0	2679037..2679540	+	167	119898716	dctQ4	azo2425	-	putative TRAP-type C4-dicarboxylate transport system, small permease component
2425	 66.74	0	2679537..2680814	+	425	119898717	dctM4	azo2426	-	putative TRAP-type C4-dicarboxylate transport system, large permease
2426	 73.43	+1	2680831..2681421	-	196	119898718	-	azo2427	-	hypothetical protein
2427	 64.29	0	2681551..2682474	-	307	119898719	-	azo2428	-	hypothetical protein
2428	 62.50	-1	2682655..2682846	-	63	119898720	nahJ	azo2429	-	4-oxalocrotonate tautomerase
2429	 66.54	0	2683055..2683843	-	262	119898721	nahK	azo2430	-	4-oxalocrotonate decarboxylase
2430	 65.61	0	2683840..2684880	-	346	119898722	nahM	azo2431	-	4-hydroxy-2-ketovalerate aldolase
2431	 65.58	0	2684895..2685815	-	306	119898723	nahO	azo2432	-	acetaldehyde dehydrogenase
2432	 70.57	0	2685848..2686642	-	264	119898724	-	azo2433	-	Short-chain dehydrogenase family protein
2433	 66.41	0	2686737..2687519	-	260	119898725	nahL	azo2434	-	2-oxopent-4-enoate hydratase
2434	 67.77	0	2687635..2689089	-	484	119898726	nahI	azo2435	-	2-hydroxymuconic semialdehyde dehydrogenase
2435	 68.04	0	2689143..2689580	-	145	119898727	-	azo2436	-	hypothetical protein
2436	 67.64	0	2689738..2690457	+	239	119898728	aphS	azo2437	-	transcriptional regulator
2437	 64.30	0	2690810..2691739	-	309	119898729	lapB2	azo2438	-	catechol 2,3-dioxygenase (metapyrocatechase)
2438	 66.76	0	2691869..2692924	-	351	119898730	poxF	azo2439	-	phenol hydroxylase, subunit P5
2439	 65.00	0	2693134..2693493	-	119	119898731	poxE	azo2440	-	phenol hydroxylase, subunit P4
2440	 62.81	-1	2693966..2695519	-	517	119898732	poxD	azo2441	-	phenol hydroxylase, subunit P3
2441	 63.70	0	2695548..2695817	-	89	119898733	poxC	azo2442	-	phenol hydrolase, subunit P2
2442	 66.57	0	2695828..2696823	-	331	119898734	poxB	azo2443	-	phenol hydroxylase, subunit P1
2443	 68.18	0	2696900..2697163	-	87	119898735	poxA	azo2444	-	putative phenol hydrolase, subunit P0
2444	 69.81	0	2697463..2697780	-	105	119898736	poxG	azo2445	-	ferredoxin-like protein
2445	 68.84	0	2698080..2699780	+	566	119898737	poxR	azo2446	-	positive regulator of phenol-degratives genes
2446	 68.71	0	2699777..2700655	-	292	119898738	pobR1	azo2447	-	PobR regulator
2447	 65.24	0	2700822..2702009	+	395	119898739	pobA	azo2448	-	4-hydroxybenzoate 3-monooxygenase
2448	 68.83	0	2702082..2703143	-	353	119898740	-	azo2449	-	putative two component response regulator
2449	 68.99	0	2703151..2705901	-	916	119898741	-	azo2450	-	putative two-component system sensor protein
2450	 71.17	0	2706261..2706971	+	236	119898742	-	azo2451	-	Short-chain dehydrogenase family protein
2451	 67.57	0	2707060..2707500	+	146	119898743	-	azo2452	-	hypothetical protein
2452	 69.78	0	2707510..2708151	-	213	119898744	-	azo2453	-	negative transcriptional regulator
2453	 71.41	0	2708500..2709174	+	224	119898745	-	azo2454	-	hypothetical protein
2454	 67.80	0	2709188..2709628	-	146	119898746	rcp2	azo2455	-	putative two-component response regulator
2455	 68.46	0	2709625..2711352	-	575	119898747	cph1	azo2456	-	putative two-component system sensor protein
2456	 69.91	0	2711355..2713823	-	822	119898748	-	azo2457	-	putative sensory box histidine kinase
2457	 71.07	0	2714039..2714560	-	173	119898749	-	azo2458	-	LuxR family transcriptional regulator
2458	 77.41	+2	2715013..2716176	+	387	119898750	-	azo2459	-	hypothetical protein
2459	 76.86	+2	2716200..2717258	+	352	119898751	-	azo2460	-	hypothetical protein
2460	 73.38	+1	2717280..2718590	+	436	119898752	-	azo2461	-	hypothetical protein
2461	 72.44	+1	2718645..2720618	+	657	119898753	-	azo2462	-	hypothetical protein
2462	 72.70	+1	2720645..2721274	+	209	119898754	-	azo2463	-	hypothetical protein
2463	 68.74	0	2721255..2722364	+	369	119898755	-	azo2464	-	hypothetical protein
2464	 75.56	+1	2722381..2723358	+	325	119898756	-	azo2465	-	hypothetical protein
2465	 76.04	+1	2723377..2724144	+	255	119898757	-	azo2466	-	hypothetical protein
2466	 75.52	+1	2724141..2725190	+	349	119898758	-	azo2467	-	hypothetical protein
2467	 71.94	0	2725351..2726754	+	467	119898759	-	azo2468	-	putative transcriptional regulator
2468	 66.43	0	2726765..2727181	-	138	119898760	-	azo2469	-	hypothetical protein
2469	 68.27	0	2727286..2728407	-	373	119898761	lldD	azo2470	-	L-lactate dehydrogenase (cytochrome)
2470	 69.37	0	2728444..2729406	-	320	119898762	panE1	azo2471	-	2-dehydropantoate 2-reductase
2471	 65.70	0	2729490..2730527	-	345	119898763	dctP4	azo2472	-	putative C4-dicarboxylate-binding periplasmic protein
2472	 70.03	0	2730630..2732087	-	485	119898764	xylC	azo2473	-	benzaldehyde dehydrogenase (NAD+)
2473	 68.25	0	2732140..2733846	-	568	119898765	alsS	azo2474	-	acetolactate synthase catalytic subunit
2474	 65.55	0	2733998..2734894	-	298	119898766	dntR	azo2475	-	LysR family transcriptional regulator
2475	 70.83	0	2735125..2736588	+	487	119898767	rdxA	azo2476	-	putative iron-sulfur 4Fe-4S ferredoxin transmembrane protein
2476	 63.25	-1	2737170..2737286	-	38	119898768	-	azo2477	-	hypothetical protein
2477	 72.57	+1	2737435..2738619	+	394	119898769	-	azo2478	-	putative permease, member of the MFS transporter
2478	 63.28	-1	2738628..2739335	-	235	119898770	-	azo2479	-	hypothetical protein
2479	 69.60	0	2739453..2739998	-	181	119898771	-	azo2480	-	TetR family transcriptional regulator
2480	 69.23	0	2740029..2740652	+	207	119898772	-	azo2481	-	hypothetical protein
2481	 69.12	0	2740640..2745688	-	1682	119898773	-	azo2482	-	putative hybrid sensor and regulator
2482	 68.30	0	2745706..2746377	-	223	119898774	-	azo2483	-	hypothetical protein
2483	 66.93	0	2746361..2747515	-	384	119898775	-	azo2484	-	putative response regulator
2484	 66.28	0	2747681..2747938	-	85	119898776	-	azo2485	-	hypothetical protein
2485	 74.54	+1	2747955..2750558	-	867	119898777	ppsA2	azo2486	-	putative phosphoenolpyruvate synthase
2486	 67.32	0	2750555..2751166	-	203	119898778	-	azo2487	-	TetR family transcriptional regulator
2487	 57.32	-2	2751342..2751662	-	106	119898779	-	azo2488	-	hypothetical protein
2488	 69.43	0	2751828..2753672	-	614	119898780	-	azo2489	-	putative transport protein
2489	 69.23	0	2753758..2754147	-	129	119898781	txn	azo2490	-	thioredoxin-disulfide reductase
2490	 69.15	0	2754465..2755391	-	308	119898782	etfA3	azo2491	-	electron transfer flavoprotein subunit alpha
2491	 65.47	0	2755391..2756140	-	249	119898783	etfB3	azo2492	-	electron transfer flavoprotein, beta subunit
67.83	MEAN

4.13	STD DEV
