IslandPath Analysis: Azoarcus sp. BH72

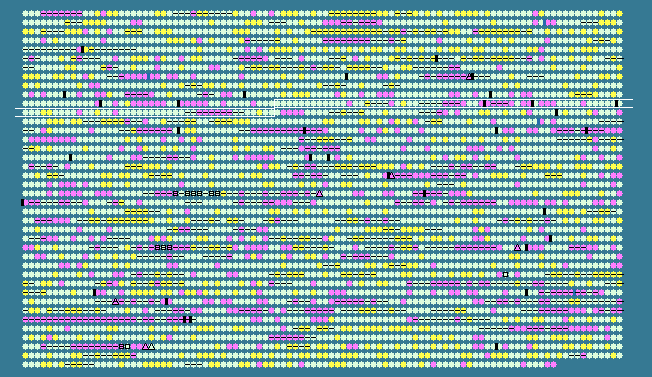

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.83 STD DEV: 4.13
Azoarcus sp. BH72, complete genome - 1..4376040
3989 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1043	 69.61	0	1124621..1125232	+	203	119897335	-	azo1044	-	hypothetical protein
1044	 68.30	0	1125226..1126023	+	265	119897336	truA	azo1045	-	tRNA pseudouridine synthase A
1045	 67.31	0	1126024..1126647	+	207	119897337	trpF	azo1046	-	N-(5'-phosphoribosyl)anthranilate isomerase
1046	 66.83	0	1126595..1127848	+	417	119897338	trpB	azo1047	-	tryptophan synthase subunit beta
1047	 68.26	0	1127891..1128706	+	271	119897339	trpA	azo1048	-	tryptophan synthase subunit alpha
1048	 67.35	0	1128703..1129575	+	290	119897340	accD	azo1049	-	acetyl-coenzyme A carboxylase carboxyl transferase subunit b
1049	 68.98	0	1129592..1130890	+	432	119897341	folC	azo1050	-	dihydrofolate synthase / tetrahydrofolylpolyglutamate synthase
1050	 71.03	0	1130902..1131543	+	213	119897342	-	azo1051	-	hypothetical protein
1051	 66.26	0	1131554..1132045	+	163	119897343	cvpA	azo1052	-	putative colicin V production protein
1052	 64.58	0	1132057..1133586	+	509	119897344	purF	azo1053	-	amidophosphoribosyltransferase
1053	 67.61	0	1133594..1134763	+	389	119897345	metZ	azo1054	-	O-succinylhomoserine sulfhydrylase
1054	 69.41	0	1134854..1135654	-	266	119897346	lpxH	azo1055	-	UDP-2,3-diacylglucosamine hydrolase
1055	 62.42	-1	1135647..1136141	-	164	119897347	ppiB	azo1056	-	peptidyl-prolyl cis-trans isomerase B
1056	 65.98	0	1136158..1136739	-	193	119897348	ppiA	azo1057	-	peptidyl-prolyl cis-trans isomerase A
1057	 67.67	0	1136784..1137980	-	398	119897349	-	azo1058	-	hypothetical protein
1058	 72.32	+1	1137983..1139239	-	418	119897350	-	azo1059	-	hypothetical protein
1059	 66.38	0	1139410..1140792	+	460	119897351	cysS	azo1060	-	cysteinyl-tRNA synthetase
1060	 68.40	0	1140857..1142011	-	384	119897352	-	azo1061	-	extracellular ligand binding protein
1061	 66.22	0	1142201..1143328	-	375	119897353	dnaJ1	azo1062	-	chaperone protein DnaJ
1062	 64.28	0	1143424..1145349	-	641	119897354	dnaK	azo1063	-	chaperone protein DnaK
1063	 65.78	0	1145464..1146030	-	188	119897355	grpE	azo1064	-	heat shock protein GrpE
1064	 71.54	0	1146167..1146412	+	81	119897356	-	azo1065	-	hypothetical protein
1065	 65.49	0	1146520..1149153	+	877	119897357	gyrA	azo1066	-	DNA gyrase subunit A
1066	 66.48	0	1149150..1150247	+	365	119897358	serC	azo1067	-	phosphoserine aminotransferase
1067	 67.89	0	1150262..1151326	+	354	119897359	pheA	azo1068	-	chorismate mutase/prephenate dehydratase
1068	 69.03	0	1151344..1152441	+	365	119897360	hisC1	azo1069	-	histidinol-phosphate aminotransferase
1069	 70.03	0	1152457..1153347	+	296	119897361	tyrA	azo1070	-	prephenate dehydrogenase
1070	 67.84	0	1153344..1155305	+	653	119897362	aroA	azo1071	-	bifunctional 3-phosphoshikimate 1-carboxyvinyltransferase/cytidine monophosphate kinase
1071	 61.28	-1	1155409..1157115	+	568	119897363	rpsA	azo1072	-	30S ribosomal protein S1
1072	 60.70	-1	1157126..1157410	+	94	119897364	ihfB	azo1073	-	integration host factor, beta-subunit
1073	 63.40	-1	1157501..1157806	+	101	119897365	-	azo1074	-	hypothetical protein
1074	 63.95	0	1157814..1158989	+	391	119897366	-	azo1075	-	hypothetical protein
1075	 64.63	0	1159107..1160429	+	440	119897367	ugd	azo1076	-	UDP-glucose 6-dehydrogenase
1076	 64.42	0	1160583..1161473	+	296	119897368	cysM	azo1077	-	cysteine synthase B
1077	 62.14	-1	1161512..1162306	+	264	119897369	-	azo1078	-	hypothetical protein
1078	 61.45	-1	1162660..1164576	+	638	119897370	-	azo1079	-	ThrS protein
1079	 59.66	-1	1164657..1165127	+	156	119897371	infC	azo1080	-	translation initiation factor IF-3
1080	 59.09	-2	1165275..1165472	+	65	119897372	rpmI	azo1081	-	50S ribosomal protein L35
1081	 61.39	-1	1165485..1165844	+	119	119897373	rplT	azo1082	-	50S ribosomal protein L20
1082	 63.08	-1	1165911..1166942	+	343	119897374	pheS	azo1083	-	phenylalanyl-tRNA synthetase subunit alpha
1083	 65.91	0	1166949..1169339	+	796	119897375	pheT	azo1084	-	phenylalanyl-tRNA synthetase beta chain
1084	 62.18	-1	1169336..1169647	+	103	119897376	ihfA	azo1085	-	integration host factor subunit alpha
1085	 61.42	-1	1169628..1170008	+	126	119897377	-	azo1086	-	MerR family transcriptional regulator
1086	 65.86	0	1170324..1171067	+	247	119897378	surE	azo1087	-	stationary phase survival protein SurE
1087	 64.03	0	1171112..1171717	+	201	119897379	pcm2	azo1088	-	protein-L-isoaspartate (D-aspartate) O-methyltransferase
1088	 63.92	0	1171714..1172622	+	302	119897380	nlpD	azo1089	-	lipoprotein
1089	 61.86	-1	1172633..1173568	+	311	119897381	rpoS	azo1090	-	RNA polymerase sigma factor RpoS
1090	 66.67	0	1173565..1174575	-	336	119897382	mltB	azo1091	-	putative membrane-bound lytic murein transglycosylase
1091	 68.13	0	1174572..1176551	-	659	119897383	-	azo1092	-	hypothetical protein
1092	 68.90	0	1176544..1177527	-	327	119897384	-	azo1093	-	hypothetical protein
1093	 67.86	0	1177527..1178444	-	305	119897385	moxR1	azo1094	-	MoxR protein
1094	 64.08	0	1178599..1179525	+	308	119897386	-	azo1095	-	histone deacetylase family protein
1095	 66.89	0	1179632..1180510	+	292	119897387	dapA	azo1096	-	dihydrodipicolinate synthase
1096	 65.61	0	1180537..1181676	+	379	119897388	nlpB	azo1097	-	putative lipoprotein
1097	 70.88	0	1181789..1182073	-	94	119897389	-	azo1098	-	hypothetical protein
1098	 67.38	0	1182332..1183447	-	371	119897390	-	azo1099	-	hypothetical protein
1099	 67.43	0	1183539..1184840	+	433	119897391	rumA	azo1100	-	23S rRNA 5-methyluridine methyltransferase
1100	 70.96	0	1185090..1185695	+	201	119897392	-	azo1101	-	pseudouridylate synthase
1101	 67.76	0	1185730..1186185	+	151	119897393	-	azo1102	-	hypothetical protein
1102	 67.89	0	1186321..1187466	+	381	119897394	flhB	azo1103	-	flagellar biosynthesis protein FlhB
1103	 67.10	0	1187481..1189580	+	699	119897395	flhA	azo1104	-	flagellar biosynthesis protein FlhA
1104	 73.65	+1	1189724..1191256	+	510	119897396	flhF	azo1105	-	flagellar biosynthesis regulator FlhF
1105	 74.33	+1	1191259..1192041	+	260	119897397	fleN	azo1106	-	flagellar-like protein FleN
1106	 68.61	0	1192166..1192936	+	256	119897398	fliA	azo1107	-	RNA polymerase sigma factor
1107	 66.53	0	1193004..1193744	+	246	119897399	motC	azo1108	-	flagellar motor protein
1108	 68.23	0	1193801..1195465	-	554	119897400	tar	azo1109	-	putative aspartate chemoreceptor protein
1109	 67.38	0	1195645..1196484	+	279	119897401	motB1	azo1110	-	flagellar motor protein MotD
1110	 63.15	-1	1196592..1197074	+	160	119897402	dcrH2	azo1111	-	putative hemerythrin-like protein
1111	 69.20	0	1197195..1199600	-	801	119897403	-	azo1112	-	DNA topoisomerase IV subunit A
1112	 67.64	0	1199800..1200315	-	171	119897404	-	azo1113	-	hypothetical protein
1113	 72.24	+1	1200393..1201181	-	262	119897405	lhpp	azo1114	-	putative inorganic pyrophosphate phosphatase
1114	 67.88	0	1201275..1203248	-	657	119897406	parE	azo1115	-	DNA topoisomerase IV subunit B
1115	 66.50	0	1203341..1203955	-	204	119897407	-	azo1116	-	hypothetical protein
1116	 63.85	0	1204519..1205832	-	437	119897408	aceA	azo1117	-	AceA protein
1117	 68.88	0	1206325..1207365	+	346	119897409	-	azo1118	-	AraC family transcriptional regulator
1118	 69.89	0	1207554..1209134	+	526	119897410	crtI	azo1119	-	phytoene dehydrogenase
1119	 70.48	0	1209318..1210130	-	270	119897411	-	azo1120	-	short chain dehydrogenase
1120	 70.96	0	1210127..1210732	-	201	119897412	-	azo1121	-	isochorismatase family protein
1121	 65.55	0	1210885..1211421	-	178	119897413	carBa1	azo1122	-	putative dioxygenase, hydroxylase small component.
1122	 65.78	0	1211408..1212763	-	451	119897414	carBb1	azo1123	-	putative dioxygenase hydroxylase large component
1123	 69.51	0	1212783..1213730	-	315	119897415	vanB1	azo1124	-	vanillate O-demethylase oxidoreductase
1124	 69.82	0	1214284..1215204	+	306	119897416	-	azo1125	-	ABC transporter permease protein
1125	 68.78	0	1215207..1216199	+	330	119897417	livM2	azo1126	-	putative branched-chain amino acid transport permease
1126	 69.33	0	1216196..1216945	+	249	119897418	-	azo1127	-	ABC transporter ATP-binding protein
1127	 68.06	0	1216942..1217658	+	238	119897419	-	azo1128	-	ABC transporter ATP-binding protein
1128	 66.33	0	1217770..1218957	+	395	119897420	-	azo1129	-	ABC transporter substrate-binding protein
1129	 66.46	0	1219045..1219530	-	161	119897421	-	azo1130	-	ribonuclease activity regulator protein RraA
1130	 62.60	-1	1219713..1220327	-	204	119897422	-	azo1131	-	hypothetical protein
1131	 63.99	0	1220421..1222703	-	760	119897423	clpA	azo1132	-	ATP-dependent Clp protease, ATP-binding subunit clpA
1132	 56.31	-2	1222704..1223012	-	102	119897424	clpS	azo1133	-	ClpS protein
1133	 53.92	-2	1223446..1223649	+	67	119897425	cspE	azo1134	-	cold-shock protein
1134	 55.36	-2	1223918..1224085	-	55	119897426	rpmG	azo1135	-	50S ribosomal protein L33
1135	 62.45	-1	1224147..1224383	-	78	119897427	rpmB	azo1136	-	50S ribosomal protein L28
1136	 67.55	0	1224488..1225165	-	225	119897428	radC1	azo1137	-	DNA repair protein radC-like protein
1137	 69.50	0	1225220..1226419	+	399	119897429	dfp	azo1138	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
1138	 68.22	0	1226436..1226885	+	149	119897430	dut	azo1139	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
1139	 68.08	0	1226887..1227312	+	141	119897431	-	azo1140	-	mutT family protein
1140	 71.44	0	1227315..1228592	-	425	119897432	soxF	azo1141	-	sulfide dehydrogenase, flavoprtein subunit
1141	 68.33	0	1228607..1228906	-	99	119897433	soxE	azo1142	-	putative sulfide dehydrogenase, cytochrome subunit
1142	 68.02	0	1229108..1229551	+	147	119897434	soxY	azo1143	-	sulfur covalently-binding protein
67.83	MEAN

4.13	STD DEV
