IslandPath Analysis: Arcobacter butzleri RM4018

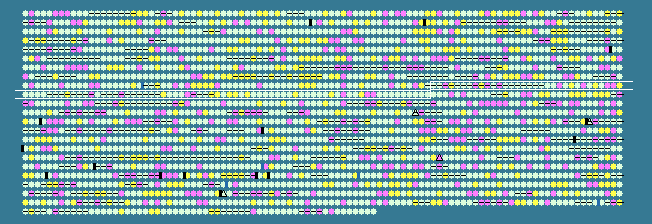

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.98 STD DEV: 3.50
Arcobacter butzleri RM4018, complete genome - 1..2341251
2259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
869	 28.61	0	893697..894542	+	281	157737140	-	Abu_0894	-	ABC transporter, permease protein
870	 27.08	0	894582..895013	+	143	157737141	-	Abu_0895	-	hypothetical protein
871	 22.62	-1	895010..895345	-	111	157737142	-	Abu_0896	-	hypothetical protein
872	 31.21	+1	895423..895563	+	46	157737143	-	Abu_0897	-	hypothetical protein
873	 25.44	0	895563..895790	+	75	157737144	-	Abu_0898	-	hypothetical protein
874	 26.03	0	895885..896706	-	273	157737145	-	Abu_0899	-	short chain dehydrogenase/reductase family oxidoreductase
875	 26.44	0	896778..897560	+	260	157737146	-	Abu_0900	-	hypothetical protein
876	 20.59	-1	897584..898894	+	436	157737147	-	Abu_0901	-	hypothetical protein
877	 32.13	+1	898912..899988	+	358	157737148	-	Abu_0902	-	cytochrome c family protein
878	 22.54	-1	900004..900948	+	314	157737149	-	Abu_0903	-	putative methyl-accepting chemotaxis protein
879	 25.04	0	900945..901607	+	220	157737150	-	Abu_0904	-	two-component response regulator
880	 21.93	-1	901594..902742	+	382	157737151	-	Abu_0905	-	two-component sensor histidine kinase
881	 25.65	0	902800..903645	+	281	157737152	-	Abu_0906	-	molybdenum transport system protein ModD, putative
882	 27.15	0	903659..904774	-	371	157737153	-	Abu_0907	-	GGDEF domain-containing protein
883	 30.18	0	904796..905239	-	147	157737154	-	Abu_0908	-	GatB/YqeY family protein
884	 28.87	0	905278..907227	-	649	157737155	-	Abu_0909	-	ABC transporter, ATP-binding protein
885	 30.38	0	907385..907993	+	202	157737156	-	Abu_0910	-	hypothetical protein
886	 30.30	0	908008..908601	-	197	157737157	-	Abu_0911	-	hypothetical protein
887	 23.79	0	908683..909384	-	233	157737158	-	Abu_0912	-	hypothetical protein
888	 26.19	0	909766..911067	-	433	157737159	-	Abu_0913	-	hypothetical protein
889	 25.86	0	911155..911502	-	115	157737160	-	Abu_0914	-	hypothetical protein
890	 22.55	-1	911511..912020	-	169	157737161	-	Abu_0915	-	hypothetical protein
891	 30.40	0	912108..913811	+	567	157737162	-	Abu_0916	-	hypothetical protein
892	 38.60	+2	914024..914365	-	113	157737163	-	Abu_0917	-	hypothetical protein
893	 25.07	0	914443..914805	-	120	157737164	-	Abu_0918	-	hypothetical protein
894	 22.26	-1	914821..915606	-	261	157737165	-	Abu_0919	-	hypothetical protein
895	 27.95	0	915954..916547	-	197	157737166	-	Abu_0920	-	hypothetical protein
896	 33.01	+1	916582..918117	-	511	157737167	guaA	Abu_0921	-	bifunctional GMP synthase/glutamine amidotransferase protein
897	 30.17	0	918182..919633	-	483	157737168	nadB	Abu_0922	-	L-aspartate oxidase
898	 22.06	-1	919732..920148	+	138	157737169	-	Abu_0923	-	hypothetical protein
899	 21.89	-1	920132..920725	-	197	157737170	-	Abu_0924	-	hypothetical protein
900	 31.28	+1	920807..921973	+	388	157737171	aspB3	Abu_0925	-	aspartate aminotransferase
901	 26.51	0	921977..922870	+	297	157737172	-	Abu_0926	-	cation efflux protein
902	 24.08	0	922929..925262	+	777	157737173	-	Abu_0927	-	hypothetical protein
903	 24.91	0	925249..927420	+	723	157737174	cyaA	Abu_0928	-	adenylate/guanylate cyclase
904	 24.20	0	927417..928730	-	437	157737175	-	Abu_0929	-	hypothetical protein
905	 28.38	0	928739..929929	-	396	157737176	-	Abu_0930	-	hypothetical protein
906	 28.54	0	930114..931301	+	395	157737177	-	Abu_0931	-	hypothetical protein
907	 23.93	0	931348..932262	+	304	157737178	-	Abu_0932	-	hypothetical protein
908	 32.53	+1	932302..933549	+	415	157737179	-	Abu_0933	-	major facilitator superfamily protein, putative oxalate:formate antiporter
909	 29.75	0	933647..934372	+	241	157737180	-	Abu_0934	-	hypothetical protein
910	 26.20	0	934374..934976	+	200	157737181	cbiM	Abu_0935	-	cobalamin (vitamin B12) biosynthesis protein
911	 24.11	0	934973..935449	+	158	157737182	-	Abu_0936	-	hypothetical protein
912	 21.86	-1	935446..936090	+	214	157737183	-	Abu_0937	-	cobalt ABC transporter, permease protein, putative
913	 25.96	0	936087..936737	+	216	157737184	-	Abu_0938	-	cobalt ABC transporter, ATP-binding protein, putative
914	 24.43	0	936838..938466	+	542	157737185	-	Abu_0939	-	hemolysin activation protein HecB, putative
915	 26.68	0	938478..947579	+	3033	157737186	-	Abu_0940	-	adhesin/hemagglutinin
916	 23.56	0	947591..948460	+	289	157737187	-	Abu_0941	-	hypothetical protein
917	 19.80	-2	948482..949264	+	260	157737188	-	Abu_0942	-	hypothetical protein
918	 28.75	0	949266..951644	+	792	157737189	-	Abu_0943	-	hypothetical protein
919	 25.93	0	951646..952374	+	242	157737190	-	Abu_0944	-	hypothetical protein
920	 26.51	0	952410..952658	+	82	157737191	-	Abu_0945	-	hypothetical protein
921	 25.38	0	952661..953377	+	238	157737192	-	Abu_0946	-	hypothetical protein
922	 23.59	0	953396..954052	+	218	157737193	-	Abu_0947	-	hypothetical protein
923	 24.42	0	954128..954688	+	186	157737194	-	Abu_0948	-	hypothetical protein
924	 31.27	+1	954747..955133	-	128	157737195	-	Abu_0949	-	hypothetical protein
925	 23.57	0	955144..955962	-	272	157737196	-	Abu_0950	-	hypothetical protein
926	 30.28	0	956182..956934	-	250	157737197	-	Abu_0951	-	hypothetical protein
927	 23.70	0	957100..958230	+	376	157737198	-	Abu_0952	-	hypothetical protein
928	 23.39	-1	958265..959350	+	361	157737199	-	Abu_0953	-	putative permease
929	 23.23	-1	959381..959944	+	187	157737200	-	Abu_0954	-	hypothetical protein
930	 25.43	0	959953..960357	+	134	157737201	-	Abu_0955	-	hypothetical protein
931	 26.10	0	960373..962736	-	787	157737202	-	Abu_0956	-	hypothetical protein
932	 31.37	+1	962866..963222	+	118	157737203	-	Abu_0957	-	hypothetical protein
933	 30.88	+1	963270..966083	-	937	157737204	uvrA	Abu_0958	-	excinuclease ABC subunit A
934	 24.82	0	966185..966736	-	183	157737205	-	Abu_0959	-	hypothetical protein
935	 30.66	+1	967016..967426	+	136	157737206	-	Abu_0960	-	methyl-accepting chemotaxis protein
936	 32.99	+1	967475..969232	-	585	157737207	ggt	Abu_0961	-	gamma-glutamyltranspeptidase
937	 29.33	0	969416..970015	-	199	157737208	-	Abu_0962	-	hypothetical protein
938	 30.88	+1	970156..970890	-	244	157737209	cysE	Abu_0963	-	serine acetyltransferase
939	 27.32	0	970880..972691	-	603	157737210	speA	Abu_0964	-	arginine decarboxylase
940	 28.34	0	972692..973933	-	413	157737211	hisS	Abu_0965	-	histidyl-tRNA synthetase
941	 26.49	0	973923..974492	-	189	157737212	tmk	Abu_0966	-	thymidylate kinase
942	 27.68	0	974483..974977	-	164	157737213	coaD	Abu_0967	-	phosphopantetheine adenylyltransferase
943	 27.21	0	974982..975536	-	184	157737214	ubiD	Abu_0968	-	phenylacrylic acid decarboxylase
944	 24.56	0	975747..976373	+	208	157737215	-	Abu_0969	-	resolvase family site-specific recombinase
945	 26.62	0	976447..976893	+	148	157737216	rplI	Abu_0970	-	50S ribosomal protein L9
946	 31.47	+1	976899..977435	+	178	157737217	hslV	Abu_0971	-	ATP-dependent protease peptidase subunit
947	 28.74	0	977443..978771	+	442	157737218	hslU	Abu_0972	-	ATP-dependent protease ATP-binding subunit
948	 23.53	0	978824..979129	+	101	157737219	-	Abu_0973	-	hypothetical protein
949	 26.20	0	979287..979931	+	214	157737220	-	Abu_0974	-	TatD-related deoxyribonuclease
950	 23.89	0	979967..981226	+	419	157737221	-	Abu_0975	-	putative lytic murein transglycosylase
951	 28.68	0	981210..982154	+	314	157737222	rlpA	Abu_0976	-	rare lipoprotein A
952	 31.24	+1	982164..982736	+	190	157737223	hisB	Abu_0977	-	imidazoleglycerol-phosphate dehydratase
953	 28.11	0	982733..983230	+	165	157737224	-	Abu_0978	-	HAD-superfamily phosphatase
954	 21.73	-1	983221..983763	+	180	157737225	-	Abu_0979	-	hypothetical protein
955	 26.46	0	983763..984257	+	164	157737226	-	Abu_0980	-	OstA family protein
956	 27.53	0	984257..984859	+	200	157737227	-	Abu_0981	-	putative ATP /GTP binding protein
957	 30.95	+1	984849..985310	+	153	157737228	-	Abu_0982	-	acetyltransferase
958	 23.27	-1	985376..985852	+	158	157737229	-	Abu_0983	-	ECF subfamily RNA polymerase sigma factor
959	 22.19	-1	985853..986821	+	322	157737230	-	Abu_0984	-	sigma factor regulatory protein FecR/PupR family
960	 29.39	0	986960..989317	+	785	157737231	-	Abu_0985	-	TonB-dependent receptor protein
961	 28.63	0	989362..990318	-	318	157737232	argC	Abu_0986	-	N-acetyl-gamma-glutamyl-phosphate reductase
962	 24.25	0	990374..991738	-	454	157737233	-	Abu_0987	-	GntR family transcriptional regulator
963	 27.60	0	991829..992194	+	121	157737234	-	Abu_0988	-	FMN-binding protein
964	 25.83	0	992207..992806	+	199	157737235	-	Abu_0989	-	putative antibiotic resistance protein
965	 25.72	0	992814..994469	-	551	157737236	-	Abu_0990	-	AcrB/AcrD/AcrF family protein
966	 26.49	0	994466..996028	-	520	157737237	-	Abu_0991	-	AcrB/AcrD/AcrF family protein
967	 24.24	0	996015..996740	-	241	157737238	-	Abu_0992	-	AcrA/AcrE family protein
968	 24.46	0	996737..998089	-	450	157737239	-	Abu_0993	-	outer membrane efflux protein
26.98	MEAN

3.50	STD DEV
