IslandPath Analysis: Arcobacter butzleri RM4018

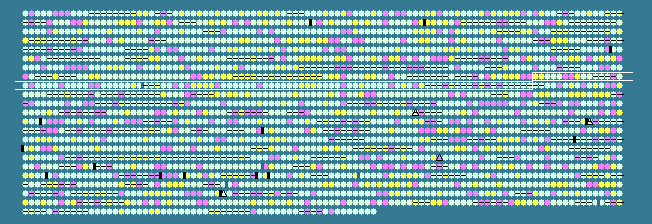

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.98 STD DEV: 3.50
Arcobacter butzleri RM4018, complete genome - 1..2341251
2259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
786	 30.83	+1	814709..815386	+	225	157737057	ureAB	Abu_0806	-	fusion of urease beta and gamma subunits
787	 33.92	+1	815388..817088	+	566	157737058	ureC	Abu_0807	-	urease subunit alpha
788	 29.75	0	817098..817544	+	148	157737059	ureE	Abu_0808	-	urease accessory protein
789	 25.27	0	817489..818232	+	247	157737060	ureF	Abu_0809	-	urease complex component
790	 28.23	0	818368..818955	+	195	157737061	ureG	Abu_0810	-	urease accessory protein UreG
791	 23.05	-1	819152..819715	-	187	157737062	-	Abu_0811	-	hypothetical protein
792	 21.38	-1	819827..820420	+	197	157737063	-	Abu_0812	-	TetR family transcriptional regulator
793	 31.38	+1	820430..823558	-	1042	157737064	-	Abu_0813	-	hydrophobe/amphiphile efflux-1 family protein
794	 26.44	0	823561..824619	-	352	157737065	-	Abu_0814	-	multidrug efflux RND membrane fusion protein
795	 26.21	0	824616..825851	-	411	157737066	-	Abu_0815	-	outer membrane efflux protein
796	 23.61	0	825933..826436	+	167	157737067	-	Abu_0816	-	MarR family transcriptional regulator
797	 27.40	0	826517..826735	+	72	157737068	-	Abu_0817	-	hypothetical protein
798	 26.98	0	826753..826941	-	62	157737069	-	Abu_0818	-	hypothetical protein
799	 14.17	-2	826954..827073	-	39	157737070	-	Abu_0819	-	hypothetical protein
800	 24.70	0	827157..828812	+	551	157737071	-	Abu_0820	-	GGDEF domain-containing protein
801	 29.66	0	828809..829597	-	262	157737072	xth	Abu_0821	-	exodeoxyribonuclease
802	 21.29	-1	829597..829845	-	82	157737073	-	Abu_0822	-	hypothetical protein
803	 27.52	0	829944..830666	+	240	157737074	-	Abu_0823	-	hypothetical protein
804	 25.25	0	830707..831003	-	98	157737075	-	Abu_0824	-	hypothetical protein
805	 25.52	0	831007..831531	-	174	157737076	-	Abu_0825	-	outer membrane lipoprotein
806	 29.77	0	831694..832929	+	411	157737077	-	Abu_0826	-	hypothetical protein
807	 23.36	-1	832926..833657	+	243	157737078	-	Abu_0827	-	hypothetical protein
808	 25.15	0	833647..834978	-	443	157737079	-	Abu_0828	-	ABC transporter protein
809	 29.60	0	835203..835550	-	115	157737080	-	Abu_0829	-	hypothetical protein
810	 25.58	0	835477..836547	-	356	157737081	-	Abu_0830	-	EAL domain-containing protein
811	 24.29	0	836612..837319	-	235	157737082	-	Abu_0831	-	two-component response regulator
812	 19.48	-2	837316..838311	-	331	157737083	-	Abu_0832	-	two-component sensor histidine kinase
813	 22.81	-1	838339..839754	-	471	157737084	-	Abu_0833	-	carotenoid isomerase, putative
814	 24.24	0	839741..841093	-	450	157737085	phrB	Abu_0834	-	deoxyribodipyrimidine photolyase
815	 24.42	0	841090..842043	-	317	157737086	-	Abu_0835	-	hypothetical protein
816	 23.90	0	842169..843080	-	303	157737087	-	Abu_0836	-	auxin efflux carrier protein, putative
817	 24.13	0	843082..843570	-	162	157737088	-	Abu_0837	-	hypothetical protein
818	 25.47	0	843579..844811	-	410	157737089	pgi	Abu_0838	-	glucose-6-phosphate isomerase
819	 31.00	+1	844811..845668	-	285	157737090	galU	Abu_0839	-	UTP--glucose-1-phosphate uridylyltransferase
820	 28.54	0	845670..847046	-	458	157737091	-	Abu_0840	-	phosphohexosemutase
821	 28.12	0	853283..854683	+	466	157737092	-	Abu_0846	-	methyl-accepting chemotaxis protein
822	 29.38	0	854693..855097	+	134	157737093	-	Abu_0847	-	methyl-accepting chemotaxis protein
823	 31.92	+1	855121..855333	-	70	157737094	-	Abu_0848	-	tautomerase
824	 24.19	0	855424..856254	+	276	157737095	-	Abu_0849	-	LysR family transcriptional regulator
825	 24.49	0	856251..857042	-	263	157737096	trpC	Abu_0850	-	indole-3-glycerol phosphate synthase
826	 22.40	-1	857039..858346	-	435	157737097	-	Abu_0851	-	hypothetical protein
827	 26.82	0	858322..858705	-	127	157737098	-	Abu_0852	-	hypothetical protein
828	 22.45	-1	858698..859414	-	238	157737099	-	Abu_0853	-	hypothetical protein
829	 31.79	+1	859644..859967	+	107	157737100	oorD	Abu_0854	-	2-oxoglutarate-acceptor oxidoreductase subunit OorD
830	 33.07	+1	859976..861106	+	376	157737101	oorA	Abu_0855	-	2-oxoglutarate-acceptor oxidoreductase subunit OorA
831	 30.82	+1	861108..861941	+	277	157737102	oorB	Abu_0856	-	2-oxoglutarate-acceptor oxidoreductase subunit OorB
832	 30.60	+1	861949..862533	+	194	157737103	oorC	Abu_0857	-	2-oxoglutarate-acceptor oxidoreductase subunit OorC
833	 22.95	-1	862557..863375	-	272	157737104	dnaQ3	Abu_0858	-	DNA polymerase III subunit epsilon
834	 26.09	0	863362..863955	-	197	157737105	trpF	Abu_0859	-	N-(5'phosphoribosyl)anthranilate isomerase
835	 30.22	0	863952..864593	-	213	157737106	rpe	Abu_0860	-	ribulose-phosphate 3-epimerase
836	 25.91	0	864701..865711	+	336	157737107	pldA	Abu_0861	-	outer membrane phospholipase A
837	 24.11	0	865721..866143	-	140	157737108	-	Abu_0862	-	hypothetical protein
838	 25.26	0	866146..866727	-	193	157737109	-	Abu_0863	-	hypothetical protein
839	 27.15	0	866739..867239	-	166	157737110	-	Abu_0864	-	hypothetical protein
840	 21.96	-1	867289..868044	-	251	157737111	-	Abu_0865	-	hypothetical protein
841	 25.26	0	868045..868428	-	127	157737112	-	Abu_0866	-	hypothetical protein
842	 24.61	0	868441..868887	-	148	157737113	-	Abu_0867	-	putative nucleotide phosphoribosyltransferase
843	 24.65	0	869002..869646	+	214	157737114	-	Abu_0868	-	hypothetical protein
844	 25.87	0	869649..869849	-	66	157737115	-	Abu_0869	-	hypothetical protein
845	 27.17	0	869853..870533	-	226	157737116	-	Abu_0870	-	hypothetical protein
846	 28.90	0	870545..871603	-	352	157737117	-	Abu_0871	-	membrane-associated zinc metalloprotease, putative
847	 32.42	+1	871613..872158	-	181	157737118	pgsA	Abu_0872	-	CDP-1,2-diacyl-sn-glycero-3-phosphate phosphatidyltransferase
848	 31.92	+1	872158..872937	-	259	157737119	-	Abu_0873	-	7-alpha-hydroxysteroid dehydrogenase
849	 31.08	+1	872937..873824	-	295	157737120	dapA	Abu_0874	-	dihydrodipicolinate synthase
850	 25.77	0	873848..875182	-	444	157737121	-	Abu_0875	-	putative zinc protease
851	 28.23	0	875182..876240	-	352	157737122	pyrD	Abu_0876	-	dihydroorotate dehydrogenase 2
852	 26.55	0	876284..877993	-	569	157737123	msbA	Abu_0877	-	multidrug resistance protein MsbA
853	 24.58	0	878051..879352	-	433	157737124	mviN	Abu_0878	-	virulence factor MviN protein
854	 20.94	-1	879352..880932	-	526	157737125	-	Abu_0879	-	endonuclease/exonuclease/phosphatase
855	 26.42	0	881116..881520	+	134	157737126	perR	Abu_0880	-	peroxide stress regulator
856	 24.35	0	881545..881967	-	140	157737127	-	Abu_0881	-	putative metalloprotease
857	 31.85	+1	882058..882462	+	134	157737128	-	Abu_0882	-	hypothetical protein
858	 24.56	0	882468..883094	-	208	157737129	-	Abu_0883	-	S51 family peptidase
859	 29.63	0	883110..884459	-	449	157737130	radA	Abu_0884	-	DNA repair protein RadA
860	 25.53	0	884577..885140	+	187	157737131	-	Abu_0885	-	hypothetical protein
861	 26.14	0	885240..886157	+	305	157737132	-	Abu_0886	-	cytochrome c peroxidase
862	 22.05	-1	886135..888615	+	826	157737133	-	Abu_0887	-	EAL/GGDEF/PAS domain-containing protein
863	 25.03	0	888617..889459	-	280	157737134	-	Abu_0888	-	hypothetical protein
864	 30.54	+1	889477..890406	-	309	157737135	ftsY	Abu_0889	-	signal recognition particle-docking GTPase FtsY
865	 24.28	0	890419..890970	-	183	157737136	-	Abu_0890	-	putative lipoprotein thiredoxin
866	 22.91	-1	891032..891568	+	178	157737137	-	Abu_0891	-	putative 5-formyltetrahydrofolate cyclo-ligase
867	 31.72	+1	891581..893125	+	514	157737138	-	Abu_0892	-	phosphodiesterase
868	 25.42	0	893144..893737	+	197	157737139	-	Abu_0893	-	putative methyltransferase
869	 28.61	0	893697..894542	+	281	157737140	-	Abu_0894	-	ABC transporter, permease protein
870	 27.08	0	894582..895013	+	143	157737141	-	Abu_0895	-	hypothetical protein
871	 22.62	-1	895010..895345	-	111	157737142	-	Abu_0896	-	hypothetical protein
872	 31.21	+1	895423..895563	+	46	157737143	-	Abu_0897	-	hypothetical protein
873	 25.44	0	895563..895790	+	75	157737144	-	Abu_0898	-	hypothetical protein
874	 26.03	0	895885..896706	-	273	157737145	-	Abu_0899	-	short chain dehydrogenase/reductase family oxidoreductase
875	 26.44	0	896778..897560	+	260	157737146	-	Abu_0900	-	hypothetical protein
876	 20.59	-1	897584..898894	+	436	157737147	-	Abu_0901	-	hypothetical protein
877	 32.13	+1	898912..899988	+	358	157737148	-	Abu_0902	-	cytochrome c family protein
878	 22.54	-1	900004..900948	+	314	157737149	-	Abu_0903	-	putative methyl-accepting chemotaxis protein
879	 25.04	0	900945..901607	+	220	157737150	-	Abu_0904	-	two-component response regulator
880	 21.93	-1	901594..902742	+	382	157737151	-	Abu_0905	-	two-component sensor histidine kinase
881	 25.65	0	902800..903645	+	281	157737152	-	Abu_0906	-	molybdenum transport system protein ModD, putative
882	 27.15	0	903659..904774	-	371	157737153	-	Abu_0907	-	GGDEF domain-containing protein
883	 30.18	0	904796..905239	-	147	157737154	-	Abu_0908	-	GatB/YqeY family protein
884	 28.87	0	905278..907227	-	649	157737155	-	Abu_0909	-	ABC transporter, ATP-binding protein
885	 30.38	0	907385..907993	+	202	157737156	-	Abu_0910	-	hypothetical protein
26.98	MEAN

3.50	STD DEV
