IslandPath Analysis: Arcobacter butzleri RM4018

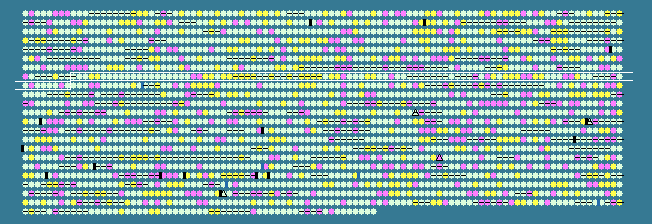

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.98 STD DEV: 3.50
Arcobacter butzleri RM4018, complete genome - 1..2341251
2259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
709	 26.73	0	740310..740975	+	221	157736980	-	Abu_0729	-	hypothetical protein
710	 26.91	0	740987..742231	+	414	157736981	cysJ	Abu_0730	-	sulfite reductase, flavoprotein component
711	 28.28	0	742316..742513	-	65	157736982	-	Abu_0731	-	hypothetical protein
712	 33.52	+1	742516..744615	-	699	157736983	cstA	Abu_0732	-	carbon starvation protein A
713	 30.62	+1	744810..745913	+	367	157736984	-	Abu_0733	-	GTP-binding protein, putative
714	 25.33	0	745923..746747	+	274	157736985	-	Abu_0734	-	hypothetical protein
715	 25.08	0	746742..747359	-	205	157736986	-	Abu_0735	-	hypothetical protein
716	 24.31	0	747359..747613	-	84	157736987	-	Abu_0736	-	hypothetical protein
717	 28.25	0	747730..748044	+	104	157736988	-	Abu_0737	-	hypothetical protein
718	 25.78	0	748084..748785	-	233	157736989	-	Abu_0738	-	hypothetical protein
719	 24.64	0	748829..750220	-	463	157736990	-	Abu_0739	-	GGDEF/PAS domain-containing protein
720	 23.84	0	750338..751159	+	273	157736991	thiL	Abu_0740	-	thiamine monophosphate kinase
721	 26.10	0	751293..752357	+	354	157736992	truD	Abu_0741	-	tRNA pseudouridine synthase D
722	 26.84	0	752410..752763	+	117	157736993	-	Abu_0742	-	hypothetical protein
723	 27.45	0	752789..754981	-	730	157736994	-	Abu_0743	-	methyl-accepting chemotaxis protein
724	 27.06	0	755090..755647	+	185	157736995	ruvA	Abu_0744	-	Holliday junction DNA helicase motor protein
725	 25.29	0	755666..756709	+	347	157736996	ddlA	Abu_0745	-	D-alanyl-alanine synthetase A
726	 24.58	0	756712..757431	+	239	157736997	-	Abu_0746	-	2-hydroxy-6-oxohepta-2,4-dienoate hydrolase
727	 25.33	0	757418..758854	+	478	157736998	murF	Abu_0747	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate ligase
728	 29.24	0	758865..759353	+	162	157736999	-	Abu_0748	-	HIT family protein
729	 21.55	-1	759461..760453	+	330	157737000	-	Abu_0749	-	hypothetical protein
730	 17.53	-2	760564..761784	+	406	157737001	-	Abu_0750	-	hypothetical protein
731	 33.33	+1	761991..762305	+	104	157737002	rpsJ	Abu_0751	-	30S ribosomal protein S10
732	 33.51	+1	762324..762899	+	191	157737003	rplC	Abu_0752	-	50S ribosomal protein L3
733	 29.41	0	762896..763507	+	203	157737004	rplD	Abu_0753	-	50S ribosomal protein L4
734	 30.85	+1	763509..763790	+	93	157737005	rplW	Abu_0754	-	50S ribosomal protein L23
735	 34.06	+2	763801..764628	+	275	157737006	rplB	Abu_0755	-	50S ribosomal protein L2
736	 32.61	+1	764638..764913	+	91	157737007	rpsS	Abu_0756	-	30S ribosomal protein S19
737	 34.83	+2	764916..765248	+	110	157737008	rplV	Abu_0757	-	50S ribosomal protein L22
738	 33.19	+1	765248..765952	+	234	157737009	rpsC	Abu_0758	-	30S ribosomal protein S3
739	 34.74	+2	765955..766380	+	141	157737010	rplP	Abu_0759	-	50S ribosomal protein L16
740	 26.04	0	766367..766558	+	63	157737011	rpmC	Abu_0760	-	50S ribosomal protein L29
741	 28.97	0	766569..766820	+	83	157737012	rpsQ	Abu_0761	-	30S ribosomal protein S17
742	 33.06	+1	766820..767188	+	122	157737013	rplN	Abu_0762	-	50S ribosomal protein L14
743	 28.75	0	767188..767427	+	79	157737014	rplX	Abu_0763	-	50S ribosomal protein L24
744	 29.57	0	767420..767977	+	185	157737015	rplE	Abu_0764	-	50S ribosomal protein L5
745	 35.48	+2	767977..768162	+	61	157737016	rpsN	Abu_0765	-	30S ribosomal protein S14
746	 29.32	0	768175..768573	+	132	157737017	rpsH	Abu_0766	-	30S ribosomal protein S8
747	 33.52	+1	768583..769119	+	178	157737018	rplF	Abu_0767	-	50S ribosomal protein L6
748	 31.94	+1	769129..769488	+	119	157737019	rplR	Abu_0768	-	50S ribosomal protein L18
749	 34.92	+2	769498..769938	+	146	157737020	rpsE	Abu_0769	-	30S ribosomal protein S5
750	 30.83	+1	769942..770340	+	132	157737021	rplO	Abu_0770	-	50S ribosomal protein L15
751	 30.40	0	770343..771605	+	420	157737022	secY	Abu_0771	-	preprotein translocase subunit SecY
752	 31.63	+1	771607..772371	+	254	157737023	map	Abu_0772	-	methionine aminopeptidase
753	 31.51	+1	772381..772599	+	72	157737024	infA	Abu_0773	-	translation initiation factor IF-1
754	 22.87	-1	772688..773356	+	222	157737025	-	Abu_0774	-	hypothetical protein
755	 24.62	0	773353..774546	+	397	157737026	-	Abu_0775	-	hypothetical protein
756	 29.83	0	774590..776359	+	589	157737027	aspS	Abu_0776	-	aspartyl-tRNA synthetase
757	 24.56	0	776500..779085	+	861	157737028	-	Abu_0777	-	CheW-like chemotaxis protein
758	 31.40	+1	779146..780903	+	585	157737029	-	Abu_0778	-	radical SAM domain-containing protein
759	 32.09	+1	780939..781580	-	213	157737030	adk1	Abu_0779	-	adenylate kinase
760	 28.60	0	781710..782279	+	189	157737031	adk2	Abu_0780	-	adenylate kinase
761	 26.95	0	782279..783046	+	255	157737032	-	Abu_0781	-	molybdopterin binding domain-containing protein
762	 22.79	-1	783072..783716	+	214	157737033	cat	Abu_0782	-	chloramphenicol O-acetyltransferase
763	 27.38	0	783841..784983	+	380	157737034	-	Abu_0783	-	zinc-containing NADP-dependent alcohol dehydrogenase
764	 27.75	0	785021..786148	+	375	157737035	-	Abu_0784	-	iron-containing NADP-dependent alcohol dehydrogenase
765	 26.04	0	786197..788458	-	753	157737036	-	Abu_0785	-	methyl-accepting chemotaxis protein
766	 28.84	0	788583..789605	-	340	157737037	alr	Abu_0786	-	alanine racemase
767	 25.72	0	789608..791458	-	616	157737038	uvrC	Abu_0787	-	excinuclease ABC subunit C
768	 27.87	0	791614..794010	+	798	157737039	-	Abu_0788	-	methyl-accepting chemotaxis protein
769	 27.00	0	794444..796447	+	667	157737040	-	Abu_0789	-	methyl-accepting chemotaxis protein
770	 28.87	0	796489..798483	+	664	157737041	-	Abu_0790	-	methyl-accepting chemotaxis protein
771	 27.60	0	798834..800858	+	674	157737042	-	Abu_0791	-	methyl-accepting chemotaxis protein
772	 23.83	0	800866..801528	-	220	157737043	-	Abu_0792	-	two-component response regulator
773	 23.76	0	801525..802589	-	354	157737044	-	Abu_0793	-	two component system histidine kinase/response regulator fusion protein
774	 26.11	0	802655..804952	+	765	157737045	-	Abu_0794	-	two-component sensor histidine kinase
775	 30.17	0	804929..805339	-	136	157737046	-	Abu_0795	-	MutT/nudix family protein
776	 21.53	-1	805416..806186	-	256	157737047	-	Abu_0796	-	hypothetical protein
777	 23.69	0	806179..806541	-	120	157737048	-	Abu_0797	-	hypothetical protein
778	 22.13	-1	806534..806890	-	118	157737049	-	Abu_0798	-	hypothetical protein
779	 32.78	+1	806999..808273	+	424	157737050	-	Abu_0799	-	urea/short-chain amide ABC transporter, periplasmic urea/short-chain amide-binding protein
780	 28.22	0	808330..809934	+	534	157737051	-	Abu_0800	-	urea/short-chain amide ABC transporter, permease protein
781	 31.53	+1	809938..811044	+	368	157737052	-	Abu_0801	-	ABC transporter, permease protein
782	 32.19	+1	811046..811834	+	262	157737053	-	Abu_0802	-	ABC transporter, ATP-binding protein
783	 31.75	+1	811964..812659	+	231	157737054	-	Abu_0803	-	ABC transporter, ATP-binding protein
784	 18.99	-2	812786..813775	+	329	157737055	-	Abu_0804	-	hypothetical protein
785	 22.58	-1	813947..814699	+	250	157737056	ureD	Abu_0805	-	urease accessory protein UreD
786	 30.83	+1	814709..815386	+	225	157737057	ureAB	Abu_0806	-	fusion of urease beta and gamma subunits
787	 33.92	+1	815388..817088	+	566	157737058	ureC	Abu_0807	-	urease subunit alpha
788	 29.75	0	817098..817544	+	148	157737059	ureE	Abu_0808	-	urease accessory protein
789	 25.27	0	817489..818232	+	247	157737060	ureF	Abu_0809	-	urease complex component
790	 28.23	0	818368..818955	+	195	157737061	ureG	Abu_0810	-	urease accessory protein UreG
791	 23.05	-1	819152..819715	-	187	157737062	-	Abu_0811	-	hypothetical protein
792	 21.38	-1	819827..820420	+	197	157737063	-	Abu_0812	-	TetR family transcriptional regulator
793	 31.38	+1	820430..823558	-	1042	157737064	-	Abu_0813	-	hydrophobe/amphiphile efflux-1 family protein
794	 26.44	0	823561..824619	-	352	157737065	-	Abu_0814	-	multidrug efflux RND membrane fusion protein
795	 26.21	0	824616..825851	-	411	157737066	-	Abu_0815	-	outer membrane efflux protein
796	 23.61	0	825933..826436	+	167	157737067	-	Abu_0816	-	MarR family transcriptional regulator
797	 27.40	0	826517..826735	+	72	157737068	-	Abu_0817	-	hypothetical protein
798	 26.98	0	826753..826941	-	62	157737069	-	Abu_0818	-	hypothetical protein
799	 14.17	-2	826954..827073	-	39	157737070	-	Abu_0819	-	hypothetical protein
800	 24.70	0	827157..828812	+	551	157737071	-	Abu_0820	-	GGDEF domain-containing protein
801	 29.66	0	828809..829597	-	262	157737072	xth	Abu_0821	-	exodeoxyribonuclease
802	 21.29	-1	829597..829845	-	82	157737073	-	Abu_0822	-	hypothetical protein
803	 27.52	0	829944..830666	+	240	157737074	-	Abu_0823	-	hypothetical protein
804	 25.25	0	830707..831003	-	98	157737075	-	Abu_0824	-	hypothetical protein
805	 25.52	0	831007..831531	-	174	157737076	-	Abu_0825	-	outer membrane lipoprotein
806	 29.77	0	831694..832929	+	411	157737077	-	Abu_0826	-	hypothetical protein
807	 23.36	-1	832926..833657	+	243	157737078	-	Abu_0827	-	hypothetical protein
808	 25.15	0	833647..834978	-	443	157737079	-	Abu_0828	-	ABC transporter protein
26.98	MEAN

3.50	STD DEV
