IslandPathversion 1.0

IslandPath Analysis: Arcobacter butzleri RM4018

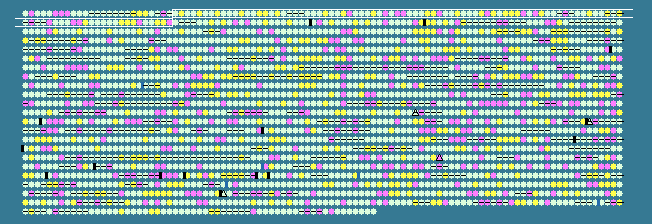

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.98 STD DEV: 3.50
Arcobacter butzleri RM4018, complete genome - 1..2341251
2259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
26	 24.68	0	33004..33477	+	157	157736297	-	Abu_0026	-	hypothetical protein
27	 31.00	+1	33483..34469	-	328	157736298	-	Abu_0027	-	zinc-containing alcohol dehydrogenase superfamily protein
28	 27.70	0	34511..34918	+	135	157736299	-	Abu_0028	-	hypothetical protein
29	 30.43	0	34920..35816	-	298	157736300	gpsA	Abu_0029	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
30	 30.75	+1	35818..37251	-	477	157736301	gatB	Abu_0030	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
31	 26.06	0	37261..38085	-	274	157736302	-	Abu_0031	-	hypothetical protein
32	 29.35	0	38162..40999	-	945	157736303	-	Abu_0032	-	oxidoreductase, FAD-binding/iron-sulfur cluster-binding protein
33	 33.27	+1	41118..42758	-	546	157736304	lctP	Abu_0033	-	L-lactate permease
34	 24.34	0	42849..43493	-	214	157736305	-	Abu_0034	-	two-component response regulator
35	 24.44	0	43495..45687	-	730	157736306	-	Abu_0035	-	two-component sensor histidine kinase
36	 26.36	0	45712..46299	-	195	157736307	-	Abu_0036	-	hypothetical protein
37	 32.68	+1	46292..47671	-	459	157736308	-	Abu_0037	-	iron-sulfur cluster binding protein, putative
38	 28.13	0	47668..48417	-	249	157736309	-	Abu_0038	-	Fe-S oxidoreductase
39	 29.05	0	48510..48953	-	147	157736310	-	Abu_0039	-	dCMP deaminase, putative
40	 33.76	+1	49110..49583	+	157	157736311	accB	Abu_0040	-	acetyl-CoA carboxylase, biotin carboxyl carrier protein
41	 31.86	+1	49593..50945	+	450	157736312	accC1	Abu_0041	-	biotin carboxylase
42	 30.24	0	51167..52717	+	516	157736313	-	Abu_0042	-	DEAD-box ATP dependent DNA helicase
43	 32.58	+1	52925..54520	+	531	157736314	-	Abu_0043	-	phosphate permease, putative
44	 24.35	0	54761..55495	+	244	157736315	-	Abu_0044	-	putative permease
45	 24.83	0	55500..57287	+	595	157736316	asnB1	Abu_0045	-	asparagine synthetase (glutamine-hydrolyzing)
46	 24.43	0	57411..57848	-	145	157736317	-	Abu_0046	-	hypothetical protein
47	 24.91	0	58145..59545	-	466	157736318	-	Abu_0047	-	PhoH family protein
48	 24.82	0	59538..60089	-	183	157736319	-	Abu_0048	-	hypothetical protein
49	 27.00	0	60059..61243	-	394	157736320	-	Abu_0049	-	recombination factor protein RarA
50	 27.42	0	61227..62054	-	275	157736321	rluB	Abu_0050	-	ribosomal large subunit pseudouridine synthase B
51	 30.53	+1	62051..63013	-	320	157736322	-	Abu_0051	-	carbohydrate isomerase KpsF/GutQ family protein
52	 28.45	0	63026..64948	-	640	157736323	-	Abu_0052	-	hypothetical protein
53	 27.19	0	64932..65729	-	265	157736324	ksgA	Abu_0053	-	dimethyladenosine transferase
54	 33.07	+1	65806..66567	+	253	157736325	hisF1	Abu_0054	-	imidazoleglycerol phosphate synthase, cyclase subunit
55	 22.08	-1	66569..67252	+	227	157736326	-	Abu_0055	-	hypothetical protein
56	 26.82	0	67249..67785	+	178	157736327	-	Abu_0056	-	purine nucleoside phosphorylase
57	 28.16	0	67796..68878	+	360	157736328	-	Abu_0057	-	hypothetical protein
58	 28.65	0	68967..70376	+	469	157736329	gltX1	Abu_0058	-	glutamyl-tRNA synthetase
59	 32.32	+1	70400..70696	+	98	157736330	rbpA	Abu_0059	-	RNA recognition motif-containing protein
60	 25.00	0	70806..71465	+	219	157736331	-	Abu_0060	-	two-component response regulator
61	 21.79	-1	71440..72591	+	383	157736332	-	Abu_0061	-	two-component sensor histidine kinase
62	 29.43	0	72655..73038	+	127	157736333	-	Abu_0062	-	hypothetical protein
63	 23.32	-1	73038..74225	+	395	157736334	-	Abu_0063	-	hypothetical protein
64	 23.18	-1	74222..75226	+	334	157736335	czcB	Abu_0064	-	cation efflux system, membrane fusion protein
65	 27.35	0	75233..78340	+	1035	157736336	czcA	Abu_0065	-	heavy metal efflux pump
66	 29.08	0	78389..78952	+	187	157736337	-	Abu_0066	-	periplasmic protein
67	 23.93	0	78983..80311	-	442	157736338	-	Abu_0067	-	fibronectin/fibrinogen-binding protein, putative
68	 31.45	+1	80405..80722	+	105	157736339	-	Abu_0068	-	hypothetical protein
69	 31.71	+1	80789..82393	+	534	157736340	-	Abu_0069	-	hypothetical protein
70	 19.38	-2	82420..82935	-	171	157736341	-	Abu_0070	-	hypothetical protein
71	 29.68	0	83047..84855	+	602	157736342	thrS	Abu_0071	-	threonyl-tRNA synthetase
72	 30.30	0	84852..85379	+	175	157736343	infC	Abu_0072	-	translation initiation factor IF-3
73	 30.81	+1	85518..85715	+	65	157736344	rpmI	Abu_0073	-	50S ribosomal protein L35
74	 30.25	0	85814..86170	+	118	157736345	rplT	Abu_0074	-	50S ribosomal protein L20
75	 28.15	0	86243..87439	-	398	157736346	-	Abu_0075	-	rhodanese-like sulfur transferase
76	 23.63	0	87423..87659	-	78	157736347	-	Abu_0076	-	hypothetical protein
77	 31.56	+1	87669..89138	-	489	157736348	-	Abu_0077	-	putative sulfide:quinone reductase
78	 22.55	-1	89219..89821	-	200	157736349	mobA	Abu_0078	-	molybdopterin-guanine dinucleotide biosynthesis protein
79	 32.40	+1	89821..91101	-	426	157736350	leuC	Abu_0079	-	3-isopropylmalate dehydratase large subunit
80	 28.17	0	91170..91634	-	154	157736351	lspA	Abu_0080	-	lipoprotein signal peptidase
81	 30.64	+1	91631..92965	-	444	157736352	glmM	Abu_0081	-	phosphoglucosamine mutase
82	 30.65	+1	93049..93309	+	86	157736353	rpsT	Abu_0082	-	30S ribosomal protein S20
83	 31.09	+1	93313..94380	+	355	157736354	prfA	Abu_0083	-	peptide chain release factor 1
84	 23.28	-1	94401..94589	+	62	157736355	-	Abu_0084	-	hypothetical protein
85	 28.69	0	94665..95720	+	351	157736356	pstS	Abu_0085	-	phosphate ABC transporter, periplasmic phosphate-binding protein
86	 23.40	-1	95790..97520	+	576	157736357	-	Abu_0086	-	EAL/GGDEF domain-containing protein
87	 31.35	+1	97552..98508	+	318	157736358	pstC	Abu_0087	-	phosphate ABC transporter, permease protein
88	 29.54	0	98505..99689	+	394	157736359	pstA	Abu_0088	-	phosphate ABC transporter, permease protein
89	 29.18	0	99705..100475	+	256	157736360	pstB	Abu_0089	-	phosphate transporter, ATP-binding protein
90	 24.81	0	100475..101143	+	222	157736361	-	Abu_0090	-	phosphate transport system regulatory protein PhoU, putative
91	 22.96	-1	101167..101571	+	134	157736362	-	Abu_0091	-	hypothetical protein
92	 25.37	0	101561..102238	+	225	157736363	-	Abu_0092	-	two-component response regulator
93	 23.74	0	102232..103617	+	461	157736364	-	Abu_0093	-	two-component sensor histidine kinase
94	 29.29	0	103693..104112	+	139	157736365	rplM	Abu_0094	-	50S ribosomal protein L13
95	 32.31	+1	104118..104507	+	129	157736366	rpsI	Abu_0095	-	30S ribosomal protein S9
96	 26.11	0	104560..106110	+	516	157736367	appA	Abu_0096	-	oligopeptide ABC transporter, periplasmic substrate-binding protein
97	 26.39	0	106120..106767	+	215	157736368	-	Abu_0097	-	hypothetical protein
98	 32.82	+1	107081..108052	+	323	157736369	-	Abu_0098	-	putative tricarboxylic transport protein TctC
99	 24.07	0	108089..108574	+	161	157736370	-	Abu_0099	-	putative tricarboxylic transport protein TctB
100	 32.67	+1	108571..110088	+	505	157736371	-	Abu_0100	-	putative tricarboxylic transport protein TctA
101	 24.08	0	110116..110796	+	226	157736372	-	Abu_0101	-	two-component response regulator
102	 22.05	-1	110786..112966	+	726	157736373	-	Abu_0102	-	two-component sensor histidine kinase
103	 26.76	0	113010..113663	+	217	157736374	cynT1	Abu_0103	-	carbonic anhydrase
104	 25.32	0	113656..114741	+	361	157736375	-	Abu_0104	-	putative ammonia monooxygenase
105	 20.38	-1	114718..115296	-	192	157736376	-	Abu_0105	-	hypothetical protein
106	 25.30	0	115293..116201	-	302	157736377	-	Abu_0106	-	ABC transporter, periplasmic substrate-binding protein, putative
107	 26.69	0	116201..116938	-	245	157736378	iamA	Abu_0107	-	ABC transporter, ATP-binding protein
108	 26.33	0	116939..118051	-	370	157736379	iamB	Abu_0108	-	ABC transporter, permease protein
109	 21.49	-1	118130..119041	-	303	157736380	-	Abu_0109	-	hypothetical protein
110	 22.29	-1	119034..120617	-	527	157736381	-	Abu_0110	-	hypothetical protein
111	 32.56	+1	120758..121273	+	171	157736382	luxS	Abu_0111	-	S-ribosylhomocysteinase
112	 26.98	0	121275..121715	+	146	157736383	-	Abu_0112	-	hypothetical protein
113	 23.87	0	121697..122467	+	256	157736384	-	Abu_0113	-	hypothetical protein
114	 26.76	0	122506..123327	+	273	157736385	dacA	Abu_0114	-	serine-type D-Ala-D-Ala carboxypeptidase
115	 25.95	0	123339..123839	-	166	157736386	-	Abu_0115	-	hypothetical protein
116	 27.66	0	123957..124397	+	146	157736387	-	Abu_0116	-	DoxX family protein
117	 31.52	+1	124421..127900	-	1159	157736388	metH	Abu_0117	-	5-methyltetrahydrofolate--homocysteine methyltransferase
118	 31.05	+1	128095..129015	+	306	157736389	ilvE	Abu_0118	-	branched-chain amino acid aminotransferase
119	 31.19	+1	129060..130133	+	357	157736390	-	Abu_0119	-	Band 7 family protein
120	 20.14	-1	130174..130461	+	95	157736391	-	Abu_0120	-	hypothetical protein
121	 28.49	0	130461..131141	+	226	157736392	hisI	Abu_0121	-	bifunctional phosphoribosyl-AMP cyclohydrolase/ phosphoribosyl-ATP pyrophosphohydrolase
122	 27.91	0	131234..131491	+	85	157736393	-	Abu_0122	-	hypothetical protein
123	 32.15	+1	131527..132708	-	393	157736394	mrp	Abu_0123	-	ATP/GTP-binding protein
124	 33.26	+1	132775..134127	-	450	157736395	thiC	Abu_0124	-	thiamine biosynthesis protein ThiC
125	 22.30	-1	134273..135115	+	280	157736396	-	Abu_0125	-	hypothetical protein
26.98	MEAN

3.50	STD DEV
