IslandPath Analysis: Arcobacter butzleri RM4018

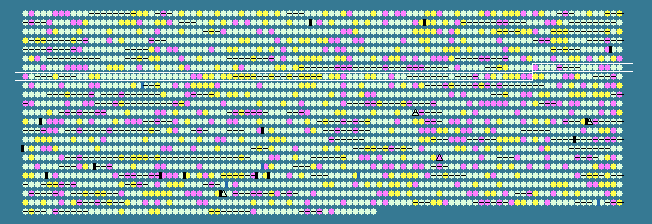

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.98 STD DEV: 3.50
Arcobacter butzleri RM4018, complete genome - 1..2341251
2259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
686	 22.39	-1	716612..717826	+	404	157736957	-	Abu_0706	-	hypothetical protein
687	 27.79	0	717833..719095	+	420	157736958	-	Abu_0707	-	HlyD family secretion protein
688	 29.52	0	719082..719789	+	235	157736959	-	Abu_0708	-	ABC transporter, ATP-binding protein
689	 27.97	0	719789..721000	+	403	157736960	-	Abu_0709	-	ABC transporter, permease protein
690	 22.71	-1	721026..721505	-	159	157736961	-	Abu_0710	-	hypothetical protein
691	 30.40	0	721990..724101	-	703	157736962	-	Abu_0711	-	heavy metal translocating P-type ATPase
692	 28.10	0	724103..724465	-	120	157736963	-	Abu_0712	-	hypothetical protein
693	 29.91	0	724466..724816	-	116	157736964	-	Abu_0713	-	hypothetical protein
694	 27.06	0	724816..725070	-	84	157736965	-	Abu_0714	-	hypothetical protein
695	 27.51	0	725074..725760	-	228	157736966	-	Abu_0715	-	hypothetical protein
696	 26.67	0	725757..726071	-	104	157736967	-	Abu_0716	-	hypothetical protein
697	 23.50	0	726132..726599	-	155	157736968	fur1	Abu_0717	-	ferric uptake regulation protein
698	 22.39	-1	726750..727142	+	130	157736969	-	Abu_0718	-	hypothetical protein
699	 30.11	0	727165..728562	+	465	157736970	fumC	Abu_0719	-	fumarate hydratase, class II
700	 26.83	0	728584..728829	+	81	157736971	-	Abu_0720	-	hypothetical protein
701	 22.01	-1	728867..730720	-	617	157736972	-	Abu_0721	-	two-component sensor histidine kinase
702	 23.86	0	730704..731558	-	284	157736973	-	Abu_0722	-	two-component response regulator
703	 29.70	0	731681..733828	+	715	157736974	bfrE	Abu_0723	-	TonB-dependent receptor
704	 28.05	0	733912..734592	+	226	157736975	-	Abu_0724	-	hypothetical protein
705	 28.04	0	734589..735665	+	358	157736976	-	Abu_0725	-	FMN-dependent alpha-hydroxy acid dehydrogenase
706	 30.75	+1	735880..737970	+	696	157736977	irgA	Abu_0726	-	iron-regulated outer membrane virulence protein
707	 25.75	0	738049..738918	+	289	157736978	-	Abu_0727	-	IroE protein
708	 23.89	0	738931..740211	+	426	157736979	-	Abu_0728	-	putative SAM-dependent methyltransferase
709	 26.73	0	740310..740975	+	221	157736980	-	Abu_0729	-	hypothetical protein
710	 26.91	0	740987..742231	+	414	157736981	cysJ	Abu_0730	-	sulfite reductase, flavoprotein component
711	 28.28	0	742316..742513	-	65	157736982	-	Abu_0731	-	hypothetical protein
712	 33.52	+1	742516..744615	-	699	157736983	cstA	Abu_0732	-	carbon starvation protein A
713	 30.62	+1	744810..745913	+	367	157736984	-	Abu_0733	-	GTP-binding protein, putative
714	 25.33	0	745923..746747	+	274	157736985	-	Abu_0734	-	hypothetical protein
715	 25.08	0	746742..747359	-	205	157736986	-	Abu_0735	-	hypothetical protein
716	 24.31	0	747359..747613	-	84	157736987	-	Abu_0736	-	hypothetical protein
717	 28.25	0	747730..748044	+	104	157736988	-	Abu_0737	-	hypothetical protein
718	 25.78	0	748084..748785	-	233	157736989	-	Abu_0738	-	hypothetical protein
719	 24.64	0	748829..750220	-	463	157736990	-	Abu_0739	-	GGDEF/PAS domain-containing protein
720	 23.84	0	750338..751159	+	273	157736991	thiL	Abu_0740	-	thiamine monophosphate kinase
721	 26.10	0	751293..752357	+	354	157736992	truD	Abu_0741	-	tRNA pseudouridine synthase D
722	 26.84	0	752410..752763	+	117	157736993	-	Abu_0742	-	hypothetical protein
723	 27.45	0	752789..754981	-	730	157736994	-	Abu_0743	-	methyl-accepting chemotaxis protein
724	 27.06	0	755090..755647	+	185	157736995	ruvA	Abu_0744	-	Holliday junction DNA helicase motor protein
725	 25.29	0	755666..756709	+	347	157736996	ddlA	Abu_0745	-	D-alanyl-alanine synthetase A
726	 24.58	0	756712..757431	+	239	157736997	-	Abu_0746	-	2-hydroxy-6-oxohepta-2,4-dienoate hydrolase
727	 25.33	0	757418..758854	+	478	157736998	murF	Abu_0747	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate ligase
728	 29.24	0	758865..759353	+	162	157736999	-	Abu_0748	-	HIT family protein
729	 21.55	-1	759461..760453	+	330	157737000	-	Abu_0749	-	hypothetical protein
730	 17.53	-2	760564..761784	+	406	157737001	-	Abu_0750	-	hypothetical protein
731	 33.33	+1	761991..762305	+	104	157737002	rpsJ	Abu_0751	-	30S ribosomal protein S10
732	 33.51	+1	762324..762899	+	191	157737003	rplC	Abu_0752	-	50S ribosomal protein L3
733	 29.41	0	762896..763507	+	203	157737004	rplD	Abu_0753	-	50S ribosomal protein L4
734	 30.85	+1	763509..763790	+	93	157737005	rplW	Abu_0754	-	50S ribosomal protein L23
735	 34.06	+2	763801..764628	+	275	157737006	rplB	Abu_0755	-	50S ribosomal protein L2
736	 32.61	+1	764638..764913	+	91	157737007	rpsS	Abu_0756	-	30S ribosomal protein S19
737	 34.83	+2	764916..765248	+	110	157737008	rplV	Abu_0757	-	50S ribosomal protein L22
738	 33.19	+1	765248..765952	+	234	157737009	rpsC	Abu_0758	-	30S ribosomal protein S3
739	 34.74	+2	765955..766380	+	141	157737010	rplP	Abu_0759	-	50S ribosomal protein L16
740	 26.04	0	766367..766558	+	63	157737011	rpmC	Abu_0760	-	50S ribosomal protein L29
741	 28.97	0	766569..766820	+	83	157737012	rpsQ	Abu_0761	-	30S ribosomal protein S17
742	 33.06	+1	766820..767188	+	122	157737013	rplN	Abu_0762	-	50S ribosomal protein L14
743	 28.75	0	767188..767427	+	79	157737014	rplX	Abu_0763	-	50S ribosomal protein L24
744	 29.57	0	767420..767977	+	185	157737015	rplE	Abu_0764	-	50S ribosomal protein L5
745	 35.48	+2	767977..768162	+	61	157737016	rpsN	Abu_0765	-	30S ribosomal protein S14
746	 29.32	0	768175..768573	+	132	157737017	rpsH	Abu_0766	-	30S ribosomal protein S8
747	 33.52	+1	768583..769119	+	178	157737018	rplF	Abu_0767	-	50S ribosomal protein L6
748	 31.94	+1	769129..769488	+	119	157737019	rplR	Abu_0768	-	50S ribosomal protein L18
749	 34.92	+2	769498..769938	+	146	157737020	rpsE	Abu_0769	-	30S ribosomal protein S5
750	 30.83	+1	769942..770340	+	132	157737021	rplO	Abu_0770	-	50S ribosomal protein L15
751	 30.40	0	770343..771605	+	420	157737022	secY	Abu_0771	-	preprotein translocase subunit SecY
752	 31.63	+1	771607..772371	+	254	157737023	map	Abu_0772	-	methionine aminopeptidase
753	 31.51	+1	772381..772599	+	72	157737024	infA	Abu_0773	-	translation initiation factor IF-1
754	 22.87	-1	772688..773356	+	222	157737025	-	Abu_0774	-	hypothetical protein
755	 24.62	0	773353..774546	+	397	157737026	-	Abu_0775	-	hypothetical protein
756	 29.83	0	774590..776359	+	589	157737027	aspS	Abu_0776	-	aspartyl-tRNA synthetase
757	 24.56	0	776500..779085	+	861	157737028	-	Abu_0777	-	CheW-like chemotaxis protein
758	 31.40	+1	779146..780903	+	585	157737029	-	Abu_0778	-	radical SAM domain-containing protein
759	 32.09	+1	780939..781580	-	213	157737030	adk1	Abu_0779	-	adenylate kinase
760	 28.60	0	781710..782279	+	189	157737031	adk2	Abu_0780	-	adenylate kinase
761	 26.95	0	782279..783046	+	255	157737032	-	Abu_0781	-	molybdopterin binding domain-containing protein
762	 22.79	-1	783072..783716	+	214	157737033	cat	Abu_0782	-	chloramphenicol O-acetyltransferase
763	 27.38	0	783841..784983	+	380	157737034	-	Abu_0783	-	zinc-containing NADP-dependent alcohol dehydrogenase
764	 27.75	0	785021..786148	+	375	157737035	-	Abu_0784	-	iron-containing NADP-dependent alcohol dehydrogenase
765	 26.04	0	786197..788458	-	753	157737036	-	Abu_0785	-	methyl-accepting chemotaxis protein
766	 28.84	0	788583..789605	-	340	157737037	alr	Abu_0786	-	alanine racemase
767	 25.72	0	789608..791458	-	616	157737038	uvrC	Abu_0787	-	excinuclease ABC subunit C
768	 27.87	0	791614..794010	+	798	157737039	-	Abu_0788	-	methyl-accepting chemotaxis protein
769	 27.00	0	794444..796447	+	667	157737040	-	Abu_0789	-	methyl-accepting chemotaxis protein
770	 28.87	0	796489..798483	+	664	157737041	-	Abu_0790	-	methyl-accepting chemotaxis protein
771	 27.60	0	798834..800858	+	674	157737042	-	Abu_0791	-	methyl-accepting chemotaxis protein
772	 23.83	0	800866..801528	-	220	157737043	-	Abu_0792	-	two-component response regulator
773	 23.76	0	801525..802589	-	354	157737044	-	Abu_0793	-	two component system histidine kinase/response regulator fusion protein
774	 26.11	0	802655..804952	+	765	157737045	-	Abu_0794	-	two-component sensor histidine kinase
775	 30.17	0	804929..805339	-	136	157737046	-	Abu_0795	-	MutT/nudix family protein
776	 21.53	-1	805416..806186	-	256	157737047	-	Abu_0796	-	hypothetical protein
777	 23.69	0	806179..806541	-	120	157737048	-	Abu_0797	-	hypothetical protein
778	 22.13	-1	806534..806890	-	118	157737049	-	Abu_0798	-	hypothetical protein
779	 32.78	+1	806999..808273	+	424	157737050	-	Abu_0799	-	urea/short-chain amide ABC transporter, periplasmic urea/short-chain amide-binding protein
780	 28.22	0	808330..809934	+	534	157737051	-	Abu_0800	-	urea/short-chain amide ABC transporter, permease protein
781	 31.53	+1	809938..811044	+	368	157737052	-	Abu_0801	-	ABC transporter, permease protein
782	 32.19	+1	811046..811834	+	262	157737053	-	Abu_0802	-	ABC transporter, ATP-binding protein
783	 31.75	+1	811964..812659	+	231	157737054	-	Abu_0803	-	ABC transporter, ATP-binding protein
784	 18.99	-2	812786..813775	+	329	157737055	-	Abu_0804	-	hypothetical protein
785	 22.58	-1	813947..814699	+	250	157737056	ureD	Abu_0805	-	urease accessory protein UreD
26.98	MEAN

3.50	STD DEV
