IslandPath Analysis: Arcobacter butzleri RM4018

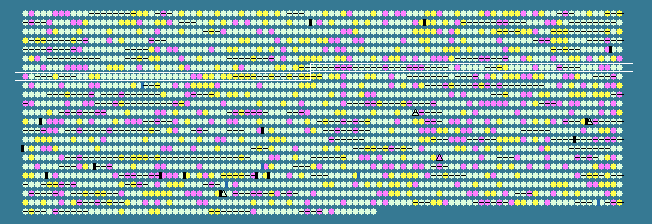

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.98 STD DEV: 3.50
Arcobacter butzleri RM4018, complete genome - 1..2341251
2259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
649	 28.16	0	679515..680075	+	186	157736920	-	Abu_0669	-	hypothetical protein
650	 28.39	0	680075..681247	+	390	157736921	wbpG1	Abu_0670	-	putative LPS biosynthesis protein WbpG
651	 28.16	0	681244..681861	+	205	157736922	hisH2	Abu_0671	-	imidazole glycerol phosphate synthase subunit HisH
652	 27.43	0	681864..682625	+	253	157736923	hisF2	Abu_0672	-	imidazoleglycerol phosphate synthase, cyclase subunit
653	 20.20	-1	682622..684136	+	504	157736924	-	Abu_0673	-	hypothetical protein
654	 21.94	-1	684136..685311	+	391	157736925	-	Abu_0674	-	hypothetical protein
655	 21.99	-1	685396..687096	+	566	157736926	-	Abu_0675	-	ABC transporter, ATP-binding/permease protein
656	 24.31	0	687100..689106	+	668	157736927	-	Abu_0676	-	putative O-antigen acyltransferase
657	 24.49	0	689103..690233	+	376	157736928	pglJ	Abu_0677	-	glycosyltransferase
658	 25.33	0	690221..692119	+	632	157736929	asnB	Abu_0678	-	asparagine synthetase
659	 23.76	0	692112..693218	+	368	157736930	-	Abu_0679	-	glycosyltransferase
660	 23.74	0	693277..694047	+	256	157736931	-	Abu_0680	-	hypothetical protein
661	 17.04	-2	694138..694272	+	44	157736932	-	Abu_0681	-	hypothetical protein
662	 23.97	0	694296..695534	+	412	157736933	-	Abu_0682	-	O-antigen translocase
663	 25.89	0	695534..696661	+	375	157736934	wbpG2	Abu_0683	-	putative LPS biosynthesis protein WbpG
664	 26.22	0	696658..697191	+	177	157736935	-	Abu_0684	-	hypothetical protein
665	 21.47	-1	697188..698333	+	381	157736936	-	Abu_0685	-	hypothetical protein
666	 21.70	-1	698326..699528	+	400	157736937	-	Abu_0686	-	hypothetical protein
667	 23.28	-1	699534..700697	+	387	157736938	-	Abu_0687	-	glycosyltransferase
668	 28.27	0	700687..701832	+	381	157736939	wbpG3	Abu_0688	-	putative LPS biosynthesis protein WbpG
669	 27.23	0	701841..702446	+	201	157736940	hisH3	Abu_0689	-	imidazole glycerol phosphate synthase subunit HisH
670	 27.37	0	702443..703213	+	256	157736941	hisF3	Abu_0690	-	imidazoleglycerol phosphate synthase, cyclase subunit
671	 29.28	0	703213..704322	+	369	157736942	-	Abu_0691	-	glycosyltransferase
672	 28.76	0	704319..705389	+	356	157736943	-	Abu_0692	-	putative hexose epimerase
673	 22.92	-1	705382..706380	+	332	157736944	-	Abu_0693	-	glycosyltransferase
674	 24.92	0	706377..707339	+	320	157736945	-	Abu_0694	-	glycosyltransferase
675	 25.83	0	707339..707911	+	190	157736946	-	Abu_0695	-	putative hexose epimerase
676	 25.70	0	707921..709663	+	580	157736947	pglF	Abu_0696	-	sugar epimerase/dehydratase
677	 26.32	0	709725..710123	+	132	157736948	-	Abu_0697	-	hypothetical protein
678	 23.51	0	710127..710981	-	284	157736949	ligA	Abu_0698	-	DNA ligase
679	 26.34	0	711046..711603	+	185	157736950	apt	Abu_0699	-	adenine phosphoribosyltransferase
680	 31.84	+1	711620..712828	+	402	157736951	trpB1	Abu_0700	-	tryptophan synthase subunit beta
681	 32.19	+1	712846..713547	+	233	157736952	-	Abu_0701	-	hypothetical protein
682	 28.31	0	713537..714949	+	470	157736953	pepA	Abu_0702	-	leucyl aminopeptidase
683	 28.51	0	714977..715660	-	227	157736954	-	Abu_0703	-	TonB-dependent receptor protein
684	 26.19	0	715668..716045	-	125	157736955	exbD2	Abu_0704	-	biopolymer transport protein ExbD
685	 26.57	0	716026..716454	-	142	157736956	exbB2	Abu_0705	-	biopolymer transport protein ExbB
686	 22.39	-1	716612..717826	+	404	157736957	-	Abu_0706	-	hypothetical protein
687	 27.79	0	717833..719095	+	420	157736958	-	Abu_0707	-	HlyD family secretion protein
688	 29.52	0	719082..719789	+	235	157736959	-	Abu_0708	-	ABC transporter, ATP-binding protein
689	 27.97	0	719789..721000	+	403	157736960	-	Abu_0709	-	ABC transporter, permease protein
690	 22.71	-1	721026..721505	-	159	157736961	-	Abu_0710	-	hypothetical protein
691	 30.40	0	721990..724101	-	703	157736962	-	Abu_0711	-	heavy metal translocating P-type ATPase
692	 28.10	0	724103..724465	-	120	157736963	-	Abu_0712	-	hypothetical protein
693	 29.91	0	724466..724816	-	116	157736964	-	Abu_0713	-	hypothetical protein
694	 27.06	0	724816..725070	-	84	157736965	-	Abu_0714	-	hypothetical protein
695	 27.51	0	725074..725760	-	228	157736966	-	Abu_0715	-	hypothetical protein
696	 26.67	0	725757..726071	-	104	157736967	-	Abu_0716	-	hypothetical protein
697	 23.50	0	726132..726599	-	155	157736968	fur1	Abu_0717	-	ferric uptake regulation protein
698	 22.39	-1	726750..727142	+	130	157736969	-	Abu_0718	-	hypothetical protein
699	 30.11	0	727165..728562	+	465	157736970	fumC	Abu_0719	-	fumarate hydratase, class II
700	 26.83	0	728584..728829	+	81	157736971	-	Abu_0720	-	hypothetical protein
701	 22.01	-1	728867..730720	-	617	157736972	-	Abu_0721	-	two-component sensor histidine kinase
702	 23.86	0	730704..731558	-	284	157736973	-	Abu_0722	-	two-component response regulator
703	 29.70	0	731681..733828	+	715	157736974	bfrE	Abu_0723	-	TonB-dependent receptor
704	 28.05	0	733912..734592	+	226	157736975	-	Abu_0724	-	hypothetical protein
705	 28.04	0	734589..735665	+	358	157736976	-	Abu_0725	-	FMN-dependent alpha-hydroxy acid dehydrogenase
706	 30.75	+1	735880..737970	+	696	157736977	irgA	Abu_0726	-	iron-regulated outer membrane virulence protein
707	 25.75	0	738049..738918	+	289	157736978	-	Abu_0727	-	IroE protein
708	 23.89	0	738931..740211	+	426	157736979	-	Abu_0728	-	putative SAM-dependent methyltransferase
709	 26.73	0	740310..740975	+	221	157736980	-	Abu_0729	-	hypothetical protein
710	 26.91	0	740987..742231	+	414	157736981	cysJ	Abu_0730	-	sulfite reductase, flavoprotein component
711	 28.28	0	742316..742513	-	65	157736982	-	Abu_0731	-	hypothetical protein
712	 33.52	+1	742516..744615	-	699	157736983	cstA	Abu_0732	-	carbon starvation protein A
713	 30.62	+1	744810..745913	+	367	157736984	-	Abu_0733	-	GTP-binding protein, putative
714	 25.33	0	745923..746747	+	274	157736985	-	Abu_0734	-	hypothetical protein
715	 25.08	0	746742..747359	-	205	157736986	-	Abu_0735	-	hypothetical protein
716	 24.31	0	747359..747613	-	84	157736987	-	Abu_0736	-	hypothetical protein
717	 28.25	0	747730..748044	+	104	157736988	-	Abu_0737	-	hypothetical protein
718	 25.78	0	748084..748785	-	233	157736989	-	Abu_0738	-	hypothetical protein
719	 24.64	0	748829..750220	-	463	157736990	-	Abu_0739	-	GGDEF/PAS domain-containing protein
720	 23.84	0	750338..751159	+	273	157736991	thiL	Abu_0740	-	thiamine monophosphate kinase
721	 26.10	0	751293..752357	+	354	157736992	truD	Abu_0741	-	tRNA pseudouridine synthase D
722	 26.84	0	752410..752763	+	117	157736993	-	Abu_0742	-	hypothetical protein
723	 27.45	0	752789..754981	-	730	157736994	-	Abu_0743	-	methyl-accepting chemotaxis protein
724	 27.06	0	755090..755647	+	185	157736995	ruvA	Abu_0744	-	Holliday junction DNA helicase motor protein
725	 25.29	0	755666..756709	+	347	157736996	ddlA	Abu_0745	-	D-alanyl-alanine synthetase A
726	 24.58	0	756712..757431	+	239	157736997	-	Abu_0746	-	2-hydroxy-6-oxohepta-2,4-dienoate hydrolase
727	 25.33	0	757418..758854	+	478	157736998	murF	Abu_0747	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate ligase
728	 29.24	0	758865..759353	+	162	157736999	-	Abu_0748	-	HIT family protein
729	 21.55	-1	759461..760453	+	330	157737000	-	Abu_0749	-	hypothetical protein
730	 17.53	-2	760564..761784	+	406	157737001	-	Abu_0750	-	hypothetical protein
731	 33.33	+1	761991..762305	+	104	157737002	rpsJ	Abu_0751	-	30S ribosomal protein S10
732	 33.51	+1	762324..762899	+	191	157737003	rplC	Abu_0752	-	50S ribosomal protein L3
733	 29.41	0	762896..763507	+	203	157737004	rplD	Abu_0753	-	50S ribosomal protein L4
734	 30.85	+1	763509..763790	+	93	157737005	rplW	Abu_0754	-	50S ribosomal protein L23
735	 34.06	+2	763801..764628	+	275	157737006	rplB	Abu_0755	-	50S ribosomal protein L2
736	 32.61	+1	764638..764913	+	91	157737007	rpsS	Abu_0756	-	30S ribosomal protein S19
737	 34.83	+2	764916..765248	+	110	157737008	rplV	Abu_0757	-	50S ribosomal protein L22
738	 33.19	+1	765248..765952	+	234	157737009	rpsC	Abu_0758	-	30S ribosomal protein S3
739	 34.74	+2	765955..766380	+	141	157737010	rplP	Abu_0759	-	50S ribosomal protein L16
740	 26.04	0	766367..766558	+	63	157737011	rpmC	Abu_0760	-	50S ribosomal protein L29
741	 28.97	0	766569..766820	+	83	157737012	rpsQ	Abu_0761	-	30S ribosomal protein S17
742	 33.06	+1	766820..767188	+	122	157737013	rplN	Abu_0762	-	50S ribosomal protein L14
743	 28.75	0	767188..767427	+	79	157737014	rplX	Abu_0763	-	50S ribosomal protein L24
744	 29.57	0	767420..767977	+	185	157737015	rplE	Abu_0764	-	50S ribosomal protein L5
745	 35.48	+2	767977..768162	+	61	157737016	rpsN	Abu_0765	-	30S ribosomal protein S14
746	 29.32	0	768175..768573	+	132	157737017	rpsH	Abu_0766	-	30S ribosomal protein S8
747	 33.52	+1	768583..769119	+	178	157737018	rplF	Abu_0767	-	50S ribosomal protein L6
748	 31.94	+1	769129..769488	+	119	157737019	rplR	Abu_0768	-	50S ribosomal protein L18
26.98	MEAN

3.50	STD DEV
