IslandPath Analysis: Arcobacter butzleri RM4018

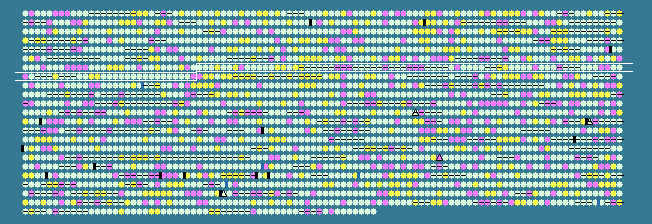

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 26.98   STD DEV: 3.50
Arcobacter butzleri RM4018, complete genome - 1..2341251
2259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
630	 27.48	0	657251..658036	-	261	157736901	pdxJ	Abu_0650	-	pyridoxal phosphate biosynthetic protein PdxJ
631	 27.26	0	658046..659461	-	471	157736902	trpE	Abu_0651	-	anthranilate synthase, component I
632	 27.11	0	659472..660500	-	342	157736903	-	Abu_0652	-	hypothetical protein
633	 33.10	+1	660526..661788	-	420	157736904	glyA1	Abu_0653	-	serine hydroxymethyltransferase
634	 28.05	0	661802..663316	-	504	157736905	lysS	Abu_0654	-	lysyl-tRNA synthetase
635	 26.95	0	663329..664033	-	234	157736906	-	Abu_0655	-	colicin V production protein
636	 33.33	+1	664132..665193	+	353	157736907	ispG	Abu_0656	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
637	 22.66	-1	665193..666494	+	433	157736908	-	Abu_0657	-	GGDEF domain-containing protein
638	 29.66	0	666557..667999	+	480	157736909	dnaB	Abu_0658	-	replicative DNA helicase
639	 27.93	0	668065..669231	+	388	157736910	ugd	Abu_0659	-	UDP-glucose 6-dehydrogenase
640	 28.48	0	669242..670333	+	363	157736911	-	Abu_0660	-	NAD-dependent epimerase/dehydratase family protein
641	 29.72	0	670330..671574	+	414	157736912	-	Abu_0661	-	UDP-hexose dehydrogenase
642	 28.38	0	671577..672545	+	322	157736913	-	Abu_0662	-	hypothetical protein
643	 31.43	+1	672550..673128	+	192	157736914	-	Abu_0663	-	hypothetical protein
644	 30.67	+1	673131..674219	+	362	157736915	-	Abu_0664	-	DegT/DnrJ/EryC1/StrS aminotransferase
645	 25.78	0	674219..675397	+	392	157736916	-	Abu_0665	-	FAD-dependent oxidoreductase
646	 30.85	+1	675363..676370	+	335	157736917	-	Abu_0666	-	NAD-dependent epimerase/dehydratase family protein
647	 30.48	0	676375..677565	+	396	157736918	-	Abu_0667	-	DegT/DnrJ/EryC1/StrS aminotransferase
648	 27.48	0	677567..679564	+	665	157736919	asnB2	Abu_0668	-	asparagine synthetase
649	 28.16	0	679515..680075	+	186	157736920	-	Abu_0669	-	hypothetical protein
650	 28.39	0	680075..681247	+	390	157736921	wbpG1	Abu_0670	-	putative LPS biosynthesis protein WbpG
651	 28.16	0	681244..681861	+	205	157736922	hisH2	Abu_0671	-	imidazole glycerol phosphate synthase subunit HisH
652	 27.43	0	681864..682625	+	253	157736923	hisF2	Abu_0672	-	imidazoleglycerol phosphate synthase, cyclase subunit
653	 20.20	-1	682622..684136	+	504	157736924	-	Abu_0673	-	hypothetical protein
654	 21.94	-1	684136..685311	+	391	157736925	-	Abu_0674	-	hypothetical protein
655	 21.99	-1	685396..687096	+	566	157736926	-	Abu_0675	-	ABC transporter, ATP-binding/permease protein
656	 24.31	0	687100..689106	+	668	157736927	-	Abu_0676	-	putative O-antigen acyltransferase
657	 24.49	0	689103..690233	+	376	157736928	pglJ	Abu_0677	-	glycosyltransferase
658	 25.33	0	690221..692119	+	632	157736929	asnB	Abu_0678	-	asparagine synthetase
659	 23.76	0	692112..693218	+	368	157736930	-	Abu_0679	-	glycosyltransferase
660	 23.74	0	693277..694047	+	256	157736931	-	Abu_0680	-	hypothetical protein
661	 17.04	-2	694138..694272	+	44	157736932	-	Abu_0681	-	hypothetical protein
662	 23.97	0	694296..695534	+	412	157736933	-	Abu_0682	-	O-antigen translocase
663	 25.89	0	695534..696661	+	375	157736934	wbpG2	Abu_0683	-	putative LPS biosynthesis protein WbpG
664	 26.22	0	696658..697191	+	177	157736935	-	Abu_0684	-	hypothetical protein
665	 21.47	-1	697188..698333	+	381	157736936	-	Abu_0685	-	hypothetical protein
666	 21.70	-1	698326..699528	+	400	157736937	-	Abu_0686	-	hypothetical protein
667	 23.28	-1	699534..700697	+	387	157736938	-	Abu_0687	-	glycosyltransferase
668	 28.27	0	700687..701832	+	381	157736939	wbpG3	Abu_0688	-	putative LPS biosynthesis protein WbpG
669	 27.23	0	701841..702446	+	201	157736940	hisH3	Abu_0689	-	imidazole glycerol phosphate synthase subunit HisH
670	 27.37	0	702443..703213	+	256	157736941	hisF3	Abu_0690	-	imidazoleglycerol phosphate synthase, cyclase subunit
671	 29.28	0	703213..704322	+	369	157736942	-	Abu_0691	-	glycosyltransferase
672	 28.76	0	704319..705389	+	356	157736943	-	Abu_0692	-	putative hexose epimerase
673	 22.92	-1	705382..706380	+	332	157736944	-	Abu_0693	-	glycosyltransferase
674	 24.92	0	706377..707339	+	320	157736945	-	Abu_0694	-	glycosyltransferase
675	 25.83	0	707339..707911	+	190	157736946	-	Abu_0695	-	putative hexose epimerase
676	 25.70	0	707921..709663	+	580	157736947	pglF	Abu_0696	-	sugar epimerase/dehydratase
677	 26.32	0	709725..710123	+	132	157736948	-	Abu_0697	-	hypothetical protein
678	 23.51	0	710127..710981	-	284	157736949	ligA	Abu_0698	-	DNA ligase
679	 26.34	0	711046..711603	+	185	157736950	apt	Abu_0699	-	adenine phosphoribosyltransferase
680	 31.84	+1	711620..712828	+	402	157736951	trpB1	Abu_0700	-	tryptophan synthase subunit beta
681	 32.19	+1	712846..713547	+	233	157736952	-	Abu_0701	-	hypothetical protein
682	 28.31	0	713537..714949	+	470	157736953	pepA	Abu_0702	-	leucyl aminopeptidase
683	 28.51	0	714977..715660	-	227	157736954	-	Abu_0703	-	TonB-dependent receptor protein
684	 26.19	0	715668..716045	-	125	157736955	exbD2	Abu_0704	-	biopolymer transport protein ExbD
685	 26.57	0	716026..716454	-	142	157736956	exbB2	Abu_0705	-	biopolymer transport protein ExbB
686	 22.39	-1	716612..717826	+	404	157736957	-	Abu_0706	-	hypothetical protein
687	 27.79	0	717833..719095	+	420	157736958	-	Abu_0707	-	HlyD family secretion protein
688	 29.52	0	719082..719789	+	235	157736959	-	Abu_0708	-	ABC transporter, ATP-binding protein
689	 27.97	0	719789..721000	+	403	157736960	-	Abu_0709	-	ABC transporter, permease protein
690	 22.71	-1	721026..721505	-	159	157736961	-	Abu_0710	-	hypothetical protein
691	 30.40	0	721990..724101	-	703	157736962	-	Abu_0711	-	heavy metal translocating P-type ATPase
692	 28.10	0	724103..724465	-	120	157736963	-	Abu_0712	-	hypothetical protein
693	 29.91	0	724466..724816	-	116	157736964	-	Abu_0713	-	hypothetical protein
694	 27.06	0	724816..725070	-	84	157736965	-	Abu_0714	-	hypothetical protein
695	 27.51	0	725074..725760	-	228	157736966	-	Abu_0715	-	hypothetical protein
696	 26.67	0	725757..726071	-	104	157736967	-	Abu_0716	-	hypothetical protein
697	 23.50	0	726132..726599	-	155	157736968	fur1	Abu_0717	-	ferric uptake regulation protein
698	 22.39	-1	726750..727142	+	130	157736969	-	Abu_0718	-	hypothetical protein
699	 30.11	0	727165..728562	+	465	157736970	fumC	Abu_0719	-	fumarate hydratase, class II
700	 26.83	0	728584..728829	+	81	157736971	-	Abu_0720	-	hypothetical protein
701	 22.01	-1	728867..730720	-	617	157736972	-	Abu_0721	-	two-component sensor histidine kinase
702	 23.86	0	730704..731558	-	284	157736973	-	Abu_0722	-	two-component response regulator
703	 29.70	0	731681..733828	+	715	157736974	bfrE	Abu_0723	-	TonB-dependent receptor
704	 28.05	0	733912..734592	+	226	157736975	-	Abu_0724	-	hypothetical protein
705	 28.04	0	734589..735665	+	358	157736976	-	Abu_0725	-	FMN-dependent alpha-hydroxy acid dehydrogenase
706	 30.75	+1	735880..737970	+	696	157736977	irgA	Abu_0726	-	iron-regulated outer membrane virulence protein
707	 25.75	0	738049..738918	+	289	157736978	-	Abu_0727	-	IroE protein
708	 23.89	0	738931..740211	+	426	157736979	-	Abu_0728	-	putative SAM-dependent methyltransferase
709	 26.73	0	740310..740975	+	221	157736980	-	Abu_0729	-	hypothetical protein
710	 26.91	0	740987..742231	+	414	157736981	cysJ	Abu_0730	-	sulfite reductase, flavoprotein component
711	 28.28	0	742316..742513	-	65	157736982	-	Abu_0731	-	hypothetical protein
712	 33.52	+1	742516..744615	-	699	157736983	cstA	Abu_0732	-	carbon starvation protein A
713	 30.62	+1	744810..745913	+	367	157736984	-	Abu_0733	-	GTP-binding protein, putative
714	 25.33	0	745923..746747	+	274	157736985	-	Abu_0734	-	hypothetical protein
715	 25.08	0	746742..747359	-	205	157736986	-	Abu_0735	-	hypothetical protein
716	 24.31	0	747359..747613	-	84	157736987	-	Abu_0736	-	hypothetical protein
717	 28.25	0	747730..748044	+	104	157736988	-	Abu_0737	-	hypothetical protein
718	 25.78	0	748084..748785	-	233	157736989	-	Abu_0738	-	hypothetical protein
719	 24.64	0	748829..750220	-	463	157736990	-	Abu_0739	-	GGDEF/PAS domain-containing protein
720	 23.84	0	750338..751159	+	273	157736991	thiL	Abu_0740	-	thiamine monophosphate kinase
721	 26.10	0	751293..752357	+	354	157736992	truD	Abu_0741	-	tRNA pseudouridine synthase D
722	 26.84	0	752410..752763	+	117	157736993	-	Abu_0742	-	hypothetical protein
723	 27.45	0	752789..754981	-	730	157736994	-	Abu_0743	-	methyl-accepting chemotaxis protein
724	 27.06	0	755090..755647	+	185	157736995	ruvA	Abu_0744	-	Holliday junction DNA helicase motor protein
725	 25.29	0	755666..756709	+	347	157736996	ddlA	Abu_0745	-	D-alanyl-alanine synthetase A
726	 24.58	0	756712..757431	+	239	157736997	-	Abu_0746	-	2-hydroxy-6-oxohepta-2,4-dienoate hydrolase
727	 25.33	0	757418..758854	+	478	157736998	murF	Abu_0747	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate ligase
728	 29.24	0	758865..759353	+	162	157736999	-	Abu_0748	-	HIT family protein
729	 21.55	-1	759461..760453	+	330	157737000	-	Abu_0749	-	hypothetical protein
26.98	MEAN

3.50	STD DEV
