IslandPath Analysis: Arcobacter butzleri RM4018

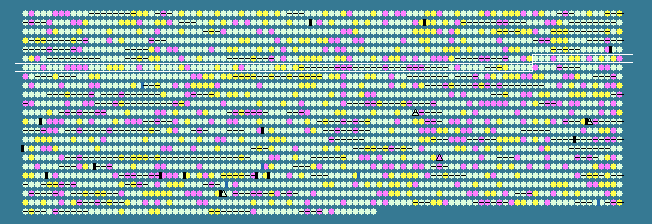

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.98 STD DEV: 3.50
Arcobacter butzleri RM4018, complete genome - 1..2341251
2259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
586	 29.94	0	606769..607122	-	117	157736857	-	Abu_0606	-	hypothetical protein
587	 25.55	0	607132..607542	-	136	157736858	sufE	Abu_0607	-	putative SUF regulatory protein
588	 28.61	0	607544..608728	-	394	157736859	sufS	Abu_0608	-	selenocysteine lyase/cysteine desulfurase
589	 22.58	-1	608721..609752	-	343	157736860	sufD	Abu_0609	-	Fe-S assembly protein
590	 26.85	0	609739..610509	-	256	157736861	sufC	Abu_0610	-	Fe-S assembly ABC transporter, ATP-binding protein
591	 30.34	0	610513..611982	-	489	157736862	sufB	Abu_0611	-	Fe-S assembly ABC transporter, permease protein
592	 31.91	+1	612179..613375	+	398	157736863	iscS	Abu_0612	-	cysteine desulfurase/aminotransferase (IscS/NifS)
593	 30.68	+1	613406..614386	+	326	157736864	iscU	Abu_0613	-	NifU-like protein
594	 26.44	0	614517..615140	+	207	157736865	-	Abu_0614	-	hypothetical protein
595	 23.00	-1	615142..616389	-	415	157736866	-	Abu_0615	-	GGDEF domain-containing protein
596	 27.91	0	616464..617864	+	466	157736867	argH	Abu_0616	-	argininosuccinate lyase
597	 30.69	+1	617884..618792	-	302	157736868	cheV	Abu_0617	-	chemotaxis signal transduction protein CheV
598	 27.27	0	618843..619502	-	219	157736869	-	Abu_0618	-	MoeB/ThiF family protein
599	 32.10	+1	619565..620050	+	161	157736870	greA	Abu_0619	-	transcription elongation factor GreA
600	 19.46	-2	620063..620761	+	232	157736871	-	Abu_0620	-	hypothetical protein
601	 29.69	0	620773..622746	+	657	157736872	uvrB	Abu_0621	-	excinuclease ABC subunit B
602	 25.96	0	622837..624720	+	627	157736873	-	Abu_0622	-	methyl-accepting chemotaxis protein
603	 28.37	0	624727..625371	-	214	157736874	nth	Abu_0623	-	endonuclease III
604	 19.71	-2	625368..625778	-	136	157736875	-	Abu_0624	-	hypothetical protein
605	 28.39	0	625939..627921	+	660	157736876	-	Abu_0625	-	TonB-dependent receptor protein
606	 30.00	0	628024..630180	+	718	157736877	-	Abu_0626	-	TonB-dependent receptor protein
607	 26.01	0	630232..631623	-	463	157736878	-	Abu_0627	-	methyl-accepting chemotaxis protein
608	 19.95	-2	631716..632813	-	365	157736879	-	Abu_0628	-	hypothetical protein
609	 19.35	-2	633356..633541	+	61	157736880	-	Abu_0629	-	hypothetical protein
610	 22.80	-1	633654..634346	+	230	157736881	-	Abu_0630	-	two-component response regulator
611	 20.96	-1	634351..637332	+	993	157736882	-	Abu_0631	-	two-component sensor histidine kinase
612	 26.87	0	637521..639824	+	767	157736883	-	Abu_0632	-	methyl-accepting chemotaxis protein
613	 27.20	0	639938..641944	+	668	157736884	-	Abu_0633	-	methyl-accepting chemotaxis protein
614	 25.93	0	641969..643198	-	409	157736885	-	Abu_0634	-	hypothetical protein
615	 33.99	+2	643460..643915	-	151	157736886	rpiB	Abu_0635	-	ribose-5-phosphate isomerase B
616	 30.78	+1	643915..644697	-	260	157736887	lepP	Abu_0636	-	signal peptidase I
617	 30.90	+1	644691..645554	-	287	157736888	folD	Abu_0637	-	bifunctional 5,10-methylene-tetrahydrofolate dehydrogenase/5,10-methylene-tetrahydrofolate cyclohydrolase
618	 28.86	0	645702..646238	+	178	157736889	rplY	Abu_0638	-	50S ribosomal protein L25/general stress protein Ctc
619	 25.91	0	646247..646798	+	183	157736890	pth	Abu_0639	-	peptidyl-tRNA hydrolase
620	 21.82	-1	646801..647868	+	355	157736891	-	Abu_0640	-	hypothetical protein
621	 25.95	0	647882..648328	+	148	157736892	-	Abu_0641	-	hypothetical protein
622	 27.52	0	648291..649751	-	486	157736893	amiA	Abu_0642	-	N-acetylmuramoyl-L-alanine amidase
623	 32.36	+1	649757..650788	-	343	157736894	npd	Abu_0643	-	2-nitropropane dioxygenase
624	 27.46	0	650849..652057	-	402	157736895	tyrS	Abu_0644	-	tyrosyl-tRNA synthetase
625	 26.90	0	652076..654220	-	714	157736896	spoT	Abu_0645	-	bifunctional ppGpp synthetase/guanosine-3',5'-bis(diphosphate) 3'-pyrophosphohydrolase
626	 27.85	0	654254..654472	-	72	157736897	rpoZ	Abu_0646	-	DNA-directed RNA polymerase, omega chain
627	 33.05	+1	654495..655202	-	235	157736898	pyrH	Abu_0647	-	uridylate kinase
628	 20.69	-1	655259..656326	-	355	157736899	-	Abu_0648	-	hypothetical protein
629	 25.32	0	656323..657258	-	311	157736900	pdxA	Abu_0649	-	4-hydroxythreonine-4-phosphate dehydrogenase
630	 27.48	0	657251..658036	-	261	157736901	pdxJ	Abu_0650	-	pyridoxal phosphate biosynthetic protein PdxJ
631	 27.26	0	658046..659461	-	471	157736902	trpE	Abu_0651	-	anthranilate synthase, component I
632	 27.11	0	659472..660500	-	342	157736903	-	Abu_0652	-	hypothetical protein
633	 33.10	+1	660526..661788	-	420	157736904	glyA1	Abu_0653	-	serine hydroxymethyltransferase
634	 28.05	0	661802..663316	-	504	157736905	lysS	Abu_0654	-	lysyl-tRNA synthetase
635	 26.95	0	663329..664033	-	234	157736906	-	Abu_0655	-	colicin V production protein
636	 33.33	+1	664132..665193	+	353	157736907	ispG	Abu_0656	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
637	 22.66	-1	665193..666494	+	433	157736908	-	Abu_0657	-	GGDEF domain-containing protein
638	 29.66	0	666557..667999	+	480	157736909	dnaB	Abu_0658	-	replicative DNA helicase
639	 27.93	0	668065..669231	+	388	157736910	ugd	Abu_0659	-	UDP-glucose 6-dehydrogenase
640	 28.48	0	669242..670333	+	363	157736911	-	Abu_0660	-	NAD-dependent epimerase/dehydratase family protein
641	 29.72	0	670330..671574	+	414	157736912	-	Abu_0661	-	UDP-hexose dehydrogenase
642	 28.38	0	671577..672545	+	322	157736913	-	Abu_0662	-	hypothetical protein
643	 31.43	+1	672550..673128	+	192	157736914	-	Abu_0663	-	hypothetical protein
644	 30.67	+1	673131..674219	+	362	157736915	-	Abu_0664	-	DegT/DnrJ/EryC1/StrS aminotransferase
645	 25.78	0	674219..675397	+	392	157736916	-	Abu_0665	-	FAD-dependent oxidoreductase
646	 30.85	+1	675363..676370	+	335	157736917	-	Abu_0666	-	NAD-dependent epimerase/dehydratase family protein
647	 30.48	0	676375..677565	+	396	157736918	-	Abu_0667	-	DegT/DnrJ/EryC1/StrS aminotransferase
648	 27.48	0	677567..679564	+	665	157736919	asnB2	Abu_0668	-	asparagine synthetase
649	 28.16	0	679515..680075	+	186	157736920	-	Abu_0669	-	hypothetical protein
650	 28.39	0	680075..681247	+	390	157736921	wbpG1	Abu_0670	-	putative LPS biosynthesis protein WbpG
651	 28.16	0	681244..681861	+	205	157736922	hisH2	Abu_0671	-	imidazole glycerol phosphate synthase subunit HisH
652	 27.43	0	681864..682625	+	253	157736923	hisF2	Abu_0672	-	imidazoleglycerol phosphate synthase, cyclase subunit
653	 20.20	-1	682622..684136	+	504	157736924	-	Abu_0673	-	hypothetical protein
654	 21.94	-1	684136..685311	+	391	157736925	-	Abu_0674	-	hypothetical protein
655	 21.99	-1	685396..687096	+	566	157736926	-	Abu_0675	-	ABC transporter, ATP-binding/permease protein
656	 24.31	0	687100..689106	+	668	157736927	-	Abu_0676	-	putative O-antigen acyltransferase
657	 24.49	0	689103..690233	+	376	157736928	pglJ	Abu_0677	-	glycosyltransferase
658	 25.33	0	690221..692119	+	632	157736929	asnB	Abu_0678	-	asparagine synthetase
659	 23.76	0	692112..693218	+	368	157736930	-	Abu_0679	-	glycosyltransferase
660	 23.74	0	693277..694047	+	256	157736931	-	Abu_0680	-	hypothetical protein
661	 17.04	-2	694138..694272	+	44	157736932	-	Abu_0681	-	hypothetical protein
662	 23.97	0	694296..695534	+	412	157736933	-	Abu_0682	-	O-antigen translocase
663	 25.89	0	695534..696661	+	375	157736934	wbpG2	Abu_0683	-	putative LPS biosynthesis protein WbpG
664	 26.22	0	696658..697191	+	177	157736935	-	Abu_0684	-	hypothetical protein
665	 21.47	-1	697188..698333	+	381	157736936	-	Abu_0685	-	hypothetical protein
666	 21.70	-1	698326..699528	+	400	157736937	-	Abu_0686	-	hypothetical protein
667	 23.28	-1	699534..700697	+	387	157736938	-	Abu_0687	-	glycosyltransferase
668	 28.27	0	700687..701832	+	381	157736939	wbpG3	Abu_0688	-	putative LPS biosynthesis protein WbpG
669	 27.23	0	701841..702446	+	201	157736940	hisH3	Abu_0689	-	imidazole glycerol phosphate synthase subunit HisH
670	 27.37	0	702443..703213	+	256	157736941	hisF3	Abu_0690	-	imidazoleglycerol phosphate synthase, cyclase subunit
671	 29.28	0	703213..704322	+	369	157736942	-	Abu_0691	-	glycosyltransferase
672	 28.76	0	704319..705389	+	356	157736943	-	Abu_0692	-	putative hexose epimerase
673	 22.92	-1	705382..706380	+	332	157736944	-	Abu_0693	-	glycosyltransferase
674	 24.92	0	706377..707339	+	320	157736945	-	Abu_0694	-	glycosyltransferase
675	 25.83	0	707339..707911	+	190	157736946	-	Abu_0695	-	putative hexose epimerase
676	 25.70	0	707921..709663	+	580	157736947	pglF	Abu_0696	-	sugar epimerase/dehydratase
677	 26.32	0	709725..710123	+	132	157736948	-	Abu_0697	-	hypothetical protein
678	 23.51	0	710127..710981	-	284	157736949	ligA	Abu_0698	-	DNA ligase
679	 26.34	0	711046..711603	+	185	157736950	apt	Abu_0699	-	adenine phosphoribosyltransferase
680	 31.84	+1	711620..712828	+	402	157736951	trpB1	Abu_0700	-	tryptophan synthase subunit beta
681	 32.19	+1	712846..713547	+	233	157736952	-	Abu_0701	-	hypothetical protein
682	 28.31	0	713537..714949	+	470	157736953	pepA	Abu_0702	-	leucyl aminopeptidase
683	 28.51	0	714977..715660	-	227	157736954	-	Abu_0703	-	TonB-dependent receptor protein
684	 26.19	0	715668..716045	-	125	157736955	exbD2	Abu_0704	-	biopolymer transport protein ExbD
685	 26.57	0	716026..716454	-	142	157736956	exbB2	Abu_0705	-	biopolymer transport protein ExbB
26.98	MEAN

3.50	STD DEV
