IslandPath Analysis: Arcobacter butzleri RM4018

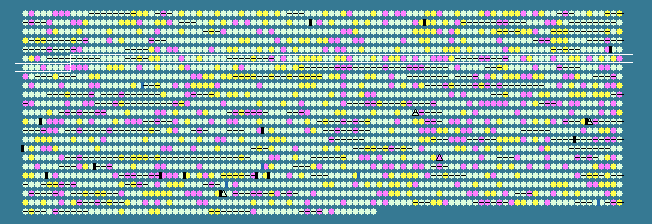

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.98 STD DEV: 3.50
Arcobacter butzleri RM4018, complete genome - 1..2341251
2259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
509	 26.12	0	534237..534638	-	133	157736780	-	Abu_0527	-	hypothetical protein
510	 27.29	0	534781..536682	-	633	157736781	-	Abu_0528	-	methyl-accepting chemotaxis protein
511	 27.82	0	536838..537200	+	120	157736782	-	Abu_0529	-	hypothetical protein
512	 24.20	0	537210..537680	+	156	157736783	-	Abu_0530	-	hypothetical protein
513	 24.98	0	537720..538940	+	406	157736784	-	Abu_0531	-	M48 family peptidase
514	 24.75	0	538937..540136	+	399	157736785	-	Abu_0532	-	DNA recombination protein RmuC-like protein
515	 23.56	0	540149..541048	-	299	157736786	-	Abu_0533	-	integral membrane domain-containing protein
516	 27.44	0	541048..542268	-	406	157736787	moeA2	Abu_0534	-	molybdenum cofactor biosynthesis protein A
517	 23.74	0	542279..542476	-	65	157736788	-	Abu_0535	-	hypothetical protein
518	 28.75	0	542584..543369	+	261	157736789	-	Abu_0536	-	hypothetical protein
519	 25.35	0	543366..543866	+	166	157736790	-	Abu_0537	-	hypothetical protein
520	 31.67	+1	543869..544108	-	79	157736791	-	Abu_0538	-	hypothetical protein
521	 28.92	0	544092..544589	-	165	157736792	-	Abu_0539	-	hypothetical protein
522	 31.95	+1	544832..545629	+	265	157736793	rpsB	Abu_0540	-	30S ribosomal protein S2
523	 31.81	+1	545629..546675	+	348	157736794	tsf	Abu_0541	-	elongation factor Ts
524	 25.99	0	546721..547401	+	226	157736795	-	Abu_0542	-	ABC transporter, ATP-binding protein
525	 24.70	0	547398..548219	+	273	157736796	-	Abu_0543	-	hypothetical protein
526	 26.05	0	548216..548833	+	205	157736797	gmk	Abu_0544	-	guanylate kinase
527	 23.49	0	548834..550459	-	541	157736798	-	Abu_0545	-	EAL/GGDEF domain-containing protein
528	 27.35	0	550556..552994	+	812	157736799	-	Abu_0546	-	cation-transporting ATPase, P-type
529	 28.51	0	553011..553238	+	75	157736800	-	Abu_0547	-	hypothetical protein
530	 36.43	+2	553268..553558	-	96	157736801	-	Abu_0548	-	cytochrome c-553
531	 25.37	0	553758..554360	+	200	157736802	-	Abu_0549	-	oligopeptide ABC transporter, ATP-binding protein
532	 24.62	0	554347..555276	+	309	157736803	hemH	Abu_0550	-	ferrochelatase
533	 26.32	0	555304..557412	-	702	157736804	feoB1	Abu_0551	-	ferrous iron transport protein B
534	 23.68	0	557402..557629	-	75	157736805	-	Abu_0552	-	hypothetical protein
535	 25.57	0	557827..558573	+	248	157736806	-	Abu_0553	-	hypothetical protein
536	 27.26	0	558630..559370	+	246	157736807	-	Abu_0554	-	ABC transporter, ATP-binding protein
537	 28.96	0	559384..560184	+	266	157736808	-	Abu_0555	-	ABC transporter, permease protein
538	 23.64	0	560208..561032	+	274	157736809	-	Abu_0556	-	hypothetical protein
539	 33.15	+1	561113..561652	+	179	157736810	tpx	Abu_0557	-	thiol peroxidase
540	 28.94	0	561764..562492	+	242	157736811	-	Abu_0558	-	hypothetical protein
541	 25.15	0	562512..563489	-	325	157736812	-	Abu_0559	-	efflux protein bile acid:sodium symporter family protein
542	 23.17	-1	563572..564762	+	396	157736813	-	Abu_0560	-	hypothetical protein
543	 28.26	0	565013..565939	+	308	157736814	-	Abu_0561	-	putative sulfite oxidase subunit YedY
544	 21.34	-1	565939..566505	+	188	157736815	-	Abu_0562	-	hypothetical protein
545	 27.66	0	566755..568800	+	681	157736816	rep	Abu_0563	-	ATP-dependent DNA helicase UvrD
546	 25.65	0	568847..570004	+	385	157736817	-	Abu_0564	-	sodium/hydrogen antiporter
547	 33.48	+1	570246..571580	+	444	157736818	soxC	Abu_0565	-	sulfur oxidation protein SoxCD, sulfur dehydrogenase subunit
548	 31.65	+1	571549..572733	+	394	157736819	soxD	Abu_0566	-	sulfur oxidation protein SoxCD, diheme cytochrome c subunit
549	 32.20	+1	572748..573101	+	117	157736820	soxX	Abu_0567	-	sulfur oxidation protein SoxXA, monoheme cytochrome c subunit
550	 33.55	+1	573117..573569	+	150	157736821	soxY	Abu_0568	-	sulfur oxidation protein SoxYZ, sulfur covalently binding protein
551	 30.39	0	573627..573932	+	101	157736822	soxZ	Abu_0569	-	sulfur oxidation protein SoxYZ, sulfur compound chelating protein
552	 29.95	0	573970..574884	+	304	157736823	soxA	Abu_0570	-	sulfur oxidation protein SoxXA, diheme cytochrome c subunit
553	 31.90	+1	574898..575317	+	139	157736824	-	Abu_0571	-	hypothetical protein
554	 30.84	+1	575449..577215	+	588	157736825	soxB	Abu_0572	-	sulfur oxidation protein, sulfate thiol esterase
555	 21.38	-1	577302..578096	+	264	157736826	-	Abu_0573	-	hypothetical protein
556	 26.44	0	578093..578527	+	144	157736827	-	Abu_0574	-	hypothetical protein
557	 27.66	0	578531..578971	+	146	157736828	-	Abu_0575	-	hypothetical protein
558	 28.66	0	578989..579780	+	263	157736829	-	Abu_0576	-	hypothetical protein
559	 31.39	+1	579811..580377	-	188	157736830	pfpI	Abu_0577	-	peptidase, ThiJ/PfpI family protein
560	 26.69	0	580452..581369	-	305	157736831	-	Abu_0578	-	beta-lactamase-like protein
561	 21.37	-1	581459..582511	+	350	157736832	-	Abu_0579	-	hypothetical protein
562	 30.67	+1	582535..583209	-	224	157736833	-	Abu_0580	-	rhodanese-like protein
563	 32.11	+1	583395..586010	+	871	157736834	valS	Abu_0581	-	valyl-tRNA synthetase
564	 22.47	-1	586038..586856	+	272	157736835	-	Abu_0582	-	hypothetical protein
565	 30.26	0	587017..587211	+	64	157736836	-	Abu_0583	-	hypothetical protein
566	 23.27	-1	587249..588103	-	284	157736837	-	Abu_0584	-	hypothetical protein
567	 29.22	0	588110..589423	-	437	157736838	-	Abu_0585	-	major facilitator superfamily transporter
568	 28.33	0	589501..590100	+	199	157736839	-	Abu_0586	-	HAM1-like protein
569	 20.87	-1	590090..590410	-	106	157736840	-	Abu_0587	-	hypothetical protein
570	 18.42	-2	590407..590748	-	113	157736841	-	Abu_0588	-	hypothetical protein
571	 19.79	-2	590738..591025	-	95	157736842	-	Abu_0589	-	hypothetical protein
572	 33.07	+1	591012..591776	-	254	157736843	proC	Abu_0590	-	pyrroline-5-carboxylate reductase
573	 28.49	0	591846..592526	+	226	157736844	-	Abu_0591	-	hypothetical protein
574	 27.71	0	592569..594986	+	805	157736845	lon	Abu_0592	-	ATP-dependent protease La
575	 26.24	0	594990..595553	+	187	157736846	-	Abu_0593	-	rhomboid-like protein
576	 29.19	0	595550..596008	+	152	157736847	-	Abu_0594	-	protein tyrosine phosphatase
577	 23.41	-1	596048..597337	+	429	157736848	-	Abu_0595	-	hypothetical protein
578	 23.41	-1	597340..599022	+	560	157736849	-	Abu_0596	-	TPR repeat-containing protein
579	 26.62	0	599075..599506	-	143	157736850	-	Abu_0597	-	MarR family transcriptional regulator
580	 26.23	0	599645..599968	+	107	157736851	-	Abu_0598	-	hypothetical protein
581	 22.49	-1	600032..600280	-	82	157736852	-	Abu_0599	-	hypothetical protein
582	 27.16	0	602083..603621	-	512	157736853	-	Abu_0602	-	methyl-accepting chemotaxis protein
583	 25.33	0	603754..603978	+	74	157736854	-	Abu_0603	-	hypothetical protein
584	 22.91	-1	604006..604878	+	290	157736855	-	Abu_0604	-	hypothetical protein
585	 31.96	+1	605069..606520	-	483	157736856	accC2	Abu_0605	-	acetyl CoA carboxylase, biotin carboxylase subunit
586	 29.94	0	606769..607122	-	117	157736857	-	Abu_0606	-	hypothetical protein
587	 25.55	0	607132..607542	-	136	157736858	sufE	Abu_0607	-	putative SUF regulatory protein
588	 28.61	0	607544..608728	-	394	157736859	sufS	Abu_0608	-	selenocysteine lyase/cysteine desulfurase
589	 22.58	-1	608721..609752	-	343	157736860	sufD	Abu_0609	-	Fe-S assembly protein
590	 26.85	0	609739..610509	-	256	157736861	sufC	Abu_0610	-	Fe-S assembly ABC transporter, ATP-binding protein
591	 30.34	0	610513..611982	-	489	157736862	sufB	Abu_0611	-	Fe-S assembly ABC transporter, permease protein
592	 31.91	+1	612179..613375	+	398	157736863	iscS	Abu_0612	-	cysteine desulfurase/aminotransferase (IscS/NifS)
593	 30.68	+1	613406..614386	+	326	157736864	iscU	Abu_0613	-	NifU-like protein
594	 26.44	0	614517..615140	+	207	157736865	-	Abu_0614	-	hypothetical protein
595	 23.00	-1	615142..616389	-	415	157736866	-	Abu_0615	-	GGDEF domain-containing protein
596	 27.91	0	616464..617864	+	466	157736867	argH	Abu_0616	-	argininosuccinate lyase
597	 30.69	+1	617884..618792	-	302	157736868	cheV	Abu_0617	-	chemotaxis signal transduction protein CheV
598	 27.27	0	618843..619502	-	219	157736869	-	Abu_0618	-	MoeB/ThiF family protein
599	 32.10	+1	619565..620050	+	161	157736870	greA	Abu_0619	-	transcription elongation factor GreA
600	 19.46	-2	620063..620761	+	232	157736871	-	Abu_0620	-	hypothetical protein
601	 29.69	0	620773..622746	+	657	157736872	uvrB	Abu_0621	-	excinuclease ABC subunit B
602	 25.96	0	622837..624720	+	627	157736873	-	Abu_0622	-	methyl-accepting chemotaxis protein
603	 28.37	0	624727..625371	-	214	157736874	nth	Abu_0623	-	endonuclease III
604	 19.71	-2	625368..625778	-	136	157736875	-	Abu_0624	-	hypothetical protein
605	 28.39	0	625939..627921	+	660	157736876	-	Abu_0625	-	TonB-dependent receptor protein
606	 30.00	0	628024..630180	+	718	157736877	-	Abu_0626	-	TonB-dependent receptor protein
607	 26.01	0	630232..631623	-	463	157736878	-	Abu_0627	-	methyl-accepting chemotaxis protein
608	 19.95	-2	631716..632813	-	365	157736879	-	Abu_0628	-	hypothetical protein
26.98	MEAN

3.50	STD DEV
