IslandPathversion 1.0

IslandPath Analysis: Arcobacter butzleri RM4018

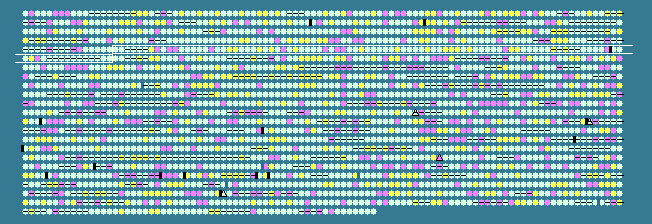

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.98 STD DEV: 3.50
Arcobacter butzleri RM4018, complete genome - 1..2341251
2259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
416	 30.00	0	428527..429006	+	159	157736687	cheW	Abu_0426	-	chemotaxis protein CheW
417	 27.90	0	429034..429567	-	177	157736688	-	Abu_0427	-	peptidyl-prolyl cis-trans isomerase-like protein
418	 29.17	0	429721..430104	+	127	157736689	panD	Abu_0428	-	aspartate alpha-decarboxylase
419	 28.04	0	430097..430417	+	106	157736690	-	Abu_0429	-	hypothetical protein
420	 26.95	0	430422..431282	+	286	157736691	ispA	Abu_0430	-	geranyltranstransferase
421	 29.46	0	431419..431676	+	85	157736692	groES	Abu_0431	-	10 kDa chaperonin
422	 32.78	+1	431676..433310	+	544	157736693	groEL	Abu_0432	-	chaperonin GroEL
423	 23.09	-1	433660..435036	-	458	157736694	-	Abu_0433	-	two-component sensor histidine kinase
424	 24.78	0	435026..435703	-	225	157736695	-	Abu_0434	-	two-component response regulator
425	 22.81	-1	435700..436431	-	243	157736696	-	Abu_0435	-	Ser/Thr protein phosphatase family protein
426	 22.81	-1	436428..436883	-	151	157736697	-	Abu_0436	-	hypothetical protein
427	 24.38	0	436887..437411	-	174	157736698	-	Abu_0437	-	putative periplasmic protein
428	 25.57	0	437404..438369	-	321	157736699	-	Abu_0438	-	hypothetical protein
429	 25.13	0	438357..439928	-	523	157736700	-	Abu_0439	-	hypothetical protein
430	 25.00	0	439912..440535	-	207	157736701	-	Abu_0440	-	ABC transporter, ATP-binding protein
431	 25.12	0	440532..441614	-	360	157736702	-	Abu_0441	-	ABC transporter, permease protein
432	 23.13	-1	441706..442293	-	195	157736703	-	Abu_0442	-	hypothetical protein
433	 25.71	0	442328..443101	+	257	157736704	suhB	Abu_0443	-	inositol-1-monophosphatase
434	 28.79	0	443151..444953	+	600	157736705	glmS	Abu_0444	-	D-fructose-6-phosphate amidotransferase
435	 32.30	+1	445082..446341	+	419	157736706	metK	Abu_0445	-	S-adenosylmethionine synthetase
436	 31.13	+1	446443..447306	+	287	157736707	accD	Abu_0446	-	acetyl-CoA carboxylase subunit beta
437	 23.69	0	447310..447921	+	203	157736708	thiE	Abu_0447	-	thiamine-phosphate pyrophosphorylase
438	 26.04	0	447887..448366	+	159	157736709	-	Abu_0448	-	hypothetical protein
439	 23.51	0	448426..449433	+	335	157736710	-	Abu_0449	-	hypothetical protein
440	 30.54	+1	449434..450363	+	309	157736711	-	Abu_0450	-	tRNA-dihydrouridine synthase
441	 26.50	0	450445..451263	+	272	157736712	prmA	Abu_0451	-	ribosomal protein L11 methyltransferase
442	 31.22	+1	451268..453253	+	661	157736713	ftsH1	Abu_0452	-	cell division protein FtsH
443	 25.29	0	453372..455198	+	608	157736714	-	Abu_0453	-	two-component response regulator
444	 22.55	-1	455185..455592	+	135	157736715	-	Abu_0454	-	two-component response regulator
445	 24.79	0	455594..458167	+	857	157736716	-	Abu_0455	-	two-component sensor histidine kinase
446	 31.85	+1	458444..459997	+	517	157736717	leuA1	Abu_0456	-	2-isopropylmalate synthase
447	 24.32	0	460037..460369	+	110	157736718	-	Abu_0457	-	hypothetical protein
448	 28.33	0	460366..460785	+	139	157736719	-	Abu_0458	-	hypothetical protein
449	 26.62	0	460764..463742	+	992	157736720	mutS1	Abu_0459	-	mismatch repair ATPase
450	 26.76	0	463782..466808	-	1008	157736721	-	Abu_0460	-	outer membrane component of efflux system
451	 23.23	-1	466810..467502	-	230	157736722	-	Abu_0461	-	putative membrane fusion component of efflux system
452	 23.75	0	467504..468724	-	406	157736723	-	Abu_0462	-	outer membrane component of efflux system
453	 22.78	-1	468735..469331	-	198	157736724	-	Abu_0463	-	hypothetical protein
454	 22.14	-1	469422..470234	-	270	157736725	-	Abu_0464	-	hypothetical protein
455	 29.54	0	470416..472023	+	535	157736726	-	Abu_0465	-	quinohemoprotein amine dehydrogenase, 60 kDa subunit
456	 27.29	0	472033..473406	+	457	157736727	-	Abu_0466	-	quinohemoprotein amine dehydrogenase, putative SAM-radical dependent activating subunit
457	 36.14	+2	473417..473737	+	106	157736728	-	Abu_0467	-	quinohemoprotein amine dehydrogenase, 9 kDa subunit
458	 27.95	0	473755..474888	+	377	157736729	-	Abu_0468	-	quinohemoprotein amine dehydrogenase, 40 kDa subunit
459	 23.69	0	474903..476540	+	545	157736730	-	Abu_0469	-	ABC transporter, ATP-binding protein
460	 25.24	0	476533..477162	+	209	157736731	-	Abu_0470	-	hypothetical protein
461	 26.70	0	477159..478484	+	441	157736732	-	Abu_0471	-	hypothetical protein
462	 26.72	0	478493..480352	-	619	157736733	-	Abu_0472	-	GGDEF domain-containing protein
463	 33.19	+1	480423..481130	-	235	157736734	hisA	Abu_0473	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
464	 28.17	0	481142..481993	-	283	157736735	-	Abu_0474	-	hypothetical protein
465	 29.72	0	482014..482622	-	202	157736736	hisH1	Abu_0475	-	glutamine amidotransferase HisH
466	 26.53	0	482665..483237	-	190	157736737	ctsW	Abu_0476	-	transformation system protein
467	 25.74	0	483387..483794	+	135	157736738	-	Abu_0477	-	hypothetical protein
468	 31.21	+1	483936..485723	-	595	157736739	lepA	Abu_0478	-	GTP-binding protein LepA
469	 26.59	0	485898..486164	+	88	157736740	-	Abu_0479	-	hypothetical protein
470	 27.62	0	486176..488695	+	839	157736741	-	Abu_0480	-	heavy-metal transporting P-type ATPase
471	 31.56	+1	488761..489777	-	338	157736742	cadF	Abu_0481	-	outer membrane fibronectin-binding protein
472	 31.51	+1	489857..490789	-	310	157736743	prsA	Abu_0482	-	ribose-phosphate pyrophosphokinase
473	 30.80	+1	491053..492234	+	393	157736744	-	Abu_0483	-	hypothetical protein
474	 29.67	0	492280..493317	-	345	157736745	trmU1	Abu_0484	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
475	 31.43	+1	493329..494432	-	367	157736746	trmU2	Abu_0485	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
476	 26.13	0	494480..494965	-	161	157736747	folK	Abu_0486	-	2-amino-4-hydroxy-6- hydroxymethyldihydropteridine pyrophosphokinase
477	 25.73	0	494996..496021	-	341	157736748	pepQ	Abu_0487	-	prolidase (Xaa-Pro dipeptidase) (pepQ)
478	 30.30	0	496099..496593	+	164	157736749	aroQ	Abu_0488	-	3-dehydroquinate dehydratase
479	 27.24	0	496541..497821	+	426	157736750	-	Abu_0489	-	chlorohydrolase
480	 30.06	0	497814..498698	+	294	157736751	pspA	Abu_0490	-	protease IV (PspA)
481	 19.61	-2	498781..499443	-	220	157736752	-	Abu_0491	-	hypothetical protein
482	 32.84	+1	499680..500894	-	404	157736753	ackA1	Abu_0492	-	acetate kinase
483	 32.93	+1	500921..501916	-	331	157736754	pta	Abu_0493	-	phosphate acetyltransferase
484	 28.80	0	502160..503350	-	396	157736755	ackA2	Abu_0494	-	acetate kinase
485	 28.86	0	503454..504392	-	312	157736756	-	Abu_0495	-	cation efflux protein
486	 28.72	0	504450..505640	-	396	157736757	ackA3	Abu_0496	-	acetate kinase
487	 24.14	0	505661..506269	-	202	157736758	dnaQ1	Abu_0497	-	DNA polymerase III, epsilon subunit
488	 24.21	0	506262..508103	-	613	157736759	-	Abu_0498	-	hypothetical protein
489	 33.03	+1	508154..509821	-	555	157736760	-	Abu_0499	-	sodium:solute symporter family protein
490	 25.40	0	509821..510135	-	104	157736761	-	Abu_0500	-	hypothetical protein
491	 34.67	+2	510362..512011	-	549	157736762	-	Abu_0501	-	sodium:solute symporter family protein
492	 27.37	0	512011..512379	-	122	157736763	-	Abu_0502	-	hypothetical protein
493	 23.53	0	512451..513062	-	203	157736764	dnaQ2	Abu_0503	-	DNA polymerase III, epsilon subunit
494	 25.15	0	513062..514882	-	606	157736765	-	Abu_0504	-	cyclic nucleotide-binding domain-containing protein
495	 26.05	0	514902..516671	-	589	157736766	-	Abu_0505	-	sodium/solute symporter family protein
496	 26.27	0	516677..516931	-	84	157736767	-	Abu_0506	-	hypothetical protein
497	 24.43	0	517007..517669	-	220	157736768	-	Abu_0507	-	two-component response regulator
498	 20.77	-1	517650..519233	-	527	157736769	-	Abu_0508	-	two-component sensor histidine kinase
499	 27.42	0	520163..520669	-	168	157736770	-	Abu_0517	-	CinA-like protein
500	 30.02	0	520766..522124	-	452	157736771	mqo	Abu_0518	-	malate:quinone oxidoreductase
501	 28.91	0	522392..525151	+	919	157736772	ileS	Abu_0519	-	isoleucyl-tRNA synthetase
502	 31.90	+1	525275..525553	+	92	157736773	-	Abu_0520	-	NifU-like protein
503	 23.12	-1	525556..526152	+	198	157736774	-	Abu_0521	-	hypothetical protein
504	 25.81	0	526130..527419	+	429	157736775	murE	Abu_0522	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
505	 24.44	0	527751..528728	+	325	157736776	-	Abu_0523	-	C4-dicarboxylate transporter/malic acid transport protein
506	 29.12	0	528768..529787	+	339	157736777	tas	Abu_0524	-	aldo/keto reductase family oxidoreductase TAS
507	 30.31	0	529857..531344	+	495	157736778	pitA	Abu_0525	-	phosphate transporter family protein
508	 26.18	0	531631..534174	+	847	157736779	-	Abu_0526	-	methyl-accepting chemotaxis protein
509	 26.12	0	534237..534638	-	133	157736780	-	Abu_0527	-	hypothetical protein
510	 27.29	0	534781..536682	-	633	157736781	-	Abu_0528	-	methyl-accepting chemotaxis protein
511	 27.82	0	536838..537200	+	120	157736782	-	Abu_0529	-	hypothetical protein
512	 24.20	0	537210..537680	+	156	157736783	-	Abu_0530	-	hypothetical protein
513	 24.98	0	537720..538940	+	406	157736784	-	Abu_0531	-	M48 family peptidase
514	 24.75	0	538937..540136	+	399	157736785	-	Abu_0532	-	DNA recombination protein RmuC-like protein
515	 23.56	0	540149..541048	-	299	157736786	-	Abu_0533	-	integral membrane domain-containing protein
26.98	MEAN

3.50	STD DEV
