IslandPath Analysis: Arcobacter butzleri RM4018

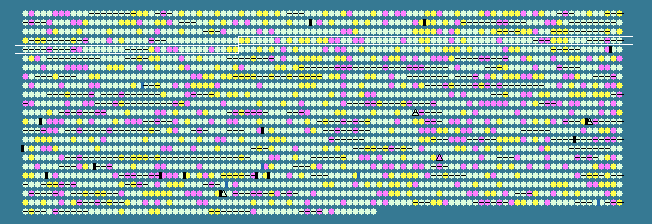

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.98 STD DEV: 3.50
Arcobacter butzleri RM4018, complete genome - 1..2341251
2259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
337	 32.86	+1	350755..352245	-	496	157736608	nrfA	Abu_0347	-	cytochrome c nitrite reductase
338	 33.33	+1	352259..352789	-	176	157736609	nrfH	Abu_0348	-	cytochrome c nitrite reductase, small subunit NrfH
339	 23.77	0	352914..353300	-	128	157736610	-	Abu_0349	-	hypothetical protein
340	 26.28	0	353307..354923	-	538	157736611	-	Abu_0350	-	EAL/GGDEF/PAS domain-containing protein
341	 27.03	0	355015..355458	-	147	157736612	-	Abu_0351	-	methyl-accepting chemotaxis protein
342	 28.12	0	355460..355843	-	127	157736613	napD	Abu_0352	-	putative periplasmic nitrate reductase assembly protein NapD
343	 22.71	-1	355845..356804	-	319	157736614	napL	Abu_0353	-	putative periplasmic protein
344	 28.51	0	356813..357289	-	158	157736615	napF	Abu_0354	-	ferredoxin-type protein NapF
345	 32.01	+1	357289..357894	-	201	157736616	napB	Abu_0355	-	periplasmic nitrate reductase, small subunit, cytochrome c-type protein NapB
346	 28.50	0	357896..358702	-	268	157736617	napH	Abu_0356	-	quinol dehydrogenase membrane component
347	 33.70	+1	358699..359511	-	270	157736618	napG	Abu_0357	-	quinol dehydrogenase periplasmic component
348	 33.83	+1	359529..362339	-	936	157736619	napA	Abu_0358	-	nitrate reductase
349	 30.01	0	362606..363598	+	330	157736620	dctP	Abu_0359	-	C4-dicarboxylate-binding periplasmic protein
350	 31.14	+1	363612..364157	+	181	157736621	dctQ	Abu_0360	-	C4-dicarboxylate transport system, permease small subunit
351	 31.93	+1	364160..365440	+	426	157736622	dctM	Abu_0361	-	C4-dicarboxylate transport protein
352	 22.14	-1	365467..367029	-	520	157736623	-	Abu_0362	-	two-component sensor histidine kinase
353	 23.18	-1	367096..367794	+	232	157736624	-	Abu_0363	-	two-component response regulator
354	 26.50	0	367813..368295	-	160	157736625	menG	Abu_0364	-	S-adenosylmethionine:2-demethylmenaquinone methyltransferase
355	 30.05	0	368451..369182	-	243	157736626	cysG	Abu_0365	-	uroporphyrin III C-methyltransferase
356	 21.86	-1	369238..370239	-	333	157736627	-	Abu_0366	-	hypothetical protein
357	 23.42	-1	370236..370901	-	221	157736628	-	Abu_0367	-	putative transcriptional regulator
358	 26.69	0	370987..371904	+	305	157736629	-	Abu_0368	-	glycosyltransferase, putative
359	 26.85	0	371920..372891	+	323	157736630	moaA	Abu_0369	-	molybdenum cofactor biosynthesis protein A
360	 26.74	0	372988..373260	+	90	157736631	rpsO	Abu_0370	-	30S ribosomal protein S15
361	 26.57	0	373389..373787	+	132	157736632	-	Abu_0371	-	BadM/Rrf2 family transcriptional regulator
362	 24.37	0	373787..374824	+	345	157736633	-	Abu_0372	-	hypothetical protein
363	 28.70	0	374835..375266	+	143	157736634	-	Abu_0373	-	CoA-binding domain-containing protein
364	 22.85	-1	375263..376540	-	425	157736635	-	Abu_0374	-	two-component sensor histidine kinase
365	 29.81	0	376565..377245	-	226	157736636	-	Abu_0375	-	two-component response regulator
366	 27.78	0	377442..378251	+	269	157736637	ppiC	Abu_0376	-	peptidyl-prolyl cis-trans isomerase
367	 32.30	+1	378262..379329	+	355	157736638	fba	Abu_0377	-	fructose-bisphosphate aldolase
368	 31.66	+1	379481..380977	+	498	157736639	ald	Abu_0378	-	aldehyde dehydrogenase
369	 29.49	0	381031..381420	+	129	157736640	-	Abu_0379	-	hypothetical protein
370	 25.64	0	381421..381810	-	129	157736641	exbD1	Abu_0380	-	biopolymer transport protein ExbD
371	 27.43	0	381810..382283	-	157	157736642	exbB1	Abu_0381	-	biopolymer transport protein ExbB
372	 23.21	-1	382302..383210	+	302	157736643	-	Abu_0382	-	hypothetical protein
373	 26.00	0	383297..383773	+	158	157736644	aroK	Abu_0383	-	shikimate kinase
374	 30.86	+1	383775..385067	+	430	157736645	hisD	Abu_0384	-	histidinol dehydrogenase
375	 26.40	0	385077..385379	+	100	157736646	-	Abu_0385	-	hypothetical protein
376	 28.56	0	385390..386289	+	299	157736647	ispB	Abu_0386	-	octaprenyl-diphosphate synthase
377	 27.17	0	386289..387587	+	432	157736648	hemA	Abu_0387	-	glutamyl-tRNA reductase
378	 29.47	0	387604..389310	+	568	157736649	proS	Abu_0388	-	prolyl-tRNA synthetase
379	 25.70	0	389322..390212	+	296	157736650	mscS	Abu_0389	-	mechanosensitive ion channel
380	 20.31	-1	390424..391398	+	324	157736651	-	Abu_0390	-	tRNA nucleotidyltransferase/poly(A) polymerase
381	 29.48	0	391455..391895	+	146	157736652	-	Abu_0391	-	hypothetical protein
382	 25.11	0	391879..393678	+	599	157736653	-	Abu_0392	-	hypothetical protein
383	 24.74	0	393688..394920	-	410	157736654	lnt	Abu_0393	-	apolipoprotein N-acyltransferase
384	 28.41	0	394949..395212	+	87	157736655	yajC	Abu_0394	-	preprotein translocase subunit
385	 30.46	0	395279..396844	+	521	157736656	secD	Abu_0395	-	protein-export membrane protein SecD
386	 27.04	0	396844..397812	+	322	157736657	secF	Abu_0396	-	preprotein translocase subunit SecF
387	 22.22	-1	397881..398060	+	59	157736658	-	Abu_0397	-	hypothetical protein
388	 22.96	-1	398053..398457	-	134	157736659	-	Abu_0398	-	hypothetical protein
389	 31.08	+1	398463..399218	-	251	157736660	motB	Abu_0399	-	flagellar motor protein MotB
390	 34.26	+2	399222..399980	-	252	157736661	motA	Abu_0400	-	flagellar motor protein MotA
391	 30.72	+1	400128..400472	+	114	157736662	-	Abu_0401	-	hypothetical protein
392	 29.16	0	400472..402937	+	821	157736663	leuS	Abu_0402	-	leucyl-tRNA synthetase
393	 28.00	0	402940..403464	+	174	157736664	-	Abu_0403	-	hypothetical protein
394	 24.89	0	403467..404639	+	390	157736665	folC	Abu_0404	-	bifunctional folylpolyglutamate synthase/dihydrofolate synthase
395	 25.51	0	404626..406746	+	706	157736666	-	Abu_0405	-	helicase
396	 25.29	0	406747..408450	-	567	157736667	-	Abu_0406	-	phospholipid/glycerol acyltransferase, hemolysin
397	 27.54	0	408556..409263	+	235	157736668	-	Abu_0407	-	hypothetical protein
398	 22.22	-1	409281..409658	-	125	157736669	-	Abu_0408	-	hypothetical protein
399	 24.51	0	409789..410094	+	101	157736670	-	Abu_0409	-	hypothetical protein
400	 28.71	0	410094..413081	+	995	157736671	mfd	Abu_0410	-	transcription-repair coupling factor
401	 27.36	0	413093..413611	+	172	157736672	-	Abu_0411	-	putative acetyltransferase
402	 24.73	0	413608..414549	-	313	157736673	-	Abu_0412	-	hypothetical protein
403	 25.50	0	414654..415100	+	148	157736674	-	Abu_0413	-	putative periplasmic protein
404	 26.28	0	415134..415814	+	226	157736675	ompR	Abu_0414	-	two-component response regulator
405	 20.63	-1	415811..417046	+	411	157736676	-	Abu_0415	-	two-component sensor histidine kinase
406	 26.11	0	417092..418198	+	368	157736677	-	Abu_0416	-	hypothetical protein
407	 26.75	0	418249..419661	+	470	157736678	-	Abu_0417	-	methyl-accepting chemotaxis protein
408	 25.66	0	419654..420031	+	125	157736679	-	Abu_0418	-	two-component response regulator
409	 19.58	-2	420032..422074	+	680	157736680	-	Abu_0419	-	two-component sensor histidine kinase
410	 21.45	-1	422071..424494	+	807	157736681	-	Abu_0420	-	two-component sensor histidine kinase
411	 27.92	0	424495..425307	+	270	157736682	-	Abu_0421	-	hypothetical protein
412	 27.04	0	425354..426148	+	264	157736683	-	Abu_0422	-	hypothetical protein
413	 26.10	0	426145..426393	+	82	157736684	-	Abu_0423	-	hypothetical protein
414	 26.16	0	426531..427241	+	236	157736685	ubiE	Abu_0424	-	ubiquinone/menaquinone biosynthesis methyltransferase
415	 26.01	0	427266..428453	+	395	157736686	xseA	Abu_0425	-	exodeoxyribonuclease VII large subunit
416	 30.00	0	428527..429006	+	159	157736687	cheW	Abu_0426	-	chemotaxis protein CheW
417	 27.90	0	429034..429567	-	177	157736688	-	Abu_0427	-	peptidyl-prolyl cis-trans isomerase-like protein
418	 29.17	0	429721..430104	+	127	157736689	panD	Abu_0428	-	aspartate alpha-decarboxylase
419	 28.04	0	430097..430417	+	106	157736690	-	Abu_0429	-	hypothetical protein
420	 26.95	0	430422..431282	+	286	157736691	ispA	Abu_0430	-	geranyltranstransferase
421	 29.46	0	431419..431676	+	85	157736692	groES	Abu_0431	-	10 kDa chaperonin
422	 32.78	+1	431676..433310	+	544	157736693	groEL	Abu_0432	-	chaperonin GroEL
423	 23.09	-1	433660..435036	-	458	157736694	-	Abu_0433	-	two-component sensor histidine kinase
424	 24.78	0	435026..435703	-	225	157736695	-	Abu_0434	-	two-component response regulator
425	 22.81	-1	435700..436431	-	243	157736696	-	Abu_0435	-	Ser/Thr protein phosphatase family protein
426	 22.81	-1	436428..436883	-	151	157736697	-	Abu_0436	-	hypothetical protein
427	 24.38	0	436887..437411	-	174	157736698	-	Abu_0437	-	putative periplasmic protein
428	 25.57	0	437404..438369	-	321	157736699	-	Abu_0438	-	hypothetical protein
429	 25.13	0	438357..439928	-	523	157736700	-	Abu_0439	-	hypothetical protein
430	 25.00	0	439912..440535	-	207	157736701	-	Abu_0440	-	ABC transporter, ATP-binding protein
431	 25.12	0	440532..441614	-	360	157736702	-	Abu_0441	-	ABC transporter, permease protein
432	 23.13	-1	441706..442293	-	195	157736703	-	Abu_0442	-	hypothetical protein
433	 25.71	0	442328..443101	+	257	157736704	suhB	Abu_0443	-	inositol-1-monophosphatase
434	 28.79	0	443151..444953	+	600	157736705	glmS	Abu_0444	-	D-fructose-6-phosphate amidotransferase
435	 32.30	+1	445082..446341	+	419	157736706	metK	Abu_0445	-	S-adenosylmethionine synthetase
436	 31.13	+1	446443..447306	+	287	157736707	accD	Abu_0446	-	acetyl-CoA carboxylase subunit beta
26.98	MEAN

3.50	STD DEV
