IslandPathversion 1.0

IslandPath Analysis: Arcobacter butzleri RM4018

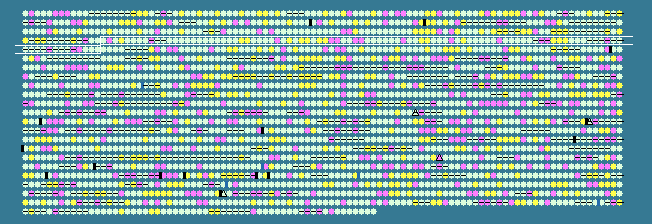

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.98 STD DEV: 3.50
Arcobacter butzleri RM4018, complete genome - 1..2341251
2259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
314	 26.59	0	319275..321203	+	642	157736585	-	Abu_0324	-	methyl-accepting chemotaxis protein
315	 21.42	-1	321178..322050	+	290	157736586	-	Abu_0325	-	hypothetical protein
316	 26.90	0	322146..322751	+	201	157736587	-	Abu_0326	-	hypothetical protein
317	 30.54	+1	322769..323734	-	321	157736588	trpS	Abu_0327	-	tryptophanyl-tRNA synthetase
318	 29.11	0	323774..325879	-	701	157736589	-	Abu_0328	-	TonB-dependent receptor protein
319	 24.91	0	326001..327164	-	387	157736590	-	Abu_0329	-	hypothetical protein
320	 24.40	0	327248..328423	-	391	157736591	-	Abu_0330	-	major facilitator superfamily AmpG-like permease
321	 23.74	0	328427..329416	-	329	157736592	-	Abu_0331	-	O-methyltransferase
322	 22.67	-1	329419..329643	-	74	157736593	-	Abu_0332	-	hypothetical protein
323	 27.63	0	329652..331721	-	689	157736594	-	Abu_0333	-	TonB-dependent receptor protein
324	 24.19	0	331763..332692	+	309	157736595	-	Abu_0334	-	transcriptional regulator
325	 28.70	0	332681..333220	-	179	157736596	-	Abu_0335	-	hypothetical protein
326	 29.68	0	333214..334389	-	391	157736597	-	Abu_0336	-	major facilitator superfamily transporter
327	 26.39	0	334386..335594	-	402	157736598	-	Abu_0337	-	major facilitator superfamily transporter
328	 28.28	0	335591..337372	-	593	157736599	-	Abu_0338	-	ABC transporter, ATP-binding/permease protein
329	 29.04	0	337365..339158	-	597	157736600	-	Abu_0339	-	ABC transporter, ATP-binding/permease protein
330	 29.26	0	339261..341348	-	695	157736601	-	Abu_0340	-	TonB-dependent receptor protein
331	 23.78	0	341462..342424	+	320	157736602	-	Abu_0341	-	AraC family transcriptional regulator
332	 26.39	0	342451..344481	-	676	157736603	-	Abu_0342	-	TonB-dependent receptor protein
333	 28.33	0	344649..344948	+	99	157736604	-	Abu_0343	-	hypothetical protein
334	 26.61	0	344960..346015	+	351	157736605	-	Abu_0344	-	cation efflux system, membrane protein
335	 29.06	0	346070..347308	+	412	157736606	serS	Abu_0345	-	seryl-tRNA synthetase
336	 23.67	0	347580..350705	-	1041	157736607	nrfI	Abu_0346	-	cytochrome c biogenesis protein
337	 32.86	+1	350755..352245	-	496	157736608	nrfA	Abu_0347	-	cytochrome c nitrite reductase
338	 33.33	+1	352259..352789	-	176	157736609	nrfH	Abu_0348	-	cytochrome c nitrite reductase, small subunit NrfH
339	 23.77	0	352914..353300	-	128	157736610	-	Abu_0349	-	hypothetical protein
340	 26.28	0	353307..354923	-	538	157736611	-	Abu_0350	-	EAL/GGDEF/PAS domain-containing protein
341	 27.03	0	355015..355458	-	147	157736612	-	Abu_0351	-	methyl-accepting chemotaxis protein
342	 28.12	0	355460..355843	-	127	157736613	napD	Abu_0352	-	putative periplasmic nitrate reductase assembly protein NapD
343	 22.71	-1	355845..356804	-	319	157736614	napL	Abu_0353	-	putative periplasmic protein
344	 28.51	0	356813..357289	-	158	157736615	napF	Abu_0354	-	ferredoxin-type protein NapF
345	 32.01	+1	357289..357894	-	201	157736616	napB	Abu_0355	-	periplasmic nitrate reductase, small subunit, cytochrome c-type protein NapB
346	 28.50	0	357896..358702	-	268	157736617	napH	Abu_0356	-	quinol dehydrogenase membrane component
347	 33.70	+1	358699..359511	-	270	157736618	napG	Abu_0357	-	quinol dehydrogenase periplasmic component
348	 33.83	+1	359529..362339	-	936	157736619	napA	Abu_0358	-	nitrate reductase
349	 30.01	0	362606..363598	+	330	157736620	dctP	Abu_0359	-	C4-dicarboxylate-binding periplasmic protein
350	 31.14	+1	363612..364157	+	181	157736621	dctQ	Abu_0360	-	C4-dicarboxylate transport system, permease small subunit
351	 31.93	+1	364160..365440	+	426	157736622	dctM	Abu_0361	-	C4-dicarboxylate transport protein
352	 22.14	-1	365467..367029	-	520	157736623	-	Abu_0362	-	two-component sensor histidine kinase
353	 23.18	-1	367096..367794	+	232	157736624	-	Abu_0363	-	two-component response regulator
354	 26.50	0	367813..368295	-	160	157736625	menG	Abu_0364	-	S-adenosylmethionine:2-demethylmenaquinone methyltransferase
355	 30.05	0	368451..369182	-	243	157736626	cysG	Abu_0365	-	uroporphyrin III C-methyltransferase
356	 21.86	-1	369238..370239	-	333	157736627	-	Abu_0366	-	hypothetical protein
357	 23.42	-1	370236..370901	-	221	157736628	-	Abu_0367	-	putative transcriptional regulator
358	 26.69	0	370987..371904	+	305	157736629	-	Abu_0368	-	glycosyltransferase, putative
359	 26.85	0	371920..372891	+	323	157736630	moaA	Abu_0369	-	molybdenum cofactor biosynthesis protein A
360	 26.74	0	372988..373260	+	90	157736631	rpsO	Abu_0370	-	30S ribosomal protein S15
361	 26.57	0	373389..373787	+	132	157736632	-	Abu_0371	-	BadM/Rrf2 family transcriptional regulator
362	 24.37	0	373787..374824	+	345	157736633	-	Abu_0372	-	hypothetical protein
363	 28.70	0	374835..375266	+	143	157736634	-	Abu_0373	-	CoA-binding domain-containing protein
364	 22.85	-1	375263..376540	-	425	157736635	-	Abu_0374	-	two-component sensor histidine kinase
365	 29.81	0	376565..377245	-	226	157736636	-	Abu_0375	-	two-component response regulator
366	 27.78	0	377442..378251	+	269	157736637	ppiC	Abu_0376	-	peptidyl-prolyl cis-trans isomerase
367	 32.30	+1	378262..379329	+	355	157736638	fba	Abu_0377	-	fructose-bisphosphate aldolase
368	 31.66	+1	379481..380977	+	498	157736639	ald	Abu_0378	-	aldehyde dehydrogenase
369	 29.49	0	381031..381420	+	129	157736640	-	Abu_0379	-	hypothetical protein
370	 25.64	0	381421..381810	-	129	157736641	exbD1	Abu_0380	-	biopolymer transport protein ExbD
371	 27.43	0	381810..382283	-	157	157736642	exbB1	Abu_0381	-	biopolymer transport protein ExbB
372	 23.21	-1	382302..383210	+	302	157736643	-	Abu_0382	-	hypothetical protein
373	 26.00	0	383297..383773	+	158	157736644	aroK	Abu_0383	-	shikimate kinase
374	 30.86	+1	383775..385067	+	430	157736645	hisD	Abu_0384	-	histidinol dehydrogenase
375	 26.40	0	385077..385379	+	100	157736646	-	Abu_0385	-	hypothetical protein
376	 28.56	0	385390..386289	+	299	157736647	ispB	Abu_0386	-	octaprenyl-diphosphate synthase
377	 27.17	0	386289..387587	+	432	157736648	hemA	Abu_0387	-	glutamyl-tRNA reductase
378	 29.47	0	387604..389310	+	568	157736649	proS	Abu_0388	-	prolyl-tRNA synthetase
379	 25.70	0	389322..390212	+	296	157736650	mscS	Abu_0389	-	mechanosensitive ion channel
380	 20.31	-1	390424..391398	+	324	157736651	-	Abu_0390	-	tRNA nucleotidyltransferase/poly(A) polymerase
381	 29.48	0	391455..391895	+	146	157736652	-	Abu_0391	-	hypothetical protein
382	 25.11	0	391879..393678	+	599	157736653	-	Abu_0392	-	hypothetical protein
383	 24.74	0	393688..394920	-	410	157736654	lnt	Abu_0393	-	apolipoprotein N-acyltransferase
384	 28.41	0	394949..395212	+	87	157736655	yajC	Abu_0394	-	preprotein translocase subunit
385	 30.46	0	395279..396844	+	521	157736656	secD	Abu_0395	-	protein-export membrane protein SecD
386	 27.04	0	396844..397812	+	322	157736657	secF	Abu_0396	-	preprotein translocase subunit SecF
387	 22.22	-1	397881..398060	+	59	157736658	-	Abu_0397	-	hypothetical protein
388	 22.96	-1	398053..398457	-	134	157736659	-	Abu_0398	-	hypothetical protein
389	 31.08	+1	398463..399218	-	251	157736660	motB	Abu_0399	-	flagellar motor protein MotB
390	 34.26	+2	399222..399980	-	252	157736661	motA	Abu_0400	-	flagellar motor protein MotA
391	 30.72	+1	400128..400472	+	114	157736662	-	Abu_0401	-	hypothetical protein
392	 29.16	0	400472..402937	+	821	157736663	leuS	Abu_0402	-	leucyl-tRNA synthetase
393	 28.00	0	402940..403464	+	174	157736664	-	Abu_0403	-	hypothetical protein
394	 24.89	0	403467..404639	+	390	157736665	folC	Abu_0404	-	bifunctional folylpolyglutamate synthase/dihydrofolate synthase
395	 25.51	0	404626..406746	+	706	157736666	-	Abu_0405	-	helicase
396	 25.29	0	406747..408450	-	567	157736667	-	Abu_0406	-	phospholipid/glycerol acyltransferase, hemolysin
397	 27.54	0	408556..409263	+	235	157736668	-	Abu_0407	-	hypothetical protein
398	 22.22	-1	409281..409658	-	125	157736669	-	Abu_0408	-	hypothetical protein
399	 24.51	0	409789..410094	+	101	157736670	-	Abu_0409	-	hypothetical protein
400	 28.71	0	410094..413081	+	995	157736671	mfd	Abu_0410	-	transcription-repair coupling factor
401	 27.36	0	413093..413611	+	172	157736672	-	Abu_0411	-	putative acetyltransferase
402	 24.73	0	413608..414549	-	313	157736673	-	Abu_0412	-	hypothetical protein
403	 25.50	0	414654..415100	+	148	157736674	-	Abu_0413	-	putative periplasmic protein
404	 26.28	0	415134..415814	+	226	157736675	ompR	Abu_0414	-	two-component response regulator
405	 20.63	-1	415811..417046	+	411	157736676	-	Abu_0415	-	two-component sensor histidine kinase
406	 26.11	0	417092..418198	+	368	157736677	-	Abu_0416	-	hypothetical protein
407	 26.75	0	418249..419661	+	470	157736678	-	Abu_0417	-	methyl-accepting chemotaxis protein
408	 25.66	0	419654..420031	+	125	157736679	-	Abu_0418	-	two-component response regulator
409	 19.58	-2	420032..422074	+	680	157736680	-	Abu_0419	-	two-component sensor histidine kinase
410	 21.45	-1	422071..424494	+	807	157736681	-	Abu_0420	-	two-component sensor histidine kinase
411	 27.92	0	424495..425307	+	270	157736682	-	Abu_0421	-	hypothetical protein
412	 27.04	0	425354..426148	+	264	157736683	-	Abu_0422	-	hypothetical protein
413	 26.10	0	426145..426393	+	82	157736684	-	Abu_0423	-	hypothetical protein
26.98	MEAN

3.50	STD DEV
