IslandPath Analysis: Arcobacter butzleri RM4018

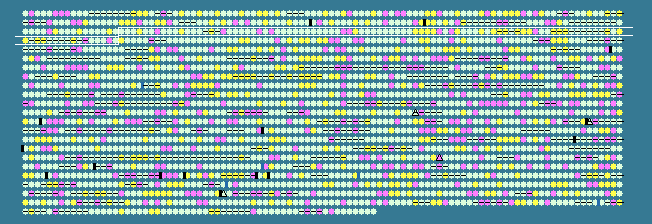

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.98 STD DEV: 3.50
Arcobacter butzleri RM4018, complete genome - 1..2341251
2259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
217	 27.41	0	224501..225496	+	331	157736488	-	Abu_0227	-	DNA binding protein
218	 25.15	0	225491..225832	-	113	157736489	-	Abu_0228	-	hypothetical protein
219	 27.15	0	225983..226273	-	96	157736490	gatC	Abu_0229	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
220	 31.19	+1	226317..227438	-	373	157736491	tgt	Abu_0230	-	queuine tRNA-ribosyltransferase
221	 24.74	0	227540..228982	+	480	157736492	-	Abu_0231	-	hypothetical protein
222	 27.67	0	228992..230122	+	376	157736493	aspB2	Abu_0232	-	hypothetical protein
223	 23.42	-1	230115..230699	+	194	157736494	-	Abu_0233	-	hypothetical protein
224	 28.59	0	230699..232006	+	435	157736495	murC	Abu_0234	-	UDP-N-acetylmuramate--L-alanine ligase
225	 25.87	0	232015..232791	-	258	157736496	dprA	Abu_0235	-	SMF protein, DNA processing chain A
226	 25.37	0	232834..233913	-	359	157736497	-	Abu_0236	-	hypothetical protein
227	 33.82	+1	233955..234977	-	340	157736498	ilvC	Abu_0237	-	ketol-acid reductoisomerase
228	 24.65	0	235102..236955	+	617	157736499	rnr	Abu_0238	-	ribonuclease R
229	 24.07	0	236945..237322	-	125	157736500	-	Abu_0239	-	hypothetical protein
230	 25.18	0	237387..238367	+	326	157736501	-	Abu_0240	-	DNA polymerase III subunit delta
231	 29.41	0	238455..238811	+	118	157736502	rpsF	Abu_0241	-	30S ribosomal protein S6
232	 31.97	+1	238832..239344	+	170	157736503	ssb	Abu_0242	-	single-strand DNA binding protein
233	 28.46	0	239359..239625	+	88	157736504	rpsR	Abu_0243	-	30S ribosomal protein S18
234	 22.39	-1	239698..239898	+	66	157736505	-	Abu_0244	-	hypothetical protein
235	 26.99	0	239893..241296	-	467	157736506	cysS	Abu_0245	-	cysteinyl-tRNA synthetase
236	 28.06	0	241301..242476	-	391	157736507	nusA	Abu_0246	-	transcription elongation factor NusA
237	 26.75	0	242630..242872	+	80	157736508	-	Abu_0247	-	hypothetical protein
238	 29.60	0	242894..244204	+	436	157736509	miaB	Abu_0248	-	tRNA-methylthiotransferase
239	 27.80	0	244207..244821	+	204	157736510	-	Abu_0249	-	putative lipoprotein
240	 21.48	-1	244832..246400	+	522	157736511	-	Abu_0250	-	hypothetical protein
241	 28.15	0	246413..247474	-	353	157736512	-	Abu_0251	-	hypothetical protein
242	 22.64	-1	247480..247797	-	105	157736513	-	Abu_0252	-	hypothetical protein
243	 28.48	0	247802..248440	-	212	157736514	cynT2	Abu_0253	-	carbonic anhydrase
244	 26.02	0	248427..249533	-	368	157736515	bioF	Abu_0254	-	8-amino-7-oxononanoate synthase
245	 24.02	0	249711..250043	-	110	157736516	-	Abu_0255	-	hypothetical protein
246	 26.87	0	250048..250248	-	66	157736517	-	Abu_0256	-	hypothetical protein
247	 28.65	0	250310..251035	-	241	157736518	-	Abu_0257	-	OmpA domain-containing protein
248	 28.79	0	251161..252636	+	491	157736519	pyk	Abu_0258	-	pyruvate kinase
249	 28.97	0	252655..253845	-	396	157736520	argD1	Abu_0259	-	acetylornithine aminotransferase
250	 26.44	0	253905..256226	-	773	157736521	cti	Abu_0260	-	fatty acid cis/trans isomerase
251	 29.39	0	256322..257209	+	295	157736522	pyrB	Abu_0261	-	aspartate carbamoyltransferase catalytic subunit
252	 24.38	0	257206..258165	+	319	157736523	pabB	Abu_0262	-	para-aminobenzoate synthase component I
253	 28.14	0	258228..258785	+	185	157736524	-	Abu_0263	-	isochorismatase hydrolase
254	 22.47	-1	258790..259461	+	223	157736525	-	Abu_0264	-	two-component response regulator
255	 23.14	-1	259478..260056	+	192	157736526	-	Abu_0265	-	hypothetical protein
256	 32.61	+1	260053..260607	-	184	157736527	phnA	Abu_0266	-	phosphonoacetate hydrolase
257	 25.61	0	260665..261156	+	163	157736528	-	Abu_0267	-	metal-dependent hydrolase
258	 28.00	0	261177..261926	+	249	157736529	-	Abu_0268	-	membrane protein, permease
259	 26.81	0	261999..262565	+	188	157736530	-	Abu_0269	-	hypothetical protein
260	 25.04	0	262568..263773	-	401	157736531	-	Abu_0270	-	putative periplasmic protein
261	 24.33	0	263887..265086	+	399	157736532	-	Abu_0271	-	hypothetical protein
262	 24.55	0	265093..266082	+	329	157736533	-	Abu_0272	-	periplasmic protein
263	 24.39	0	266079..266201	+	40	157736534	-	Abu_0273	-	hypothetical protein
264	 25.29	0	266185..267117	-	310	157736535	-	Abu_0274	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
265	 25.56	0	267133..268110	-	325	157736536	-	Abu_0275	-	hypothetical protein
266	 33.67	+1	268288..269175	+	295	157736537	prpB	Abu_0276	-	2-methylisocitrate lyase
267	 32.11	+1	269232..270377	+	381	157736538	prpC	Abu_0277	-	methylcitrate synthase
268	 32.18	+1	270479..273070	+	863	157736539	acnA	Abu_0278	-	aconitate hydratase
269	 33.67	+1	273160..274335	+	391	157736540	-	Abu_0279	-	hypothetical protein
270	 22.76	-1	274409..274900	+	163	157736541	-	Abu_0280	-	hypothetical protein
271	 26.15	0	274929..275471	-	180	157736542	-	Abu_0281	-	isochorismatase hydrolase
272	 22.36	-1	275531..277279	-	582	157736543	-	Abu_0282	-	hypothetical protein
273	 30.99	+1	277305..278243	-	312	157736544	hemC	Abu_0283	-	porphobilinogen deaminase
274	 25.51	0	278259..279089	-	276	157736545	-	Abu_0284	-	putative DSBA oxidoreductase
275	 26.19	0	279151..281082	-	643	157736546	dnaX	Abu_0285	-	DNA polymerase III, gamma and tau subunits
276	 27.61	0	281079..281864	-	261	157736547	murI	Abu_0286	-	glutamate racemase
277	 32.59	+1	282089..283441	-	450	157736548	gdhA	Abu_0287	-	glutamate dehydrogenase
278	 30.01	0	283581..284903	-	440	157736549	rho	Abu_0288	-	transcription termination factor Rho
279	 32.66	+1	285063..285659	-	198	157736550	tsaA	Abu_0289	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant
280	 38.46	+2	285865..286137	+	90	157736551	fdxA	Abu_0290	-	ferredoxin
281	 33.82	+1	286249..286662	+	137	157736552	ndk	Abu_0291	-	nucleoside diphosphate kinase
282	 25.13	0	286690..287067	+	125	157736553	-	Abu_0292	-	hypothetical protein
283	 31.37	+1	287079..287231	+	50	157736554	rpmF	Abu_0293	-	50S ribosomal protein L32
284	 31.84	+1	287231..288232	+	333	157736555	plsX	Abu_0294	-	putative glycerol-3-phosphate acyltransferase PlsX
285	 31.74	+1	288259..289260	+	333	157736556	fabH	Abu_0295	-	3-oxoacyl-(acyl carrier protein) synthase III
286	 23.22	-1	289277..289711	-	144	157736557	-	Abu_0296	-	hypothetical protein
287	 25.68	0	289713..291737	-	674	157736558	-	Abu_0297	-	ATP/GTP-binding protein
288	 24.74	0	291737..294088	-	783	157736559	-	Abu_0298	-	ATP/GTP-binding protein
289	 32.10	+1	294188..294919	-	243	157736560	frdB	Abu_0299	-	fumarate reductase iron-sulfur subunit
290	 34.59	+2	294919..296904	-	661	157736561	frdA	Abu_0300	-	fumarate reductase flavoprotein subunit
291	 30.96	+1	296904..297704	-	266	157736562	frdC	Abu_0301	-	fumarate reductase cytochrome b-556 subunit
292	 27.28	0	297902..299422	-	506	157736563	nuoN	Abu_0302	-	NADH-quinone oxidoreductase, N subunit
293	 28.56	0	299419..300906	-	495	157736564	nuoM	Abu_0303	-	NADH-quinone oxidoreductase, M subunit
294	 28.99	0	300908..302794	-	628	157736565	nuoL	Abu_0304	-	NADH-quinone oxidoreductase, L subunit
295	 26.28	0	302796..303107	-	103	157736566	nuoK	Abu_0305	-	NADH-quinone oxidoreductase, K subunit
296	 27.39	0	303111..303632	-	173	157736567	nuoJ	Abu_0306	-	NADH-quinone oxidoreductase, J subunit
297	 30.34	0	303632..304132	-	166	157736568	nuoI	Abu_0307	-	NADH-quinone oxidoreductase, I subunit
298	 30.59	+1	304134..305408	-	424	157736569	nuoH	Abu_0308	-	NADH-quinone oxidoreductase, H subunit
299	 27.97	0	305405..306841	-	478	157736570	nuoG	Abu_0309	-	NADH-quinone oxidoreductase, G subunit
300	 31.70	+1	306878..308164	-	428	157736571	gltA	Abu_0310	-	citrate synthase
301	 32.37	+1	308189..309439	-	416	157736572	nuoF	Abu_0311	-	NADH-quinone oxidoreductase, F subunit
302	 29.63	0	309429..309914	-	161	157736573	nuoE	Abu_0312	-	NADH-quinone oxidoreductase, E subunit
303	 31.01	+1	309914..311548	-	544	157736574	nuoCD	Abu_0313	-	NADH-quinone oxidoreductase, C/D subunit
304	 35.27	+2	311541..312056	-	171	157736575	nuoB	Abu_0314	-	NADH-quinone oxidoreductase, B subunit
305	 27.55	0	312047..312409	-	120	157736576	nuoA	Abu_0315	-	NADH-quinone oxidoreductase, A subunit
306	 26.65	0	312542..313708	-	388	157736577	-	Abu_0316	-	aminotransferase/L-cysteine desulfhydrase
307	 28.48	0	313793..315604	+	603	157736578	-	Abu_0317	-	carboxylyase-related protein
308	 30.34	0	315626..316093	-	155	157736579	-	Abu_0318	-	hypothetical protein
309	 31.40	+1	316095..316868	-	257	157736580	-	Abu_0319	-	hypothetical protein
310	 24.32	0	316929..317261	+	110	157736581	-	Abu_0320	-	hypothetical protein
311	 23.41	-1	317230..317874	+	214	157736582	-	Abu_0321	-	pantothenate kinase
312	 29.23	0	317852..318460	+	202	157736583	hisG	Abu_0322	-	ATP phosphoribosyltransferase catalytic subunit
313	 23.81	0	318460..319152	+	230	157736584	-	Abu_0323	-	putative methyltransferase
314	 26.59	0	319275..321203	+	642	157736585	-	Abu_0324	-	methyl-accepting chemotaxis protein
315	 21.42	-1	321178..322050	+	290	157736586	-	Abu_0325	-	hypothetical protein
316	 26.90	0	322146..322751	+	201	157736587	-	Abu_0326	-	hypothetical protein
26.98	MEAN

3.50	STD DEV
