IslandPath Analysis: Arcobacter butzleri RM4018

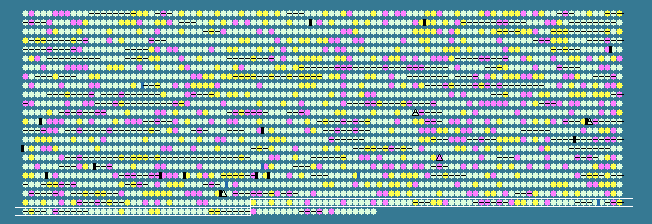

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.98 STD DEV: 3.50
Arcobacter butzleri RM4018, complete genome - 1..2341251
2259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2139	 30.83	+1	2209876..2211753	-	625	157738409	gidA	Abu_2210	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
2140	 27.78	0	2211898..2212509	+	203	157738410	ribE	Abu_2211	-	riboflavin synthase subunit alpha
2141	 26.02	0	2212503..2213309	-	268	157738411	mreC	Abu_2212	-	rod shape-determining protein MreC
2142	 32.66	+1	2213314..2214357	-	347	157738412	mreB	Abu_2213	-	rod shape-determining protein MreB
2143	 28.35	0	2214361..2215584	-	407	157738413	clpX	Abu_2214	-	ATP-dependent protease ATP-binding subunit
2144	 29.63	0	2215595..2216377	-	260	157738414	lpxA	Abu_2215	-	UDP-N-acetylglucosamine acyltransferase
2145	 31.08	+1	2216387..2216830	-	147	157738415	fabZ	Abu_2216	-	3-hydroxymyristoyl-(acyl carrier protein) dehydratase
2146	 27.30	0	2216928..2217971	-	347	157738416	lpxB	Abu_2217	-	lipid-A-disaccharide synthase
2147	 27.09	0	2217968..2219041	-	357	157738417	-	Abu_2218	-	hypothetical protein
2148	 22.46	-1	2219226..2219501	+	91	157738418	-	Abu_2219	-	hypothetical protein
2149	 28.43	0	2219510..2220712	-	400	157738419	ndh	Abu_2220	-	NADH dehydrogenase
2150	 30.13	0	2220918..2221760	+	280	157738420	nfo	Abu_2221	-	endonuclease IV
2151	 25.85	0	2221775..2223163	-	462	157738421	-	Abu_2222	-	outer membrane efflux lipoprotein
2152	 29.36	0	2223156..2226323	-	1055	157738422	-	Abu_2223	-	Acr family multidrug efflux protein
2153	 25.45	0	2226320..2227474	-	384	157738423	-	Abu_2224	-	HlyD family multidrug efflux protein
2154	 22.96	-1	2227583..2228122	+	179	157738424	-	Abu_2225	-	TetR family transcriptional regulator
2155	 25.86	0	2228197..2229387	+	396	157738425	-	Abu_2226	-	major facilitator transporter
2156	 28.29	0	2229392..2231017	-	541	157738426	-	Abu_2227	-	sulfate permease family protein
2157	 25.31	0	2231076..2231723	-	215	157738427	-	Abu_2228	-	hypothetical protein
2158	 28.04	0	2231724..2232347	-	207	157738428	-	Abu_2229	-	hypothetical protein
2159	 18.30	-2	2232419..2232817	+	132	157738429	-	Abu_2230	-	hypothetical protein
2160	 26.24	0	2232814..2234547	+	577	157738430	-	Abu_2231	-	AAA ATPase family protein
2161	 22.98	-1	2234557..2235348	+	263	157738431	-	Abu_2232	-	hypothetical protein
2162	 29.77	0	2235352..2236221	+	289	157738432	-	Abu_2233	-	hypothetical protein
2163	 26.31	0	2236218..2237000	+	260	157738433	murB	Abu_2234	-	UDP-N-acetylenolpyruvoylglucosamine reductase
2164	 30.43	0	2237216..2239486	+	756	157738434	topA	Abu_2235	-	DNA topoisomerase I
2165	 25.34	0	2239486..2239998	+	170	157738435	-	Abu_2236	-	hypothetical protein
2166	 30.86	+1	2239988..2240836	+	282	157738436	bioB	Abu_2237	-	biotin synthase
2167	 26.44	0	2240859..2241569	-	236	157738437	-	Abu_2238	-	hypothetical protein
2168	 28.05	0	2241566..2241811	-	81	157738438	-	Abu_2239	-	hypothetical protein
2169	 31.77	+1	2241815..2243095	-	426	157738439	eno	Abu_2240	-	enolase
2170	 32.29	+1	2243216..2244265	-	349	157738440	recA	Abu_2241	-	recombinase A
2171	 23.08	-1	2244366..2244560	-	64	157738441	-	Abu_2242	-	hypothetical protein
2172	 29.41	0	2244685..2245677	+	330	157738442	pseB	Abu_2243	-	UDP GlcNAc dehydratase/reductase PseB, putative
2173	 25.46	0	2245674..2246804	+	376	157738443	-	Abu_2244	-	DegT/DnrJ/EryC1/StrS aminotransferase
2174	 29.90	0	2246797..2247495	+	232	157738444	neuA	Abu_2245	-	acylneuraminate cytidylyltransferase
2175	 28.46	0	2247492..2248517	+	341	157738445	neuB	Abu_2246	-	N-acetylneuraminic acid synthetase
2176	 25.61	0	2248514..2249536	+	340	157738446	-	Abu_2247	-	glycosyltransferase
2177	 20.25	-1	2249523..2250386	+	287	157738447	-	Abu_2248	-	hypothetical protein
2178	 22.37	-1	2250389..2251054	+	221	157738448	flmE	Abu_2249	-	flagellin modification protein FlmE
2179	 26.20	0	2251036..2252157	+	373	157738449	-	Abu_2250	-	ATP-grasp domain-containing protein
2180	 23.37	-1	2252154..2253026	+	290	157738450	-	Abu_2251	-	hypothetical protein
2181	 26.57	0	2253047..2253667	+	206	157738451	-	Abu_2252	-	hypothetical protein
2182	 22.99	-1	2253682..2255712	+	676	157738452	-	Abu_2253	-	hypothetical protein
2183	 33.98	+2	2255759..2256682	-	307	157738453	flaA	Abu_2254	-	flagellin
2184	 33.44	+1	2256842..2257765	-	307	157738454	flaB	Abu_2255	-	flagellin
2185	 27.33	0	2258098..2259480	+	460	157738455	-	Abu_2256	-	4Fe-4S ferredoxin, iron-sulfur binding
2186	 30.49	+1	2259594..2261210	+	538	157738456	pyrG	Abu_2257	-	CTP synthetase
2187	 25.43	0	2261210..2262778	+	522	157738457	recJ	Abu_2258	-	single-stranded DNA-specific exonuclease
2188	 23.38	-1	2262773..2263375	-	200	157738458	-	Abu_2259	-	hypothetical protein
2189	 27.78	0	2263380..2264009	-	209	157738459	-	Abu_2260	-	hypothetical protein
2190	 27.04	0	2264130..2264669	+	179	157738460	thiJ	Abu_2261	-	4-methyl-5(beta-hydroxyethyl)-thiazole monophosphate synthesis protein ThiJ
2191	 29.77	0	2264743..2268306	+	1187	157738461	dnaE	Abu_2262	-	DNA polymerase III subunit alpha
2192	 28.90	0	2268281..2269069	+	262	157738462	surE	Abu_2263	-	stationary phase survival protein SurE
2193	 23.70	0	2269087..2269356	+	89	157738463	-	Abu_2264	-	hypothetical protein
2194	 25.00	0	2269366..2269629	-	87	157738464	-	Abu_2265	-	hypothetical protein
2195	 30.15	0	2269632..2270102	-	156	157738465	moaC	Abu_2266	-	molybdenum cofactor biosynthesis protein C
2196	 27.48	0	2270208..2270429	+	73	157738466	rpsU	Abu_2267	-	30S ribosomal protein S21
2197	 28.77	0	2276717..2277418	+	233	157738467	-	Abu_2273	-	hypothetical protein
2198	 25.00	0	2277452..2277859	+	135	157738468	-	Abu_2274	-	hypothetical protein
2199	 22.51	-1	2277811..2278503	-	230	157738469	-	Abu_2275	-	putative methyltransferase
2200	 33.05	+1	2278590..2278937	+	115	157738470	secG	Abu_2276	-	protein-export membrane protein SecG
2201	 26.70	0	2278998..2279555	+	185	157738471	frr	Abu_2277	-	ribosome recycling factor
2202	 33.82	+1	2279552..2280166	+	204	157738472	pyrE	Abu_2278	-	orotate phosphoribosyltransferase
2203	 26.46	0	2280166..2280645	+	159	157738473	-	Abu_2279	-	hypothetical protein
2204	 25.58	0	2280645..2281727	+	360	157738474	-	Abu_2280	-	major facilitator transporter
2205	 26.92	0	2281724..2282689	-	321	157738475	-	Abu_2281	-	CorA-like Mg2+ transporter protein
2206	 22.90	-1	2282700..2283437	-	245	157738476	-	Abu_2282	-	hypothetical protein
2207	 26.34	0	2283521..2283892	-	123	157738477	-	Abu_2283	-	competence protein ComEA
2208	 27.97	0	2283959..2284741	-	260	157738478	-	Abu_2284	-	hypothetical protein
2209	 26.99	0	2284914..2286032	+	372	157738479	-	Abu_2285	-	metallophosphoesterase
2210	 27.18	0	2286088..2286981	-	297	157738480	-	Abu_2286	-	hypothetical protein
2211	 29.63	0	2287006..2289111	-	701	157738481	-	Abu_2287	-	TonB-dependent receptor protein
2212	 23.78	0	2289208..2290170	+	320	157738482	-	Abu_2288	-	AraC family transcriptional regulator
2213	 27.54	0	2290174..2290587	-	137	157738483	-	Abu_2289	-	heat shock protein Hsp20
2214	 25.40	0	2290749..2291189	-	146	157738484	-	Abu_2290	-	hypothetical protein
2215	 25.96	0	2291286..2293646	-	786	157738485	-	Abu_2291	-	methyl-accepting chemotaxis protein
2216	 29.40	0	2293840..2294982	-	380	157738486	moeB	Abu_2292	-	molybdopterin biosynthesis protein
2217	 31.40	+1	2295191..2298559	+	1122	157738487	-	Abu_2293	-	hypothetical protein
2218	 26.22	0	2298560..2301049	+	829	157738488	-	Abu_2294	-	hypothetical protein
2219	 27.59	0	2301052..2301939	+	295	157738489	-	Abu_2295	-	hypothetical protein
2220	 30.09	0	2301952..2302998	-	348	157738490	cysA	Abu_2296	-	sulfate ABC transporter ATP-binding protein
2221	 29.85	0	2303014..2303874	-	286	157738491	cysW	Abu_2297	-	sulfate transport system permease protein
2222	 31.23	+1	2303871..2304725	-	284	157738492	cysT	Abu_2298	-	sulfate transport system permease protein
2223	 34.30	+2	2304917..2305849	-	310	157738493	cysK2	Abu_2299	-	cysteine synthase
2224	 24.35	0	2305865..2307088	-	407	157738494	-	Abu_2300	-	EAL domain-containing protein
2225	 23.70	0	2307195..2307464	-	89	157738495	-	Abu_2301	-	hypothetical protein
2226	 29.54	0	2307496..2308575	-	359	157738496	sbp	Abu_2302	-	sulfate-binding protein precursor
2227	 29.85	0	2308850..2309308	-	152	157738497	-	Abu_2303	-	BadM/Rrf2 family transcriptional regulator
2228	 27.22	0	2309400..2310332	-	310	157738498	-	Abu_2304	-	putative succinylglutamate desuccinylase/aspartoacylase
2229	 28.65	0	2310319..2311278	-	319	157738499	-	Abu_2305	-	putative succinylglutamate desuccinylase/aspartoacylase
2230	 26.01	0	2311275..2311943	-	222	157738500	-	Abu_2306	-	hypothetical protein
2231	 29.01	0	2311945..2313309	-	454	157738501	-	Abu_2307	-	hypothetical protein
2232	 33.17	+1	2313528..2315342	-	604	157738502	typA	Abu_2308	-	GTP-binding elongation factor family protein
2233	 31.08	+1	2315612..2316808	+	398	157738503	-	Abu_2309	-	putative inner membrane protein
2234	 30.00	0	2316819..2317058	+	79	157738504	-	Abu_2310	-	hypothetical protein
2235	 28.22	0	2317080..2317568	-	162	157738505	-	Abu_2311	-	hypothetical protein
2236	 24.18	0	2317578..2317883	-	101	157738506	-	Abu_2312	-	hypothetical protein
2237	 27.41	0	2317880..2319466	-	528	157738507	-	Abu_2313	-	hypothetical protein
2238	 30.18	0	2319516..2321864	-	782	157738508	-	Abu_2314	-	TonB-dependent receptor protein
26.98	MEAN

3.50	STD DEV
