IslandPath Analysis: Arcobacter butzleri RM4018

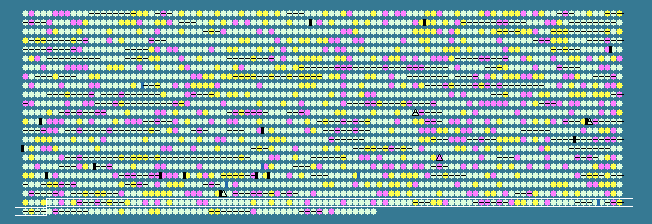

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.98 STD DEV: 3.50
Arcobacter butzleri RM4018, complete genome - 1..2341251
2259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2105	 27.94	0	2169459..2170868	+	469	157738375	cysNC	Abu_2175	-	bifunctional ATP sulfurylase, subunit 1/adenylyl-sulfate kinase
2106	 24.36	0	2170878..2171969	+	363	157738376	cysI	Abu_2176	-	sulfite reductase, iron-sulfur subunit
2107	 22.56	-1	2171982..2173280	+	432	157738377	-	Abu_2177	-	hypothetical protein
2108	 29.26	0	2173366..2174667	+	433	157738378	-	Abu_2178	-	aminotransferase, NifS-like protein
2109	 30.98	+1	2174711..2180311	-	1866	157738379	-	Abu_2179	-	hypothetical protein
2110	 21.62	-1	2180415..2181020	-	201	157738380	-	Abu_2180	-	hypothetical protein
2111	 23.96	0	2181020..2181766	-	248	157738381	cobS	Abu_2181	-	cobalamin (vitamin B12) synthase
2112	 25.25	0	2181763..2182257	-	164	157738382	cobP	Abu_2182	-	bifunctional cobinamide kinase / cobinamide phosphate guanylyltransferase
2113	 22.93	-1	2182285..2182947	-	220	157738383	-	Abu_2183	-	lipolytic protein
2114	 28.65	0	2182949..2184016	-	355	157738384	-	Abu_2184	-	hypothetical protein
2115	 34.40	+2	2184155..2185561	+	468	157738385	-	Abu_2185	-	sodium:sulfate symporter family protein
2116	 24.77	0	2185591..2186337	-	248	157738386	-	Abu_2186	-	hypothetical protein
2117	 27.47	0	2186381..2188138	-	585	157738387	dsbD	Abu_2187	-	thiol:disulfide interchange protein DsbD
2118	 32.37	+1	2188138..2189067	-	309	157738388	rimK	Abu_2188	-	ribosomal protein S6 modification protein
2119	 26.71	0	2189079..2189501	-	140	157738389	-	Abu_2189	-	hypothetical protein
2120	 28.89	0	2189551..2189775	-	74	157738390	-	Abu_2190	-	hypothetical protein
2121	 22.83	-1	2189837..2191207	-	456	157738391	-	Abu_2191	-	EAL/GGDEF domain-containing protein
2122	 25.37	0	2191182..2191985	-	267	157738392	psd	Abu_2192	-	phosphatidylserine decarboxylase
2123	 20.99	-1	2192091..2192333	+	80	157738393	-	Abu_2193	-	hypothetical protein
2124	 27.55	0	2192344..2193432	-	362	157738394	mltA	Abu_2194	-	peptidoglycan N-acetylmuramoylhydrolase
2125	 32.17	+1	2193495..2195381	-	628	157738395	dnaK	Abu_2195	-	molecular chaperone DnaK
2126	 28.67	0	2195570..2196127	-	185	157738396	grpE	Abu_2196	-	heat shock protein GrpE
2127	 24.12	0	2196137..2196928	-	263	157738397	hrcA	Abu_2197	-	putative heat shock regulator
2128	 24.14	0	2197044..2197685	-	213	157738398	-	Abu_2198	-	hypothetical protein
2129	 23.51	0	2197689..2198411	-	240	157738399	truA	Abu_2199	-	tRNA pseudouridine synthase A
2130	 23.40	-1	2198418..2199434	-	338	157738400	-	Abu_2200	-	hypothetical protein
2131	 22.39	-1	2199434..2200027	-	197	157738401	-	Abu_2201	-	A24 family peptidase
2132	 29.36	0	2199987..2200691	-	234	157738402	uppS	Abu_2202	-	undecaprenyl pyrophosphate synthetase
2133	 26.63	0	2200678..2201901	-	407	157738403	dfp	Abu_2203	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
2134	 29.33	0	2201904..2203202	-	432	157738404	glmU	Abu_2204	-	bifunctional UDP-N-acetylglucosamine pyrophosphorylase
2135	 24.51	0	2203205..2205142	-	645	157738405	-	Abu_2205	-	ankyrin repeat-containing protein
2136	 27.65	0	2205184..2206818	-	544	157738406	-	Abu_2206	-	ATP-dependent RNA helicase
2137	 24.38	0	2206842..2207969	+	375	157738407	trmA	Abu_2207	-	tRNA (uracil-5-)-methyltransferase
2138	 26.12	0	2207980..2208561	-	193	157738408	-	Abu_2208	-	hypothetical protein
2139	 30.83	+1	2209876..2211753	-	625	157738409	gidA	Abu_2210	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
2140	 27.78	0	2211898..2212509	+	203	157738410	ribE	Abu_2211	-	riboflavin synthase subunit alpha
2141	 26.02	0	2212503..2213309	-	268	157738411	mreC	Abu_2212	-	rod shape-determining protein MreC
2142	 32.66	+1	2213314..2214357	-	347	157738412	mreB	Abu_2213	-	rod shape-determining protein MreB
2143	 28.35	0	2214361..2215584	-	407	157738413	clpX	Abu_2214	-	ATP-dependent protease ATP-binding subunit
2144	 29.63	0	2215595..2216377	-	260	157738414	lpxA	Abu_2215	-	UDP-N-acetylglucosamine acyltransferase
2145	 31.08	+1	2216387..2216830	-	147	157738415	fabZ	Abu_2216	-	3-hydroxymyristoyl-(acyl carrier protein) dehydratase
2146	 27.30	0	2216928..2217971	-	347	157738416	lpxB	Abu_2217	-	lipid-A-disaccharide synthase
2147	 27.09	0	2217968..2219041	-	357	157738417	-	Abu_2218	-	hypothetical protein
2148	 22.46	-1	2219226..2219501	+	91	157738418	-	Abu_2219	-	hypothetical protein
2149	 28.43	0	2219510..2220712	-	400	157738419	ndh	Abu_2220	-	NADH dehydrogenase
2150	 30.13	0	2220918..2221760	+	280	157738420	nfo	Abu_2221	-	endonuclease IV
2151	 25.85	0	2221775..2223163	-	462	157738421	-	Abu_2222	-	outer membrane efflux lipoprotein
2152	 29.36	0	2223156..2226323	-	1055	157738422	-	Abu_2223	-	Acr family multidrug efflux protein
2153	 25.45	0	2226320..2227474	-	384	157738423	-	Abu_2224	-	HlyD family multidrug efflux protein
2154	 22.96	-1	2227583..2228122	+	179	157738424	-	Abu_2225	-	TetR family transcriptional regulator
2155	 25.86	0	2228197..2229387	+	396	157738425	-	Abu_2226	-	major facilitator transporter
2156	 28.29	0	2229392..2231017	-	541	157738426	-	Abu_2227	-	sulfate permease family protein
2157	 25.31	0	2231076..2231723	-	215	157738427	-	Abu_2228	-	hypothetical protein
2158	 28.04	0	2231724..2232347	-	207	157738428	-	Abu_2229	-	hypothetical protein
2159	 18.30	-2	2232419..2232817	+	132	157738429	-	Abu_2230	-	hypothetical protein
2160	 26.24	0	2232814..2234547	+	577	157738430	-	Abu_2231	-	AAA ATPase family protein
2161	 22.98	-1	2234557..2235348	+	263	157738431	-	Abu_2232	-	hypothetical protein
2162	 29.77	0	2235352..2236221	+	289	157738432	-	Abu_2233	-	hypothetical protein
2163	 26.31	0	2236218..2237000	+	260	157738433	murB	Abu_2234	-	UDP-N-acetylenolpyruvoylglucosamine reductase
2164	 30.43	0	2237216..2239486	+	756	157738434	topA	Abu_2235	-	DNA topoisomerase I
2165	 25.34	0	2239486..2239998	+	170	157738435	-	Abu_2236	-	hypothetical protein
2166	 30.86	+1	2239988..2240836	+	282	157738436	bioB	Abu_2237	-	biotin synthase
2167	 26.44	0	2240859..2241569	-	236	157738437	-	Abu_2238	-	hypothetical protein
2168	 28.05	0	2241566..2241811	-	81	157738438	-	Abu_2239	-	hypothetical protein
2169	 31.77	+1	2241815..2243095	-	426	157738439	eno	Abu_2240	-	enolase
2170	 32.29	+1	2243216..2244265	-	349	157738440	recA	Abu_2241	-	recombinase A
2171	 23.08	-1	2244366..2244560	-	64	157738441	-	Abu_2242	-	hypothetical protein
2172	 29.41	0	2244685..2245677	+	330	157738442	pseB	Abu_2243	-	UDP GlcNAc dehydratase/reductase PseB, putative
2173	 25.46	0	2245674..2246804	+	376	157738443	-	Abu_2244	-	DegT/DnrJ/EryC1/StrS aminotransferase
2174	 29.90	0	2246797..2247495	+	232	157738444	neuA	Abu_2245	-	acylneuraminate cytidylyltransferase
2175	 28.46	0	2247492..2248517	+	341	157738445	neuB	Abu_2246	-	N-acetylneuraminic acid synthetase
2176	 25.61	0	2248514..2249536	+	340	157738446	-	Abu_2247	-	glycosyltransferase
2177	 20.25	-1	2249523..2250386	+	287	157738447	-	Abu_2248	-	hypothetical protein
2178	 22.37	-1	2250389..2251054	+	221	157738448	flmE	Abu_2249	-	flagellin modification protein FlmE
2179	 26.20	0	2251036..2252157	+	373	157738449	-	Abu_2250	-	ATP-grasp domain-containing protein
2180	 23.37	-1	2252154..2253026	+	290	157738450	-	Abu_2251	-	hypothetical protein
2181	 26.57	0	2253047..2253667	+	206	157738451	-	Abu_2252	-	hypothetical protein
2182	 22.99	-1	2253682..2255712	+	676	157738452	-	Abu_2253	-	hypothetical protein
2183	 33.98	+2	2255759..2256682	-	307	157738453	flaA	Abu_2254	-	flagellin
2184	 33.44	+1	2256842..2257765	-	307	157738454	flaB	Abu_2255	-	flagellin
2185	 27.33	0	2258098..2259480	+	460	157738455	-	Abu_2256	-	4Fe-4S ferredoxin, iron-sulfur binding
2186	 30.49	+1	2259594..2261210	+	538	157738456	pyrG	Abu_2257	-	CTP synthetase
2187	 25.43	0	2261210..2262778	+	522	157738457	recJ	Abu_2258	-	single-stranded DNA-specific exonuclease
2188	 23.38	-1	2262773..2263375	-	200	157738458	-	Abu_2259	-	hypothetical protein
2189	 27.78	0	2263380..2264009	-	209	157738459	-	Abu_2260	-	hypothetical protein
2190	 27.04	0	2264130..2264669	+	179	157738460	thiJ	Abu_2261	-	4-methyl-5(beta-hydroxyethyl)-thiazole monophosphate synthesis protein ThiJ
2191	 29.77	0	2264743..2268306	+	1187	157738461	dnaE	Abu_2262	-	DNA polymerase III subunit alpha
2192	 28.90	0	2268281..2269069	+	262	157738462	surE	Abu_2263	-	stationary phase survival protein SurE
2193	 23.70	0	2269087..2269356	+	89	157738463	-	Abu_2264	-	hypothetical protein
2194	 25.00	0	2269366..2269629	-	87	157738464	-	Abu_2265	-	hypothetical protein
2195	 30.15	0	2269632..2270102	-	156	157738465	moaC	Abu_2266	-	molybdenum cofactor biosynthesis protein C
2196	 27.48	0	2270208..2270429	+	73	157738466	rpsU	Abu_2267	-	30S ribosomal protein S21
2197	 28.77	0	2276717..2277418	+	233	157738467	-	Abu_2273	-	hypothetical protein
2198	 25.00	0	2277452..2277859	+	135	157738468	-	Abu_2274	-	hypothetical protein
2199	 22.51	-1	2277811..2278503	-	230	157738469	-	Abu_2275	-	putative methyltransferase
2200	 33.05	+1	2278590..2278937	+	115	157738470	secG	Abu_2276	-	protein-export membrane protein SecG
2201	 26.70	0	2278998..2279555	+	185	157738471	frr	Abu_2277	-	ribosome recycling factor
2202	 33.82	+1	2279552..2280166	+	204	157738472	pyrE	Abu_2278	-	orotate phosphoribosyltransferase
2203	 26.46	0	2280166..2280645	+	159	157738473	-	Abu_2279	-	hypothetical protein
2204	 25.58	0	2280645..2281727	+	360	157738474	-	Abu_2280	-	major facilitator transporter
26.98	MEAN

3.50	STD DEV
