IslandPath Analysis: Arcobacter butzleri RM4018

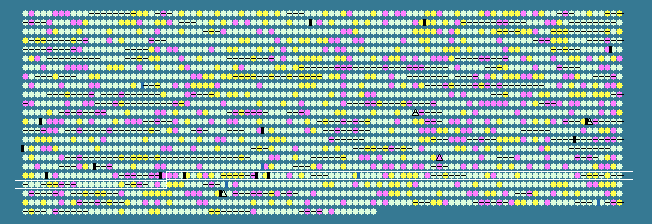

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.98 STD DEV: 3.50
Arcobacter butzleri RM4018, complete genome - 1..2341251
2259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1825	 20.63	-1	1878625..1879419	+	264	157738095	-	Abu_1873	-	replication protein
1826	 21.11	-1	1879442..1880161	-	239	157738096	-	Abu_1874	-	hypothetical protein
1827	 23.54	0	1880425..1881894	+	489	157738097	-	Abu_1875	-	hypothetical protein
1828	 32.50	+1	1882550..1883146	+	198	157738098	ahpC	Abu_1879	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant
1829	 29.56	0	1883158..1883475	+	105	157738099	trx1	Abu_1880	-	thioredoxin
1830	 31.60	+1	1883528..1883815	-	95	157738100	-	Abu_1881	-	hypothetical protein
1831	 19.01	-2	1883858..1884241	-	127	157738101	-	Abu_1882	-	hypothetical protein
1832	 30.58	+1	1884277..1888812	-	1511	157738102	rpoC	Abu_1883	-	DNA-directed RNA polymerase, beta' chain
1833	 30.20	0	1888802..1892950	-	1382	157738103	rpoB	Abu_1884	-	DNA-directed RNA polymerase subunit beta
1834	 34.14	+2	1893107..1893478	-	123	157738104	rplL	Abu_1885	-	50S ribosomal protein L7/L12
1835	 30.67	+1	1893530..1894018	-	162	157738105	rplJ	Abu_1886	-	50S ribosomal protein L10
1836	 33.62	+1	1894179..1894877	-	232	157738106	rplA	Abu_1887	-	50S ribosomal protein L1
1837	 30.52	+1	1894953..1895378	-	141	157738107	rplK	Abu_1888	-	50S ribosomal protein L11
1838	 29.73	0	1895473..1896000	-	175	157738108	nusG	Abu_1889	-	transcription antitermination protein NusG
1839	 20.77	-1	1896010..1896192	-	60	157738109	secE	Abu_1890	-	preprotein translocase subunit SecE
1840	 26.32	0	1896387..1896557	-	56	157738110	rpmG	Abu_1892	-	50S ribosomal protein L33
1841	 37.30	+2	1896570..1897778	-	402	157738111	tufA	Abu_1893	-	elongation factor Tu
1842	 24.09	0	1898417..1899595	-	392	157738112	murD	Abu_1898	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
1843	 29.85	0	1899605..1900666	-	353	157738113	mraY	Abu_1899	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
1844	 28.05	0	1900736..1902211	+	491	157738114	pgm	Abu_1900	-	phosphoglyceromutase
1845	 23.04	-1	1902211..1902900	+	229	157738115	-	Abu_1901	-	ABC transporter, ATP-binding protein
1846	 29.90	0	1902904..1904883	+	659	157738116	pbpA	Abu_1902	-	penicillin-binding protein 1A
1847	 31.72	+1	1905094..1906521	-	475	157738117	glnA	Abu_1903	-	glutamine synthetase
1848	 27.02	0	1906619..1907410	-	263	157738118	hisJ	Abu_1904	-	histidinol-phosphate phosphatase
1849	 28.31	0	1907407..1907844	-	145	157738119	moaE	Abu_1905	-	molybdopterin converting factor, subunit 2
1850	 27.48	0	1907847..1908068	-	73	157738120	moaD	Abu_1906	-	molybdopterin converting factor, subunit 1
1851	 23.94	0	1908138..1908797	+	219	157738121	-	Abu_1907	-	hypothetical protein
1852	 26.59	0	1908794..1909564	+	256	157738122	uppP	Abu_1908	-	undecaprenyl diphosphatase, putative
1853	 25.02	0	1909553..1910575	-	340	157738123	murG	Abu_1909	-	N-acetylglucosaminyl transferase
1854	 28.76	0	1910572..1911861	-	429	157738124	pbpB	Abu_1910	-	penicillin-binding protein
1855	 27.54	0	1911890..1913752	+	620	157738125	ftsW	Abu_1911	-	cell division protein FtsW
1856	 31.56	+1	1913773..1914279	+	168	157738126	ppi	Abu_1912	-	peptidyl-prolyl cis-trans isomerase
1857	 28.40	0	1920621..1921127	-	168	157738127	-	Abu_1919	-	cytochrome c
1858	 27.64	0	1921196..1923409	-	737	157738128	clpA	Abu_1920	-	ATP-dependent Clp protease, ATP-binding subunit
1859	 25.33	0	1923411..1923710	-	99	157738129	clpS	Abu_1921	-	ATP-dependent Clp protease adaptor protein ClpS
1860	 23.79	0	1923788..1924426	+	212	157738130	bioD	Abu_1922	-	dethiobiotin synthetase
1861	 20.00	-1	1924443..1924607	-	54	157738131	-	Abu_1923	-	hypothetical protein
1862	 30.51	+1	1924710..1925843	+	377	157738132	-	Abu_1924	-	hypothetical protein
1863	 29.68	0	1925860..1928379	+	839	157738133	-	Abu_1925	-	AMP-dependent synthetase and ligase
1864	 30.50	+1	1928389..1929447	+	352	157738134	-	Abu_1926	-	MaoC family protein
1865	 34.45	+2	1929480..1930463	+	327	157738135	-	Abu_1927	-	putative citrate lyase
1866	 32.86	+1	1930640..1932133	+	497	157738136	fumA	Abu_1928	-	fumarate hydratase, class I
1867	 29.27	0	1932293..1933129	+	278	157738137	-	Abu_1929	-	hypothetical protein
1868	 22.83	-1	1933140..1936052	-	970	157738138	-	Abu_1930	-	methyl-accepting chemotaxis protein
1869	 27.58	0	1936233..1937483	-	416	157738139	arsB	Abu_1931	-	arsenical pump membrane protein
1870	 26.92	0	1937477..1937788	-	103	157738140	arsR	Abu_1932	-	ArsR family transcriptional regulator
1871	 30.80	+1	1937788..1938024	-	78	157738141	-	Abu_1933	-	putative redox-active disulfide protein
1872	 29.92	0	1938029..1938994	-	321	157738142	-	Abu_1934	-	hypothetical protein
1873	 29.82	0	1938995..1939393	-	132	157738143	arsC	Abu_1935	-	arsenate reductase
1874	 28.41	0	1939502..1940110	-	202	157738144	-	Abu_1936	-	hypothetical protein
1875	 25.65	0	1940191..1941375	-	394	157738145	-	Abu_1937	-	putative integral membrane protein
1876	 29.31	0	1941409..1943520	-	703	157738146	flhA	Abu_1938	-	flagellar biosynthesis protein FlhA
1877	 30.33	0	1943540..1944670	-	376	157738147	flgL	Abu_1939	-	flagellar hook-associated protein FlgL
1878	 31.96	+1	1944667..1945974	-	435	157738148	fliI	Abu_1940	-	flagellum-specific ATP synthase
1879	 23.34	-1	1945971..1947971	-	666	157738149	pflA	Abu_1941	-	TPR repeat-containing protein
1880	 26.48	0	1947975..1949024	-	349	157738150	flhB	Abu_1942	-	flagellar biosynthetic protein FlhB
1881	 26.80	0	1949036..1949785	-	249	157738151	fliR	Abu_1943	-	flagellar biosynthetic protein FliR
1882	 24.15	0	1949785..1951722	-	645	157738152	-	Abu_1944	-	hypothetical protein
1883	 30.54	+1	1951735..1952199	-	154	157738153	flgC	Abu_1945	-	flagellar basal body rod protein FlgC
1884	 27.73	0	1952214..1952534	-	106	157738154	fliE	Abu_1946	-	flagellar hook-basal body protein FliE
1885	 25.00	0	1952547..1952930	-	127	157738155	-	Abu_1947	-	hypothetical protein
1886	 26.06	0	1952994..1953818	-	274	157738156	-	Abu_1948	-	ATP-binding protein
1887	 27.26	0	1953821..1954972	-	383	157738157	flhF	Abu_1949	-	flagellar biosynthesis (GTP-binding) protein FlhF
1888	 24.75	0	1954969..1955364	-	131	157738158	-	Abu_1950	-	hypothetical protein
1889	 23.81	0	1955348..1955725	-	125	157738159	-	Abu_1951	-	hypothetical protein
1890	 23.76	0	1955741..1956043	-	100	157738160	-	Abu_1952	-	hypothetical protein
1891	 27.47	0	1956045..1956914	-	289	157738161	fliY	Abu_1953	-	flagellar motor switch protein FliY
1892	 26.28	0	1956932..1957243	-	103	157738162	flaG	Abu_1954	-	polar flagellin
1893	 22.67	-1	1957291..1959381	-	696	157738163	-	Abu_1955	-	TPR repeat-containing protein
1894	 24.16	0	1959344..1959670	-	108	157738164	-	Abu_1956	-	hypothetical protein
1895	 31.91	+1	1959724..1961895	-	723	157738165	flgE1	Abu_1957	-	flagellar hook protein FlgE
1896	 31.96	+1	1961989..1963740	-	583	157738166	flgE2	Abu_1958	-	flagellar hook protein FlgE
1897	 30.10	0	1963760..1964440	-	226	157738167	flgD	Abu_1959	-	flagellar hook assembly protein FlgD
1898	 30.90	+1	1964452..1964739	-	95	157738168	fliN	Abu_1960	-	flagellar motor switch protein FliN
1899	 27.41	0	1964789..1965514	-	241	157738169	fliH	Abu_1961	-	flagellar assembly protein FliH
1900	 28.29	0	1965517..1966527	-	336	157738170	fliG	Abu_1962	-	flagellar motor switch protein G
1901	 28.46	0	1966540..1968264	-	574	157738171	fliF	Abu_1963	-	flagellar M-ring protein FliF
1902	 25.81	0	1968282..1968680	-	132	157738172	flgB	Abu_1964	-	flagellar basal body rod protein FlgB
1903	 29.17	0	1968680..1969399	-	239	157738173	flgG1	Abu_1965	-	flagellar distal rod protein FlgG
1904	 27.90	0	1969414..1970352	-	312	157738174	-	Abu_1966	-	hypothetical protein
1905	 30.65	+1	1970367..1970738	-	123	157738175	cheY2	Abu_1967	-	chemotaxis protein CheY
1906	 32.07	+1	1970900..1971688	+	262	157738176	flgG2	Abu_1968	-	flagellar distal rod protein FlgG
1907	 22.58	-1	1971708..1972079	+	123	157738177	-	Abu_1969	-	hypothetical protein
1908	 25.77	0	1972082..1973020	+	312	157738178	-	Abu_1970	-	hypothetical protein
1909	 23.46	-1	1973017..1973553	-	178	157738179	rimM	Abu_1971	-	16S rRNA processing protein
1910	 27.08	0	1973554..1973793	-	79	157738180	-	Abu_1972	-	hypothetical protein
1911	 28.07	0	1973807..1974034	-	75	157738181	rpsP	Abu_1973	-	30S ribosomal protein S16
1912	 30.08	0	1974115..1975467	-	450	157738182	ffh	Abu_1974	-	signal recognition particle protein
1913	 26.46	0	1975618..1976373	-	251	157738183	-	Abu_1975	-	ribosomal large subunit pseudouridine synthase
1914	 24.22	0	1976364..1977515	-	383	157738184	kdtA	Abu_1976	-	3-deoxy-D-manno-octulosonic-acid transferase
1915	 27.00	0	1977518..1978243	-	241	157738185	-	Abu_1977	-	hypothetical protein
1916	 23.81	0	1978236..1978991	-	251	157738186	-	Abu_1978	-	hypothetical protein
1917	 32.54	+1	1978994..1979875	-	293	157738187	glyQ	Abu_1979	-	glycyl-tRNA synthetase subunit alpha
1918	 25.97	0	1979872..1980102	-	76	157738188	-	Abu_1980	-	glutaredoxin-like protein
1919	 33.74	+1	1980102..1980596	-	164	157738189	purE	Abu_1981	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
1920	 20.00	-1	1980637..1981881	-	414	157738190	-	Abu_1982	-	hypothetical protein
1921	 29.38	0	1981904..1983193	-	429	157738191	-	Abu_1983	-	U32 family peptidase
1922	 26.18	0	1983304..1985706	-	800	157738192	-	Abu_1984	-	methyl-accepting chemotaxis protein
1923	 22.83	-1	1985761..1987293	-	510	157738193	recN	Abu_1985	-	DNA repair protein RecN
1924	 25.14	0	1987297..1988163	-	288	157738194	-	Abu_1986	-	NAD(+) kinase
26.98	MEAN

3.50	STD DEV
