IslandPath Analysis: Arcobacter butzleri RM4018

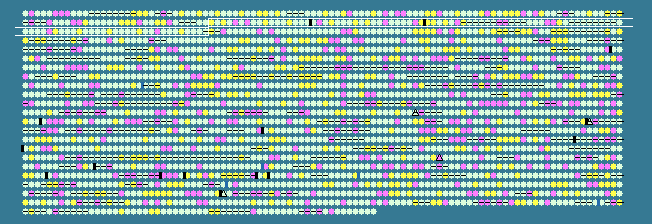

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.98 STD DEV: 3.50
Arcobacter butzleri RM4018, complete genome - 1..2341251
2259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
132	 31.89	+1	140134..141384	-	416	157736403	purA	Abu_0132	-	adenylosuccinate synthetase
133	 25.30	0	141386..142231	-	281	157736404	-	Abu_0133	-	ATP phosphoribosyltransferase regulatory subunit
134	 30.73	+1	142231..143343	-	370	157736405	-	Abu_0134	-	putative aminotransferase
135	 24.44	0	143489..144118	+	209	157736406	-	Abu_0135	-	periplasmic protein
136	 22.30	-1	144274..144726	+	150	157736407	-	Abu_0136	-	MarR family transcriptional regulator
137	 28.80	0	144782..145333	+	183	157736408	-	Abu_0137	-	periplasmic protein
138	 23.29	-1	145357..146133	+	258	157736409	-	Abu_0138	-	LigB family protein
139	 27.18	0	146130..146828	+	232	157736410	pirA	Abu_0139	-	pirin
140	 25.46	0	146885..147913	+	342	157736411	gapB	Abu_0140	-	glyceraldehyde-3-phosphate dehydrogenase B
141	 32.53	+1	147953..148948	-	331	157736412	purM	Abu_0141	-	phosphoribosylaminoimidazole synthetase
142	 26.96	0	149049..149597	+	182	157736413	speE	Abu_0142	-	spermidine synthase
143	 26.40	0	149641..150231	+	196	157736414	coaE	Abu_0143	-	dephospho-CoA kinase
144	 30.36	0	150228..150968	+	246	157736415	dapF	Abu_0144	-	diaminopimelate epimerase
145	 31.45	+1	150993..152162	+	389	157736416	purT	Abu_0145	-	phosphoribosylglycinamide formyltransferase 2
146	 25.05	0	152171..152641	+	156	157736417	-	Abu_0146	-	MarR family transcriptional regulator
147	 27.51	0	152643..152951	-	102	157736418	-	Abu_0147	-	hypothetical protein
148	 25.23	0	153035..154255	-	406	157736419	-	Abu_0148	-	hypothetical protein
149	 27.33	0	154544..155392	-	282	157736420	ubiA	Abu_0150	-	prenyltransferase
150	 18.14	-2	155484..155687	+	67	157736421	-	Abu_0151	-	hypothetical protein
151	 24.66	0	155684..156559	+	291	157736422	miaA	Abu_0152	-	tRNA delta(2)-isopentenylpyrophosphate transferase
152	 32.84	+1	156640..156843	+	67	157736423	rpmE	Abu_0153	-	50S ribosomal protein L31
153	 28.59	0	156856..157677	+	273	157736424	-	Abu_0154	-	putative methyltransferase
154	 29.28	0	157674..158363	+	229	157736425	-	Abu_0155	-	TrmH family tRNA methyltransferase
155	 23.58	0	158376..159185	+	269	157736426	-	Abu_0156	-	hypothetical protein
156	 31.77	+1	159189..160403	+	404	157736427	aspB1	Abu_0157	-	aspartate aminotransferase
157	 30.09	0	160528..161790	+	420	157736428	hom	Abu_0158	-	homoserine dehydrogenase
158	 32.18	+1	161886..162662	+	258	157736429	traT	Abu_0159	-	TraT complement resistance protein precursor
159	 27.80	0	162796..163554	+	252	157736430	cdsA	Abu_0160	-	CDP-diglyceride synthetase CdsA
160	 28.00	0	163551..164618	+	355	157736431	dxr	Abu_0161	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
161	 20.07	-1	164608..164901	+	97	157736432	-	Abu_0162	-	hypothetical protein
162	 29.81	0	164894..165460	+	188	157736433	-	Abu_0163	-	hypothetical protein
163	 30.34	0	165463..166464	+	333	157736434	gcp	Abu_0164	-	O-sialoglycoprotein endopeptidase
164	 27.87	0	166465..166812	+	115	157736435	-	Abu_0165	-	hypothetical protein
165	 27.56	0	166844..168229	+	461	157736436	-	Abu_0166	-	putative carbohydrate kinase
166	 21.15	-1	168226..168537	+	103	157736437	-	Abu_0167	-	periplasmic protein
167	 30.77	+1	168534..169313	+	259	157736438	thiG	Abu_0168	-	thiazole synthase
168	 33.61	+1	170234..172066	-	610	157736439	pycB1	Abu_0176	-	pyruvate/oxaloacetate carboxyltransferase
169	 31.09	+1	172073..172339	-	88	157736440	-	Abu_0177	-	hypothetical protein
170	 25.11	0	172487..173362	+	291	157736441	-	Abu_0178	-	AraC family transcriptional regulator
171	 31.91	+1	173409..174389	+	326	157736442	-	Abu_0179	-	calcium:sodium antiporter
172	 26.95	0	174410..176431	-	673	157736443	-	Abu_0180	-	methyl-accepting chemotaxis protein
173	 22.92	-1	176536..179310	+	924	157736444	-	Abu_0181	-	DNA/RNA helicase
174	 32.08	+1	179388..181307	+	639	157736445	tkt	Abu_0182	-	transketolase
175	 27.97	0	181425..181778	+	117	157736446	lrgA	Abu_0183	-	LrgA family protein
176	 27.52	0	181768..182490	+	240	157736447	lrgB	Abu_0184	-	LrgB-like protein
177	 29.10	0	182505..182858	+	117	157736448	-	Abu_0185	-	hypothetical protein
178	 26.42	0	182873..183277	-	134	157736449	-	Abu_0186	-	hypothetical protein
179	 29.94	0	183341..184786	-	481	157736450	dctA	Abu_0187	-	C4-dicarboxylate transport protein
180	 20.03	-1	184871..185509	+	212	157736451	-	Abu_0188	-	hypothetical protein
181	 22.13	-1	185509..185883	+	124	157736452	-	Abu_0189	-	hypothetical protein
182	 27.19	0	185873..186523	+	216	157736453	-	Abu_0190	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase-related protein
183	 27.55	0	186523..187455	+	310	157736454	-	Abu_0191	-	CDP-diglyceride synthetase/phosphatidate cytidylyltransferase
184	 27.43	0	187457..188083	+	208	157736455	-	Abu_0192	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
185	 25.27	0	188095..191577	+	1160	157736456	aas	Abu_0193	-	2-acyl-glycerophospho-ethanolamine acyltransferase
186	 24.49	0	191582..194113	-	843	157736457	glnD	Abu_0194	-	protein-P-II uridylyltransferase
187	 24.04	0	194110..194862	-	250	157736458	-	Abu_0195	-	hypothetical protein
188	 22.41	-1	194924..195793	-	289	157736459	-	Abu_0196	-	hypothetical protein
189	 22.84	-1	195863..197797	-	644	157736460	-	Abu_0197	-	ankyrin repeat-containing protein
190	 33.04	+1	197999..198337	+	112	157736461	glnB1	Abu_0198	-	nitrogen regulatory protein PII
191	 29.43	0	198338..199363	+	341	157736462	pyrC	Abu_0199	-	dihydroorotase
192	 26.74	0	199381..200487	-	368	157736463	fliM	Abu_0200	-	flagellar motor switch protein FliM
193	 28.57	0	200491..201540	-	349	157736464	flgI	Abu_0201	-	flagellar P-ring protein FlgI
194	 24.90	0	201645..202937	+	430	157736465	-	Abu_0202	-	hypothetical protein
195	 27.97	0	202940..203200	+	86	157736466	fliQ	Abu_0203	-	flagellar basal body protein FliQ
196	 25.43	0	203202..203606	+	134	157736467	-	Abu_0204	-	hypothetical protein
197	 23.78	0	203615..204106	+	163	157736468	-	Abu_0205	-	hypothetical protein
198	 28.41	0	204108..204635	+	175	157736469	fliL	Abu_0206	-	flagellar basal body-associated protein
199	 25.41	0	204635..205063	+	142	157736470	-	Abu_0207	-	hypothetical protein
200	 28.09	0	205060..205764	+	234	157736471	flgH	Abu_0208	-	flagellar basal body L-ring protein FlgH
201	 28.52	0	205818..207728	+	636	157736472	flgK	Abu_0209	-	flagellar hook-associated protein FlgK
202	 29.82	0	207749..209086	+	445	157736473	fliD	Abu_0210	-	flagellar hook-associated protein 2
203	 28.01	0	209158..209514	+	118	157736474	fliS	Abu_0211	-	flagellar protein FliS
204	 26.67	0	209490..209759	+	89	157736475	-	Abu_0212	-	hypothetical protein
205	 21.41	-1	209748..210728	-	326	157736476	tilS	Abu_0213	-	tRNA(Ile)-lysidine synthase
206	 30.50	+1	210731..212071	-	446	157736477	yliG	Abu_0214	-	MiaB-like tRNA modifying enzyme
207	 27.96	0	212139..212957	-	272	157736478	panC	Abu_0215	-	pantoate--beta-alanine ligase
208	 25.42	0	212977..213936	-	319	157736479	-	Abu_0216	-	oligopeptide ABC transporter, permease protein
209	 27.17	0	213966..214322	+	118	157736480	acpS	Abu_0217	-	holo-(acyl-carrier-protein) synthase
210	 31.95	+1	214357..215583	-	408	157736481	gltS	Abu_0218	-	sodium:glutamate symporter
211	 29.40	0	215607..215987	-	126	157736482	-	Abu_0219	-	Holliday junction resolvase-like protein
212	 29.93	0	215984..216895	-	303	157736483	metF	Abu_0220	-	5,10-methylenetetrahydrofolate reductase
213	 30.14	0	216976..217602	+	208	157736484	serB	Abu_0221	-	3-phosphoserine phosphatase
214	 28.00	0	217605..218597	+	330	157736485	tal	Abu_0222	-	transaldolase
215	 31.71	+1	218665..220017	+	450	157736486	dhs	Abu_0223	-	3-deoxy-D-arabinoheptulosonate 7-phosphate synthase (DAHP synthetase class II)
216	 27.76	0	220083..220925	+	280	157736487	tsx	Abu_0224	-	nucleoside-specific channel-forming protein
217	 27.41	0	224501..225496	+	331	157736488	-	Abu_0227	-	DNA binding protein
218	 25.15	0	225491..225832	-	113	157736489	-	Abu_0228	-	hypothetical protein
219	 27.15	0	225983..226273	-	96	157736490	gatC	Abu_0229	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
220	 31.19	+1	226317..227438	-	373	157736491	tgt	Abu_0230	-	queuine tRNA-ribosyltransferase
221	 24.74	0	227540..228982	+	480	157736492	-	Abu_0231	-	hypothetical protein
222	 27.67	0	228992..230122	+	376	157736493	aspB2	Abu_0232	-	hypothetical protein
223	 23.42	-1	230115..230699	+	194	157736494	-	Abu_0233	-	hypothetical protein
224	 28.59	0	230699..232006	+	435	157736495	murC	Abu_0234	-	UDP-N-acetylmuramate--L-alanine ligase
225	 25.87	0	232015..232791	-	258	157736496	dprA	Abu_0235	-	SMF protein, DNA processing chain A
226	 25.37	0	232834..233913	-	359	157736497	-	Abu_0236	-	hypothetical protein
227	 33.82	+1	233955..234977	-	340	157736498	ilvC	Abu_0237	-	ketol-acid reductoisomerase
228	 24.65	0	235102..236955	+	617	157736499	rnr	Abu_0238	-	ribonuclease R
229	 24.07	0	236945..237322	-	125	157736500	-	Abu_0239	-	hypothetical protein
230	 25.18	0	237387..238367	+	326	157736501	-	Abu_0240	-	DNA polymerase III subunit delta
231	 29.41	0	238455..238811	+	118	157736502	rpsF	Abu_0241	-	30S ribosomal protein S6
26.98	MEAN

3.50	STD DEV
