IslandPath Analysis: Arcobacter butzleri RM4018

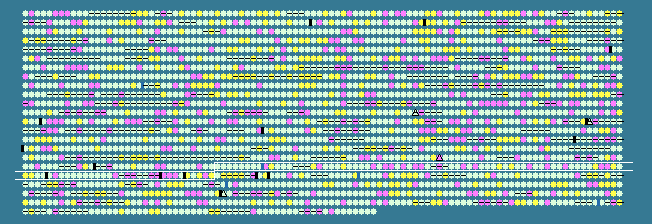

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.98 STD DEV: 3.50
Arcobacter butzleri RM4018, complete genome - 1..2341251
2259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1733	 24.80	0	1772580..1772954	-	124	157738003	-	Abu_1771	-	hypothetical protein
1734	 26.02	0	1773029..1773766	-	245	157738004	ate	Abu_1772	-	arginyl-tRNA-protein transferase
1735	 27.26	0	1773769..1774509	-	246	157738005	trpA	Abu_1773	-	tryptophan synthase, alpha chain
1736	 28.18	0	1774563..1775960	-	465	157738006	-	Abu_1774	-	voltage-gated chloride channel family protein
1737	 30.12	0	1776133..1776942	+	269	157738007	panB	Abu_1775	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
1738	 29.96	0	1776946..1777983	+	345	157738008	ruvB	Abu_1776	-	Holliday junction DNA helicase B
1739	 25.21	0	1777980..1779026	+	348	157738009	amaA	Abu_1777	-	acid membrane antigen A
1740	 27.89	0	1779023..1779757	-	244	157738010	-	Abu_1778	-	hypothetical protein
1741	 23.09	-1	1785709..1786635	-	308	157738011	-	Abu_1785	-	radical SAM domain-containing protein
1742	 31.80	+1	1786713..1787753	-	346	157738012	hemE	Abu_1786	-	uroporphyrinogen decarboxylase
1743	 28.65	0	1787766..1788278	-	170	157738013	-	Abu_1787	-	putative integral membrane protein
1744	 30.44	0	1788278..1789315	-	345	157738014	asd	Abu_1788	-	aspartate-semialdehyde dehydrogenase
1745	 29.04	0	1789318..1791900	-	860	157738015	gyrA	Abu_1789	-	DNA gyrase subunit A
1746	 24.07	0	1792039..1792254	-	71	157738016	-	Abu_1790	-	hypothetical protein
1747	 29.27	0	1792338..1793519	-	393	157738017	argJ	Abu_1791	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1748	 28.55	0	1793521..1794648	-	375	157738018	-	Abu_1792	-	potassium channel protein, putative
1749	 32.80	+1	1794672..1794860	-	62	157738019	rpmB	Abu_1793	-	50S ribosomal protein L28
1750	 19.38	-2	1794926..1795792	-	288	157738020	-	Abu_1794	-	hypothetical protein
1751	 24.66	0	1796039..1796407	+	122	157738021	-	Abu_1795	-	putative heptose phosphatase
1752	 25.89	0	1796416..1797423	+	335	157738022	waaD	Abu_1796	-	ADP-L-glycero-D-manno-heptose-6-epimerase
1753	 27.14	0	1797424..1798860	+	478	157738023	waaE	Abu_1797	-	ADP-heptose synthase
1754	 32.28	+1	1798841..1799410	+	189	157738024	gmhA	Abu_1798	-	D-sedoheptulose 7-phosphate isomerase
1755	 24.33	0	1799500..1801398	+	632	157738025	-	Abu_1799	-	putative sulfatase
1756	 28.01	0	1801417..1802355	-	312	157738026	waaF	Abu_1800	-	lipopolysaccharide heptosyltransferase II
1757	 24.29	0	1802348..1803409	-	353	157738027	-	Abu_1801	-	hypothetical protein
1758	 25.19	0	1803402..1804322	-	306	157738028	-	Abu_1802	-	putative heptosyltransferase
1759	 19.20	-2	1804322..1805071	-	249	157738029	-	Abu_1803	-	hypothetical protein
1760	 24.04	0	1805206..1806852	+	548	157738030	-	Abu_1804	-	hypothetical protein
1761	 21.51	-1	1806870..1807427	-	185	157738031	-	Abu_1805	-	hypothetical protein
1762	 20.92	-1	1807436..1808329	-	297	157738032	-	Abu_1806	-	hypothetical protein
1763	 26.68	0	1808338..1809795	-	485	157738033	-	Abu_1807	-	putative acetyltransferase
1764	 22.25	-1	1809801..1810928	-	375	157738034	-	Abu_1808	-	putative glycosyltransferase
1765	 29.33	0	1810891..1811640	-	249	157738035	-	Abu_1809	-	putative glycosyltransferase
1766	 23.44	-1	1811720..1812790	+	356	157738036	-	Abu_1810	-	hypothetical protein
1767	 21.60	-1	1812813..1813826	+	337	157738037	-	Abu_1811	-	glycosyltransferase
1768	 23.69	0	1813836..1814426	-	196	157738038	-	Abu_1812	-	hypothetical protein
1769	 23.73	0	1814423..1815547	-	374	157738039	-	Abu_1813	-	glycosyltransferase
1770	 21.23	-1	1815544..1816881	-	445	157738040	-	Abu_1814	-	putative O-antigen polymerase
1771	 25.14	0	1816893..1817966	-	357	157738041	-	Abu_1815	-	aminotransferase
1772	 28.38	0	1817968..1818996	-	342	157738042	-	Abu_1816	-	dTDP-glucose 4,6-dehydratase
1773	 29.93	0	1818986..1819867	-	293	157738043	-	Abu_1817	-	glucose-1-phosphate thymidylyltransferase
1774	 22.50	-1	1819867..1821870	-	667	157738044	-	Abu_1818	-	phosphoglycerol transferase
1775	 24.86	0	1821884..1822237	-	117	157738045	dgkA	Abu_1819	-	diacylglycerol kinase
1776	 20.54	-1	1822239..1823012	-	257	157738046	-	Abu_1820	-	hypothetical protein
1777	 24.37	0	1823009..1823923	-	304	157738047	waaM	Abu_1821	-	lipid A biosynthesis lauroyl acyltransferase
1778	 24.38	0	1823916..1824920	-	334	157738048	waaC	Abu_1822	-	lipopolysaccharide heptosyltransferase I
1779	 24.63	0	1824917..1826386	-	489	157738049	gppA	Abu_1823	-	guanosine pentaphosphate phosphohydrolase (gppA)
1780	 32.94	+1	1826386..1826640	-	84	157738050	fdxB	Abu_1824	-	ferredoxin
1781	 23.60	0	1826684..1827433	-	249	157738051	-	Abu_1825	-	inositol monophosphatase family protein
1782	 31.88	+1	1827436..1828812	-	458	157738052	gltD	Abu_1826	-	glutamate synthase subunit beta
1783	 29.98	0	1828818..1833257	-	1479	157738053	gltB	Abu_1827	-	glutamate synthase, large chain
1784	 23.65	0	1833452..1834246	-	264	157738054	-	Abu_1828	-	hypothetical protein
1785	 22.39	-1	1834250..1835035	-	261	157738055	-	Abu_1829	-	hypothetical protein
1786	 26.75	0	1835231..1837615	-	794	157738056	-	Abu_1830	-	methyl-accepting chemotaxis protein
1787	 27.04	0	1838229..1840184	-	651	157738057	-	Abu_1831	-	methyl-accepting chemotaxis protein
1788	 21.64	-1	1840197..1840367	-	56	157738058	-	Abu_1832	-	hypothetical protein
1789	 24.15	0	1840718..1842154	-	478	157738059	gspD	Abu_1833	-	general secretion pathway protein D
1790	 26.18	0	1842184..1842756	-	190	157738060	-	Abu_1834	-	hypothetical protein
1791	 23.46	-1	1842783..1843481	+	232	157738061	tlyA	Abu_1835	-	hemolysin A
1792	 25.53	0	1843450..1844295	+	281	157738062	ribF	Abu_1836	-	bifunctional riboflavin kinase/FMN adenylyltransferase
1793	 25.00	0	1844327..1845034	+	235	157738063	-	Abu_1837	-	methyltransferase, putative
1794	 28.80	0	1845047..1845553	+	168	157738064	bcp	Abu_1838	-	bacterioferritin comigratory protein, alkyl hydroperoxide reductase/thiol specific antioxidant
1795	 25.27	0	1845565..1846569	+	334	157738065	-	Abu_1839	-	hypothetical protein
1796	 31.89	+1	1846569..1847957	+	462	157738066	glcD	Abu_1840	-	glycolate oxidase
1797	 20.36	-1	1847965..1848750	+	261	157738067	rbn	Abu_1841	-	tRNA-processing ribonuclease BN
1798	 22.40	-1	1848747..1849313	-	188	157738068	-	Abu_1842	-	hypothetical protein
1799	 30.65	+1	1849316..1850584	-	422	157738069	murA	Abu_1843	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
1800	 26.78	0	1850702..1851586	+	294	157738070	-	Abu_1844	-	hypothetical protein
1801	 32.59	+1	1851599..1852402	+	267	157738071	kdsA	Abu_1845	-	2-dehydro-3-deoxyphosphooctonate aldolase
1802	 32.70	+1	1852436..1852906	+	156	157738072	ribH	Abu_1846	-	riboflavin synthase subunit beta
1803	 25.00	0	1852909..1853304	+	131	157738073	nusB	Abu_1847	-	transcription antitermination protein NusB
1804	 27.18	0	1853306..1854004	+	232	157738074	pyrF	Abu_1848	-	orotidine 5'-phosphate decarboxylase
1805	 24.08	0	1854561..1855403	+	280	157738075	-	Abu_1851	-	ABC transporter, ATP-binding protein
1806	 21.62	-1	1855403..1857016	+	537	157738076	-	Abu_1852	-	hypothetical protein
1807	 26.22	0	1857030..1857254	+	74	157738077	feoA	Abu_1853	-	ferrous iron transport protein A
1808	 27.80	0	1857251..1859707	+	818	157738078	feoB2	Abu_1854	-	ferrous iron transport protein B
1809	 29.37	0	1859751..1860053	+	100	157738079	-	Abu_1855	-	hypothetical protein
1810	 27.85	0	1860074..1860565	-	163	157738080	-	Abu_1856	-	hypothetical protein
1811	 28.09	0	1860576..1862159	-	527	157738081	-	Abu_1857	-	hypothetical protein
1812	 30.07	0	1862168..1862473	-	101	157738082	-	Abu_1858	-	hypothetical protein
1813	 25.28	0	1862602..1864725	-	707	157738083	-	Abu_1859	-	heavy metal-(Cd/Co/Hg/Pb/Zn)-translocating P-type ATPase
1814	 27.78	0	1864730..1865071	-	113	157738084	-	Abu_1860	-	ArsR family transcriptional regulator
1815	 29.34	0	1865186..1867312	-	708	157738085	-	Abu_1861	-	TonB-dependent receptor protein
1816	 18.92	-2	1867525..1868079	+	184	157738086	-	Abu_1862	-	hypothetical protein
1817	 25.02	0	1868079..1871159	+	1026	157738087	-	Abu_1863	-	AcrB/AcrD/AcrF family protein
1818	 21.46	-1	1871162..1871860	+	232	157738088	-	Abu_1864	-	hypothetical protein
1819	 20.90	-1	1871860..1873017	+	385	157738089	-	Abu_1865	-	hypothetical protein
1820	 30.14	0	1873224..1873442	+	72	157738090	cspA	Abu_1866	-	cold-shock protein, DNA-binding
1821	 26.95	0	1873476..1873616	+	46	157738091	-	Abu_1867	-	hypothetical protein
1822	 23.13	-1	1873640..1874335	-	231	157738092	-	Abu_1868	-	two-component response regulator
1823	 22.24	-1	1874396..1876099	+	567	157738093	-	Abu_1869	-	two-component sensor histidine kinase
1824	 23.24	-1	1876559..1878094	+	511	157738094	-	Abu_1872	-	hypothetical protein
1825	 20.63	-1	1878625..1879419	+	264	157738095	-	Abu_1873	-	replication protein
1826	 21.11	-1	1879442..1880161	-	239	157738096	-	Abu_1874	-	hypothetical protein
1827	 23.54	0	1880425..1881894	+	489	157738097	-	Abu_1875	-	hypothetical protein
1828	 32.50	+1	1882550..1883146	+	198	157738098	ahpC	Abu_1879	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant
1829	 29.56	0	1883158..1883475	+	105	157738099	trx1	Abu_1880	-	thioredoxin
1830	 31.60	+1	1883528..1883815	-	95	157738100	-	Abu_1881	-	hypothetical protein
1831	 19.01	-2	1883858..1884241	-	127	157738101	-	Abu_1882	-	hypothetical protein
1832	 30.58	+1	1884277..1888812	-	1511	157738102	rpoC	Abu_1883	-	DNA-directed RNA polymerase, beta' chain
26.98	MEAN

3.50	STD DEV
