IslandPath Analysis: Arcobacter butzleri RM4018

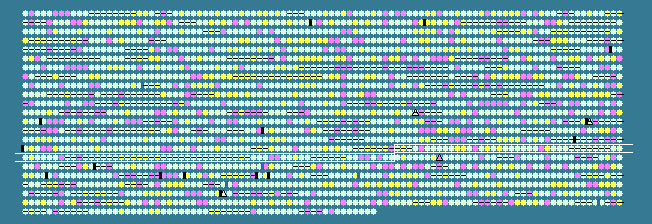

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.98 STD DEV: 3.50
Arcobacter butzleri RM4018, complete genome - 1..2341251
2259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1563	 30.41	0	1610444..1610956	-	170	157737833	atpF	Abu_1599	-	ATP synthase F0 sector, subunit B
1564	 31.44	+1	1610970..1611392	-	140	157737834	atpF'	Abu_1600	-	ATP synthase F0 sector, B' subunit
1565	 25.26	0	1611511..1612365	-	284	157737835	parB	Abu_1601	-	transcriptional regulator involved in chromosome partitioning ParB
1566	 28.83	0	1612386..1613162	-	258	157737836	parA	Abu_1602	-	ATPases involved in chromosome partitioning ParA
1567	 23.43	-1	1613159..1613794	-	211	157737837	birA	Abu_1603	-	biotin--protein ligase
1568	 24.22	0	1613888..1614589	-	233	157737838	-	Abu_1604	-	hypothetical protein
1569	 25.50	0	1614821..1615714	+	297	157737839	-	Abu_1605	-	auxin efflux carrier protein
1570	 27.90	0	1615719..1616639	-	306	157737840	fmt	Abu_1606	-	methionyl-tRNA formyltransferase
1571	 27.45	0	1616649..1617413	-	254	157737841	proB	Abu_1607	-	gamma-glutamyl kinase
1572	 29.85	0	1617410..1618501	-	363	157737842	obg	Abu_1608	-	GTP-binding protein
1573	 33.33	+1	1618631..1618888	-	85	157737843	rpmA	Abu_1609	-	50S ribosomal protein L27
1574	 31.13	+1	1618913..1619230	-	105	157737844	rplU	Abu_1610	-	50S ribosomal protein L21
1575	 26.48	0	1619364..1620998	-	544	157737845	dnaG	Abu_1611	-	DNA primase
1576	 22.67	-1	1621080..1622129	+	349	157737846	-	Abu_1612	-	hypothetical protein
1577	 29.78	0	1622177..1622851	+	224	157737847	rnc	Abu_1613	-	ribonuclease III
1578	 30.64	+1	1622855..1623931	+	358	157737848	aroC	Abu_1614	-	chorismate synthase
1579	 24.70	0	1623921..1624673	+	250	157737849	-	Abu_1615	-	hypothetical protein
1580	 31.34	+1	1624748..1625599	-	283	157737850	-	Abu_1616	-	M48 family peptidase
1581	 24.75	0	1625653..1626339	-	228	157737851	-	Abu_1617	-	hypothetical protein
1582	 27.08	0	1626436..1626915	+	159	157737852	-	Abu_1618	-	phosphoglycerate/bisphosphoglycerate mutase, putative
1583	 27.05	0	1626931..1627344	-	137	157737853	-	Abu_1619	-	hypothetical protein
1584	 27.59	0	1627346..1628686	-	446	157737854	trmE	Abu_1620	-	tRNA modification GTPase TrmE
1585	 25.57	0	1628689..1629564	-	291	157737855	-	Abu_1621	-	hypothetical protein
1586	 27.72	0	1629585..1631186	-	533	157737856	oxaA	Abu_1622	-	putative inner membrane protein translocase component YidC
1587	 22.52	-1	1631179..1631511	-	110	157737857	-	Abu_1623	-	hypothetical protein
1588	 33.33	+1	1631831..1631965	-	44	157737858	rpmH	Abu_1625	-	50S ribosomal protein L34
1589	 29.38	0	1632040..1634619	-	859	157737859	clpB	Abu_1626	-	ATP-dependent Clp protease, ATP-binding subunit
1590	 27.63	0	1634738..1635316	+	192	157737860	rnhB	Abu_1627	-	ribonuclease HII
1591	 28.57	0	1635318..1635632	-	104	157737861	-	Abu_1628	-	hypothetical protein
1592	 28.19	0	1635642..1636535	-	297	157737862	-	Abu_1629	-	hypothetical protein
1593	 27.78	0	1636655..1636996	+	113	157737863	-	Abu_1630	-	hypothetical protein
1594	 28.08	0	1636993..1637487	-	164	157737864	msrA	Abu_1631	-	peptide methionine sulfoxide reductase
1595	 27.22	0	1637490..1637849	-	119	157737865	msrB	Abu_1632	-	methionine sulfoxide reductase B
1596	 25.37	0	1637861..1638475	-	204	157737866	-	Abu_1633	-	fumarylacetoacetate (FAA) hydrolase
1597	 28.07	0	1638538..1638879	+	113	157737867	-	Abu_1634	-	hypothetical protein
1598	 26.64	0	1638876..1639532	-	218	157737868	-	Abu_1635	-	phosphohydrolase (MUTT/NUDIX family protein)
1599	 29.47	0	1639533..1640801	-	422	157737869	bioA	Abu_1636	-	7,8-diaminopelargonic acid synthetase
1600	 23.90	0	1640849..1643446	-	865	157737870	-	Abu_1637	-	two-component sensor histidine kinase
1601	 30.40	0	1643562..1645094	-	510	157737871	purH	Abu_1638	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
1602	 32.66	+1	1645294..1647507	-	737	157737872	purL	Abu_1639	-	phosphoribosylformylglycinamidine synthase II
1603	 26.44	0	1647572..1648543	-	323	157737873	-	Abu_1640	-	hypothetical protein
1604	 28.55	0	1648614..1649804	+	396	157737874	-	Abu_1641	-	M24/M37 family peptidase
1605	 29.14	0	1649846..1650418	-	190	157737875	folE	Abu_1642	-	GTP cyclohydrolase I
1606	 24.53	0	1650441..1651394	-	317	157737876	corA	Abu_1643	-	magnesium and cobalt transport protein
1607	 19.56	-2	1651410..1652600	-	396	157737877	ctsF	Abu_1644	-	transformation system protein CtsF
1608	 24.85	0	1652602..1653603	-	333	157737878	ctsE	Abu_1645	-	transformation system protein CtsE
1609	 25.48	0	1653875..1654447	-	190	157737879	-	Abu_1646	-	hypothetical protein
1610	 23.46	-1	1654459..1655106	-	215	157737880	-	Abu_1647	-	hypothetical protein
1611	 27.52	0	1655167..1655820	+	217	157737881	-	Abu_1648	-	hypothetical protein
1612	 27.08	0	1655848..1656423	-	191	157737882	-	Abu_1649	-	hypothetical protein
1613	 29.12	0	1656508..1657290	-	260	157737883	-	Abu_1650	-	N6 adenine-specific DNA methyltransferase, D12 class
1614	 29.22	0	1657398..1658345	-	315	157737884	-	Abu_1651	-	phage tail protein D
1615	 27.05	0	1658339..1658545	-	68	157737885	-	Abu_1652	-	hypothetical protein
1616	 29.27	0	1658542..1658910	-	122	157737886	-	Abu_1653	-	hypothetical protein
1617	 32.34	+1	1658910..1660814	-	634	157737887	-	Abu_1654	-	TP901 family phage tail tape measure protein , putative
1618	 27.90	0	1660960..1661235	-	91	157737888	-	Abu_1655	-	hypothetical protein
1619	 33.54	+1	1661249..1661740	-	163	157737889	-	Abu_1656	-	phage major tail tube protein
1620	 31.48	+1	1661742..1662926	-	394	157737890	-	Abu_1657	-	phage tail sheath protein
1621	 30.89	+1	1662954..1663199	-	81	157737891	-	Abu_1658	-	hypothetical protein
1622	 27.89	0	1663189..1663794	-	201	157737892	-	Abu_1659	-	tail fiber assembly protein
1623	 30.90	+1	1663807..1664916	-	369	157737893	-	Abu_1660	-	hypothetical protein
1624	 27.86	0	1664913..1665551	-	212	157737894	-	Abu_1661	-	tail protein I, putative
1625	 28.83	0	1665523..1666698	-	391	157737895	-	Abu_1662	-	baseplate assembly protein J, putative
1626	 29.56	0	1666695..1667012	-	105	157737896	-	Abu_1663	-	putative baseplate assembly protein W
1627	 30.33	0	1667012..1667743	-	243	157737897	-	Abu_1664	-	baseplate assembly protein V, putative
1628	 28.93	0	1667740..1668057	-	105	157737898	-	Abu_1665	-	hypothetical protein
1629	 29.39	0	1668155..1668382	-	75	157737899	-	Abu_1666	-	hypothetical protein
1630	 24.16	0	1668375..1668701	-	108	157737900	-	Abu_1667	-	hypothetical protein
1631	 25.40	0	1668877..1669317	+	146	157737901	-	Abu_1668	-	hypothetical protein
1632	 29.96	0	1669310..1670110	+	266	157737902	-	Abu_1669	-	Mu-like prophage I protein, putative
1633	 27.40	0	1670123..1670560	+	145	157737903	-	Abu_1670	-	hypothetical protein
1634	 29.98	0	1670570..1671553	+	327	157737904	-	Abu_1671	-	hypothetical protein
1635	 25.37	0	1671676..1672077	+	133	157737905	-	Abu_1672	-	hypothetical protein
1636	 26.82	0	1672077..1672583	+	168	157737906	-	Abu_1673	-	hypothetical protein
1637	 31.59	+1	1672570..1674291	+	573	157737907	-	Abu_1674	-	phage uncharacterized protein
1638	 28.52	0	1674292..1675683	+	463	157737908	-	Abu_1675	-	phage uncharacterized protein
1639	 28.91	0	1675676..1676851	+	391	157737909	-	Abu_1676	-	Mu-like prophage F protein, putative
1640	 27.98	0	1676951..1677436	+	161	157737910	-	Abu_1677	-	Mu-like prophage G protein, putative
1641	 28.62	0	1677428..1677703	-	91	157737911	-	Abu_1678	-	hypothetical protein
1642	 22.84	-1	1677853..1679139	+	428	157737912	-	Abu_1679	-	hypothetical protein
1643	 18.67	-2	1679284..1680456	+	390	157737913	-	Abu_1680	-	hypothetical protein
1644	 27.26	0	1680925..1681830	-	301	157737914	-	Abu_1681	-	DnaB-like helicase-like protein
1645	 25.49	0	1681823..1682128	-	101	157737915	-	Abu_1682	-	hypothetical protein
1646	 30.52	+1	1682109..1682321	-	70	157737916	-	Abu_1683	-	hypothetical protein
1647	 29.44	0	1682691..1683281	-	196	157737917	-	Abu_1684	-	hypothetical protein
1648	 30.44	0	1683268..1683924	-	218	157737918	-	Abu_1685	-	phage uncharacterized protein
1649	 30.16	0	1683987..1684238	-	83	157737919	-	Abu_1686	-	hypothetical protein
1650	 30.00	0	1684342..1684581	-	79	157737920	-	Abu_1687	-	hypothetical protein
1651	 25.08	0	1684551..1685216	-	221	157737921	-	Abu_1688	-	hypothetical protein
1652	 28.33	0	1685206..1685904	-	232	157737922	-	Abu_1689	-	prophage Mu, DNA transposition protein B
1653	 29.58	0	1685976..1688081	-	701	157737923	-	Abu_1690	-	prophage Mu, DNA transposition protein A
1654	 32.02	+1	1688083..1688310	-	75	157737924	-	Abu_1691	-	hypothetical protein
1655	 28.32	0	1688706..1689383	+	225	157737925	-	Abu_1692	-	phage repressor protein, putative
1656	 25.87	0	1689400..1690149	+	249	157737926	-	Abu_1693	-	hypothetical protein
1657	 20.88	-1	1690554..1691051	-	165	157737927	-	Abu_1694	-	hypothetical protein
1658	 17.75	-2	1691032..1691910	-	292	157737928	-	Abu_1695	-	hypothetical protein
1659	 28.70	0	1691983..1692867	-	294	157737929	era	Abu_1696	-	GTP-binding protein Era
1660	 18.42	-2	1692943..1693653	-	236	157737930	-	Abu_1697	-	hypothetical protein
1661	 27.42	0	1693660..1695165	-	501	157737931	-	Abu_1698	-	Mg chelatase-related protein
1662	 24.00	0	1695366..1695740	+	124	157737932	-	Abu_1699	-	hypothetical protein
26.98	MEAN

3.50	STD DEV
