IslandPath Analysis: Arcobacter butzleri RM4018

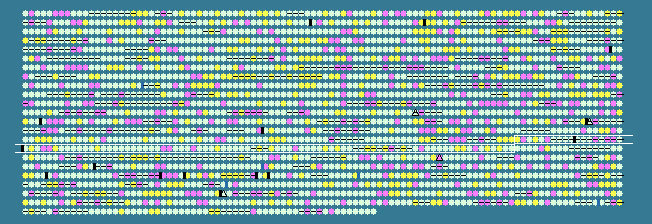

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.98 STD DEV: 3.50
Arcobacter butzleri RM4018, complete genome - 1..2341251
2259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1483	 31.98	+1	1523138..1524175	+	345	157737753	selD	Abu_1513	-	selenide, water dikinase
1484	 22.88	-1	1524217..1524771	-	184	157737754	-	Abu_1514	-	hypothetical protein
1485	 29.02	0	1524949..1525527	+	192	157737755	-	Abu_1515	-	hypothetical protein
1486	 32.06	+1	1525578..1526207	+	209	157737756	-	Abu_1516	-	hypothetical protein
1487	 27.27	0	1526219..1526482	+	87	157737757	-	Abu_1517	-	hypothetical protein
1488	 22.13	-1	1526484..1526858	+	124	157737758	-	Abu_1518	-	hypothetical protein
1489	 28.30	0	1526869..1527921	+	350	157737759	-	Abu_1519	-	hypothetical protein
1490	 30.45	0	1527931..1528416	+	161	157737760	-	Abu_1520	-	phage-related lysozyme
1491	 29.87	0	1528474..1528848	-	124	157737761	-	Abu_1521	-	hypothetical protein
1492	 27.25	0	1528907..1529317	-	136	157737762	-	Abu_1522	-	Sel1 repeat-containing protein
1493	 26.11	0	1529610..1530965	+	451	157737763	selA	Abu_1524	-	selenocysteine synthase
1494	 25.96	0	1530965..1532794	+	609	157737764	selB	Abu_1525	-	selenocysteine-specific elongation factor
1495	 23.96	0	1532798..1534312	+	504	157737765	-	Abu_1526	-	putative DNA helicase
1496	 22.04	-1	1534309..1535247	+	312	157737766	-	Abu_1527	-	hypothetical protein
1497	 23.79	0	1535244..1537307	+	687	157737767	-	Abu_1528	-	hypothetical protein
1498	 21.47	-1	1537354..1538280	+	308	157737768	-	Abu_1529	-	hypothetical protein
1499	 23.07	-1	1538365..1540536	+	723	157737769	-	Abu_1530	-	hypothetical protein
1500	 26.77	0	1540576..1541322	+	248	157737770	-	Abu_1531	-	hypothetical protein
1501	 23.96	0	1541809..1543707	-	632	157737771	-	Abu_1536	-	two-component sensor histidine kinase
1502	 30.59	+1	1543848..1544357	+	169	157737772	-	Abu_1537	-	putative FMN reductase
1503	 26.58	0	1544415..1545791	+	458	157737773	-	Abu_1538	-	PhoH family protein
1504	 23.44	-1	1545860..1547476	+	538	157737774	-	Abu_1539	-	hypothetical protein
1505	 22.73	-1	1547479..1549326	-	615	157737775	-	Abu_1540	-	EAL/PAS/GGDEF domain-containing protein
1506	 30.67	+1	1549302..1549940	+	212	157737776	pdxH	Abu_1541	-	pyridoxamine 5'-phosphate oxidase
1507	 23.65	0	1549946..1552063	-	705	157737777	-	Abu_1542	-	GGDEF/PAS domain-containing protein
1508	 25.79	0	1552101..1553465	-	454	157737778	dbpA	Abu_1543	-	ATP-dependent RNA helicase DbpA
1509	 26.40	0	1553468..1554001	-	177	157737779	-	Abu_1544	-	hypothetical protein
1510	 28.44	0	1554096..1554953	+	285	157737780	-	Abu_1545	-	hypothetical protein
1511	 23.93	0	1554974..1555558	-	194	157737781	-	Abu_1546	-	hypothetical protein
1512	 30.04	0	1555695..1557605	-	636	157737782	htpG	Abu_1547	-	heat shock protein 90
1513	 34.33	+2	1557824..1560031	+	735	157737783	katG	Abu_1548	-	catalase/peroxidase HPI
1514	 29.14	0	1560142..1562025	+	627	157737784	ciaB	Abu_1549	-	CiaB protein
1515	 25.69	0	1562038..1562508	-	156	157737785	-	Abu_1550	-	ankyrin repeat-containing protein
1516	 25.88	0	1562530..1565184	-	884	157737786	pqiB	Abu_1551	-	paraquat-inducible protein B
1517	 29.43	0	1566462..1566896	+	144	157737787	-	Abu_1553	-	hypothetical protein
1518	 25.43	0	1566969..1569524	+	851	157737788	-	Abu_1554	-	EAL/GGDEF domain-containing protein
1519	 28.99	0	1569535..1570017	-	160	157737789	-	Abu_1555	-	hypothetical protein
1520	 25.48	0	1570121..1571062	+	313	157737790	-	Abu_1556	-	hypothetical protein
1521	 29.49	0	1571397..1571864	-	155	157737791	-	Abu_1557	-	hypothetical protein
1522	 30.10	0	1571993..1572580	+	195	157737792	-	Abu_1558	-	hypothetical protein
1523	 26.07	0	1572582..1573655	-	357	157737793	-	Abu_1559	-	putative DNA alkylation repair enzyme
1524	 22.42	-1	1573664..1574524	-	286	157737794	-	Abu_1560	-	putative DNA-binding protein
1525	 22.34	-1	1574592..1575956	-	454	157737795	-	Abu_1561	-	hypothetical protein
1526	 29.30	0	1575967..1576611	-	214	157737796	-	Abu_1562	-	ThiJ/PfpI family transcriptional regulator
1527	 28.94	0	1576789..1577448	+	219	157737797	-	Abu_1563	-	hypothetical protein
1528	 29.55	0	1577728..1580109	-	793	157737798	-	Abu_1564	-	TonB-dependent receptor protein
1529	 23.11	-1	1580277..1580501	+	74	157737799	hicA	Abu_1565	-	Hif-contiguous protein A
1530	 26.67	0	1580525..1580869	+	114	157737800	hicB	Abu_1566	-	Hif-contiguous protein B
1531	 24.51	0	1580874..1581848	-	324	157737801	-	Abu_1567	-	sigma factor regulatory protein FecR/PupR family
1532	 27.43	0	1581849..1582322	-	157	157737802	-	Abu_1568	-	ECF subfamily RNA polymerase sigma factor
1533	 33.62	+1	1582459..1583520	+	353	157737803	speB	Abu_1569	-	arginase
1534	 30.03	0	1583543..1584844	-	433	157737804	leuA2	Abu_1570	-	2-isopropylmalate synthase
1535	 24.05	0	1585025..1585810	-	261	157737805	-	Abu_1571	-	AraC family transcriptional regulator
1536	 23.94	0	1585820..1586149	-	109	157737806	-	Abu_1572	-	PemK family transcriptional regulator
1537	 25.29	0	1586143..1586403	-	86	157737807	-	Abu_1573	-	hypothetical protein
1538	 23.58	0	1586472..1587425	-	317	157737808	-	Abu_1574	-	AraC family transcriptional regulator
1539	 26.72	0	1587544..1589661	+	705	157737809	-	Abu_1575	-	TonB-dependent receptor protein
1540	 33.33	+1	1589687..1590262	-	191	157737810	sodB	Abu_1576	-	superoxide dismutase
1541	 25.81	0	1590340..1591548	-	402	157737811	-	Abu_1577	-	hypothetical protein
1542	 32.57	+1	1591620..1592540	-	306	157737812	ppa	Abu_1578	-	putative manganese-dependent inorganic pyrophosphatase
1543	 29.67	0	1592660..1593259	-	199	157737813	-	Abu_1579	-	hypothetical protein
1544	 25.56	0	1593265..1593804	-	179	157737814	-	Abu_1580	-	putative asparaginase
1545	 29.14	0	1593755..1595161	-	468	157737815	aspA	Abu_1581	-	aspartate ammonia-lyase
1546	 22.17	-1	1595227..1595907	-	226	157737816	-	Abu_1582	-	two-component response regulator
1547	 23.64	0	1595910..1597034	-	374	157737817	-	Abu_1583	-	two-component sensor histidine kinase
1548	 29.78	0	1597106..1598542	-	478	157737818	-	Abu_1584	-	sodium:alanine symporter
1549	 30.17	0	1598675..1599370	-	231	157737819	pfs	Abu_1585	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
1550	 29.57	0	1599363..1600292	-	309	157737820	fabD	Abu_1586	-	malonyl coenzyme A-(acyl carrier protein) transacylase
1551	 36.56	+2	1600427..1601014	-	195	157737821	slyD	Abu_1587	-	peptidyl-prolyl cis-trans isomerase
1552	 28.47	0	1601036..1601980	-	314	157737822	-	Abu_1588	-	hypothetical protein
1553	 31.81	+1	1601982..1602506	-	174	157737823	-	Abu_1589	-	OmpA/MotB precursor
1554	 28.38	0	1602667..1603959	-	430	157737824	tolB	Abu_1590	-	translocation protein TolB
1555	 27.05	0	1603964..1604695	-	243	157737825	-	Abu_1591	-	hypothetical protein
1556	 25.13	0	1604701..1605090	-	129	157737826	exbD3	Abu_1592	-	biopolymer transport protein ExbD
1557	 28.88	0	1605095..1605655	-	186	157737827	exbB3	Abu_1593	-	biopolymer transport protein ExbB
1558	 33.86	+1	1605662..1606039	-	125	157737828	atpC	Abu_1594	-	F0F1 ATP synthase subunit epsilon
1559	 35.84	+2	1606063..1607457	-	464	157737829	atpD	Abu_1595	-	F0F1 ATP synthase subunit beta
1560	 30.29	0	1607477..1608364	-	295	157737830	atpG	Abu_1596	-	F0F1 ATP synthase subunit gamma
1561	 32.94	+1	1608375..1609892	-	505	157737831	atpA	Abu_1597	-	F0F1 ATP synthase subunit alpha
1562	 23.35	-1	1609914..1610444	-	176	157737832	atpH	Abu_1598	-	F0F1 ATP synthase subunit delta
1563	 30.41	0	1610444..1610956	-	170	157737833	atpF	Abu_1599	-	ATP synthase F0 sector, subunit B
1564	 31.44	+1	1610970..1611392	-	140	157737834	atpF'	Abu_1600	-	ATP synthase F0 sector, B' subunit
1565	 25.26	0	1611511..1612365	-	284	157737835	parB	Abu_1601	-	transcriptional regulator involved in chromosome partitioning ParB
1566	 28.83	0	1612386..1613162	-	258	157737836	parA	Abu_1602	-	ATPases involved in chromosome partitioning ParA
1567	 23.43	-1	1613159..1613794	-	211	157737837	birA	Abu_1603	-	biotin--protein ligase
1568	 24.22	0	1613888..1614589	-	233	157737838	-	Abu_1604	-	hypothetical protein
1569	 25.50	0	1614821..1615714	+	297	157737839	-	Abu_1605	-	auxin efflux carrier protein
1570	 27.90	0	1615719..1616639	-	306	157737840	fmt	Abu_1606	-	methionyl-tRNA formyltransferase
1571	 27.45	0	1616649..1617413	-	254	157737841	proB	Abu_1607	-	gamma-glutamyl kinase
1572	 29.85	0	1617410..1618501	-	363	157737842	obg	Abu_1608	-	GTP-binding protein
1573	 33.33	+1	1618631..1618888	-	85	157737843	rpmA	Abu_1609	-	50S ribosomal protein L27
1574	 31.13	+1	1618913..1619230	-	105	157737844	rplU	Abu_1610	-	50S ribosomal protein L21
1575	 26.48	0	1619364..1620998	-	544	157737845	dnaG	Abu_1611	-	DNA primase
1576	 22.67	-1	1621080..1622129	+	349	157737846	-	Abu_1612	-	hypothetical protein
1577	 29.78	0	1622177..1622851	+	224	157737847	rnc	Abu_1613	-	ribonuclease III
1578	 30.64	+1	1622855..1623931	+	358	157737848	aroC	Abu_1614	-	chorismate synthase
1579	 24.70	0	1623921..1624673	+	250	157737849	-	Abu_1615	-	hypothetical protein
1580	 31.34	+1	1624748..1625599	-	283	157737850	-	Abu_1616	-	M48 family peptidase
1581	 24.75	0	1625653..1626339	-	228	157737851	-	Abu_1617	-	hypothetical protein
1582	 27.08	0	1626436..1626915	+	159	157737852	-	Abu_1618	-	phosphoglycerate/bisphosphoglycerate mutase, putative
26.98	MEAN

3.50	STD DEV
