IslandPath Analysis: Arcobacter butzleri RM4018

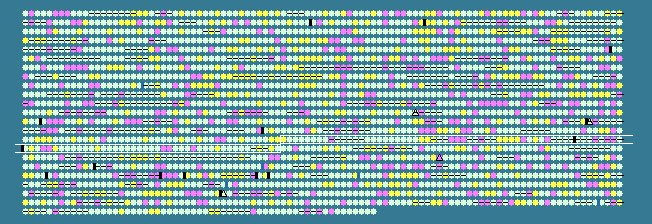

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.98 STD DEV: 3.50
Arcobacter butzleri RM4018, complete genome - 1..2341251
2259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1444	 34.24	+2	1480192..1481625	+	477	157737715	lpdA	Abu_1474	-	dihydrolipoamide dehydrogenase
1445	 28.53	0	1481727..1482392	+	221	157737716	-	Abu_1475	-	glutamine amidotransferase, class I
1446	 29.23	0	1482503..1484842	-	779	157737717	-	Abu_1476	-	TonB-dependent receptor protein
1447	 24.97	0	1485112..1485960	-	282	157737718	-	Abu_1477	-	aldose 1-epimerase family protein, LacX
1448	 25.98	0	1485957..1486718	-	253	157737719	-	Abu_1478	-	beta-lactamase, putative
1449	 29.89	0	1486769..1488076	-	435	157737720	rhlE	Abu_1479	-	ATP-dependent RNA helicase RhlE
1450	 28.22	0	1488347..1489540	+	397	157737721	-	Abu_1480	-	hypothetical protein
1451	 27.73	0	1489715..1490695	+	326	157737722	-	Abu_1481	-	DNA (cytosine-5-)-methyltransferase
1452	 20.63	-1	1490703..1491710	+	335	157737723	-	Abu_1482	-	hypothetical protein
1453	 24.92	0	1491861..1492169	-	102	157737724	-	Abu_1483	-	putative transcriptional regulator
1454	 25.03	0	1492319..1493944	+	541	157737725	-	Abu_1484	-	hypothetical protein
1455	 25.40	0	1493979..1494356	+	125	157737726	-	Abu_1485	-	hypothetical protein
1456	 24.89	0	1494359..1494832	+	157	157737727	-	Abu_1486	-	hypothetical protein
1457	 27.49	0	1494858..1497098	-	746	157737728	-	Abu_1487	-	methyl-accepting chemotaxis protein
1458	 27.01	0	1497253..1498059	+	268	157737729	rnhA	Abu_1488	-	ribonuclease HI
1459	 29.31	0	1498111..1499079	+	322	157737730	-	Abu_1489	-	HMGL family protein
1460	 25.41	0	1499107..1499409	-	100	157737731	-	Abu_1490	-	hypothetical protein
1461	 27.49	0	1499449..1499859	-	136	157737732	-	Abu_1491	-	hypothetical protein
1462	 27.41	0	1499985..1501250	-	421	157737733	dinP	Abu_1492	-	DNA polymerase IV
1463	 28.40	0	1501325..1502560	-	411	157737734	moeA1	Abu_1493	-	molybdenum cofactor biosynthesis protein A
1464	 23.88	0	1502570..1503553	-	327	157737735	-	Abu_1494	-	cysteine desulfurase
1465	 28.18	0	1503546..1504379	-	277	157737736	fdhD	Abu_1495	-	formate dehydrogenase accessory protein
1466	 29.38	0	1504376..1505335	-	319	157737737	fdhC	Abu_1496	-	putative FdhC protein
1467	 34.18	+2	1505344..1505937	-	197	157737738	fdhB1	Abu_1497	-	formate dehydrogenase, iron-sulfur subunit FdhB
1468	 34.19	+2	1505948..1508749	-	933	157738530	-	Abu_1498	-	formate dehydrogenase, large subunit FdhA
1469	 37.78	+2	1508775..1508999	-	74	157737739	-	Abu_1499	-	hypothetical protein
1470	 25.98	0	1509082..1509693	-	203	157737740	-	Abu_1500	-	hypothetical protein
1471	 26.58	0	1509686..1511359	-	557	157737741	-	Abu_1501	-	4Fe-4S ferredoxin, iron-sulfur binding
1472	 23.20	-1	1511506..1512660	+	384	157737742	livJ	Abu_1502	-	leucine/isoleucine/valine-binding protein
1473	 21.44	-1	1512657..1514228	+	523	157737743	-	Abu_1503	-	two-component sensor histidine kinase
1474	 22.27	-1	1514236..1514895	+	219	157737744	-	Abu_1504	-	two-component response regulator
1475	 28.95	0	1514888..1516141	+	417	157737745	-	Abu_1505	-	Mn2+/Fe2+ transporter
1476	 24.47	0	1516142..1516423	-	93	157737746	-	Abu_1506	-	heavy-metal transporting ATPase
1477	 22.32	-1	1516427..1516753	-	108	157737747	-	Abu_1507	-	heavy-metal transport protein
1478	 29.41	0	1516750..1517844	-	364	157737748	-	Abu_1508	-	transglutaminase family protein
1479	 29.21	0	1518048..1518992	-	314	157737749	-	Abu_1509	-	putative FdhC protein
1480	 34.18	+2	1519001..1519594	-	197	157737750	fdhB2	Abu_1510	-	formate dehydrogenase, iron-sulfur subunit FdhB
1481	 34.51	+2	1519605..1522403	-	932	157737751	fdhA2	Abu_1511	-	formate dehydrogenase, large subunit FdhA (cysteine containing)
1482	 34.67	+2	1522425..1522649	-	74	157737752	-	Abu_1512	-	formate dehydrogenase subunit E, putative
1483	 31.98	+1	1523138..1524175	+	345	157737753	selD	Abu_1513	-	selenide, water dikinase
1484	 22.88	-1	1524217..1524771	-	184	157737754	-	Abu_1514	-	hypothetical protein
1485	 29.02	0	1524949..1525527	+	192	157737755	-	Abu_1515	-	hypothetical protein
1486	 32.06	+1	1525578..1526207	+	209	157737756	-	Abu_1516	-	hypothetical protein
1487	 27.27	0	1526219..1526482	+	87	157737757	-	Abu_1517	-	hypothetical protein
1488	 22.13	-1	1526484..1526858	+	124	157737758	-	Abu_1518	-	hypothetical protein
1489	 28.30	0	1526869..1527921	+	350	157737759	-	Abu_1519	-	hypothetical protein
1490	 30.45	0	1527931..1528416	+	161	157737760	-	Abu_1520	-	phage-related lysozyme
1491	 29.87	0	1528474..1528848	-	124	157737761	-	Abu_1521	-	hypothetical protein
1492	 27.25	0	1528907..1529317	-	136	157737762	-	Abu_1522	-	Sel1 repeat-containing protein
1493	 26.11	0	1529610..1530965	+	451	157737763	selA	Abu_1524	-	selenocysteine synthase
1494	 25.96	0	1530965..1532794	+	609	157737764	selB	Abu_1525	-	selenocysteine-specific elongation factor
1495	 23.96	0	1532798..1534312	+	504	157737765	-	Abu_1526	-	putative DNA helicase
1496	 22.04	-1	1534309..1535247	+	312	157737766	-	Abu_1527	-	hypothetical protein
1497	 23.79	0	1535244..1537307	+	687	157737767	-	Abu_1528	-	hypothetical protein
1498	 21.47	-1	1537354..1538280	+	308	157737768	-	Abu_1529	-	hypothetical protein
1499	 23.07	-1	1538365..1540536	+	723	157737769	-	Abu_1530	-	hypothetical protein
1500	 26.77	0	1540576..1541322	+	248	157737770	-	Abu_1531	-	hypothetical protein
1501	 23.96	0	1541809..1543707	-	632	157737771	-	Abu_1536	-	two-component sensor histidine kinase
1502	 30.59	+1	1543848..1544357	+	169	157737772	-	Abu_1537	-	putative FMN reductase
1503	 26.58	0	1544415..1545791	+	458	157737773	-	Abu_1538	-	PhoH family protein
1504	 23.44	-1	1545860..1547476	+	538	157737774	-	Abu_1539	-	hypothetical protein
1505	 22.73	-1	1547479..1549326	-	615	157737775	-	Abu_1540	-	EAL/PAS/GGDEF domain-containing protein
1506	 30.67	+1	1549302..1549940	+	212	157737776	pdxH	Abu_1541	-	pyridoxamine 5'-phosphate oxidase
1507	 23.65	0	1549946..1552063	-	705	157737777	-	Abu_1542	-	GGDEF/PAS domain-containing protein
1508	 25.79	0	1552101..1553465	-	454	157737778	dbpA	Abu_1543	-	ATP-dependent RNA helicase DbpA
1509	 26.40	0	1553468..1554001	-	177	157737779	-	Abu_1544	-	hypothetical protein
1510	 28.44	0	1554096..1554953	+	285	157737780	-	Abu_1545	-	hypothetical protein
1511	 23.93	0	1554974..1555558	-	194	157737781	-	Abu_1546	-	hypothetical protein
1512	 30.04	0	1555695..1557605	-	636	157737782	htpG	Abu_1547	-	heat shock protein 90
1513	 34.33	+2	1557824..1560031	+	735	157737783	katG	Abu_1548	-	catalase/peroxidase HPI
1514	 29.14	0	1560142..1562025	+	627	157737784	ciaB	Abu_1549	-	CiaB protein
1515	 25.69	0	1562038..1562508	-	156	157737785	-	Abu_1550	-	ankyrin repeat-containing protein
1516	 25.88	0	1562530..1565184	-	884	157737786	pqiB	Abu_1551	-	paraquat-inducible protein B
1517	 29.43	0	1566462..1566896	+	144	157737787	-	Abu_1553	-	hypothetical protein
1518	 25.43	0	1566969..1569524	+	851	157737788	-	Abu_1554	-	EAL/GGDEF domain-containing protein
1519	 28.99	0	1569535..1570017	-	160	157737789	-	Abu_1555	-	hypothetical protein
1520	 25.48	0	1570121..1571062	+	313	157737790	-	Abu_1556	-	hypothetical protein
1521	 29.49	0	1571397..1571864	-	155	157737791	-	Abu_1557	-	hypothetical protein
1522	 30.10	0	1571993..1572580	+	195	157737792	-	Abu_1558	-	hypothetical protein
1523	 26.07	0	1572582..1573655	-	357	157737793	-	Abu_1559	-	putative DNA alkylation repair enzyme
1524	 22.42	-1	1573664..1574524	-	286	157737794	-	Abu_1560	-	putative DNA-binding protein
1525	 22.34	-1	1574592..1575956	-	454	157737795	-	Abu_1561	-	hypothetical protein
1526	 29.30	0	1575967..1576611	-	214	157737796	-	Abu_1562	-	ThiJ/PfpI family transcriptional regulator
1527	 28.94	0	1576789..1577448	+	219	157737797	-	Abu_1563	-	hypothetical protein
1528	 29.55	0	1577728..1580109	-	793	157737798	-	Abu_1564	-	TonB-dependent receptor protein
1529	 23.11	-1	1580277..1580501	+	74	157737799	hicA	Abu_1565	-	Hif-contiguous protein A
1530	 26.67	0	1580525..1580869	+	114	157737800	hicB	Abu_1566	-	Hif-contiguous protein B
1531	 24.51	0	1580874..1581848	-	324	157737801	-	Abu_1567	-	sigma factor regulatory protein FecR/PupR family
1532	 27.43	0	1581849..1582322	-	157	157737802	-	Abu_1568	-	ECF subfamily RNA polymerase sigma factor
1533	 33.62	+1	1582459..1583520	+	353	157737803	speB	Abu_1569	-	arginase
1534	 30.03	0	1583543..1584844	-	433	157737804	leuA2	Abu_1570	-	2-isopropylmalate synthase
1535	 24.05	0	1585025..1585810	-	261	157737805	-	Abu_1571	-	AraC family transcriptional regulator
1536	 23.94	0	1585820..1586149	-	109	157737806	-	Abu_1572	-	PemK family transcriptional regulator
1537	 25.29	0	1586143..1586403	-	86	157737807	-	Abu_1573	-	hypothetical protein
1538	 23.58	0	1586472..1587425	-	317	157737808	-	Abu_1574	-	AraC family transcriptional regulator
1539	 26.72	0	1587544..1589661	+	705	157737809	-	Abu_1575	-	TonB-dependent receptor protein
1540	 33.33	+1	1589687..1590262	-	191	157737810	sodB	Abu_1576	-	superoxide dismutase
1541	 25.81	0	1590340..1591548	-	402	157737811	-	Abu_1577	-	hypothetical protein
1542	 32.57	+1	1591620..1592540	-	306	157737812	ppa	Abu_1578	-	putative manganese-dependent inorganic pyrophosphatase
1543	 29.67	0	1592660..1593259	-	199	157737813	-	Abu_1579	-	hypothetical protein
26.98	MEAN

3.50	STD DEV
