IslandPath Analysis: Arcobacter butzleri RM4018

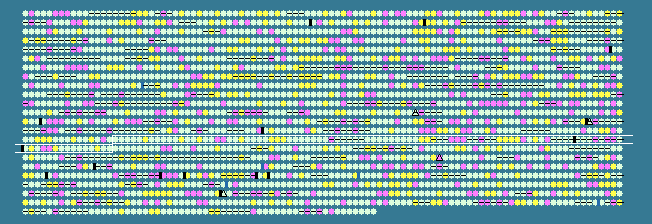

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.98 STD DEV: 3.50
Arcobacter butzleri RM4018, complete genome - 1..2341251
2259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1416	 26.60	0	1450130..1450693	+	187	157737687	-	Abu_1446	-	lysine decarboxylase-like protein
1417	 25.63	0	1450870..1451505	+	211	157737688	-	Abu_1447	-	HAD-superfamily hydrolase
1418	 24.87	0	1451502..1452068	-	188	157737689	-	Abu_1448	-	putative lipoprotein thiredoxin
1419	 25.15	0	1452081..1452728	-	215	157737690	dsbA	Abu_1449	-	DSBA-like thioredoxin domain-containing protein
1420	 26.03	0	1452718..1453128	-	136	157737691	dsbB	Abu_1450	-	DsbB family disulfide bond formation protein
1421	 31.20	+1	1453217..1455742	+	841	157737692	-	Abu_1451	-	glycosyltransferase
1422	 24.89	0	1455844..1456317	+	157	157737693	-	Abu_1452	-	ECF subfamily RNA polymerase sigma factor
1423	 23.69	0	1456317..1457156	+	279	157737694	-	Abu_1453	-	sigma factor regulatory protein FecR/PupR family
1424	 29.27	0	1457255..1459570	+	771	157737695	-	Abu_1454	-	TonB-dependent receptor protein
1425	 23.96	0	1459749..1461188	+	479	157737696	-	Abu_1455	-	GGDEF domain-containing protein
1426	 25.76	0	1461133..1462083	+	316	157737697	-	Abu_1456	-	hypothetical protein
1427	 30.92	+1	1462103..1464088	-	661	157737698	betT	Abu_1457	-	high-affinity choline transport
1428	 26.53	0	1464222..1465838	-	538	157737699	kefB	Abu_1458	-	glutathione-regulated potassium-efflux system protein KefB
1429	 25.16	0	1465956..1466261	+	101	157737700	-	Abu_1459	-	hypothetical protein
1430	 32.62	+1	1466335..1467597	+	420	157737701	glyA2	Abu_1460	-	serine hydroxymethyltransferase
1431	 28.74	0	1467624..1468451	+	275	157737702	ada	Abu_1461	-	O6-methylguanine-DNA methyltransferase
1432	 24.93	0	1468452..1469165	+	237	157737703	-	Abu_1462	-	endonuclease III
1433	 23.12	-1	1469145..1469624	-	159	157737704	-	Abu_1463	-	ribonuclease H-like protein
1434	 22.11	-1	1469661..1469954	-	97	157737705	-	Abu_1464	-	hypothetical protein
1435	 25.12	0	1469951..1470157	-	68	157737706	-	Abu_1465	-	hypothetical protein
1436	 28.06	0	1470264..1470737	-	157	157737707	-	Abu_1466	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
1437	 31.79	+1	1470917..1472086	+	389	157737708	benE	Abu_1467	-	benzoate membrane transport protein
1438	 25.66	0	1472128..1473300	-	390	157737709	argD2	Abu_1468	-	acetylornithine aminotransferase
1439	 27.35	0	1473313..1474014	-	233	157737710	-	Abu_1469	-	hypothetical protein
1440	 30.14	0	1474095..1474970	-	291	157737711	lipA	Abu_1470	-	lipoyl synthase
1441	 26.24	0	1474982..1475686	-	234	157737712	-	Abu_1471	-	biotin/lipoate A/B protein ligase family protein
1442	 31.76	+1	1475844..1478516	+	890	157737713	aceE	Abu_1472	-	pyruvate dehydrogenase subunit E1
1443	 30.74	+1	1478527..1480182	+	551	157737714	aceF	Abu_1473	-	dihydrolipoamide acetyltransferase
1444	 34.24	+2	1480192..1481625	+	477	157737715	lpdA	Abu_1474	-	dihydrolipoamide dehydrogenase
1445	 28.53	0	1481727..1482392	+	221	157737716	-	Abu_1475	-	glutamine amidotransferase, class I
1446	 29.23	0	1482503..1484842	-	779	157737717	-	Abu_1476	-	TonB-dependent receptor protein
1447	 24.97	0	1485112..1485960	-	282	157737718	-	Abu_1477	-	aldose 1-epimerase family protein, LacX
1448	 25.98	0	1485957..1486718	-	253	157737719	-	Abu_1478	-	beta-lactamase, putative
1449	 29.89	0	1486769..1488076	-	435	157737720	rhlE	Abu_1479	-	ATP-dependent RNA helicase RhlE
1450	 28.22	0	1488347..1489540	+	397	157737721	-	Abu_1480	-	hypothetical protein
1451	 27.73	0	1489715..1490695	+	326	157737722	-	Abu_1481	-	DNA (cytosine-5-)-methyltransferase
1452	 20.63	-1	1490703..1491710	+	335	157737723	-	Abu_1482	-	hypothetical protein
1453	 24.92	0	1491861..1492169	-	102	157737724	-	Abu_1483	-	putative transcriptional regulator
1454	 25.03	0	1492319..1493944	+	541	157737725	-	Abu_1484	-	hypothetical protein
1455	 25.40	0	1493979..1494356	+	125	157737726	-	Abu_1485	-	hypothetical protein
1456	 24.89	0	1494359..1494832	+	157	157737727	-	Abu_1486	-	hypothetical protein
1457	 27.49	0	1494858..1497098	-	746	157737728	-	Abu_1487	-	methyl-accepting chemotaxis protein
1458	 27.01	0	1497253..1498059	+	268	157737729	rnhA	Abu_1488	-	ribonuclease HI
1459	 29.31	0	1498111..1499079	+	322	157737730	-	Abu_1489	-	HMGL family protein
1460	 25.41	0	1499107..1499409	-	100	157737731	-	Abu_1490	-	hypothetical protein
1461	 27.49	0	1499449..1499859	-	136	157737732	-	Abu_1491	-	hypothetical protein
1462	 27.41	0	1499985..1501250	-	421	157737733	dinP	Abu_1492	-	DNA polymerase IV
1463	 28.40	0	1501325..1502560	-	411	157737734	moeA1	Abu_1493	-	molybdenum cofactor biosynthesis protein A
1464	 23.88	0	1502570..1503553	-	327	157737735	-	Abu_1494	-	cysteine desulfurase
1465	 28.18	0	1503546..1504379	-	277	157737736	fdhD	Abu_1495	-	formate dehydrogenase accessory protein
1466	 29.38	0	1504376..1505335	-	319	157737737	fdhC	Abu_1496	-	putative FdhC protein
1467	 34.18	+2	1505344..1505937	-	197	157737738	fdhB1	Abu_1497	-	formate dehydrogenase, iron-sulfur subunit FdhB
1468	 34.19	+2	1505948..1508749	-	933	157738530	-	Abu_1498	-	formate dehydrogenase, large subunit FdhA
1469	 37.78	+2	1508775..1508999	-	74	157737739	-	Abu_1499	-	hypothetical protein
1470	 25.98	0	1509082..1509693	-	203	157737740	-	Abu_1500	-	hypothetical protein
1471	 26.58	0	1509686..1511359	-	557	157737741	-	Abu_1501	-	4Fe-4S ferredoxin, iron-sulfur binding
1472	 23.20	-1	1511506..1512660	+	384	157737742	livJ	Abu_1502	-	leucine/isoleucine/valine-binding protein
1473	 21.44	-1	1512657..1514228	+	523	157737743	-	Abu_1503	-	two-component sensor histidine kinase
1474	 22.27	-1	1514236..1514895	+	219	157737744	-	Abu_1504	-	two-component response regulator
1475	 28.95	0	1514888..1516141	+	417	157737745	-	Abu_1505	-	Mn2+/Fe2+ transporter
1476	 24.47	0	1516142..1516423	-	93	157737746	-	Abu_1506	-	heavy-metal transporting ATPase
1477	 22.32	-1	1516427..1516753	-	108	157737747	-	Abu_1507	-	heavy-metal transport protein
1478	 29.41	0	1516750..1517844	-	364	157737748	-	Abu_1508	-	transglutaminase family protein
1479	 29.21	0	1518048..1518992	-	314	157737749	-	Abu_1509	-	putative FdhC protein
1480	 34.18	+2	1519001..1519594	-	197	157737750	fdhB2	Abu_1510	-	formate dehydrogenase, iron-sulfur subunit FdhB
1481	 34.51	+2	1519605..1522403	-	932	157737751	fdhA2	Abu_1511	-	formate dehydrogenase, large subunit FdhA (cysteine containing)
1482	 34.67	+2	1522425..1522649	-	74	157737752	-	Abu_1512	-	formate dehydrogenase subunit E, putative
1483	 31.98	+1	1523138..1524175	+	345	157737753	selD	Abu_1513	-	selenide, water dikinase
1484	 22.88	-1	1524217..1524771	-	184	157737754	-	Abu_1514	-	hypothetical protein
1485	 29.02	0	1524949..1525527	+	192	157737755	-	Abu_1515	-	hypothetical protein
1486	 32.06	+1	1525578..1526207	+	209	157737756	-	Abu_1516	-	hypothetical protein
1487	 27.27	0	1526219..1526482	+	87	157737757	-	Abu_1517	-	hypothetical protein
1488	 22.13	-1	1526484..1526858	+	124	157737758	-	Abu_1518	-	hypothetical protein
1489	 28.30	0	1526869..1527921	+	350	157737759	-	Abu_1519	-	hypothetical protein
1490	 30.45	0	1527931..1528416	+	161	157737760	-	Abu_1520	-	phage-related lysozyme
1491	 29.87	0	1528474..1528848	-	124	157737761	-	Abu_1521	-	hypothetical protein
1492	 27.25	0	1528907..1529317	-	136	157737762	-	Abu_1522	-	Sel1 repeat-containing protein
1493	 26.11	0	1529610..1530965	+	451	157737763	selA	Abu_1524	-	selenocysteine synthase
1494	 25.96	0	1530965..1532794	+	609	157737764	selB	Abu_1525	-	selenocysteine-specific elongation factor
1495	 23.96	0	1532798..1534312	+	504	157737765	-	Abu_1526	-	putative DNA helicase
1496	 22.04	-1	1534309..1535247	+	312	157737766	-	Abu_1527	-	hypothetical protein
1497	 23.79	0	1535244..1537307	+	687	157737767	-	Abu_1528	-	hypothetical protein
1498	 21.47	-1	1537354..1538280	+	308	157737768	-	Abu_1529	-	hypothetical protein
1499	 23.07	-1	1538365..1540536	+	723	157737769	-	Abu_1530	-	hypothetical protein
1500	 26.77	0	1540576..1541322	+	248	157737770	-	Abu_1531	-	hypothetical protein
1501	 23.96	0	1541809..1543707	-	632	157737771	-	Abu_1536	-	two-component sensor histidine kinase
1502	 30.59	+1	1543848..1544357	+	169	157737772	-	Abu_1537	-	putative FMN reductase
1503	 26.58	0	1544415..1545791	+	458	157737773	-	Abu_1538	-	PhoH family protein
1504	 23.44	-1	1545860..1547476	+	538	157737774	-	Abu_1539	-	hypothetical protein
1505	 22.73	-1	1547479..1549326	-	615	157737775	-	Abu_1540	-	EAL/PAS/GGDEF domain-containing protein
1506	 30.67	+1	1549302..1549940	+	212	157737776	pdxH	Abu_1541	-	pyridoxamine 5'-phosphate oxidase
1507	 23.65	0	1549946..1552063	-	705	157737777	-	Abu_1542	-	GGDEF/PAS domain-containing protein
1508	 25.79	0	1552101..1553465	-	454	157737778	dbpA	Abu_1543	-	ATP-dependent RNA helicase DbpA
1509	 26.40	0	1553468..1554001	-	177	157737779	-	Abu_1544	-	hypothetical protein
1510	 28.44	0	1554096..1554953	+	285	157737780	-	Abu_1545	-	hypothetical protein
1511	 23.93	0	1554974..1555558	-	194	157737781	-	Abu_1546	-	hypothetical protein
1512	 30.04	0	1555695..1557605	-	636	157737782	htpG	Abu_1547	-	heat shock protein 90
1513	 34.33	+2	1557824..1560031	+	735	157737783	katG	Abu_1548	-	catalase/peroxidase HPI
1514	 29.14	0	1560142..1562025	+	627	157737784	ciaB	Abu_1549	-	CiaB protein
1515	 25.69	0	1562038..1562508	-	156	157737785	-	Abu_1550	-	ankyrin repeat-containing protein
26.98	MEAN

3.50	STD DEV
