IslandPath Analysis: Arcobacter butzleri RM4018

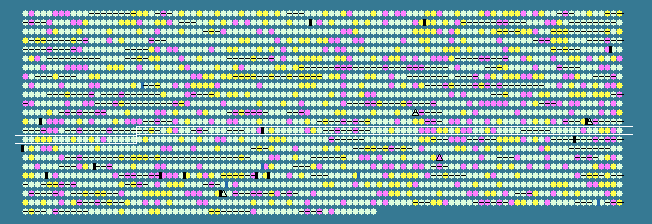

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.98 STD DEV: 3.50
Arcobacter butzleri RM4018, complete genome - 1..2341251
2259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1320	 25.68	0	1349495..1349716	-	73	157737591	-	Abu_1349	-	hypothetical protein
1321	 24.58	0	1349713..1350192	-	159	157737592	-	Abu_1350	-	hypothetical protein
1322	 30.93	+1	1350231..1350605	-	124	157737593	-	Abu_1351	-	hypothetical protein
1323	 25.39	0	1350938..1351390	+	150	157737594	-	Abu_1352	-	hypothetical protein
1324	 27.21	0	1351526..1351933	-	135	157737595	-	Abu_1353	-	hypothetical protein
1325	 32.17	+1	1352079..1354313	+	744	157737596	norB	Abu_1354	-	nitric oxide reductase, cytochrome b subunit
1326	 22.11	-1	1354345..1354914	-	189	157737597	-	Abu_1355	-	hypothetical protein
1327	 26.07	0	1354911..1356080	-	389	157737598	-	Abu_1356	-	D-amino acid oxidase domain-containing protein
1328	 26.98	0	1356077..1356391	-	104	157737599	-	Abu_1357	-	hypothetical protein
1329	 28.46	0	1356506..1356874	+	122	157737600	-	Abu_1358	-	response regulator receiver domain-containing protein
1330	 23.46	-1	1356874..1357491	+	205	157737601	-	Abu_1359	-	inhibitor of MCP methylation, CheC
1331	 23.76	0	1357488..1358981	+	497	157737602	-	Abu_1360	-	two-component sensor histidine kinase
1332	 29.66	0	1359058..1359927	+	289	157737603	cbpA	Abu_1361	-	curved DNA-binding protein CbpA
1333	 25.20	0	1359939..1360319	+	126	157737604	-	Abu_1362	-	MerR family transcriptional regulator
1334	 26.08	0	1360392..1361384	+	330	157737605	-	Abu_1363	-	HlyD family secretion protein
1335	 26.04	0	1361371..1363071	+	566	157737606	-	Abu_1364	-	ABC transporter, ATP-binding protein
1336	 26.08	0	1363072..1364160	+	362	157737607	-	Abu_1365	-	ABC transporter, permease protein
1337	 25.82	0	1364160..1365251	+	363	157737608	-	Abu_1366	-	ABC transporter, permease protein
1338	 26.85	0	1365252..1366331	-	359	157737609	-	Abu_1367	-	hypothetical protein
1339	 26.53	0	1366420..1367712	-	430	157737610	brnQ	Abu_1368	-	branched-chain amino acid transport system II carrier protein
1340	 20.40	-1	1367763..1368620	-	285	157737611	-	Abu_1369	-	hypothetical protein
1341	 24.32	0	1368801..1369244	-	147	157737612	-	Abu_1371	-	hypothetical protein
1342	 31.24	+1	1369244..1372489	-	1081	157737613	carB	Abu_1372	-	carbamoyl phosphate synthase large subunit
1343	 24.18	0	1372604..1373422	+	272	157737614	-	Abu_1373	-	polysaccharide deacetylase
1344	 28.40	0	1373437..1374732	-	431	157737615	nhaA1	Abu_1374	-	sodium:hydrogen antiporter
1345	 23.74	0	1374755..1374952	-	65	157737616	-	Abu_1375	-	hypothetical protein
1346	 28.65	0	1374949..1376058	-	369	157737617	metX	Abu_1376	-	homoserine O-acetyltransferase
1347	 26.89	0	1376169..1378526	-	785	157737618	-	Abu_1377	-	TonB-dependent receptor protein
1348	 23.48	-1	1378839..1379102	+	87	157737619	-	Abu_1378	-	hypothetical protein
1349	 31.31	+1	1379134..1380267	-	377	157737620	ftsZ	Abu_1379	-	cell division protein FtsZ
1350	 28.30	0	1380267..1381658	-	463	157737621	ftsA	Abu_1380	-	cell division protein FtsA
1351	 25.79	0	1381663..1383120	-	485	157737622	-	Abu_1381	-	hypothetical protein
1352	 26.12	0	1383183..1385510	-	775	157737623	recD	Abu_1382	-	exodeoxyribonuclease V, alpha subunit
1353	 20.49	-1	1385510..1385875	-	121	157737624	-	Abu_1383	-	hypothetical protein
1354	 26.78	0	1385872..1386222	-	116	157737625	-	Abu_1384	-	arsenate reductase
1355	 24.48	0	1386337..1387161	-	274	157737626	-	Abu_1385	-	hypothetical protein
1356	 20.96	-1	1387218..1387508	-	96	157737627	-	Abu_1386	-	hypothetical protein
1357	 24.24	0	1387495..1387725	-	76	157737628	-	Abu_1387	-	hypothetical protein
1358	 25.71	0	1387896..1389587	+	563	157737629	-	Abu_1388	-	hypothetical protein
1359	 27.02	0	1389590..1389874	+	94	157737630	-	Abu_1389	-	FlhB domain-containing protein
1360	 28.38	0	1389885..1391621	-	578	157737631	-	Abu_1390	-	ABC transporter, ATP-binding protein
1361	 24.12	0	1391727..1392236	+	169	157737632	-	Abu_1391	-	hypothetical protein
1362	 33.00	+1	1392273..1393460	-	395	157737633	dapD	Abu_1392	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase DapD
1363	 26.80	0	1393562..1395565	-	667	157737634	-	Abu_1393	-	HAD-superfamily hydrolase
1364	 27.42	0	1395870..1396241	+	123	157737635	-	Abu_1394	-	hypothetical protein
1365	 26.68	0	1396292..1398139	-	615	157737636	priA	Abu_1395	-	primosome assembly protein PriA
1366	 24.24	0	1398139..1398534	-	131	157737637	-	Abu_1396	-	hypothetical protein
1367	 23.47	-1	1398569..1398781	-	70	157737638	-	Abu_1397	-	hypothetical protein
1368	 21.03	-1	1398778..1398972	-	64	157737639	-	Abu_1398	-	hypothetical protein
1369	 22.71	-1	1399022..1399435	-	137	157737640	-	Abu_1399	-	hypothetical protein
1370	 31.72	+1	1399509..1399880	-	123	157737641	hypA	Abu_1400	-	hydrogenase expression/formation protein HypA
1371	 32.83	+1	1399984..1400982	-	332	157737642	hypE	Abu_1401	-	hydrogenase expression/formation protein HypE
1372	 29.41	0	1400983..1401339	-	118	157737643	-	Abu_1402	-	hypothetical protein
1373	 31.57	+1	1401349..1402197	-	282	157737644	-	Abu_1403	-	3-hydroxyisobutyrate dehydrogenase family protein
1374	 21.96	-1	1402194..1403705	-	503	157737645	-	Abu_1404	-	McrBC endonuclease McrB, putative
1375	 21.39	-1	1403698..1404861	-	387	157737646	-	Abu_1405	-	McrBC catalytic subunit McrC, putative
1376	 28.62	0	1404870..1405994	-	374	157737647	hypD	Abu_1406	-	hydrogenase expression/formation protein HypD
1377	 30.14	0	1406008..1406289	-	93	157737648	hypC	Abu_1407	-	hydrogenase expression/formation protein HypC
1378	 30.66	+1	1406415..1407236	-	273	157737649	hypB	Abu_1408	-	hydrogenase expression/formation protein HypB
1379	 23.36	-1	1407348..1407989	+	213	157737650	-	Abu_1409	-	hypothetical protein
1380	 27.76	0	1408077..1410050	+	657	157737651	-	Abu_1410	-	methyl-accepting chemotaxis protein
1381	 26.93	0	1410068..1410910	-	280	157737652	-	Abu_1411	-	hypothetical protein
1382	 30.34	0	1410925..1412160	-	411	157737653	-	Abu_1412	-	HI0933-like protein
1383	 28.27	0	1412237..1413343	+	368	157737654	-	Abu_1413	-	hypothetical protein
1384	 28.87	0	1413487..1414068	-	193	157737655	-	Abu_1414	-	hypothetical protein
1385	 24.10	0	1414101..1414880	-	259	157737656	-	Abu_1415	-	hypothetical protein
1386	 23.83	0	1414987..1415691	-	234	157737657	-	Abu_1416	-	hypothetical protein
1387	 23.76	0	1415828..1416130	+	100	157737658	-	Abu_1417	-	hypothetical protein
1388	 24.21	0	1416159..1418066	-	635	157737659	-	Abu_1418	-	hypothetical protein
1389	 29.11	0	1418151..1419617	-	488	157737660	thiI	Abu_1419	-	thiamine biosynthesis protein ThiI
1390	 28.68	0	1419705..1419962	+	85	157737661	-	Abu_1420	-	hypothetical protein
1391	 24.43	0	1419972..1420454	-	160	157737662	-	Abu_1421	-	hypothetical protein
1392	 29.21	0	1420480..1421739	-	419	157737663	-	Abu_1422	-	hypothetical protein
1393	 26.13	0	1422129..1424378	-	749	157737664	hypF	Abu_1423	-	transcriptional regulatory protein HypF
1394	 22.84	-1	1424409..1426028	-	539	157737665	-	Abu_1424	-	hypothetical protein
1395	 28.32	0	1426012..1426590	-	192	157737666	hydD	Abu_1425	-	Ni/Fe hydrogenase, expression/formation protein
1396	 27.33	0	1426572..1427237	-	221	157737667	hydC	Abu_1426	-	Ni/Fe hydrogenase, cytochrome b subunit
1397	 30.85	+1	1427259..1428989	-	576	157737668	hydB	Abu_1427	-	Ni/Fe-hydrogenase, large subunit
1398	 34.01	+2	1428979..1430157	-	392	157737669	hydA	Abu_1428	-	Ni/Fe-hydrogenase, small subunit
1399	 21.77	-1	1430395..1431354	-	319	157737670	-	Abu_1429	-	sigma factor regulatory protein FecR/PupR family
1400	 24.11	0	1431357..1431833	-	158	157737671	-	Abu_1430	-	ECF subfamily RNA polymerase sigma factor
1401	 23.66	0	1431933..1433483	-	516	157737672	-	Abu_1431	-	hypothetical protein
1402	 25.38	0	1433449..1434039	-	196	157737673	hyaD	Abu_1432	-	Ni/Fe hydrogenase, expression/formation protein
1403	 31.55	+1	1434128..1434856	-	242	157737674	hyaC	Abu_1433	-	Ni/Fe hydrogenase, cytochrome b subunit
1404	 33.45	+1	1434834..1436576	-	580	157737675	hyaB	Abu_1434	-	Ni/Fe-hydrogenase, large subunit
1405	 36.25	+2	1436576..1437811	-	411	157737676	hyaA	Abu_1435	-	Ni/Fe-hydrogenase, small subunit
1406	 25.78	0	1438045..1439394	-	449	157737677	hupL	Abu_1436	-	Ni/Fe-dependent hydrogenase, large subunit
1407	 27.85	0	1439397..1440290	-	297	157737678	hupS	Abu_1437	-	Ni/Fe-dependent hydrogenase, small subunit
1408	 27.10	0	1440280..1440744	-	154	157737679	-	Abu_1438	-	TetR family transcriptional regulator
1409	 33.57	+1	1440982..1443558	-	858	157737680	acnB	Abu_1439	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
1410	 24.26	0	1443817..1444257	+	146	157737681	-	Abu_1440	-	thioesterase/acetyltransferase, putative
1411	 24.70	0	1444247..1445242	-	331	157737682	-	Abu_1441	-	GGDEF/PAS domain-containing protein
1412	 30.92	+1	1445461..1446207	-	248	157737683	-	Abu_1442	-	hypothetical protein
1413	 27.42	0	1446307..1447050	+	247	157737684	-	Abu_1443	-	VacJ-like lipoprotein
1414	 23.01	-1	1447054..1447644	+	196	157737685	-	Abu_1444	-	putative periplasmic protein
1415	 24.97	0	1447644..1450130	+	828	157737686	-	Abu_1445	-	hypothetical protein
1416	 26.60	0	1450130..1450693	+	187	157737687	-	Abu_1446	-	lysine decarboxylase-like protein
1417	 25.63	0	1450870..1451505	+	211	157737688	-	Abu_1447	-	HAD-superfamily hydrolase
1418	 24.87	0	1451502..1452068	-	188	157737689	-	Abu_1448	-	putative lipoprotein thiredoxin
1419	 25.15	0	1452081..1452728	-	215	157737690	dsbA	Abu_1449	-	DSBA-like thioredoxin domain-containing protein
26.98	MEAN

3.50	STD DEV
