IslandPathversion 1.0

IslandPath Analysis: Arcobacter butzleri RM4018

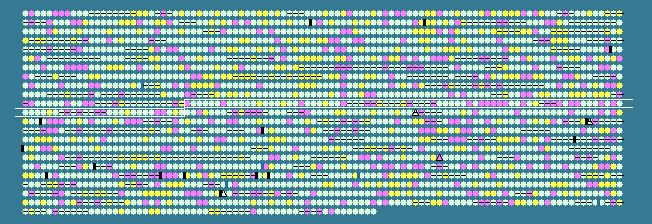

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 26.98 STD DEV: 3.50
Arcobacter butzleri RM4018, complete genome - 1..2341251
2259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1028	 23.33	-1	1058872..1059741	-	289	157737299	-	Abu_1053	-	LysR family transcriptional regulator
1029	 25.22	0	1059841..1060863	+	340	157737300	-	Abu_1054	-	putative integral membrane protein
1030	 23.62	0	1060882..1061622	-	246	157737301	-	Abu_1055	-	periplasmic protein
1031	 28.02	0	1061709..1062611	-	300	157737302	-	Abu_1056	-	auxin efflux carrier protein
1032	 28.23	0	1062615..1062986	-	123	157737303	-	Abu_1057	-	hypothetical protein
1033	 27.15	0	1063121..1063702	+	193	157737304	-	Abu_1058	-	flavodoxin-like fold domain-containing protein
1034	 22.56	-1	1063712..1064008	+	98	157737305	-	Abu_1059	-	hypothetical protein
1035	 27.78	0	1064021..1065046	+	341	157737306	-	Abu_1060	-	NADH:flavin oxidoreductase/NADH oxidase
1036	 26.98	0	1065064..1065960	+	298	157737307	-	Abu_1061	-	hypothetical protein
1037	 28.93	0	1065988..1066623	+	211	157737308	-	Abu_1062	-	NAD(P)H-flavin nitroreductase
1038	 27.38	0	1066736..1068229	+	497	157737309	-	Abu_1063	-	hypothetical protein
1039	 29.08	0	1068311..1069909	+	532	157737310	-	Abu_1064	-	ABC transporter, ATP-binding protein
1040	 30.82	+1	1069964..1070440	-	158	157737311	-	Abu_1065	-	acyl-CoA thioester hydrolase family protein
1041	 27.88	0	1070530..1072491	-	653	157737312	-	Abu_1066	-	methyl-accepting chemotaxis protein
1042	 28.25	0	1072587..1074533	-	648	157737313	lig	Abu_1067	-	NAD-dependent DNA ligase LigA
1043	 27.65	0	1074549..1075727	-	392	157737314	-	Abu_1068	-	glutathionylspermidine synthase family protein
1044	 32.09	+1	1075731..1076372	-	213	157737315	-	Abu_1069	-	hypothetical protein
1045	 25.73	0	1076506..1077951	+	481	157737316	dgt	Abu_1070	-	deoxyguanosinetriphosphate triphosphohydrolase
1046	 25.81	0	1078224..1079300	+	358	157737317	mloA	Abu_1071	-	hypothetical protein
1047	 22.64	-1	1079392..1080663	+	423	157737318	-	Abu_1072	-	hypothetical protein
1048	 29.18	0	1081122..1081916	-	264	157737319	aroE	Abu_1073	-	shikimate 5-dehydrogenase
1049	 24.67	0	1081919..1082530	-	203	157737320	-	Abu_1074	-	methyltransferase, putative
1050	 24.96	0	1082591..1083259	+	222	157737321	-	Abu_1075	-	hypothetical protein
1051	 30.71	+1	1083354..1084613	+	419	157737322	maeA	Abu_1076	-	NAD-dependent malic enzyme
1052	 27.22	0	1084681..1085514	+	277	157737323	purU	Abu_1077	-	formyltetrahydrofolate deformylase
1053	 27.96	0	1085516..1085980	+	154	157737324	-	Abu_1078	-	RNA methylase
1054	 18.86	-2	1085973..1086200	-	75	157737325	-	Abu_1079	-	hypothetical protein
1055	 26.19	0	1086187..1087950	-	587	157737326	-	Abu_1080	-	sodium:phosphate cotransporter
1056	 23.62	0	1088081..1088461	+	126	157737327	-	Abu_1081	-	hypothetical protein
1057	 23.98	0	1088464..1088805	+	113	157737328	-	Abu_1082	-	hypothetical protein
1058	 23.38	-1	1088806..1089468	+	220	157737329	-	Abu_1083	-	two-component response regulator
1059	 19.42	-2	1089458..1090312	+	284	157737330	-	Abu_1084	-	two-component sensor histidine kinase
1060	 30.97	+1	1090356..1091285	+	309	157737331	-	Abu_1085	-	putative protease
1061	 27.66	0	1091263..1091703	+	146	157737332	-	Abu_1086	-	hypothetical protein
1062	 25.46	0	1091734..1092114	-	126	157737333	-	Abu_1087	-	hypothetical protein
1063	 25.91	0	1092225..1093355	-	376	157737334	cydB	Abu_1088	-	cytochrome bd oxidase, subunit II
1064	 30.52	+1	1093357..1094883	-	508	157737335	cydA	Abu_1089	-	cytochrome bd oxidase, subunit I
1065	 15.94	-2	1094899..1095105	-	68	157737336	-	Abu_1090	-	hypothetical protein
1066	 28.90	0	1095264..1095692	-	142	157737337	-	Abu_1091	-	hypothetical protein
1067	 25.67	0	1095715..1096875	-	386	157737338	-	Abu_1092	-	hypothetical protein
1068	 29.47	0	1096978..1097520	-	180	157737339	-	Abu_1093	-	TPR repeat-containing SEL1 subfamily protein
1069	 16.22	-2	1097735..1097956	+	73	157737340	-	Abu_1094	-	hypothetical protein
1070	 26.01	0	1097953..1098621	-	222	157737341	aat	Abu_1095	-	leucyl/phenylalanyl-tRNA--protein transferase
1071	 27.22	0	1098680..1099366	+	228	157737342	rsuA	Abu_1096	-	ribosomal small subunit pseudouridine synthase A
1072	 26.00	0	1099363..1099989	-	208	157737343	-	Abu_1097	-	HAD-superfamily hydrolase
1073	 28.37	0	1100305..1100808	+	167	157737344	-	Abu_1098	-	hypothetical protein
1074	 27.43	0	1100808..1101518	+	236	157737345	-	Abu_1099	-	hypothetical protein
1075	 23.12	-1	1101546..1101731	+	61	157737346	-	Abu_1100	-	hypothetical protein
1076	 24.58	0	1101751..1103670	+	639	157737347	-	Abu_1101	-	TonB-dependent receptor protein
1077	 22.62	-1	1103672..1104502	+	276	157737348	-	Abu_1102	-	putative iron compound ABC transporter, periplasmic substrate-binding protein
1078	 21.37	-1	1104480..1105181	+	233	157737349	-	Abu_1103	-	putative iron compound ABC transporter, ATP-binding protein
1079	 23.47	-1	1105178..1106140	+	320	157737350	-	Abu_1104	-	putative iron compound ABC transporter, permease protein
1080	 23.17	-1	1106134..1106625	-	163	157737351	-	Abu_1105	-	phosphohistidine phosphatase
1081	 23.39	-1	1106638..1108407	-	589	157737352	-	Abu_1106	-	ABC transporter, ATP-binding protein
1082	 29.32	0	1108503..1108751	+	82	157737353	-	Abu_1107	-	hypothetical protein
1083	 25.53	0	1108741..1109406	+	221	157737354	-	Abu_1108	-	two-component response regulator
1084	 22.22	-1	1109363..1110550	+	395	157737355	-	Abu_1109	-	two-component sensor histidine kinase
1085	 24.85	0	1110544..1110885	+	113	157737356	-	Abu_1110	-	hypothetical protein
1086	 31.81	+1	1110956..1111414	+	152	157737357	-	Abu_1111	-	hypothetical protein
1087	 27.08	0	1111442..1112257	-	271	157737358	-	Abu_1112	-	hypothetical protein
1088	 22.48	-1	1112315..1112830	+	171	157737359	-	Abu_1113	-	hypothetical protein
1089	 19.63	-2	1112840..1113715	-	291	157737360	-	Abu_1114	-	GGDEF domain-containing protein
1090	 22.86	-1	1113909..1114223	+	104	157737361	-	Abu_1115	-	hypothetical protein
1091	 28.41	0	1114230..1115285	-	351	157737362	-	Abu_1116	-	putative ATP-dependent RNA helicase RhlE
1092	 22.39	-1	1115668..1117047	+	459	157737363	-	Abu_1117	-	two-component sensor histidine kinase
1093	 21.01	-1	1117044..1117733	+	229	157737364	-	Abu_1118	-	two-component response regulator
1094	 27.33	0	1118036..1120600	+	854	157737365	-	Abu_1119	-	hypothetical protein
1095	 27.74	0	1120626..1122788	+	720	157737366	-	Abu_1120	-	ABC transporter, transmembrane region
1096	 26.87	0	1122781..1124250	+	489	157737367	-	Abu_1121	-	HlyD family secretion protein
1097	 21.55	-1	1124257..1124850	+	197	157737368	-	Abu_1122	-	two-component response regulator
1098	 25.67	0	1124920..1125519	+	199	157737369	-	Abu_1123	-	hypothetical protein
1099	 21.81	-1	1125516..1127390	+	624	157737370	-	Abu_1124	-	EAL/GGDEF/HAMP domain-containing protein
1100	 27.83	0	1127464..1128498	+	344	157737371	aroB	Abu_1125	-	3-dehydroquinate synthase
1101	 24.71	0	1128500..1130239	+	579	157737372	-	Abu_1126	-	hypothetical protein
1102	 28.13	0	1130243..1131511	+	422	157737373	-	Abu_1127	-	MiaB-like tRNA modifying enzyme
1103	 26.61	0	1131492..1132964	+	490	157737374	ftsH2	Abu_1128	-	cell division protein FtsH
1104	 24.47	0	1132951..1133469	+	172	157737375	-	Abu_1129	-	hypothetical protein
1105	 32.22	+1	1133466..1134002	+	178	157737376	mog	Abu_1130	-	molybdenum cofactor biosynthesis protein Mog
1106	 27.80	0	1134017..1134631	-	204	157737377	ribB	Abu_1131	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
1107	 28.03	0	1134991..1135575	+	194	157737378	-	Abu_1132	-	hypothetical protein
1108	 21.52	-1	1135585..1136109	+	174	157737379	-	Abu_1133	-	hypothetical protein
1109	 29.58	0	1136127..1136366	+	79	157737380	-	Abu_1134	-	hypothetical protein
1110	 20.04	-1	1136363..1139695	+	1110	157737381	-	Abu_1135	-	hypothetical protein
1111	 25.85	0	1139700..1140113	+	137	157737382	-	Abu_1136	-	hypothetical protein
1112	 28.86	0	1140127..1140372	-	81	157737383	-	Abu_1137	-	hypothetical protein
1113	 16.05	-2	1140468..1140710	+	80	157737384	-	Abu_1138	-	hypothetical protein
1114	 23.33	-1	1140762..1141241	+	159	157737385	-	Abu_1139	-	hypothetical protein
1115	 23.99	0	1141351..1142838	+	495	157737386	-	Abu_1140	-	ABC transporter, ATP-binding protein
1116	 25.28	0	1142902..1143348	+	148	157737387	-	Abu_1141	-	hypothetical protein
1117	 26.60	0	1143508..1144101	+	197	157737388	torC	Abu_1142	-	cytochrome c-type protein TorC
1118	 31.00	+1	1144098..1146581	+	827	157737389	bisC	Abu_1143	-	biotin sulfoxide reductase
1119	 25.79	0	1146607..1147428	-	273	157737390	-	Abu_1144	-	alpha/beta hydrolase fold protein
1120	 24.24	0	1147505..1148098	+	197	157737391	-	Abu_1145	-	TetR family transcriptional regulator
1121	 26.98	0	1148145..1150346	+	733	157737392	mutS2	Abu_1146	-	recombination and DNA strand exchange inhibitor protein
1122	 28.77	0	1150336..1151673	-	445	157737393	-	Abu_1147	-	putative efflux protein
1123	 20.18	-1	1151764..1152318	-	184	157737394	-	Abu_1148	-	hypothetical protein
1124	 22.21	-1	1152405..1155164	-	919	157737395	-	Abu_1149	-	hypothetical protein
1125	 29.70	0	1155252..1156352	+	366	157737396	dapE	Abu_1150	-	succinyl-diaminopimelate desuccinylase
1126	 34.77	+2	1156461..1157780	+	439	157737397	amtB	Abu_1151	-	ammonium transporter
1127	 30.09	0	1157800..1158138	+	112	157737398	glnB2	Abu_1152	-	nitrogen regulatory protein PII
26.98	MEAN

3.50	STD DEV
