IslandPath Analysis: Arthrobacter aurescens TC1

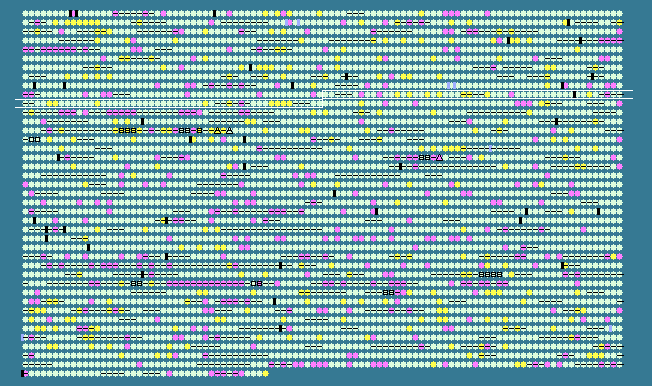

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.44 STD DEV: 2.70
Arthrobacter aurescens TC1, complete genome - 1..4597686
4041 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
951	 59.15	-1	1051728..1053044	+	438	119963867	-	AAur_0994	-	putative FemAB family protein
952	 63.04	0	1053072..1054559	+	495	119964452	-	AAur_0995	-	hypothetical protein
953	 64.17	0	1054619..1055458	-	279	119962939	-	AAur_0996	-	putative iron-chelator utilization protein
954	 65.19	+1	1055528..1056202	-	224	119961149	ung	AAur_0997	-	uracil-DNA glycosylase
955	 62.18	0	1056429..1056740	+	103	119962707	-	AAur_0998	-	hypothetical protein
956	 64.90	0	1056790..1057410	+	206	119963256	-	AAur_0999	-	hypothetical protein
957	 57.84	-1	1057583..1057786	+	67	119961765	-	AAur_1000	-	putative cold shock protein
958	 62.18	0	1058110..1059735	+	541	119960876	groEL	AAur_1001	-	chaperonin GroEL
959	 62.94	0	1059960..1061087	+	375	119960568	-	AAur_1002	-	putative RNase H
960	 55.33	-2	1061201..1061491	-	96	119962059	-	AAur_1003	-	hypothetical protein
961	 62.64	0	1063081..1063800	-	239	119963548	-	AAur_1005	-	response regulator of two-component system
962	 64.31	0	1063880..1064515	-	211	119961197	-	AAur_1006	-	LysE family translocator protein
963	 66.67	+1	1064584..1065525	+	313	119962663	-	AAur_1007	-	chromosome replication initiation inhibitor protein
964	 60.36	0	1065586..1065807	+	73	119963843	-	AAur_1008	-	hypothetical protein
965	 65.93	+1	1065829..1067988	-	719	119961029	-	AAur_1009	-	putative multicopper oxidase family protein
966	 60.76	0	1068034..1068507	-	157	119963937	-	AAur_1010	-	hypothetical protein
967	 63.29	0	1068719..1070377	-	552	119961251	-	AAur_1011	-	putative ATP-dependent DNA helicase
968	 65.94	+1	1070421..1072886	-	821	119962941	-	AAur_1012	-	hypothetical protein
969	 61.98	0	1073382..1073765	+	127	119963261	-	AAur_1013	-	putative cold shock protein
970	 66.16	+1	1073774..1074361	+	195	119961864	-	AAur_1014	-	hypothetical protein
971	 65.06	0	1074405..1075712	+	435	119962255	-	AAur_1015	-	putative transmembrane efflux protein (MFS)
972	 65.16	+1	1075779..1076909	-	376	119961064	-	AAur_1016	-	phosphoserine aminotransferase
973	 62.93	0	1077203..1077898	+	231	119961741	-	AAur_1017	-	putative iron-dependent repressor
974	 68.46	+2	1078326..1079162	+	278	119962355	-	AAur_1018	-	M23 peptidase domain-containing protein
975	 66.29	+1	1079808..1080596	+	262	119961735	-	AAur_1019	-	hypothetical protein
976	 59.68	-1	1080813..1081313	+	166	119960536	-	AAur_1020	-	HNH endonuclease domain-containing protein
977	 64.76	0	1081356..1082300	+	314	119963939	-	AAur_1021	-	putative molybdopterin-guanine dinucleotide biosynthesis protein (mobA)
978	 65.93	+1	1082297..1083655	+	452	119961425	-	AAur_1022	-	putative molybdopterin biosynthesis protein (MoeA)
979	 60.92	0	1083683..1086013	+	776	119964214	-	AAur_1023	-	putative formate dehydrogenase
980	 64.87	0	1086015..1086905	+	296	119963927	fdhD	AAur_1024	-	formate dehydrogenase family accessory protein FdhD
981	 63.30	0	1087053..1090082	+	1009	119961757	-	AAur_1025	-	putative alpha-mannosidase
982	 56.75	-2	1090115..1091122	-	335	119964474	-	AAur_1026	-	hypothetical protein
983	 59.09	-1	1091125..1092021	-	298	119961001	-	AAur_1027	-	hypothetical protein
984	 62.58	0	1092068..1092874	-	268	119963324	-	AAur_1028	-	putative amino acid ABC transporter, ATP-binding protein
985	 61.67	0	1092861..1093520	-	219	119964017	-	AAur_1029	-	putative amino acid ABC transporter, permease protein
986	 61.40	0	1093521..1094336	-	271	119961444	-	AAur_1030	-	putative amino acid ABC transporter
987	 59.60	-1	1094567..1095274	-	235	119963273	-	AAur_1031	-	putative integral membrane protein
988	 65.15	+1	1095271..1095993	-	240	119962658	-	AAur_1032	-	hypothetical protein
989	 65.04	0	1096205..1097866	+	553	119960930	-	AAur_1033	-	putative ABC transporter, ATP-binding protein
990	 64.84	0	1097869..1099782	+	637	119961230	-	AAur_1034	-	putative ABC transporter, ATP-binding protein
991	 64.73	0	1099790..1100203	-	137	119963570	-	AAur_1035	-	MutT/nudix family protein
992	 61.22	0	1100200..1100658	-	152	119964461	-	AAur_1036	-	hypothetical protein
993	 64.91	0	1100841..1101638	+	265	119962674	-	AAur_1038	-	hypothetical protein
994	 62.52	0	1101798..1102376	-	192	119963063	-	AAur_1039	-	hypothetical protein
995	 66.43	+1	1102458..1103303	+	281	119963580	-	AAur_1040	-	extragenic suppressor protein
996	 63.96	0	1103383..1105929	+	848	119964268	pcrA	AAur_1041	-	ATP-dependent DNA helicase PcrA
997	 61.37	0	1105926..1106642	+	238	119961330	-	AAur_1042	-	putative lipoprotein
998	 55.21	-2	1106805..1106900	-	31	119962959	-	AAur_1043	-	hypothetical protein
999	 62.31	0	1106907..1108076	+	389	119964224	sucC	AAur_1044	-	succinyl-CoA synthetase subunit beta
1000	 62.13	0	1108089..1108991	+	300	119962638	sucD	AAur_1045	-	succinyl-CoA synthetase subunit alpha
1001	 61.73	0	1109129..1112047	-	972	119963150	-	AAur_1046	-	FG-GAP repeat-containing protein
1002	 64.02	0	1112169..1112960	-	263	119961865	-	AAur_1047	-	putative glutamine amidotransferases
1003	 65.80	+1	1113118..1114155	+	345	119961375	-	AAur_1048	-	hypothetical protein
1004	 65.28	+1	1114174..1115109	-	311	119963614	-	AAur_1049	-	hypothetical protein
1005	 65.95	+1	1115229..1116065	-	278	119962085	-	AAur_1050	-	hypothetical protein
1006	 67.53	+1	1116208..1117365	-	385	119962172	-	AAur_1051	-	putative integral membrane protein
1007	 60.93	0	1117360..1117812	+	150	119962832	-	AAur_1053	-	hypothetical protein
1008	 63.33	0	1117809..1118138	-	109	119963530	-	AAur_1052	-	hypothetical protein
1009	 63.04	0	1118781..1120298	-	505	119963954	-	AAur_1054	-	putative sodium:solute symporter family protein
1010	 62.85	0	1120565..1121140	+	191	119962079	-	AAur_1055	-	helix-turn-helix domain-containing protein
1011	 61.84	0	1121169..1122038	-	289	119962275	-	AAur_1056	-	hypothetical protein
1012	 62.87	0	1122294..1124267	-	657	119963352	-	AAur_1057	-	regulatory protein
1013	 66.11	+1	1124489..1125559	+	356	119961107	-	AAur_1058	-	putative agmatinase (speB)
1014	 65.20	+1	1125556..1127259	+	567	119961675	-	AAur_1059	-	putative acetolactate synthase, large subunit
1015	 62.73	0	1127483..1127965	+	160	119962263	-	AAur_1060	-	MarR family transcriptional regulator
1016	 64.13	0	1127976..1130024	+	682	119963010	-	AAur_1061	-	EmrB/QacA family drug resistance transporter
1017	 61.25	0	1130327..1132060	+	577	119964354	-	AAur_1062	-	putative ABC transporter, ATP-binding protein
1018	 60.62	0	1132216..1134135	+	639	119961420	-	AAur_1063	-	putative ABC transporter, ATP-binding protein
1019	 59.95	0	1134192..1134608	+	138	119961552	-	AAur_1064	-	hypothetical protein
1020	 62.75	0	1134634..1135398	+	254	119963203	-	AAur_1065	-	putative copper homeostasis protein CutC
1021	 63.89	0	1135615..1138713	+	1032	119962752	-	AAur_1066	-	hypothetical protein
1022	 65.50	+1	1138766..1140652	+	628	119964478	-	AAur_1067	-	TPR repeat-containing protein
1023	 64.34	0	1140743..1141345	+	200	119961060	-	AAur_1068	-	hypothetical protein
1024	 62.49	0	1141498..1143654	+	718	119962222	-	AAur_1069	-	hypothetical protein
1025	 65.10	0	1143641..1144978	+	445	119962877	-	AAur_1070	-	hypothetical protein
1026	 60.71	0	1145012..1145263	+	83	119962328	-	AAur_1071	-	putative integral membrane protein
1027	 61.25	0	1145267..1146892	-	541	119963101	-	AAur_1072	-	signal transduction histidine kinase domain-containing protein
1028	 59.81	0	1147037..1147780	+	247	119964131	-	AAur_1074	-	two-component system response regulator
1029	 61.99	0	1147777..1148097	-	106	119960623	-	AAur_1073	-	ferredoxin
1030	 65.50	+1	1148104..1149564	-	486	119961284	-	AAur_1075	-	aldehyde dehydrogenase (NAD) family protein
1031	 66.30	+1	1149606..1150418	-	270	119963281	-	AAur_1076	-	short chain dehydrogenase/reductase family oxidoreductase
1032	 64.76	0	1150418..1151362	-	314	119962692	-	AAur_1077	-	dihydrodipicolinate synthetase
1033	 65.18	+1	1151410..1152216	-	268	119961775	-	AAur_1078	-	putative enoyl-CoA hydratase/isomerase family protein
1034	 63.33	0	1152213..1153472	-	419	119962501	-	AAur_1079	-	CAIB/BAIF family acyl-CoA thioesterase
1035	 65.94	+1	1153469..1154851	-	460	119964182	-	AAur_1080	-	FAD dependent oxidoreductase domain-containing protein
1036	 61.94	0	1154861..1156192	-	443	119964366	kgtP	AAur_1081	-	alpha-ketoglutarate permease
1037	 58.71	-1	1156357..1156884	-	175	119962787	-	AAur_1082	-	helix-turn-helix domain-containing protein
1038	 60.10	0	1157047..1157427	-	126	119963482	-	AAur_1083	-	hypothetical protein
1039	 63.79	0	1157618..1157791	+	57	119962036	-	AAur_1085	-	hypothetical protein
1040	 60.56	0	1157788..1158180	-	130	119962031	-	AAur_1084	-	putative DNA mismatch endonuclease (vsr)
1041	 64.92	0	1158238..1159383	-	381	119962488	-	AAur_1086	-	putative cytochrome P450
1042	 67.11	+1	1159392..1160075	-	227	119963407	bioD	AAur_1087	-	dethiobiotin synthase
1043	 66.32	+1	1160072..1161229	-	385	119964318	bioF	AAur_1088	-	8-amino-7-oxononanoate synthase
1044	 66.59	+1	1161238..1162563	-	441	119963601	bioA	AAur_1089	-	adenosylmethionine-8-amino-7-oxononanoate aminotransferase
1045	 67.69	+1	1162578..1162772	+	64	119961405	-	AAur_1090	-	hypothetical protein
1046	 64.04	0	1162784..1163851	-	355	119964050	bioB	AAur_1091	-	biotin synthase
1047	 61.52	0	1164014..1165741	+	575	119963649	-	AAur_1092	-	hypothetical protein
1048	 60.75	0	1165847..1166032	-	61	119962550	-	AAur_1093	-	putative CsbD-like family protein
1049	 60.93	0	1166201..1167124	+	307	119960533	-	AAur_1094	-	short chain dehydrogenase/reductase family oxidoreductase
1050	 62.16	0	1167149..1168324	-	391	119963903	-	AAur_1095	-	putative glutathione-dependent formaldehyde dehydrogenase
62.44	MEAN

2.70	STD DEV
