IslandPathversion 1.0

IslandPath Analysis: Arthrobacter aurescens TC1

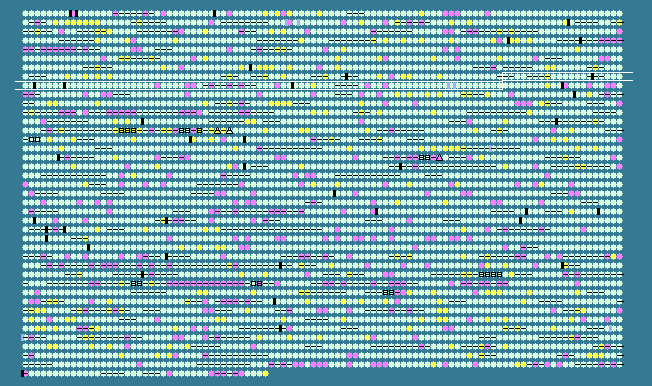

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.44 STD DEV: 2.70
Arthrobacter aurescens TC1, complete genome - 1..4597686
4041 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
781	 63.99	0	849404..851008	+	534	119963602	-	AAur_0815	-	putative ABC transporter, ATP-binding protein
782	 63.71	0	851075..852493	+	472	119961216	-	AAur_0816	-	putative oxidoreductase
783	 62.22	0	852656..853330	-	224	119961400	-	AAur_0817	-	hypothetical protein
784	 64.31	0	854077..856113	-	678	119963733	-	AAur_0819	-	putative ABC-2 type transporter
785	 65.17	+1	856110..856910	-	266	119964266	-	AAur_0820	-	hypothetical protein
786	 63.31	0	856982..858439	-	485	119962564	-	AAur_0821	-	pyridine nucleotide-disulphide oxidoreductase domain-containing protein
787	 62.90	0	858595..859416	+	273	119963108	-	AAur_0822	-	putative thiosulfate sulfurtransferase
788	 66.96	+1	859484..860170	-	228	119962371	-	AAur_0823	-	N-acetylmannosamine-6-phosphate 2-epimerase
789	 65.34	+1	860193..861173	-	326	119962420	-	AAur_0824	-	putative glucokinase
790	 64.08	0	861170..862096	-	308	119961819	-	AAur_0825	-	putative dihydrodipicolinate synthase
791	 63.73	0	862134..862949	-	271	119963266	-	AAur_0826	-	putative ABC transporter, ATP-binding protein
792	 64.20	0	862946..865057	-	703	119962917	-	AAur_0827	-	putative ABC-type dipeptide/oligopeptide transport system, ATPase component
793	 62.38	0	865061..866017	-	318	119963503	-	AAur_0828	-	putative ABC-type dipeptide/oligopeptide transport systems, permease components
794	 61.38	0	866119..867822	-	567	119962121	-	AAur_0829	-	extracellular solute-binding family protein 5
795	 60.36	0	868079..868807	+	242	119960666	-	AAur_0830	-	GntR family transcriptional regulator
796	 64.26	0	869304..871130	+	608	119961191	-	AAur_0832	-	phosphoenolpyruvate carboxykinase
797	 60.62	0	871220..872377	-	385	119961154	-	AAur_0833	-	putative flavohemoprotein
798	 62.42	0	872564..873034	-	156	119961490	-	AAur_0834	-	putative transcriptional regulator
799	 59.33	-1	873057..873506	-	149	119962070	-	AAur_0835	-	hypothetical protein
800	 62.51	0	873519..874937	-	472	119962905	manB	AAur_0836	-	phosphomannomutase
801	 65.19	+1	875063..877228	+	721	119963491	-	AAur_0837	-	ATP-dependent DNA helicase
802	 62.82	0	877360..878790	+	476	119964364	-	AAur_0838	-	putative transmembrane efflux protein (MFS)
803	 64.85	0	879098..881353	-	751	119963977	-	AAur_0840	-	putative prolyl oligopeptidase family protein
804	 64.96	0	881414..883351	+	645	119963165	-	AAur_0841	-	hypothetical protein
805	 61.62	0	883676..885142	+	488	119964229	-	AAur_0842	-	putative D-serine/D-alanine/glycine transporter
806	 63.93	0	885264..889793	-	1509	119961986	-	AAur_0843	-	putative 5'-nucleotidase family protein
807	 62.47	0	889984..890769	-	261	119962122	-	AAur_0844	-	putative glyoxalase family protein
808	 63.31	0	891152..892135	+	327	119962331	-	AAur_0846	-	putative quinone oxidoreductase
809	 63.33	0	892166..892705	+	179	119961269	-	AAur_0847	-	PadR family transcriptional regulator
810	 62.09	0	893256..895526	+	756	119964157	-	AAur_0848	-	putative carbon starvation protein CstA
811	 63.02	0	895539..895730	+	63	119961006	-	AAur_0849	-	hypothetical protein
812	 64.99	0	895822..896478	+	218	119963736	-	AAur_0850	-	hypothetical protein
813	 62.13	0	896487..896927	+	146	119962740	-	AAur_0851	-	hypothetical protein
814	 60.83	0	897064..897903	+	279	119963174	-	AAur_0852	-	putative 2,5-diketo-D-gluconic acid reductase
815	 64.05	0	898045..899001	+	318	119961286	-	AAur_0854	-	AsnC family transcriptional regulator
816	 63.42	0	898982..900430	-	482	119963957	-	AAur_0853	-	putative amidase
817	 63.78	0	900705..901466	+	253	119963650	-	AAur_0855	-	putative integral membrane protein
818	 62.59	0	901531..902265	+	244	119960633	-	AAur_0856	-	putative integral membrane protein
819	 65.61	+1	902309..903538	+	409	119962986	-	AAur_0857	-	putative metal-dependent amidase/aminoacylase/carboxypeptidase
820	 59.13	-1	903573..904196	+	207	119963438	-	AAur_0858	-	hypothetical protein
821	 60.98	0	904845..906338	-	497	119962315	-	AAur_0859	-	putative succinate-semialdehyde dehydrogenase
822	 59.46	-1	906774..907661	+	295	119961850	-	AAur_0860	-	putative transketolase subunit A
823	 58.07	-1	907658..908599	+	313	119963727	-	AAur_0861	-	putative transketolase subunit B
824	 61.93	0	908651..909664	+	337	119963239	fruK	AAur_0862	-	1-phosphofructokinase
825	 60.63	0	909752..910828	-	358	119962967	-	AAur_0863	-	putative NAD dependent epimerase/dehydratase family protein
826	 62.42	0	910954..911919	-	321	119963778	-	AAur_0864	-	putative NAD dependent epimerase/dehydratase family protein
827	 59.29	-1	911961..912299	-	112	119964100	-	AAur_0865	-	hypothetical protein
828	 57.82	-1	912315..912800	-	161	119961139	-	AAur_0866	-	hypothetical protein
829	 58.74	-1	912797..913591	-	264	119961440	-	AAur_0867	-	short chain dehydrogenase/reductase family oxidoreductase
830	 59.46	-1	913865..914752	-	295	119962134	-	AAur_0868	-	putative NAD dependent epimerase/dehydratase family protein
831	 61.18	0	914878..915843	-	321	119961761	-	AAur_0869	-	LysR family transcriptional regulator
832	 57.14	-1	916020..917027	+	335	119963367	-	AAur_0870	-	amidohydrolase family protein
833	 62.96	0	917024..917428	+	134	119963151	-	AAur_0871	-	NifU-like domain-containing protein
834	 59.40	-1	917430..918200	+	256	119962764	-	AAur_0872	-	short chain dehydrogenase
835	 58.94	-1	918515..919459	+	314	119964089	-	AAur_0873	-	putative ribose ABC transporter
836	 59.15	-1	919521..921050	+	509	119963390	rbsA	AAur_0874	-	ribose ABC transporter, ATP-binding protein
837	 58.18	-1	921167..922120	+	317	119962833	rbsC	AAur_0875	-	ribose ABC transporter, permease protein
838	 60.56	0	922266..923051	-	261	119964016	-	AAur_0876	-	putative 3-oxoacyl-[acyl-carrier protein] reductase
839	 60.25	0	923194..923988	+	264	119962190	-	AAur_0878	-	putative 3-oxoacyl-[acyl-carrier protein] reductase
840	 62.92	0	923985..925025	-	346	119960629	-	AAur_0877	-	luciferase-like monooxygenase family protein
841	 61.66	0	924964..926202	-	412	119961196	-	AAur_0879	-	putative transmembrane efflux protein (MFS)
842	 62.31	0	926351..926809	+	152	119963881	-	AAur_0880	-	MarR family transcriptional regulator
843	 57.87	-1	926838..928577	-	579	119963684	-	AAur_0881	-	GAF domain-containing protein
844	 65.09	0	928843..929604	-	253	119964342	-	AAur_0882	-	putative DJ-1/PfpI family protein
845	 62.21	0	929665..930561	+	298	119963293	-	AAur_0883	-	LysR family transcriptional regulator
846	 64.44	0	930975..931691	+	238	119961882	-	AAur_0886	-	putative phosphatase
847	 62.87	0	931688..933322	-	544	119962347	-	AAur_0885	-	putative proteinase
848	 64.93	0	933331..934482	-	383	119962705	-	AAur_0887	-	DNA polymerase III subunit delta'
849	 66.38	+1	934479..935168	-	229	119963206	tmk	AAur_0888	-	thymidylate kinase
850	 65.82	+1	935242..936426	+	394	119963670	metB	AAur_0889	-	cystathionine gamma-synthase
851	 65.50	+1	936437..936778	+	113	119962711	-	AAur_0890	-	putative integral membrane protein
852	 65.20	+1	936804..937622	-	272	119963664	-	AAur_0891	-	hypothetical protein
853	 62.57	0	937713..938468	+	251	119963163	gpm	AAur_0892	-	phosphoglycerate mutase
854	 62.08	0	938537..939190	-	217	119960962	phoU	AAur_0893	-	phosphate transport system regulatory protein PhoU
855	 64.79	0	939444..940670	+	408	119961879	-	AAur_0894	-	putative signal transduction histidine kinase
856	 62.29	0	940685..941347	+	220	119963579	-	AAur_0895	-	two-component system response regulator
857	 65.74	+1	941443..941979	-	178	119964320	-	AAur_0896	-	putative lipoprotein
858	 54.66	-2	942273..942755	+	160	119961222	-	AAur_0897	-	putative CarD-like transcriptional regulator
859	 65.02	0	942837..943625	+	262	119962498	ispD	AAur_0898	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
860	 65.77	+1	943625..944182	+	185	119961914	ispF	AAur_0899	-	2C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
861	 58.47	-1	944175..944528	+	117	119961887	-	AAur_0900	-	putative lipoprotein
862	 64.67	0	944564..946018	+	484	119960845	cysS	AAur_0901	-	cysteinyl-tRNA synthetase
863	 64.25	0	946099..947091	+	330	119962649	-	AAur_0902	-	TrmH family RNA methyltransferase , group 3
864	 65.68	+1	947891..948700	-	269	119962063	-	AAur_0903	-	carbon-nitrogen family hydrolase
865	 62.78	0	948918..951053	+	711	119961929	glgX	AAur_0904	-	glycogen debranching enzyme GlgX
866	 61.18	0	951093..951566	+	157	119961309	-	AAur_0905	-	putative ribonuclease
867	 61.67	0	951573..951932	+	119	119961966	-	AAur_0906	-	hypothetical protein
868	 65.22	+1	952053..954686	-	877	119961238	glgP	AAur_0907	-	alpha-glucan phosphorylase
869	 63.46	0	954803..956890	+	695	119962232	-	AAur_0908	-	alpha-amylase family protein
870	 61.21	0	956890..958686	+	598	119964419	treS	AAur_0909	-	trehalose synthase
871	 63.44	0	958688..962344	+	1218	161897607	glgB	AAur_0910	-	1,4-alpha-glucan branching enzyme
872	 62.15	0	968309..968950	+	213	119962398	-	AAur_0914	-	hypothetical protein
873	 62.92	0	968985..969464	+	159	119962339	-	AAur_0915	-	acetyltransferase, GNAT family protein
874	 64.13	0	969472..970494	-	340	119961341	-	AAur_0916	-	LacI family transcriptional regulator
875	 64.72	0	970515..972368	-	617	119963831	-	AAur_0917	-	alpha-amylase family protein
876	 61.74	0	972471..973769	+	432	119964139	malE	AAur_0918	-	maltose-binding protein
877	 61.97	0	973867..975525	+	552	119962957	malF	AAur_0919	-	maltose ABC transporter, permease protein
878	 60.99	0	975525..976457	+	310	119961563	malG	AAur_0920	-	maltose ABC transporter, permease protein
879	 64.53	0	976460..978382	+	640	119961116	-	AAur_0921	-	alpha-amylase family protein
880	 65.28	+1	978513..979958	+	481	119963639	-	AAur_0922	-	putative glycolate oxidase, subunit GlcD
62.44	MEAN

2.70	STD DEV
