IslandPath Analysis: Arthrobacter aurescens TC1

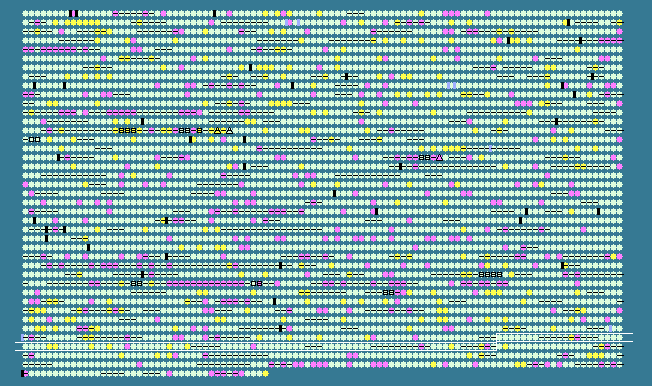

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.44 STD DEV: 2.70
Arthrobacter aurescens TC1, complete genome - 1..4597686
4041 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3680	 64.35	0	4204386..4205333	+	315	119964092	-	AAur_3834	-	polysaccharide deacetylase domain-containing protein
3681	 62.34	0	4205396..4205926	-	176	119961387	-	AAur_3835	-	hypothetical protein
3682	 64.40	0	4206028..4207218	-	396	119963573	-	AAur_3836	-	malate dehydrogenase (oxaloacetate-decarboxylating)
3683	 63.59	0	4208236..4209438	+	400	119962667	-	AAur_3838	-	FG-GAP repeat-containing protein
3684	 65.71	+1	4209490..4210635	+	381	119963282	-	AAur_3839	-	FG-GAP repeat-containing protein
3685	 60.84	0	4210674..4211891	+	405	119961457	-	AAur_3840	-	FG-GAP repeat-containing protein
3686	 60.23	0	4211922..4213226	-	434	119961784	-	AAur_3841	-	major facilitator transporter
3687	 59.92	0	4213384..4213857	+	157	119964128	-	AAur_3842	-	ribonuclease activity regulator protein RraA
3688	 61.89	0	4213990..4215642	+	550	119963998	-	AAur_3843	-	EmrB/QacA family drug resistance transporter
3689	 63.61	0	4215966..4217435	+	489	119961279	-	AAur_3844	-	putative sugar MFS transporter
3690	 63.12	0	4217490..4218728	-	412	119963484	-	AAur_3845	-	major facilitator transporter
3691	 63.49	0	4218759..4219199	-	146	119962370	-	AAur_3846	-	MarR family transcriptional regulator
3692	 66.48	+1	4219260..4219784	-	174	119961019	-	AAur_3847	-	acetyltransferase, GNAT family protein
3693	 56.67	-2	4219880..4220209	+	109	119960537	-	AAur_3848	-	PadR family transcriptional regulator
3694	 60.11	0	4220211..4220576	+	121	119964520	-	AAur_3849	-	hypothetical protein
3695	 61.79	0	4220573..4221352	+	259	119963955	-	AAur_3850	-	putative ABC transporter, ATP-binding protein
3696	 60.50	0	4221349..4222110	+	253	119961898	-	AAur_3851	-	putative ABC transporter, efflux permease protein
3697	 61.71	0	4222242..4223735	+	497	119962337	-	AAur_3852	-	putative D-serine/D-alanine/glycine transporter
3698	 59.69	-1	4223822..4228495	-	1557	119963255	-	AAur_3853	-	hypothetical protein
3699	 61.00	0	4228692..4229450	-	252	119964105	-	AAur_3854	-	putative iron ABC transporter, ATP-binding protein
3700	 61.31	0	4229476..4230408	-	310	119960957	-	AAur_3855	-	putative ABC-type Fe3+-siderophores transport system, permease component
3701	 62.74	0	4230503..4231495	-	330	119962768	-	AAur_3856	-	putative iron(III) ABC transporter, permease protein
3702	 62.15	0	4231522..4232472	-	316	119962866	-	AAur_3857	-	putative iron ABC transporter, priplasmic binding protein
3703	 64.75	0	4232644..4233792	-	382	119963989	mtlD	AAur_3858	-	mannitol-1-phosphate 5-dehydrogenase
3704	 62.20	0	4233792..4235852	-	686	119962212	mtlA	AAur_3859	-	PTS system, mannitol-specific IIABC component
3705	 67.64	+1	4236831..4238471	+	546	119963233	ptsI	AAur_3861	-	phosphoenolpyruvate-protein phosphotransferase
3706	 70.97	+2	4238502..4238780	+	92	119962898	-	AAur_3862	-	phosphocarrier protein HPr
3707	 64.98	0	4238901..4239314	+	137	119964492	-	AAur_3863	-	excisionase family protein
3708	 63.66	0	4239333..4239998	+	221	119964025	-	AAur_3864	-	hypothetical protein
3709	 65.53	+1	4240013..4240804	+	263	119963347	-	AAur_3865	-	alpha/beta fold family hydrolase
3710	 63.51	0	4240896..4241180	+	94	119962040	-	AAur_3866	-	hypothetical protein
3711	 62.16	0	4241184..4242248	-	354	119960689	ligC	AAur_3867	-	ATP-dependent DNA ligase
3712	 70.50	+2	4242659..4243963	+	434	119963606	-	AAur_3868	-	hypothetical protein
3713	 62.62	0	4244096..4245430	-	444	119963005	-	AAur_3869	-	hypothetical protein
3714	 65.42	+1	4245519..4246637	+	372	119961841	ald	AAur_3870	-	alanine dehydrogenase
3715	 71.18	+2	4246705..4247568	-	287	119963265	-	AAur_3871	-	hypothetical protein
3716	 61.43	0	4247565..4248137	-	190	119963348	-	AAur_3872	-	putative RNA polymerase sigma (70) factor
3717	 64.86	0	4249088..4250137	-	349	119960958	-	AAur_3873	-	oxidoreductase family protein
3718	 58.33	-1	4250242..4250337	+	31	119964108	-	AAur_3874	-	hypothetical protein
3719	 59.55	-1	4250341..4252068	-	575	119963467	-	AAur_3875	-	putative ABC-type dipeptide/oligopeptide transport system
3720	 62.92	0	4252145..4254304	-	719	119960807	-	AAur_3876	-	putative oligopeptide/dipeptide ABC transporter, ATP-binding protein
3721	 61.32	0	4254301..4255272	-	323	119964289	-	AAur_3877	-	putative ABC-type dipeptide/oligopeptide transport system, permease component
3722	 62.50	0	4255272..4256255	-	327	119964233	-	AAur_3878	-	putative ABC-type dipeptide/oligopeptide transport systems, permease components
3723	 64.94	0	4256586..4257164	-	192	119963194	-	AAur_3879	-	TetR family transcriptional regulator
3724	 65.26	+1	4257316..4257885	+	189	119962490	-	AAur_3880	-	putative NADPH-dependent FMN reductase
3725	 68.15	+2	4258068..4258877	+	269	119961339	-	AAur_3881	-	putative lipoprotein
3726	 63.41	0	4258907..4259398	-	163	119963940	-	AAur_3882	-	hypothetical protein
3727	 62.39	0	4259427..4260524	-	365	119964397	-	AAur_3883	-	hypothetical protein
3728	 66.30	+1	4260629..4261456	-	275	119962901	-	AAur_3884	-	hypothetical protein
3729	 62.92	0	4261588..4262895	+	435	119962376	-	AAur_3885	-	aminotransferase classes I and II protein
3730	 63.64	0	4262892..4263320	+	142	119961793	-	AAur_3886	-	universal stress family domain-containing protein
3731	 61.06	0	4263467..4263805	+	112	119964283	-	AAur_3888	-	hypothetical protein
3732	 62.26	0	4263786..4265216	-	476	119963611	-	AAur_3887	-	putative amino acid permease
3733	 61.93	0	4265429..4266526	+	365	119963128	-	AAur_3889	-	amidohydrolase family protein
3734	 62.64	0	4266538..4267257	-	239	119962613	-	AAur_3890	-	PAP2 superfamily domain-containing protein
3735	 62.52	0	4267250..4268815	-	521	119962336	-	AAur_3891	-	branched-chain alpha-keto acid dehydrogenase subunit E2
3736	 60.24	0	4268916..4269896	-	326	119963718	-	AAur_3892	-	pyruvate dehydrogenase E1 component, beta subunit
3737	 62.05	0	4269896..4271086	-	396	119961173	-	AAur_3893	-	putative pyruvate dehydrogenase E1 (lipoamide) alpha subunit
3738	 59.58	-1	4271238..4272422	-	394	119964129	-	AAur_3894	-	putative histidinol-phosphate aminotransferase
3739	 56.88	-2	4272429..4272857	+	142	119962418	-	AAur_3895	-	hypothetical protein
3740	 60.36	0	4272891..4274381	-	496	119962014	-	AAur_3896	-	hypothetical protein
3741	 63.26	0	4274711..4276117	+	468	119962455	purB	AAur_3897	-	adenylosuccinate lyase
3742	 64.56	0	4276415..4277077	+	220	119962181	-	AAur_3898	-	phosphoglycerate mutase family protein
3743	 61.90	0	4277077..4277727	+	216	119962739	-	AAur_3899	-	acetyltransferase, GNAT family protein
3744	 60.00	0	4277798..4278232	+	144	119961790	-	AAur_3900	-	putative acyl-CoA thioester hydrolase
3745	 62.71	0	4279466..4280806	-	446	119961370	-	AAur_3902	-	major facilitator transporter
3746	 62.92	0	4280862..4281875	-	337	119964138	-	AAur_3903	-	allophanate hydrolase subunit 2
3747	 64.09	0	4281872..4282609	-	245	119961506	-	AAur_3904	-	putative allophanate hydrolase subunit 1 family protein
3748	 64.26	0	4282611..4283399	-	262	119961015	-	AAur_3905	-	putative LamB/YcsF family protein
3749	 62.12	0	4283700..4284644	+	314	119960603	nac	AAur_3906	-	nitrogen assimilation regulatory protein
3750	 62.71	0	4284799..4284975	-	58	119963846	-	AAur_3907	-	hypothetical protein
3751	 64.15	0	4285221..4285895	-	224	119961483	-	AAur_3908	-	putative demethylmenaquinone methyltransferase
3752	 63.69	0	4285924..4287132	-	402	119962846	-	AAur_3909	-	aspartate aminotransferase
3753	 59.86	0	4287131..4287982	+	283	119962202	-	AAur_3910	-	hypothetical protein
3754	 59.89	0	4288198..4288551	+	117	119961749	-	AAur_3911	-	hypothetical protein
3755	 63.06	0	4288553..4289356	-	267	119962508	-	AAur_3912	-	putative 2,4-dihydroxyhept-2-ene-1,7-dioic acid aldolase (HpaI)
3756	 63.74	0	4289341..4290126	-	261	119960746	hpaH	AAur_3913	-	2-oxo-hepta-3-ene-1,7-dioic acid hydratase
3757	 63.69	0	4291265..4292776	-	503	119963066	hpaE	AAur_3915	-	5-carboxymethyl-2-hydroxymuconate semialdehyde dehydrogenase
3758	 64.45	0	4292791..4293468	-	225	119962632	-	AAur_3916	-	GntR family transcriptional regulator
3759	 65.58	+1	4293461..4294930	-	489	119961228	-	AAur_3917	-	hypothetical protein
3760	 61.51	0	4295183..4295725	+	180	119960836	-	AAur_3918	-	hypothetical protein
3761	 64.36	0	4295822..4296472	+	216	119961257	-	AAur_3919	-	putative esterase/lipase
3762	 61.78	0	4296477..4296926	-	149	119962383	-	AAur_3920	-	hypothetical protein
3763	 59.09	-1	4297112..4297309	+	65	119961362	-	AAur_3921	-	putative CsbD-like family protein
3764	 61.48	0	4297614..4297883	+	89	119962303	-	AAur_3922	-	putative integral membrane protein
3765	 62.07	0	4297876..4298136	+	86	119963222	-	AAur_3923	-	hypothetical protein
3766	 61.11	0	4298281..4299144	+	287	119964142	-	AAur_3925	-	AraC family transcriptional regulator
3767	 57.27	-1	4299136..4299699	-	187	119963953	-	AAur_3924	-	putative isochorismatase family protein
3768	 63.57	0	4299751..4300686	-	311	119960737	-	AAur_3926	-	short chain dehydrogenase/reductase family oxidoreductase
3769	 62.31	0	4300787..4301590	-	267	119963329	-	AAur_3927	-	putative integral membrane protein
3770	 65.54	+1	4301718..4301894	-	58	119961740	-	AAur_3928	-	hypothetical protein
3771	 65.72	+1	4302042..4303949	-	635	119963039	-	AAur_3929	-	hypothetical protein
3772	 68.36	+2	4304045..4304221	-	58	119964499	-	AAur_3930	-	hypothetical protein
3773	 63.39	0	4304413..4304901	+	162	119963576	-	AAur_3931	-	putative stress-like protein (gls24)
3774	 65.10	0	4304898..4305089	+	63	119962054	-	AAur_3932	-	hypothetical protein
3775	 64.81	0	4305086..4305463	+	125	119961136	-	AAur_3933	-	hypothetical protein
3776	 63.92	0	4305460..4306041	+	193	119961709	-	AAur_3934	-	hypothetical protein
3777	 66.83	+1	4306038..4306643	+	201	119962052	-	AAur_3935	-	hypothetical protein
3778	 51.75	-2	4306644..4306757	-	37	119962994	-	AAur_3936	-	hypothetical protein
3779	 63.83	0	4306912..4307511	+	199	119963590	-	AAur_3937	-	putative RNA polymerase sigma (70) factor
62.44	MEAN

2.70	STD DEV
