IslandPath Analysis: Arthrobacter aurescens TC1

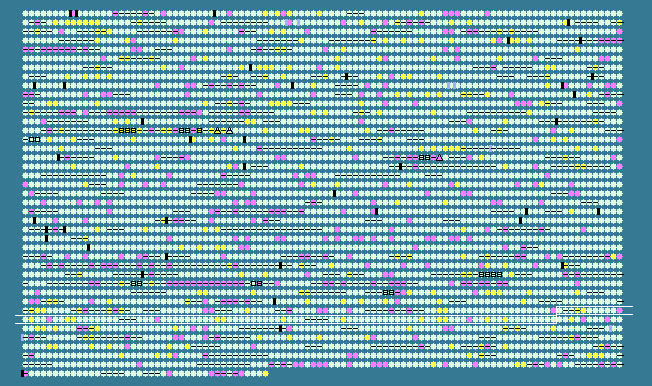

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.44 STD DEV: 2.70
Arthrobacter aurescens TC1, complete genome - 1..4597686
4041 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3390	 63.95	0	3879817..3880920	+	367	119963715	-	AAur_3530	-	hypothetical protein
3391	 63.58	0	3880930..3883587	-	885	119961094	-	AAur_3531	-	ClpA/ClpB family protein
3392	 60.52	0	3883736..3884353	+	205	119962562	-	AAur_3532	-	pyridoxamine 5'-phosphate oxidase family protein
3393	 66.85	+1	3884363..3885436	-	357	119963988	-	AAur_3533	-	molybdate ABC transporter, ATP-binding protein
3394	 66.26	+1	3885433..3886173	-	246	119964054	modB	AAur_3534	-	molybdate ABC transporter, permease protein
3395	 62.98	0	3886256..3887068	-	270	119962988	modA	AAur_3535	-	molybdate ABC transporter
3396	 63.02	0	3887065..3887475	-	136	119960543	-	AAur_3536	-	molybdenum-pterin binding domain-containing protein
3397	 65.17	+1	3887679..3889013	+	444	119961665	-	AAur_3537	-	putative oxidoreductase, FAD-binding
3398	 64.50	0	3889139..3890014	+	291	119961928	-	AAur_3538	-	hypothetical protein
3399	 62.81	0	3890110..3891768	+	552	119962338	-	AAur_3540	-	BNR/Asp-box repeat-containing protein
3400	 58.96	-1	3891765..3892166	-	133	119962534	-	AAur_3539	-	hypothetical protein
3401	 59.82	0	3892268..3892720	-	150	119963475	-	AAur_3541	-	hypothetical protein
3402	 66.50	+1	3892978..3893583	-	201	119961194	trpF	AAur_3542	-	N-(5'phosphoribosyl)anthranilate isomerase
3403	 64.46	0	3893738..3894325	+	195	119963816	-	AAur_3543	-	hypothetical protein
3404	 62.54	0	3894458..3894772	+	104	119962151	-	AAur_3544	-	putative multidrug resistance protein (sugE)
3405	 58.54	-1	3894775..3895143	+	122	119960673	-	AAur_3545	-	putative multidrug resistance protein (sugE)
3406	 63.18	0	3895348..3896352	+	334	119963007	-	AAur_3546	-	aldo/keto reductase family oxidoreductase
3407	 62.52	0	3896357..3897007	+	216	119963449	-	AAur_3547	-	metallo-beta-lactamase superfamily protein
3408	 66.90	+1	3897077..3898807	-	576	119963413	-	AAur_3548	-	putative ATP-dependent RNA helicase
3409	 66.74	+1	3899222..3900613	-	463	119963073	-	AAur_3549	-	major facilitator transporter
3410	 62.86	0	3900612..3901136	+	174	119961624	soxR	AAur_3550	-	redox-sensitive transcriptional activator SoxR
3411	 64.40	0	3901146..3901895	+	249	119964257	-	AAur_3552	-	methyltransferase small subunit
3412	 62.83	0	3901892..3902986	-	364	119962688	-	AAur_3551	-	putative transcriptional regulatory protein
3413	 63.96	0	3903071..3904288	+	405	119961943	-	AAur_3553	-	putative metal-dependent amidase/aminoacylase/carboxypeptidase
3414	 63.42	0	3904324..3905616	+	430	119960767	-	AAur_3554	-	major facilitator transporter
3415	 65.40	+1	3905693..3906955	-	420	119961319	-	AAur_3555	-	putative cyanate transporter
3416	 59.42	-1	3907107..3907520	+	137	119962230	-	AAur_3556	-	hypothetical protein
3417	 65.12	0	3907598..3908503	+	301	119960727	trmB	AAur_3557	-	tRNA (guanine-N(7)-)-methyltransferase
3418	 61.83	0	3908525..3908917	+	130	119962780	-	AAur_3558	-	hypothetical protein
3419	 63.84	0	3908917..3909411	+	164	119962006	-	AAur_3559	-	hypothetical protein
3420	 63.41	0	3909415..3910089	-	224	119961570	-	AAur_3560	-	hypothetical protein
3421	 60.82	0	3910086..3910598	-	170	119960693	-	AAur_3561	-	RNA polymerase ECF-subfamily sigma factor
3422	 62.30	0	3910729..3911277	+	182	119962348	-	AAur_3562	-	putative lipoprotein
3423	 56.86	-2	3911367..3912314	-	315	119961598	-	AAur_3563	-	hypothetical protein
3424	 62.62	0	3912366..3913082	+	238	119961395	-	AAur_3564	-	hypothetical protein
3425	 63.60	0	3913426..3914403	-	325	119964053	-	AAur_3565	-	putative ABC transporter, ATP-binding protein
3426	 64.76	0	3914405..3915244	-	279	119962754	-	AAur_3566	-	hypothetical protein
3427	 63.40	0	3915237..3916031	-	264	119962104	-	AAur_3567	-	hypothetical protein
3428	 60.17	0	3916051..3917112	+	353	119961183	-	AAur_3568	-	hypothetical protein
3429	 63.17	0	3917152..3920607	+	1151	119964500	-	AAur_3569	-	helicase/SNF2 family domain-containing protein
3430	 65.81	+1	3921078..3922250	-	390	119962334	-	AAur_3570	-	putative transmembrane efflux protein (MFS)
3431	 60.51	0	3922247..3922912	-	221	119961706	-	AAur_3571	-	GntR family transcriptional regulator
3432	 61.08	0	3922900..3923991	+	363	119961448	-	AAur_3572	-	hypothetical protein
3433	 66.14	+1	3924020..3925738	-	572	119964064	-	AAur_3573	-	amidase
3434	 67.23	+1	3925738..3926796	-	352	119962775	-	AAur_3574	-	putative peptidylarginine deiminase
3435	 65.44	+1	3927570..3928220	+	216	119963393	-	AAur_3576	-	hypothetical protein
3436	 63.36	0	3928411..3928833	+	140	119962299	-	AAur_3577	-	hypothetical protein
3437	 61.39	0	3928860..3929162	-	100	119960924	-	AAur_3578	-	putative integral membrane protein
3438	 61.48	0	3929319..3929858	+	179	119961456	-	AAur_3580	-	hypothetical protein
3439	 61.81	0	3929855..3930595	-	246	119963552	-	AAur_3579	-	IclR family transcriptional regulator
3440	 63.60	0	3930595..3931410	-	271	119964107	-	AAur_3581	-	IclR family transcriptional regulator
3441	 63.51	0	3931585..3932631	+	348	119964267	-	AAur_3582	-	putative alcohol dehydrogenase
3442	 60.85	0	3932713..3933606	+	297	119961502	-	AAur_3583	-	putative transketolase subunit A
3443	 61.41	0	3933603..3934535	+	310	119962136	-	AAur_3584	-	putative transketolase subunit B
3444	 68.72	+2	3934553..3934942	+	129	119962699	-	AAur_3585	-	hypothetical protein
3445	 61.07	0	3934971..3935738	+	255	119963696	-	AAur_3586	-	short chain dehydrogenase/reductase family oxidoreductase
3446	 65.71	+1	3935804..3936745	-	313	119964248	-	AAur_3587	-	putative alcohol dehydrogenase
3447	 59.60	-1	3936894..3938195	-	433	119960815	kgtP	AAur_3588	-	alpha-ketoglutarate permease
3448	 65.89	+1	3938451..3939227	+	258	119962511	-	AAur_3589	-	putative serine 3-dehydrogenase
3449	 65.01	0	3939309..3939731	-	140	119962567	hspR	AAur_3590	-	heat shock regulator protein HspR
3450	 62.59	0	3941562..3943427	-	621	119962235	dnaK	AAur_3593	-	molecular chaperone DnaK
3451	 65.59	+1	3943681..3944238	+	185	119961087	-	AAur_3595	-	hypothetical protein
3452	 61.57	0	3944213..3944977	-	254	119961681	-	AAur_3594	-	putative uncharacterized integral membrane protein
3453	 64.52	0	3945105..3945896	-	263	119960523	-	AAur_3596	-	hypothetical protein
3454	 66.99	+1	3946800..3947738	+	312	119961347	-	AAur_3598	-	putative NAD dependent epimerase/dehydratase family protein
3455	 61.84	0	3947759..3949621	+	620	119962510	-	AAur_3599	-	transcriptional regulator
3456	 62.35	0	3949622..3950455	-	277	119961915	-	AAur_3600	-	putative hydrolase, alpha/beta fold family protein
3457	 64.50	0	3950569..3951075	+	168	119963124	-	AAur_3601	-	putative integral membrane protein
3458	 59.69	-1	3951090..3951548	-	152	119962609	-	AAur_3602	-	hypothetical protein
3459	 63.74	0	3952094..3954523	+	809	119963822	-	AAur_3604	-	cation-transporting ATPase E1-E2 family
3460	 62.15	0	3954505..3954858	-	117	119963780	-	AAur_3603	-	putative integral membrane protein
3461	 63.69	0	3955049..3956629	+	526	119960928	-	AAur_3605	-	alkaline phosphatase family protein
3462	 64.70	0	3956707..3958233	-	508	119964417	betA	AAur_3606	-	choline dehydrogenase
3463	 62.75	0	3958416..3958721	-	101	119963830	-	AAur_3607	-	hypothetical protein
3464	 63.49	0	3958793..3959485	+	230	119963706	-	AAur_3608	-	hypothetical protein
3465	 62.93	0	3959529..3960812	+	427	119961430	-	AAur_3609	-	putative phage tail sheath family protein
3466	 61.46	0	3960814..3961293	+	159	119962408	-	AAur_3610	-	hypothetical protein
3467	 66.32	+1	3961533..3962981	+	482	119961830	-	AAur_3611	-	hypothetical protein
3468	 65.55	+1	3962978..3964498	+	506	119962814	-	AAur_3612	-	putative phage-related protein
3469	 61.65	0	3964537..3964875	+	112	119961213	-	AAur_3613	-	hypothetical protein
3470	 67.13	+1	3964889..3965323	+	144	119961210	-	AAur_3614	-	putative phage-related protein
3471	 66.48	+1	3965320..3967947	+	875	119964424	-	AAur_3615	-	putative phage-related protein
3472	 64.61	0	3967940..3968473	+	177	119962953	-	AAur_3616	-	phage tail domain-containing protein
3473	 63.64	0	3968997..3969920	+	307	119960662	-	AAur_3617	-	PASTA domain-containing protein
3474	 60.82	0	3969958..3971223	+	421	119961846	-	AAur_3618	-	aminotransferase AlaT
3475	 58.96	-1	3971307..3972020	+	237	119962295	-	AAur_3619	-	hypothetical protein
3476	 61.01	0	3972017..3973342	+	441	119961895	-	AAur_3620	-	surface protein
3477	 62.24	0	3973346..3974158	-	270	119964231	-	AAur_3621	-	putative integral membrane protein
3478	 68.49	+2	3974310..3974747	-	145	119963583	-	AAur_3622	-	hypothetical protein
3479	 62.94	0	3976872..3977462	+	196	119962482	-	AAur_3624	-	TetR family transcriptional regulator
3480	 64.33	0	3977463..3978104	-	213	119962273	-	AAur_3625	-	LysE family translocator protein
3481	 67.09	+1	3978266..3979678	+	470	119962801	maoB	AAur_3626	-	phenylacetaldehyde dehydrogenase
3482	 61.38	0	3979877..3980671	+	264	119962546	-	AAur_3627	-	prephenate dehydratase
3483	 65.80	+1	3980672..3982051	-	459	119964280	-	AAur_3628	-	FAD dependent oxidoreductase domain-containing protein
3484	 60.94	0	3982081..3983058	-	325	119963722	trxB	AAur_3629	-	thioredoxin-disulfide reductase
3485	 62.65	0	3983083..3983505	-	140	119960751	arsC	AAur_3630	-	arsenate reductase
3486	 63.73	0	3983642..3984016	-	124	119962250	-	AAur_3631	-	putative arsenate reductase
3487	 61.84	0	3984273..3985100	+	275	119962000	-	AAur_3632	-	MIP family protein
3488	 61.01	0	3985131..3985961	+	276	119963414	-	AAur_3633	-	putative integral membrane protein
3489	 61.90	0	3986073..3986450	+	125	119961752	-	AAur_3634	-	ArsR family transcriptional regulator
62.44	MEAN

2.70	STD DEV
