IslandPath Analysis: Arthrobacter aurescens TC1

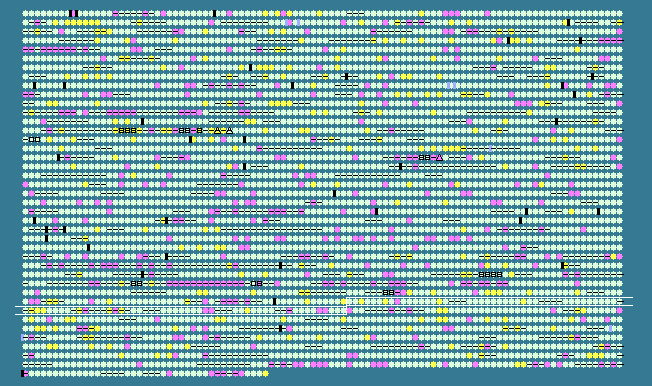

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.44 STD DEV: 2.70
Arthrobacter aurescens TC1, complete genome - 1..4597686
4041 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3255	 64.53	0	3734579..3735046	+	155	119964384	-	AAur_3393	-	acetyltransferase, GNAT family protein
3256	 65.60	+1	3735095..3737902	-	935	119963658	-	AAur_3394	-	aldehyde oxidase and xanthine dehydrogenase domain-containing protein
3257	 66.77	+1	3737892..3738830	-	312	119963463	-	AAur_3395	-	putative oxidoreductase
3258	 64.31	0	3738821..3740050	-	409	119961235	-	AAur_3396	-	putative xanthine dehydrogenase accessory factor
3259	 61.30	0	3740409..3741992	-	527	119963094	-	AAur_3397	-	putative xanthine/uracil permease family protein
3260	 61.62	0	3741999..3742493	-	164	119962522	-	AAur_3398	-	putative cytidine/deoxycytidylate deaminase
3261	 67.19	+1	3742907..3744253	+	448	119962401	-	AAur_3399	-	hydroxydechloroatrazine ethylaminohydrolase
3262	 62.25	0	3744353..3745891	-	512	119960608	-	AAur_3400	-	putative lipoprotein
3263	 58.68	-1	3746270..3747208	+	312	119961229	-	AAur_3401	-	hypothetical protein
3264	 61.64	0	3747999..3748913	+	304	119964195	-	AAur_3402	-	putative uricase (urate oxidase)
3265	 61.83	0	3749105..3750613	+	502	119962636	ncs2	AAur_3403	-	uracil-xanthine permease
3266	 63.56	0	3750745..3751227	+	160	119963592	-	AAur_3404	-	hypothetical protein
3267	 65.48	+1	3751283..3752038	-	251	119960892	iclR	AAur_3405	-	glyoxylate bypass transcriptional regulator
3268	 65.02	0	3752260..3753660	+	466	119961892	-	AAur_3406	-	NAD-dependent malic enzyme
3269	 64.79	0	3753679..3755277	+	532	119962344	aceB	AAur_3407	-	malate synthase
3270	 66.43	+1	3755279..3756541	+	420	119963220	-	AAur_3408	-	hypothetical protein
3271	 63.59	0	3756556..3757368	+	270	119963763	-	AAur_3409	-	hypothetical protein
3272	 63.30	0	3757442..3757738	-	98	119960519	-	AAur_3410	-	hypothetical protein
3273	 63.75	0	3757749..3758057	-	102	119962604	-	AAur_3411	-	hypothetical protein
3274	 61.02	0	3758056..3758781	+	241	119963055	-	AAur_3412	-	putative protein of unknown function (DUF664)
3275	 60.09	0	3759258..3760580	+	440	119962687	-	AAur_3413	-	putative transmembrane efflux protein (MFS)
3276	 63.95	0	3760570..3761268	+	232	119964421	-	AAur_3414	-	putative hydantoin racemase
3277	 63.50	0	3761494..3761967	+	157	119963554	-	AAur_3415	-	signal transduction histidine kinase domain-containing protein
3278	 61.64	0	3762075..3764264	+	729	119960894	-	AAur_3416	-	penicillin-binding protein
3279	 60.93	0	3764341..3765072	-	243	119961842	-	AAur_3417	-	glutamine amidotransferase
3280	 63.98	0	3765238..3766464	+	408	119960865	-	AAur_3418	-	major facilitator transporter
3281	 64.36	0	3766579..3767964	+	461	119964006	amt	AAur_3419	-	ammonium transporter
3282	 64.99	0	3768033..3768629	-	198	119963544	-	AAur_3420	-	hypothetical protein
3283	 64.65	0	3768867..3771149	-	760	119962931	-	AAur_3421	-	putative sulfate transporter family protein
3284	 68.25	+2	3771256..3771633	+	125	119962505	-	AAur_3422	-	FG-GAP repeat-containing protein
3285	 64.83	0	3771737..3772822	+	361	119963060	-	AAur_3423	-	hypothetical protein
3286	 65.42	+1	3772816..3774180	+	454	119963421	-	AAur_3424	-	hypothetical protein
3287	 65.88	+1	3774183..3774941	+	252	119961575	-	AAur_3425	-	glycosyl transferase, group 2 family protein
3288	 64.95	0	3774968..3775609	-	213	119961916	adk	AAur_3426	-	adenylate kinase
3289	 60.84	0	3775648..3776145	-	165	119964426	-	AAur_3427	-	hypothetical protein
3290	 59.78	0	3776142..3776504	-	120	119963558	-	AAur_3428	-	ArsR family transcriptional regulator
3291	 62.91	0	3776574..3777371	-	265	119961053	-	AAur_3429	-	SIS domain-containing protein
3292	 61.20	0	3777561..3778949	+	462	119960616	-	AAur_3430	-	major facilitator transporter
3293	 60.20	0	3778946..3779440	+	164	119962278	-	AAur_3431	-	hypothetical protein
3294	 65.13	0	3779442..3780674	+	410	119962895	-	AAur_3432	-	Xaa-Pro dipeptidase (prolidase)
3295	 62.34	0	3780881..3781573	+	230	119962412	-	AAur_3433	-	hypothetical protein
3296	 64.08	0	3781689..3783779	-	696	119960824	-	AAur_3434	-	FG-GAP repeat-containing protein
3297	 64.43	0	3783951..3785606	-	551	119962137	-	AAur_3435	-	putative peptide ABC transporter, ATP-binding protein
3298	 64.45	0	3785603..3786550	-	315	119962098	-	AAur_3436	-	putative ABC-type dipeptide/oligopeptide/nickel transport systems, permease component
3299	 61.69	0	3786561..3787505	-	314	119963020	-	AAur_3437	-	putative ABC-type dipeptide/oligopeptide/nickel transport systems, permease components
3300	 62.58	0	3787513..3789150	-	545	119962247	-	AAur_3438	-	putative ABC-type dipeptide/oligopeptide transport system
3301	 64.34	0	3789147..3790562	-	471	119960505	-	AAur_3439	-	putative monooxygenase
3302	 66.58	+1	3790612..3791763	-	383	119963032	-	AAur_3440	-	putative monooxygenase
3303	 67.33	+1	3793254..3793703	+	149	119960696	-	AAur_3443	-	rhodanese-like domain-containing protein
3304	 66.01	+1	3793667..3795199	-	510	119963420	-	AAur_3442	-	putative transmembrane efflux protein (MFS)
3305	 65.63	+1	3797183..3798343	-	386	119961911	-	AAur_3445	-	putative alkansulfonate monooxygenase
3306	 60.76	0	3798367..3799026	-	219	119962924	-	AAur_3446	-	putative ABC transporter permease protein
3307	 65.06	0	3799029..3800147	-	372	119961583	-	AAur_3447	-	putative ABC transporter, ATP-binding protein
3308	 60.23	0	3800369..3801253	+	294	119962157	-	AAur_3448	-	putative ABC-type transport system
3309	 63.19	0	3801313..3802662	+	449	119960760	-	AAur_3449	-	putative monooxygenase
3310	 67.03	+1	3802659..3803201	+	180	119962516	-	AAur_3450	-	acetyltransferase, GNAT family protein
3311	 55.38	-2	3803407..3803592	+	61	119962596	-	AAur_3451	-	hypothetical protein
3312	 60.34	0	3803888..3804994	+	368	119961158	-	AAur_3452	-	glycosyl transferase domain-containing protein
3313	 61.29	0	3805270..3806646	-	458	119963946	-	AAur_3453	-	hypothetical protein
3314	 59.46	-1	3806939..3807382	+	147	119964306	-	AAur_3454	-	putative MutT/nudix family protein
3315	 66.02	+1	3807699..3808619	+	306	119963494	-	AAur_3455	-	hypothetical protein
3316	 56.28	-2	3808798..3809442	+	214	119963427	-	AAur_3456	-	hypothetical protein
3317	 66.03	+1	3809609..3809764	-	51	119963125	-	AAur_3457	-	hypothetical protein
3318	 62.96	0	3809879..3810607	-	242	119962973	-	AAur_3458	-	hydrolase, alpha/beta fold family protein
3319	 61.19	0	3810916..3811353	-	145	119962602	-	AAur_3459	-	hypothetical protein
3320	 65.27	+1	3811418..3811990	+	190	119963030	-	AAur_3460	-	hypothetical protein
3321	 59.09	-1	3812028..3812159	-	43	119961600	-	AAur_3461	-	hypothetical protein
3322	 63.10	0	3812256..3812759	+	167	119964350	-	AAur_3462	-	hypothetical protein
3323	 62.30	0	3812878..3814845	-	655	119960925	-	AAur_3463	-	putative ABC transporter, ATP-binding protein
3324	 64.13	0	3814842..3816575	-	577	119962012	-	AAur_3464	-	putative ABC transporter ATP-binding protein
3325	 62.09	0	3816658..3817335	-	225	119962283	-	AAur_3465	-	putative acyl carrier protein phosphodiesterase
3326	 61.63	0	3817461..3817877	+	138	119960825	-	AAur_3466	-	MarR family transcriptional regulator
3327	 61.29	0	3817921..3818757	+	278	119961660	-	AAur_3467	-	haloperoxidase
3328	 61.45	0	3818762..3820294	-	510	119964130	-	AAur_3468	-	putative adenylate cyclase family protein
3329	 62.28	0	3820440..3821054	-	204	119961438	-	AAur_3469	-	hypothetical protein
3330	 60.88	0	3821168..3821599	-	143	119961005	-	AAur_3470	-	hypothetical protein
3331	 56.25	-2	3821676..3821963	-	95	119961594	-	AAur_3471	-	hypothetical protein
3332	 53.80	-2	3822263..3822433	-	56	119962322	-	AAur_3472	-	hypothetical protein
3333	 64.18	0	3822653..3823417	-	254	119961976	-	AAur_3473	-	KdgR acetate operon repressor
3334	 63.63	0	3823670..3824887	+	405	119961738	-	AAur_3474	-	CAIB/BAIF family acyl-CoA thioesterase
3335	 64.47	0	3824884..3825702	+	272	119964228	-	AAur_3475	-	enoyl-CoA hydratase/isomerase family protein
3336	 62.89	0	3825804..3826385	+	193	119960496	-	AAur_3476	-	putative thymidylate kinase
3337	 60.31	0	3826480..3826935	+	151	119962541	-	AAur_3477	-	hypothetical protein
3338	 66.01	+1	3826955..3827716	-	253	119963089	-	AAur_3478	-	MutT/NUDIX family DNA hydrolase
3339	 63.33	0	3827794..3828813	+	339	119961975	-	AAur_3479	-	hypothetical protein
3340	 65.34	+1	3828823..3829725	+	300	119962915	-	AAur_3480	-	hypothetical protein
3341	 62.54	0	3829919..3830863	+	314	119961617	-	AAur_3481	-	putative integral membrane protein
3342	 62.11	0	3830970..3832811	+	613	119962073	ggt	AAur_3482	-	gamma-glutamyltransferase
3343	 59.01	-1	3832858..3833079	+	73	119963335	-	AAur_3483	-	hypothetical protein
3344	 59.51	-1	3833161..3833859	-	232	119963768	-	AAur_3484	-	putative integral membrane protein
3345	 57.60	-1	3833860..3834609	-	249	119962443	-	AAur_3485	-	hypothetical protein
3346	 62.17	0	3834606..3835316	-	236	119962553	-	AAur_3486	-	putative ABC transporter, ATP-binding protein
3347	 62.12	0	3835313..3837004	-	563	119964275	-	AAur_3487	-	putative zinc metallopeptidase family protein
3348	 63.77	0	3837001..3838242	-	413	119963729	-	AAur_3488	-	hypothetical protein
3349	 60.29	0	3838230..3839045	-	271	119961856	-	AAur_3489	-	hypothetical protein
3350	 57.63	-1	3839130..3839306	-	58	119960668	-	AAur_3490	-	hypothetical protein
3351	 56.22	-2	3839334..3839582	-	82	119962571	-	AAur_3491	-	hypothetical protein
3352	 64.38	0	3839628..3840851	-	407	119962590	-	AAur_3492	-	hypothetical protein
3353	 60.08	0	3840848..3842137	-	429	119962504	-	AAur_3493	-	aminotransferase class III protein
3354	 59.43	-1	3842137..3843159	-	340	119961933	-	AAur_3494	-	hypothetical protein
62.44	MEAN

2.70	STD DEV
