IslandPath Analysis: Arthrobacter aurescens TC1

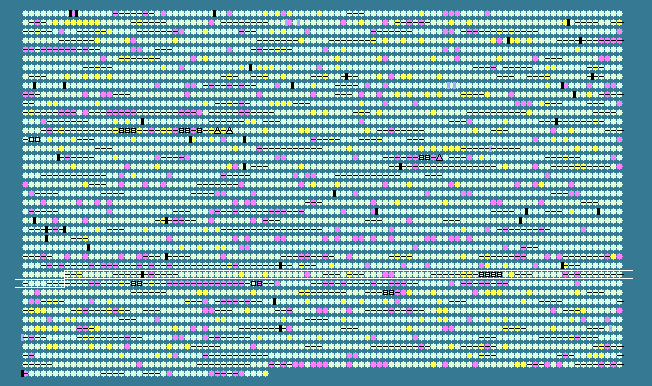

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.44 STD DEV: 2.70
Arthrobacter aurescens TC1, complete genome - 1..4597686
4041 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2908	 63.71	0	3320563..3321948	-	461	119962800	-	AAur_3038	-	cystathionine beta-synthase
2909	 59.29	-1	3322003..3322395	-	130	119962158	-	AAur_3039	-	putative glyoxalase family protein
2910	 66.05	+1	3322538..3323509	+	323	119962605	-	AAur_3040	-	hypothetical protein
2911	 63.88	0	3323614..3324582	+	322	119961014	-	AAur_3041	-	putative ABC-type multidrug transport system, ATPase component
2912	 59.53	-1	3324582..3325394	+	270	119961322	-	AAur_3042	-	putative ABC-type multidrug transport system, permease component
2913	 63.09	0	3325395..3327071	-	558	119964094	-	AAur_3043	-	putative long chain fatty acid-CoA ligase
2914	 60.57	0	3327155..3327433	+	92	119964361	-	AAur_3044	-	antibiotic biosynthesis monooxygenase domain-containing protein
2915	 62.43	0	3327541..3327918	-	125	119961186	trx	AAur_3045	-	thioredoxin
2916	 63.82	0	3328725..3329741	+	338	119962760	-	AAur_3047	-	putative ABC transporter, ATP binding protein
2917	 64.67	0	3329734..3330534	+	266	119961890	-	AAur_3049	-	putative ABC transporter, permease protein
2918	 60.44	0	3330531..3331076	-	181	119960752	-	AAur_3048	-	thioesterase family protein
2919	 63.96	0	3331254..3331475	+	73	119962899	-	AAur_3050	-	hypothetical protein
2920	 62.92	0	3331522..3332295	+	257	119962106	-	AAur_3051	-	putative voltage-gated potassium channel protein
2921	 64.42	0	3332751..3333017	-	88	119961180	-	AAur_3053	-	hypothetical protein
2922	 57.72	-1	3333200..3333691	+	163	119962424	-	AAur_3054	-	nucleotide-binding protein
2923	 64.02	0	3333770..3334639	-	289	119960835	-	AAur_3055	-	putative Zn-dependent protease with chaperone function, HtpX-like protein
2924	 65.41	+1	3334748..3336019	-	423	119963686	-	AAur_3056	-	major facilitator transporter
2925	 64.86	0	3336111..3336887	+	258	119962257	-	AAur_3057	-	hypothetical protein
2926	 60.59	0	3336918..3337394	+	158	119962231	fur	AAur_3058	-	ferric uptake regulation protein
2927	 63.09	0	3337410..3338891	+	493	119962803	-	AAur_3059	-	catalase
2928	 59.91	0	3339022..3339657	+	211	119964448	-	AAur_3060	-	hypothetical protein
2929	 60.49	0	3339811..3341364	-	517	119964011	-	AAur_3061	-	putative amino acid permease
2930	 60.43	0	3341531..3341947	-	138	119960986	-	AAur_3062	-	hypothetical protein
2931	 63.44	0	3341947..3342969	-	340	119963610	adhA	AAur_3063	-	Zn-dependent alcohol dehydrogenase
2932	 61.42	0	3343004..3344527	-	507	119963296	-	AAur_3064	-	aldehyde dehydrogenase (NAD) family protein
2933	 65.57	+1	3344624..3345991	-	455	119964184	-	AAur_3065	-	putative transcriptional regulatory protein
2934	 62.08	0	3346055..3347494	-	479	119960516	-	AAur_3066	-	putative ferredoxin/ferredoxin-NADP reductase
2935	 61.14	0	3347612..3348697	+	361	119962357	-	AAur_3067	-	putative integral membrane protein (rarD protein)
2936	 63.61	0	3349023..3351440	+	805	119963956	-	AAur_3068	-	polysaccharide lyase family protein
2937	 66.01	+1	3351590..3352960	-	456	119963104	gabT	AAur_3069	-	4-aminobutyrate aminotransferase
2938	 62.99	0	3353020..3354459	-	479	119963978	-	AAur_3070	-	aldehyde dehydrogenase
2939	 64.62	0	3354573..3356036	+	487	119964402	-	AAur_3071	-	putative transcription regulator
2940	 64.96	0	3356113..3357399	+	428	119961464	-	AAur_3072	-	major facilitator transporter
2941	 65.93	+1	3357396..3358076	+	226	119960555	-	AAur_3073	-	GntR family transcriptional regulator
2942	 62.68	0	3358152..3359531	-	459	119963048	-	AAur_3074	-	metallo-beta-lactamase superfamily protein
2943	 64.35	0	3359616..3361082	-	488	119963983	-	AAur_3075	-	putative ferredoxin/ferredoxin-NADP reductase
2944	 65.63	+1	3361103..3362458	-	451	119960596	cobA	AAur_3076	-	uroporphyrin-III C-methyltransferase
2945	 60.93	0	3362471..3363028	-	185	119961721	-	AAur_3077	-	hypothetical protein
2946	 60.98	0	3363192..3363314	+	40	119960776	-	AAur_3078	-	hypothetical protein
2947	 62.39	0	3363320..3364231	-	303	119962521	-	AAur_3079	-	glutaminase
2948	 58.06	-1	3364446..3365270	-	274	119961904	-	AAur_3080	-	hypothetical protein
2949	 65.04	0	3365347..3366450	-	367	119963593	-	AAur_3081	-	putative alkanal monooxygenase (FMN-linked)
2950	 62.01	0	3366447..3367004	-	185	119963517	-	AAur_3082	-	riboflavin biosynthesis protein RibD
2951	 62.07	0	3367156..3367590	+	144	119961423	-	AAur_3083	-	hypothetical protein
2952	 59.12	-1	3367686..3368321	+	211	119960950	-	AAur_3084	-	hypothetical protein
2953	 62.19	0	3368478..3369326	-	282	119963618	-	AAur_3085	-	hypothetical protein
2954	 61.69	0	3369330..3370274	-	314	119961878	-	AAur_3086	-	ABC transporter, permease protein
2955	 66.28	+1	3370264..3371037	-	257	119962741	-	AAur_3087	-	putative ABC-type nitrate/ taurine/sulfonate/bicarbonate transport system, ATPase component
2956	 61.98	0	3371092..3372243	-	383	119962189	-	AAur_3088	-	aliphatic sulfonate ABC transporter periplasmic substrate-binding protein
2957	 63.94	0	3372398..3373351	-	317	119962403	mmuM	AAur_3089	-	homocysteine methyltransferase
2958	 64.39	0	3373451..3374854	-	467	119963538	cysN	AAur_3090	-	sulfate adenylytransferase, large subunit
2959	 64.69	0	3374855..3375814	-	319	119963478	cysD	AAur_3091	-	sulfate adenylyltransferase subunit 2
2960	 64.67	0	3375811..3376563	-	250	119962974	cysH	AAur_3092	-	phosophoadenylyl-sulfate reductase
2961	 57.36	-1	3378445..3378981	+	178	119960702	-	AAur_3094	-	hypothetical protein
2962	 53.88	-2	3378992..3379468	+	158	119964351	-	AAur_3095	-	hypothetical protein
2963	 64.97	0	3379965..3380729	-	254	119961527	-	AAur_3096	-	putative cbiX family protein
2964	 61.61	0	3380730..3381401	+	223	119961096	-	AAur_3097	-	hypothetical protein
2965	 60.05	0	3381415..3381837	+	140	119962018	-	AAur_3098	-	hypothetical protein
2966	 60.09	0	3381916..3382782	-	288	119963539	-	AAur_3099	-	hypothetical protein
2967	 64.76	0	3383338..3384441	-	367	119964240	-	AAur_3100	-	trans-hexaprenyltranstransferase (heptaprenyl diphosphate synthase)
2968	 64.88	0	3384451..3385794	-	447	119960639	-	AAur_3101	-	putative monooxygenase, FAD-binding
2969	 63.78	0	3385824..3386585	-	253	119961763	-	AAur_3102	-	ubiquinone/menaquinone biosynthesis methyltransferase
2970	 64.31	0	3386677..3388032	+	451	119963179	-	AAur_3103	-	isochorismate synthase
2971	 62.41	0	3388191..3388988	+	265	119961730	-	AAur_3104	-	putative amino acid ABC transporter
2972	 60.98	0	3389093..3389884	+	263	119961621	-	AAur_3105	-	putative amino acid ABC transporter, permease protein
2973	 63.14	0	3389896..3390690	+	264	119961955	glnQ	AAur_3106	-	glutamine ABC transporter, ATP-binding protein
2974	 71.01	+2	3390901..3391728	+	275	119961260	-	AAur_3108	-	hypothetical protein
2975	 67.54	+1	3391715..3393424	-	569	119964077	menD	AAur_3107	-	2-succinyl-6-hydroxy-2,4-cyclohexadiene-1-carboxylic acid synthase/2-oxoglutarate decarboxylase
2976	 59.74	0	3393672..3394061	-	129	119962718	-	AAur_3109	-	hypothetical protein
2977	 61.07	0	3394170..3395009	-	279	119963176	-	AAur_3110	-	ISAau1, transposase orfB
2978	 60.22	0	3395039..3395317	-	92	119961874	-	AAur_3111	-	ISAau1, transposase orfA
2979	 60.22	0	3395599..3395877	+	92	119962366	-	AAur_3112	-	ISAau1, transposase orfA
2980	 61.07	0	3395907..3396746	+	279	119962777	-	AAur_3113	-	ISAau1, transposase orfB
2981	 63.70	0	3397035..3399122	-	695	119963742	-	AAur_3114	-	hypothetical protein
2982	 66.08	+1	3399201..3400217	-	338	119964431	menC	AAur_3115	-	o-succinylbenzoic acid (OSB) synthetase
2983	 62.03	0	3400279..3400968	-	229	119964073	-	AAur_3116	-	hypothetical protein
2984	 61.21	0	3400988..3401647	+	219	119961237	-	AAur_3117	-	hypothetical protein
2985	 65.54	+1	3402293..3403357	+	354	119961934	-	AAur_3118	-	LacI family transcriptional regulator
2986	 65.09	0	3403523..3404920	-	465	119961949	-	AAur_3119	-	glycoside hydrolase family protein
2987	 64.26	0	3404948..3405820	-	290	119960858	-	AAur_3120	-	putative ABC-type sugar transport system, permease component
2988	 61.27	0	3405829..3406791	-	320	119961314	-	AAur_3121	-	putative ABC-type sugar transport system, permease component
2989	 62.79	0	3406788..3408206	-	472	119963701	-	AAur_3122	-	extracellular solute-binding domain-containing protein
2990	 64.99	0	3408260..3409270	+	336	119962872	-	AAur_3123	-	PAP2 superfamily domain-containing protein
2991	 57.51	-1	3409467..3409739	-	90	119962594	-	AAur_3124	-	hypothetical protein
2992	 63.42	0	3409950..3411305	+	451	119963042	-	AAur_3125	-	acyltransferase family protein
2993	 58.76	-1	3411406..3414225	-	939	119961646	-	AAur_3126	-	serine protease
2994	 63.79	0	3414373..3415590	-	405	119962356	-	AAur_3127	-	major facilitator transporter
2995	 63.71	0	3416391..3418523	-	710	119960990	-	AAur_3128	-	LPXTG-motif-containing cell wall anchor protein
2996	 62.71	0	3418622..3419707	-	361	119960709	-	AAur_3129	-	hypothetical protein
2997	 61.88	0	3419821..3420510	-	229	119964377	-	AAur_3130	-	hypothetical protein
2998	 61.72	0	3420786..3422483	-	565	119963806	-	AAur_3131	-	putative polysaccharide pyruvyl transferase family protein
2999	 60.01	0	3422419..3425364	-	981	119962824	-	AAur_3132	-	S-layer domain-containing protein
3000	 62.50	0	3425429..3425668	+	79	119962518	-	AAur_3133	-	hypothetical protein
3001	 60.14	0	3425842..3428799	-	985	119962682	-	AAur_3134	-	S-layer domain-containing protein
3002	 59.03	-1	3428971..3430776	-	601	119964111	-	AAur_3135	-	putative O-antigen polymerase family protein
3003	 59.54	-1	3430945..3433470	+	841	119963545	-	AAur_3136	-	S-layer domain-containing protein
3004	 60.73	0	3433535..3434545	-	336	119961439	-	AAur_3137	-	putative cobalt-zinc-cadmium efflux permease
3005	 62.29	0	3434542..3435021	-	159	119960790	-	AAur_3138	-	putative lipoprotein
3006	 60.35	0	3435252..3436613	+	453	119962292	-	AAur_3139	-	integral membrane transporter
3007	 60.23	0	3436606..3437646	+	346	119963268	-	AAur_3140	-	CBS domain-containing protein
62.44	MEAN

2.70	STD DEV
