IslandPathversion 1.0

IslandPath Analysis: Arthrobacter aurescens TC1

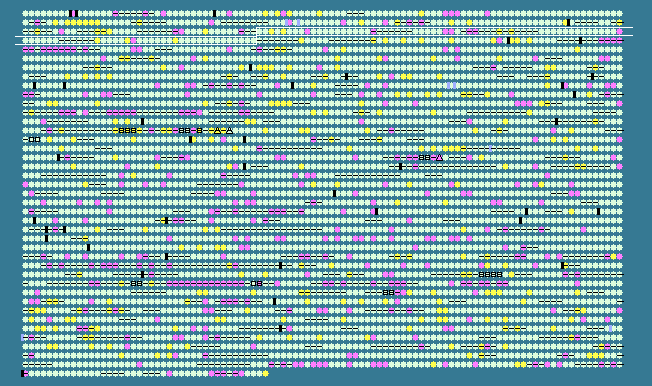

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.44 STD DEV: 2.70
Arthrobacter aurescens TC1, complete genome - 1..4597686
4041 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
240	 64.30	0	260022..260825	-	267	119964442	-	AAur_0253	-	hydrolase alpha/beta fold domain-containing protein
241	 65.86	+1	260955..262448	+	497	119961873	-	AAur_0254	-	hypothetical protein
242	 68.00	+2	262489..263391	+	300	119961964	-	AAur_0255	-	putative 3-hydroxybutyrate dehydrogenase
243	 63.32	0	263575..264978	+	467	119962427	-	AAur_0256	-	inner membrane permease YgbN
244	 66.10	+1	264978..265853	+	291	119962566	-	AAur_0257	-	putative fructose/tagatose bisphosphate aldolase
245	 61.58	0	265905..266297	+	130	119963274	-	AAur_0259	-	putative membrane protein‎
246	 60.00	0	266294..266713	-	139	119964211	-	AAur_0258	-	putative glyoxalase family protein
247	 64.45	0	266980..268335	+	451	119961338	-	AAur_0260	-	acyltransferase family protein
248	 56.86	-2	268332..268688	+	118	119961956	-	AAur_0261	-	hypothetical protein
249	 61.17	0	268693..269274	-	193	119962439	-	AAur_0262	-	hypothetical protein
250	 64.74	0	269418..271022	+	534	119962435	-	AAur_0263	-	putative RNA polymerase sigma (70) factor
251	 62.80	0	271207..274080	+	957	119964113	-	AAur_0264	-	hypothetical protein
252	 61.67	0	274123..274482	-	119	119962999	-	AAur_0265	-	hypothetical protein
253	 64.41	0	274825..276330	+	501	119961195	-	AAur_0266	-	putative amino acid decarboxylase, pyridoxal-dependent protein
254	 62.43	0	276327..277670	+	447	119963728	-	AAur_0267	-	putative monooxygenase
255	 64.30	0	277667..278257	+	196	119961265	-	AAur_0268	-	putative acetyltransferase
256	 62.27	0	278254..280095	+	613	119962474	-	AAur_0269	-	putative siderophore synthetase component
257	 63.26	0	280152..281471	-	439	119963905	-	AAur_0270	-	hypothetical protein
258	 64.49	0	281530..282309	+	259	119963515	-	AAur_0271	-	short chain dehydrogenase/reductase family oxidoreductase
259	 56.02	-2	282398..282829	+	143	119963313	-	AAur_0272	-	putative lipoprotein
260	 64.88	0	282835..283953	-	372	119964332	-	AAur_0273	-	putative integral membrane protein
261	 64.07	0	284121..284543	+	140	119962751	-	AAur_0274	-	hypothetical protein
262	 65.31	+1	284540..285055	+	171	119961396	-	AAur_0275	-	acetyltransferase, GNAT family protein
263	 63.68	0	285056..285457	-	133	119963868	-	AAur_0276	-	hypothetical protein
264	 64.58	0	285467..286090	-	207	119960565	-	AAur_0277	-	putative protease synthase and sporulation negative regulatory protein
265	 63.19	0	286098..287018	-	306	119961002	-	AAur_0278	-	hypothetical protein
266	 65.75	+1	287017..288432	+	471	119962648	-	AAur_0279	-	GntR family transcriptional regulator
267	 62.51	0	288562..290196	-	544	119962776	proP	AAur_0280	-	proline-betaine transporter
268	 65.88	+1	290484..291368	-	294	119964526	-	AAur_0281	-	HemK family modification methylase
269	 61.48	0	291660..292064	+	134	119961580	-	AAur_0282	-	hypothetical protein
270	 63.65	0	292208..294763	-	851	119962236	-	AAur_0283	-	ATP-dependent DNA ligase
271	 58.53	-1	294784..295668	+	294	119961605	-	AAur_0284	-	Ku protein
272	 52.81	-2	295729..295995	-	88	119960715	-	AAur_0285	-	hypothetical protein
273	 60.94	0	296047..296832	-	261	119964486	-	AAur_0286	-	hypothetical protein
274	 60.33	0	296766..297428	-	220	119961743	-	AAur_0287	-	hypothetical protein
275	 54.50	-2	297725..297946	-	73	119964407	-	AAur_0288	-	hypothetical protein
276	 58.55	-1	298106..298684	+	192	119963793	-	AAur_0289	-	DNA-binding stress response protein
277	 62.71	0	298729..299688	+	319	119963495	-	AAur_0290	-	hypothetical protein
278	 61.29	0	299776..300333	+	185	119962922	-	AAur_0291	-	putative integral membrane protein
279	 63.61	0	300340..300927	+	195	119963519	-	AAur_0292	-	TetR family transcriptional regulator
280	 65.94	+1	301009..301284	-	91	119962145	-	AAur_0293	-	phosphocarrier protein HPr
281	 65.54	+1	301359..303392	-	677	119961701	-	AAur_0294	-	PTS system, fructose-specific family, IIABC components
282	 67.17	+1	303389..304381	-	330	119961205	fruK	AAur_0295	-	1-phosphofructokinase
283	 64.52	0	304378..305169	-	263	119960768	-	AAur_0296	-	DeoR family transcriptional regulator
284	 60.39	0	305636..305890	-	84	119962492	-	AAur_0297	-	hypothetical protein
285	 61.37	0	305905..306357	-	150	119961318	-	AAur_0298	-	hypothetical protein
286	 60.72	0	306513..307286	+	257	119960703	-	AAur_0299	-	ANTAR domain-containing protein
287	 64.50	0	307989..309143	+	384	119963656	-	AAur_0300	-	carboxylate-amine ligase
288	 62.69	0	309186..309587	-	133	119964161	-	AAur_0301	-	glyoxalase family protein
289	 62.64	0	309607..310053	-	148	119962990	-	AAur_0302	-	AraC family transcriptional regulator
290	 61.06	0	310112..310735	+	207	119961220	-	AAur_0303	-	putative phospholipase/carboxylesterase
291	 62.45	0	310923..311942	+	339	119961773	-	AAur_0304	-	LacI family transcriptional regulator
292	 63.69	0	312714..315068	+	784	119960896	-	AAur_0306	-	putative trehalose/maltose hydrolase ( phosphorylase)
293	 62.99	0	315134..315487	-	117	119961305	-	AAur_0307	-	hypothetical protein
294	 61.62	0	317246..317701	-	151	119962532	-	AAur_0309	-	MarR family transcriptional regulator
295	 64.42	0	317764..318519	+	251	119963134	-	AAur_0310	-	putative methyltransferase
296	 62.82	0	318896..320014	+	372	119961162	-	AAur_0311	-	phenylalanyl-tRNA synthetase domain-containing protein
297	 64.29	0	320133..320468	+	111	119962083	-	AAur_0312	-	putative lipoprotein
298	 63.57	0	320503..322020	-	505	119962772	-	AAur_0313	-	hypothetical protein
299	 64.03	0	322230..323063	-	277	119961164	-	AAur_0314	-	putative integral membrane protein
300	 58.29	-1	323091..323663	+	190	119961896	-	AAur_0316	-	MarR family transcriptional regulator
301	 63.83	0	323658..324575	-	305	119964338	ubiA	AAur_0315	-	prenyltransferase
302	 62.86	0	325210..326862	-	550	119961546	-	AAur_0318	-	putative phytoene desaturase
303	 64.35	0	326859..327764	-	301	119962910	crtB	AAur_0319	-	phytoene synthase
304	 63.96	0	327761..328870	-	369	119962314	-	AAur_0320	-	putative geranylgeranyl pyrophosphate synthase
305	 61.26	0	328867..329421	-	184	119960796	idi	AAur_0321	-	isopentenyl-diphosphate delta-isomerase
306	 62.41	0	329524..330111	+	195	119960614	-	AAur_0322	-	MarR family transcriptional regulator
307	 59.62	-1	330120..330800	-	226	119962694	-	AAur_0323	-	putative CAAX amino terminal protease family protein
308	 63.54	0	331113..332231	+	372	119963877	-	AAur_0324	-	EAL domain-containing protein
309	 61.00	0	332347..333651	+	434	119962325	-	AAur_0325	-	putative integral membrane protein
310	 61.20	0	333560..334948	+	462	119962989	-	AAur_0327	-	putative integral membrane protein
311	 62.25	0	334945..336552	-	535	119960954	-	AAur_0326	-	putative integral membrane protein
312	 64.60	0	336739..337611	-	290	119961959	-	AAur_0328	-	GDSL-like lipase/acylhydrolase domain-containing protein
313	 68.02	+2	337683..338420	-	245	119964110	-	AAur_0329	-	mycothiol-dependent maleylpyruvate isomerase
314	 65.59	+1	338420..339256	-	278	119963807	-	AAur_0330	-	putative 2-hydroxyhepta-2,4-diene-1,7-dioate isomerase
315	 65.88	+1	339253..340395	-	380	119964388	gtdA	AAur_0331	-	gentisate 1,2-dioxygenase
316	 65.58	+1	340490..341314	-	274	119960628	-	AAur_0332	-	IclR family transcriptional regulator
317	 65.20	+1	341333..342631	+	432	119960754	-	AAur_0333	-	putative benzoate MFS transporter
318	 65.95	+1	342624..343874	+	416	119962410	-	AAur_0334	-	putative aromatic-ring hydroxylase (monooxygenase)
319	 57.46	-1	343906..344850	-	314	119962481	-	AAur_0335	-	LysR family transcriptional regulator
320	 61.55	0	344929..346257	+	442	119962788	-	AAur_0336	-	major facilitator transporter
321	 60.32	0	346299..347228	+	309	119963129	-	AAur_0337	-	putative nitrilase
322	 60.30	0	347271..347741	-	156	119963693	-	AAur_0338	-	hypothetical protein
323	 62.08	0	347805..348611	-	268	119964234	-	AAur_0339	-	DeoR family transcriptional regulator
324	 62.77	0	348801..349853	-	350	119960940	-	AAur_0340	-	aldo/keto reductase family oxidoreductase
325	 62.22	0	349766..350776	-	336	119961124	-	AAur_0341	-	hypothetical protein
326	 66.67	+1	350923..352113	-	396	119961812	adhT	AAur_0342	-	alcohol dehydrogenase
327	 61.98	0	352026..353114	-	362	119961206	-	AAur_0343	-	carbon-nitrogen family hydrolase
328	 62.98	0	354886..355482	-	198	119961469	-	AAur_0345	-	hypothetical protein
329	 63.70	0	355469..356614	-	381	119960934	-	AAur_0346	-	putative D-ribose ABC transporter permease protein
330	 63.69	0	356649..358193	-	514	119962422	-	AAur_0347	-	D-ribose transport system ATP-binding protein
331	 63.22	0	358206..359279	-	357	119962784	rbsB	AAur_0348	-	D-ribose-binding protein precursor
332	 64.81	0	359365..360336	-	323	119963349	fruK	AAur_0349	-	1-phosphofructokinase
333	 65.56	+1	360333..361142	-	269	119961659	-	AAur_0350	-	DeoR family transcriptional regulator
334	 65.43	+1	361139..362512	-	457	119964485	-	AAur_0351	-	putative carbohydrate kinase
335	 63.38	0	362650..363501	+	283	119960493	-	AAur_0352	-	putative fructose/tagatose bisphosphate aldolase
336	 63.36	0	363498..364403	+	301	119963492	-	AAur_0353	-	putative aldose-1-epimerase
337	 65.10	0	364449..365276	-	275	119963882	-	AAur_0354	-	helix-turn-helix domain-containing protein
338	 65.65	+1	365363..367225	+	620	119962245	ilvD	AAur_0356	-	dihydroxy-acid dehydratase
339	 64.96	0	367222..369042	-	606	119962319	-	AAur_0355	-	pyruvate decarboxylase
62.44	MEAN

2.70	STD DEV
