IslandPath Analysis: Arthrobacter aurescens TC1

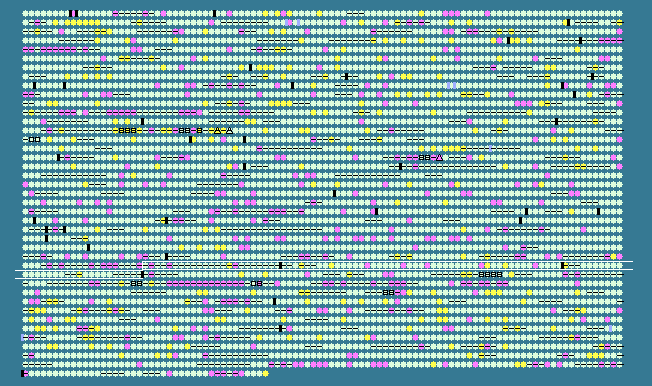

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.44 STD DEV: 2.70
Arthrobacter aurescens TC1, complete genome - 1..4597686
4041 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2821	 61.67	0	3219519..3220358	-	279	119961061	rplB	AAur_2945	-	50S ribosomal protein L2
2822	 56.86	-2	3220388..3220693	-	101	119962458	rplW	AAur_2946	-	ribosomal protein L23
2823	 62.62	0	3220690..3221307	-	205	119961638	rplD	AAur_2947	-	ribosomal protein L4
2824	 62.98	0	3221312..3221962	-	216	119963305	rplC	AAur_2948	-	ribosomal protein L3
2825	 55.99	-2	3221980..3222288	-	102	119961625	rpsJ	AAur_2949	-	ribosomal protein S10
2826	 60.69	0	3222671..3224110	+	479	119962545	bglA	AAur_2950	-	beta-glucosidase
2827	 63.44	0	3224307..3228554	-	1415	119963932	-	AAur_2951	-	putative integral membrane protein
2828	 60.20	0	3228709..3229899	-	396	119961333	tuf	AAur_2952	-	elongation factor Tu
2829	 59.34	-1	3230131..3232245	-	704	119960723	fusA	AAur_2953	-	elongation factor G
2830	 61.78	0	3232315..3232785	-	156	119961568	rpsG	AAur_2954	-	30S ribosomal protein S7
2831	 61.87	0	3232787..3233161	-	124	119963152	rpsL	AAur_2955	-	30S ribosomal protein S12
2832	 61.64	0	3233575..3237474	-	1299	119964498	rpoC	AAur_2956	-	DNA-directed RNA polymerase subunit beta'
2833	 60.53	0	3237578..3241099	-	1173	119960861	rpoB	AAur_2957	-	DNA-directed RNA polymerase subunit beta
2834	 64.33	0	3241489..3242688	+	399	119960976	-	AAur_2958	-	acetyl-CoA acetyltransferase
2835	 67.27	+1	3242688..3243182	+	164	119964029	-	AAur_2959	-	putative ybaK/ebsC protein
2836	 56.61	-2	3243255..3243632	-	125	119962698	rplL	AAur_2960	-	ribosomal protein L7/L12
2837	 59.60	-1	3243709..3244302	-	197	119961776	rplJ	AAur_2961	-	50S ribosomal protein L10
2838	 61.72	0	3244602..3245753	-	383	119962143	-	AAur_2962	-	acetyltransferase, GNAT family protein
2839	 63.15	0	3245750..3246859	-	369	119960548	-	AAur_2963	-	putative acetyltransferase, GNAT family protein
2840	 60.45	0	3246971..3247678	-	235	119960983	rplA	AAur_2964	-	50S ribosomal protein L1
2841	 59.03	-1	3247826..3248257	-	143	119964022	rplK	AAur_2965	-	ribosomal protein L11
2842	 61.57	0	3248388..3249290	-	300	119963130	nusG	AAur_2966	-	transcription termination/antitermination factor NusG
2843	 59.22	-1	3249375..3249656	-	93	119962697	secE	AAur_2967	-	preprotein translocase subunit SecE
2844	 64.15	0	3250062..3251291	+	409	119963577	-	AAur_2969	-	aspartate aminotransferase
2845	 62.81	0	3251590..3252264	-	224	119960584	-	AAur_2970	-	two-component system response regulator
2846	 64.81	0	3252264..3253775	-	503	119961150	-	AAur_2971	-	putative signal transduction histidine kinase
2847	 68.55	+2	3253897..3254055	-	52	119963808	-	AAur_2972	-	hypothetical protein
2848	 65.88	+1	3254237..3255514	+	425	119964375	-	AAur_2973	-	putative integral membrane protein
2849	 64.94	0	3255516..3255920	+	134	119964392	-	AAur_2974	-	hypothetical protein
2850	 60.24	0	3255970..3256218	+	82	119964136	-	AAur_2975	-	putative stress-responsive transcriptional regulator PspC
2851	 63.65	0	3256410..3257435	+	341	119963702	pfkA	AAur_2976	-	6-phosphofructokinase
2852	 66.53	+1	3257453..3258202	+	249	119961357	-	AAur_2977	-	acetyltransferase, GNAT family protein
2853	 61.11	0	3259809..3260438	-	209	119963387	-	AAur_2979	-	PadR family transcriptional regulator
2854	 64.89	0	3260549..3260941	-	130	119963192	-	AAur_2980	-	ankyrin repeat-containing protein
2855	 64.23	0	3260938..3262002	-	354	119964440	-	AAur_2981	-	putative aminomethyltransferase (glycine cleavage system Tprotein)
2856	 59.44	-1	3262063..3262782	-	239	119963982	-	AAur_2982	-	hypothetical protein
2857	 63.33	0	3262832..3263431	-	199	119963629	-	AAur_2983	-	hypothetical protein
2858	 50.00	-2	3263467..3263580	-	37	119962034	-	AAur_2984	-	hypothetical protein
2859	 62.59	0	3263597..3264331	-	244	119963477	-	AAur_2985	-	putative integral membrane protein
2860	 62.95	0	3264594..3265292	+	232	119963894	-	AAur_2986	-	putative transcriptional regulatory protein
2861	 62.86	0	3265524..3266495	+	323	119962473	-	AAur_2987	-	acetyltransferase, GNAT family protein
2862	 63.20	0	3266599..3268848	+	749	119962016	ppk	AAur_2988	-	polyphosphate kinase
2863	 64.60	0	3268857..3269825	+	322	119962587	-	AAur_2989	-	mutT/nudix family protein
2864	 57.32	-1	3269963..3270283	-	106	119963415	-	AAur_2990	-	hypothetical protein
2865	 61.45	0	3270366..3270710	-	114	119963923	-	AAur_2991	-	hypothetical protein
2866	 62.06	0	3271040..3271843	+	267	119961084	thyA	AAur_2992	-	thymidylate synthase
2867	 64.20	0	3271912..3272439	+	175	119961120	folA	AAur_2993	-	dihydrofolate reductase
2868	 56.76	-2	3272450..3272671	+	73	119963173	-	AAur_2994	-	putative integral membrane protein
2869	 62.38	0	3272778..3273920	+	380	119962728	asd	AAur_2995	-	aspartate-semialdehyde dehydrogenase
2870	 59.96	0	3273934..3275037	-	367	119963638	-	AAur_2996	-	hypothetical protein
2871	 64.46	0	3275077..3276207	-	376	119961468	-	AAur_2997	-	hypothetical protein
2872	 63.96	0	3276293..3276772	+	159	119960944	-	AAur_2998	-	hypothetical protein
2873	 63.11	0	3276868..3277935	-	355	119963625	murB	AAur_2999	-	UDP-N-acetylenolpyruvoylglucosamine reductase
2874	 63.69	0	3277945..3279288	-	447	119964396	-	AAur_3000	-	major facilitator transporter
2875	 63.24	0	3279285..3279722	-	145	119963828	-	AAur_3001	-	MaoC-like domain-containing protein
2876	 64.00	0	3279725..3280174	-	149	119961981	-	AAur_3002	-	hypothetical protein
2877	 56.44	-2	3280233..3280457	-	74	119960588	-	AAur_3003	-	hypothetical protein
2878	 66.23	+1	3280561..3281481	-	306	119962478	-	AAur_3004	-	hypothetical protein
2879	 63.19	0	3281484..3282347	-	287	119964325	-	AAur_3005	-	putative citrate lyase beta subunit
2880	 61.55	0	3282428..3283756	+	442	119963924	-	AAur_3006	-	putative ABC-type nitrate/sulfonate/bicarbonate transport systems
2881	 66.78	+1	3283759..3284646	+	295	119962954	-	AAur_3007	-	putative ABC-type nitrate/sulfonate/taurine/bicarbonate transport systems, ATPase component
2882	 64.39	0	3284646..3285569	+	307	119961771	-	AAur_3008	-	putative ABC-type nitrate/sulfonate/bicarbonate transport system, permease component
2883	 62.47	0	3285621..3286550	+	309	119962750	tauD	AAur_3009	-	taurine dioxygenase
2884	 63.87	0	3287638..3289392	-	584	119961473	-	AAur_3011	-	putative alpha glucosidase
2885	 59.74	-1	3289469..3290377	-	302	119962365	-	AAur_3012	-	putative ABC-type sugar transport system, permease component
2886	 58.80	-1	3290377..3291291	-	304	119963454	-	AAur_3013	-	putative ABC-type sugar transport system, permease component
2887	 60.78	0	3291316..3292605	-	429	119961727	-	AAur_3014	-	extracellular solute-binding domain-containing protein
2888	 64.46	0	3292844..3294067	+	407	119961045	-	AAur_3015	-	ROK family transcriptional regulator
2889	 63.68	0	3294119..3295690	-	523	119960590	-	AAur_3016	-	Na+/H+ antiporter
2890	 61.64	0	3295817..3296473	-	218	119960490	-	AAur_3017	-	putative NAD dependent sugar epimerase/dehydratase family protein
2891	 68.33	+2	3296874..3297353	-	159	119964521	-	AAur_3020	-	LysM domain-containing protein
2892	 64.33	0	3297584..3299764	-	726	119963381	-	AAur_3021	-	putative ATP-dependent RNA helicase
2893	 61.33	0	3300151..3300750	-	199	119961454	-	AAur_3022	-	MOSC domain-containing protein
2894	 62.37	0	3300849..3301523	-	224	119960910	kdpE	AAur_3023	-	KDP operon transcriptional regulatory
2895	 65.82	+1	3301520..3303055	-	511	119964062	-	AAur_3024	-	sensor histidine kinase
2896	 65.67	+1	3303207..3303905	+	232	119964305	-	AAur_3025	-	Tat pathway signal sequence domain-containing protein
2897	 61.03	0	3303908..3305113	+	401	119963980	-	AAur_3026	-	putative glutathionylspermidine synthase
2898	 63.59	0	3305110..3306636	+	508	119963337	-	AAur_3027	-	putative amino acid permease
2899	 64.78	0	3306688..3307851	+	387	119962188	-	AAur_3029	-	putative glutaryl-CoA dehydrogenase
2900	 62.11	0	3307848..3308615	-	255	119960491	-	AAur_3028	-	TetR family transcriptional regulator
2901	 61.95	0	3308646..3309980	+	444	119960948	-	AAur_3030	-	putative solute-binding lipoprotein
2902	 62.55	0	3309977..3310924	+	315	119964116	-	AAur_3031	-	putative ABC-type sugar transport system, permease component
2903	 61.09	0	3310921..3311835	+	304	119960528	-	AAur_3032	-	putative ABC-type sugar transport system, permease component
2904	 65.12	0	3314973..3316397	-	474	119962797	-	AAur_3034	-	major facilitator transporter
2905	 63.04	0	3316394..3316945	-	183	119961532	-	AAur_3035	-	putative transcriptional regulatory protein
2906	 64.48	0	3317101..3319245	+	714	119963346	-	AAur_3036	-	putative phospholipase C
2907	 65.03	0	3319338..3320501	-	387	119964382	metB	AAur_3037	-	cystathionine gamma-synthase
2908	 63.71	0	3320563..3321948	-	461	119962800	-	AAur_3038	-	cystathionine beta-synthase
2909	 59.29	-1	3322003..3322395	-	130	119962158	-	AAur_3039	-	putative glyoxalase family protein
2910	 66.05	+1	3322538..3323509	+	323	119962605	-	AAur_3040	-	hypothetical protein
2911	 63.88	0	3323614..3324582	+	322	119961014	-	AAur_3041	-	putative ABC-type multidrug transport system, ATPase component
2912	 59.53	-1	3324582..3325394	+	270	119961322	-	AAur_3042	-	putative ABC-type multidrug transport system, permease component
2913	 63.09	0	3325395..3327071	-	558	119964094	-	AAur_3043	-	putative long chain fatty acid-CoA ligase
2914	 60.57	0	3327155..3327433	+	92	119964361	-	AAur_3044	-	antibiotic biosynthesis monooxygenase domain-containing protein
2915	 62.43	0	3327541..3327918	-	125	119961186	trx	AAur_3045	-	thioredoxin
2916	 63.82	0	3328725..3329741	+	338	119962760	-	AAur_3047	-	putative ABC transporter, ATP binding protein
2917	 64.67	0	3329734..3330534	+	266	119961890	-	AAur_3049	-	putative ABC transporter, permease protein
2918	 60.44	0	3330531..3331076	-	181	119960752	-	AAur_3048	-	thioesterase family protein
2919	 63.96	0	3331254..3331475	+	73	119962899	-	AAur_3050	-	hypothetical protein
2920	 62.92	0	3331522..3332295	+	257	119962106	-	AAur_3051	-	putative voltage-gated potassium channel protein
62.44	MEAN

2.70	STD DEV
