IslandPath Analysis: Arthrobacter aurescens TC1

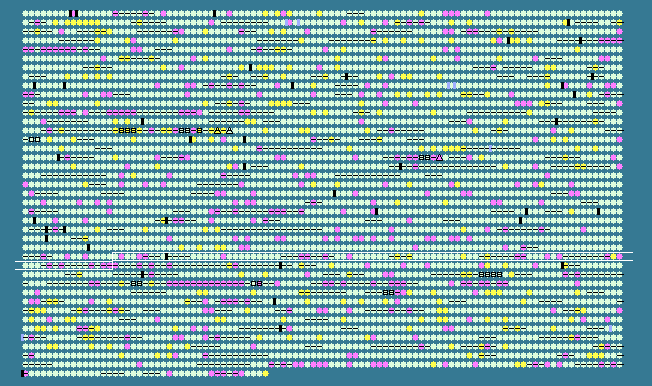

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.44 STD DEV: 2.70
Arthrobacter aurescens TC1, complete genome - 1..4597686
4041 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2716	 62.94	0	3118998..3119534	-	178	119961715	-	AAur_2839	-	transcriptional regulator
2717	 58.73	-1	3119702..3120016	+	104	119963359	-	AAur_2840	-	PadR family transcriptional regulator
2718	 59.09	-1	3120013..3120540	+	175	119962825	-	AAur_2841	-	hypothetical protein
2719	 59.61	-1	3120575..3120985	-	136	119963325	-	AAur_2842	-	rifampin ADP-ribosyl transferase
2720	 58.68	-1	3121033..3121470	-	145	119961312	-	AAur_2843	-	hypothetical protein
2721	 53.59	-2	3121457..3121609	-	50	119960739	-	AAur_2844	-	hypothetical protein
2722	 65.64	+1	3121647..3122327	+	226	119963776	-	AAur_2845	-	hypothetical protein
2723	 62.12	0	3122454..3123200	+	248	119964363	-	AAur_2846	-	hypothetical protein
2724	 60.00	0	3123223..3123597	+	124	119963682	-	AAur_2847	-	hypothetical protein
2725	 62.05	0	3123720..3124520	-	266	119963447	-	AAur_2849	-	putative NAD dependent epimerase/dehydratase family protein
2726	 61.08	0	3124527..3125456	-	309	119962794	-	AAur_2850	-	hypothetical protein
2727	 61.11	0	3125563..3126174	-	203	119962270	-	AAur_2851	-	putative ribosomal-protein-alanine N-acetyltransferase
2728	 60.24	0	3126181..3127113	-	310	119964525	galU	AAur_2852	-	UTP-glucose-1-phosphate uridylyltransferase
2729	 62.93	0	3127188..3127829	+	213	119962860	-	AAur_2853	-	putative 5-formyltetrahydrofolate cyclo-ligase
2730	 61.69	0	3127983..3128243	+	86	119960597	-	AAur_2854	-	hypothetical protein
2731	 65.19	+1	3128309..3129118	+	269	119961714	-	AAur_2855	-	Flp pilus assembly protein
2732	 62.70	0	3129142..3133323	-	1393	119961678	-	AAur_2856	-	hypothetical protein
2733	 62.96	0	3133485..3135074	-	529	119962972	guaA	AAur_2857	-	bifunctional GMP synthase/glutamine amidotransferase protein
2734	 57.88	-1	3135180..3135680	-	166	119960613	-	AAur_2858	-	putative integral membrane protein
2735	 62.11	0	3135677..3136531	-	284	119962133	-	AAur_2859	-	hypothetical protein
2736	 60.53	0	3136842..3137330	-	162	119963925	-	AAur_2860	-	PTS system, IIA component
2737	 62.96	0	3137378..3139132	-	584	119963345	-	AAur_2861	-	putative glycerol-3-phosphate dehydrogenase
2738	 63.43	0	3139284..3139931	-	215	119962804	-	AAur_2862	-	hypothetical protein
2739	 63.19	0	3139928..3140560	-	210	119962253	-	AAur_2863	-	hypothetical protein
2740	 62.47	0	3140610..3141491	-	293	119961666	-	AAur_2864	-	hypothetical protein
2741	 63.32	0	3141643..3142779	-	378	119961106	-	AAur_2865	-	inositol-5-monophosphate dehydrogenase
2742	 61.28	0	3142883..3144775	-	630	119964483	-	AAur_2866	-	putative ABC transporter, ATP-binding protein
2743	 64.35	0	3144873..3146384	-	503	119963910	guaB	AAur_2867	-	inosine-5'-monophosphate dehydrogenase
2744	 62.64	0	3146628..3148712	-	694	119962466	-	AAur_2868	-	acyltransferase domain-containing protein
2745	 60.29	0	3148709..3150811	-	700	119962008	-	AAur_2869	-	acyltransferase domain-containing protein
2746	 60.89	0	3150989..3152131	-	380	119961278	-	AAur_2870	-	putative potassium uptake protein (trkA)
2747	 55.66	-2	3152128..3152445	-	105	119962364	-	AAur_2871	-	hypothetical protein
2748	 55.45	-2	3152131..3152460	+	109	119964045	-	AAur_2872	-	hypothetical protein
2749	 64.53	0	3152545..3154179	-	544	119963767	-	AAur_2873	-	LuxR family transcriptional regulator
2750	 63.82	0	3154341..3155954	-	537	119962908	groL	AAur_2874	-	chaperonin GroEL
2751	 58.92	-1	3156040..3156336	-	98	119962669	groES	AAur_2875	-	chaperonin groES
2752	 60.99	0	3156528..3156809	-	93	119963566	-	AAur_2876	-	hypothetical protein
2753	 65.04	0	3156958..3158187	+	409	119964237	-	AAur_2877	-	hypothetical protein
2754	 63.76	0	3158192..3158983	-	263	119961781	aroE	AAur_2878	-	shikimate 5-dehydrogenase
2755	 58.54	-1	3159043..3159165	-	40	119962570	rpmJ	AAur_2879	-	50S ribosomal protein L36
2756	 65.53	+1	3159195..3160253	-	352	119962907	-	AAur_2880	-	cobalamin synthesis protein CobW
2757	 61.46	0	3160504..3161655	+	383	119963228	-	AAur_2882	-	carboxylate-amine ligase
2758	 60.05	0	3161652..3162392	-	246	119964477	-	AAur_2881	-	hypothetical protein
2759	 63.96	0	3162486..3163592	-	368	119962840	-	AAur_2883	-	putative O-sialoglycoprotein endopeptidase
2760	 63.10	0	3163628..3164131	-	167	119963453	rimI	AAur_2884	-	ribosomal-protein-alanine acetyltransferase
2761	 63.39	0	3164145..3164816	-	223	119963847	-	AAur_2885	-	putative glycoprotease family protein
2762	 63.21	0	3164816..3165394	-	192	119964321	-	AAur_2886	-	putative ATPase or kinase
2763	 65.95	+1	3165391..3166644	-	417	119963782	alr	AAur_2887	-	alanine racemase
2764	 63.89	0	3166701..3167852	-	383	119961054	-	AAur_2888	-	putative sugar kinase
2765	 65.94	+1	3167842..3169215	+	457	119960495	-	AAur_2890	-	6-phospho-beta-glucosidase
2766	 60.09	0	3169212..3169880	-	222	119963489	-	AAur_2889	-	acetyltransferase, GNAT family protein
2767	 63.65	0	3169860..3171086	+	408	119962991	-	AAur_2891	-	putative glycosyl transferase, group 1 family protein
2768	 62.11	0	3171186..3172874	+	562	119964254	fhs	AAur_2892	-	formate--tetrahydrofolate ligase
2769	 61.33	0	3173227..3174312	-	361	119964274	-	AAur_2893	-	putative myo-inositol-1-phosphate synthase
2770	 62.33	0	3174481..3175518	-	345	119963705	-	AAur_2894	-	aldo/keto reductase family oxidoreductase
2771	 61.99	0	3175598..3177370	-	590	119962538	treZ	AAur_2895	-	malto-oligosyltrehalose trehalohydrolase
2772	 63.16	0	3177498..3179810	-	770	119961923	treY	AAur_2896	-	malto-oligosyltrehalose synthase
2773	 60.62	0	3179807..3182089	-	760	119961611	glgX	AAur_2897	-	glycogen debranching enzyme GlgX
2774	 66.73	+1	3182159..3183658	-	499	119962489	-	AAur_2898	-	YjeF family protein
2775	 64.08	0	3183752..3184099	-	115	119961152	-	AAur_2899	-	putative holo-(acyl-carrier-protein) synthase
2776	 61.34	0	3184104..3186017	-	637	119963699	glmS	AAur_2900	-	D-fructose-6-phosphate amidotransferase
2777	 61.93	0	3186126..3187097	+	323	119964235	coaA	AAur_2901	-	pantothenate kinase
2778	 66.17	+1	3187168..3187968	+	266	119964047	-	AAur_2902	-	putative D-alanyl-D-alanine carboxypeptidase family protein
2779	 63.59	0	3188040..3189404	-	454	119964409	glmM	AAur_2903	-	phosphoglucosamine mutase
2780	 61.54	0	3189564..3190070	-	168	119963208	rpsI	AAur_2904	-	ribosomal protein S9
2781	 62.16	0	3190109..3190552	-	147	119963410	rplM	AAur_2905	-	50S ribosomal protein L13
2782	 61.55	0	3190841..3191485	+	214	119961816	-	AAur_2906	-	putative type IV leader peptidase family protein
2783	 58.08	-1	3191805..3192002	+	65	119962026	-	AAur_2907	-	hypothetical protein
2784	 58.00	-1	3192098..3192547	+	149	119960552	-	AAur_2908	-	putative TadE-like family protein
2785	 59.72	-1	3192535..3193599	+	354	119961201	-	AAur_2909	-	hypothetical protein
2786	 60.11	0	3193644..3194390	+	248	119963620	-	AAur_2910	-	Flp pilus assembly protein
2787	 60.82	0	3194387..3195583	+	398	119962025	-	AAur_2911	-	putative flp pilus assembly protein CpaE
2788	 56.83	-2	3195580..3197022	+	480	119961569	-	AAur_2912	-	putative Type II/IV secretion system protein
2789	 60.57	0	3197019..3197969	+	316	119962927	-	AAur_2913	-	type II secretion system protein F
2790	 58.81	-1	3197979..3198869	+	296	119962497	-	AAur_2914	-	type II secretion system protein F
2791	 61.14	0	3199157..3200332	+	391	119963804	-	AAur_2915	-	trypsin-like serine protease
2792	 62.85	0	3200350..3201240	-	296	119963259	truA	AAur_2916	-	tRNA pseudouridine synthase A
2793	 63.86	0	3201273..3201842	-	189	119960679	rplQ	AAur_2917	-	ribosomal protein L17
2794	 60.53	0	3201909..3202919	-	336	119961601	rpoA	AAur_2918	-	DNA-directed RNA polymerase subunit alpha
2795	 64.98	0	3203069..3203365	-	98	119960872	rpsK	AAur_2919	-	30S ribosomal protein S11
2796	 62.17	0	3203522..3203899	-	125	161897604	rpsM	AAur_2920	-	30S ribosomal protein S13
2797	 59.65	-1	3204096..3204209	-	37	119963378	rpmJ	AAur_2921	-	ribosomal protein L36
2798	 54.95	-2	3204282..3204503	-	73	119962208	infA	AAur_2922	-	translation initiation factor IF-1
2799	 67.64	+1	3204699..3205730	-	343	119961691	-	AAur_2923	-	T4 family peptidase
2800	 58.69	-1	3206039..3207028	+	329	119960992	ugpA	AAur_2924	-	sn-glycerol-3-phosphate transport system permease protein
2801	 60.07	0	3207082..3207945	+	287	119960564	ugpE	AAur_2925	-	sn-glycerol-3-phosphate-binding protein
2802	 62.58	0	3207998..3209344	+	448	119964456	ugpB	AAur_2926	-	secreted sn-glycerol-3-phosphate-binding protein
2803	 62.50	0	3209408..3210391	-	327	119961505	map	AAur_2927	-	methionine aminopeptidase, type I
2804	 61.49	0	3210422..3211000	-	192	119960842	adk	AAur_2928	-	adenylate kinase
2805	 58.58	-1	3210997..3212307	-	436	119961273	secY	AAur_2929	-	preprotein translocase subunit SecY
2806	 61.70	0	3212492..3212974	-	160	119963995	rplO	AAur_2930	-	ribosomal protein L15
2807	 57.49	-1	3212974..3213180	-	68	119961796	rpmD	AAur_2931	-	ribosomal protein L30
2808	 65.48	+1	3213183..3213854	-	223	119964099	rpsE	AAur_2932	-	ribosomal protein S5
2809	 60.94	0	3213884..3214267	-	127	119963218	rplR	AAur_2933	-	ribosomal protein L18
2810	 59.78	0	3214271..3214807	-	178	119961409	rplF	AAur_2934	-	ribosomal protein L6
2811	 60.65	0	3214826..3215224	-	132	119963773	rpsH	AAur_2935	-	30S ribosomal protein S8
2812	 57.69	-1	3215303..3215881	-	192	119964088	rplE	AAur_2936	-	50S ribosomal protein L5
2813	 60.28	0	3215881..3216240	-	119	119964410	rplX	AAur_2937	-	50S ribosomal protein L24
2814	 57.45	-1	3216244..3216612	-	122	119963146	rplN	AAur_2938	-	ribosomal protein L14
2815	 57.91	-1	3216966..3217262	-	98	119961764	rpsQ	AAur_2939	-	ribosomal protein S17
62.44	MEAN

2.70	STD DEV
