IslandPath Analysis: Arthrobacter aurescens TC1

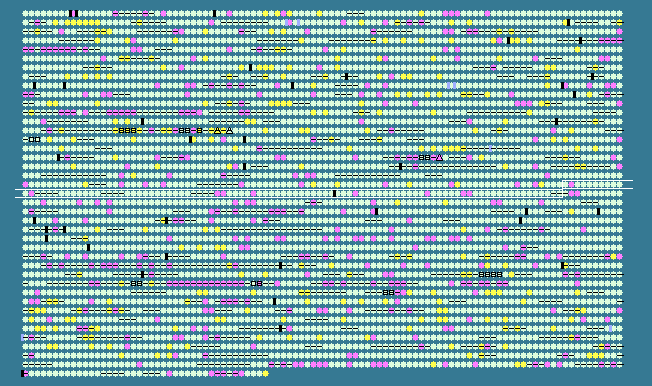

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.44 STD DEV: 2.70
Arthrobacter aurescens TC1, complete genome - 1..4597686
4041 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1991	 59.84	0	2289217..2292144	+	975	119964255	uvrA	AAur_2080	-	excinuclease ABC subunit A
1992	 57.88	-1	2292258..2292974	+	238	119962529	-	AAur_2081	-	HAD family phosphatase
1993	 59.19	-1	2292961..2293629	+	222	119960862	-	AAur_2082	-	putative 1-acylglycerol-3-phosphate O-acyltransferase
1994	 61.66	0	2293687..2295702	+	671	119961068	uvrC	AAur_2083	-	excinuclease ABC subunit C
1995	 62.99	0	2295834..2296757	+	307	119962185	-	AAur_2084	-	hypothetical protein
1996	 64.90	0	2296757..2297773	+	338	119963374	-	AAur_2085	-	hypothetical protein
1997	 63.30	0	2297783..2298763	+	326	119964489	-	AAur_2086	-	hypothetical protein
1998	 61.16	0	2298925..2299560	+	211	119963018	sodA	AAur_2087	-	superoxide dismutase
1999	 62.41	0	2299832..2300842	+	336	119962038	gap	AAur_2088	-	glyceraldehyde-3-phosphate dehydrogenase, type I
2000	 62.27	0	2300852..2302078	+	408	119963159	pgk	AAur_2089	-	phosphoglycerate kinase
2001	 59.56	-1	2302153..2302968	+	271	119963574	tpiA	AAur_2090	-	triosephosphate isomerase
2002	 56.98	-2	2303005..2303262	+	85	119961323	secG	AAur_2091	-	preprotein translocase subunit SecG
2003	 64.22	0	2303772..2304590	-	272	119961907	pgl	AAur_2092	-	6-phosphogluconolactonase
2004	 65.71	+1	2304580..2305521	-	313	119962494	-	AAur_2093	-	putative opcA protein
2005	 63.84	0	2305518..2307074	-	518	119963766	zwf	AAur_2094	-	glucose-6-phosphate 1-dehydrogenase
2006	 62.38	0	2307090..2308721	-	543	119962640	pgi	AAur_2095	-	glucose-6-phosphate isomerase
2007	 62.65	0	2308728..2309846	-	372	119962579	tal	AAur_2096	-	transaldolase
2008	 64.79	0	2309879..2312065	-	728	119963123	tkt	AAur_2097	-	transketolase
2009	 62.10	0	2312434..2313396	+	320	119962469	cyoE	AAur_2098	-	protoheme IX farnesyltransferase
2010	 63.35	0	2313540..2314142	-	200	119961296	-	AAur_2099	-	hypothetical protein
2011	 62.75	0	2314171..2315115	-	314	119963685	-	AAur_2100	-	putative cytochrome oxidase assembly protein
2012	 64.18	0	2315162..2315926	-	254	119962465	-	AAur_2101	-	putative ABC transporter protein
2013	 61.80	0	2315923..2316888	-	321	119964430	-	AAur_2102	-	putative ABC transporter, ATP-binding protein
2014	 64.26	0	2316989..2317819	+	276	119963961	-	AAur_2103	-	putative DNA-binding transcriptional regulator
2015	 59.97	0	2317819..2319282	+	487	119963028	sufB	AAur_2104	-	FeS assembly protein SufB
2016	 62.79	0	2319285..2320598	+	437	119962266	sufD	AAur_2105	-	FeS assembly protein SufD
2017	 59.38	-1	2320620..2320976	+	118	119962306	-	AAur_2106	-	ring hydroxylating dioxygenase alpha subunit
2018	 61.58	0	2321020..2321805	+	261	119964304	sufC	AAur_2107	-	FeS assembly ATPase SufC
2019	 60.96	0	2321819..2322151	+	110	119962191	-	AAur_2108	-	hypothetical protein
2020	 61.98	0	2322267..2323247	-	326	119964514	-	AAur_2109	-	putative zinc metallopeptidase
2021	 63.10	0	2323192..2324622	+	476	119961170	-	AAur_2110	-	AMP-binding domain-containing protein
2022	 65.27	+1	2324549..2325835	+	428	119961348	-	AAur_2112	-	putative beta-ketoadipyl-CoA thiolase
2023	 64.60	0	2325832..2326461	-	209	119962197	-	AAur_2111	-	putative cobalt transport protein
2024	 62.00	0	2326458..2327207	-	249	119961519	-	AAur_2113	-	putative ABC transporter, ATP-binding protein
2025	 61.89	0	2327225..2328124	-	299	119963298	-	AAur_2114	-	putative BioY family protein
2026	 61.98	0	2328130..2329728	+	532	119960893	-	AAur_2115	-	ABC transporter, ATP-binding protein‎‎
2027	 61.11	0	2329737..2330222	-	161	119964039	-	AAur_2116	-	putative ybaK/ebsC protein
2028	 61.48	0	2330206..2331072	-	288	119961455	-	AAur_2117	-	putative lipoprotein
2029	 62.68	0	2331073..2331348	-	91	119963148	-	AAur_2118	-	hypothetical protein
2030	 59.84	0	2331345..2331842	-	165	119962608	-	AAur_2119	-	hypothetical protein
2031	 60.49	0	2331912..2332721	+	269	119961965	fabG	AAur_2120	-	3-oxoacyl-(acyl-carrier-protein) reductase
2032	 63.21	0	2332838..2333590	+	250	119963423	-	AAur_2121	-	short chain dehydrogenase
2033	 57.75	-1	2333932..2335434	+	500	119962411	rbsA	AAur_2122	-	ribose ABC transporter, ATP-binding protein
2034	 56.57	-2	2335515..2336108	-	197	119961070	-	AAur_2123	-	hypothetical protein
2035	 62.64	0	2336403..2337296	-	297	119963424	serB	AAur_2124	-	phosphoserine phosphatase SerB
2036	 62.01	0	2337377..2338192	+	271	119963992	-	AAur_2125	-	putative ABC transporter, ATP-binding protein
2037	 60.43	0	2338212..2338997	+	261	119962933	-	AAur_2126	-	putative integral membrane protein
2038	 62.72	0	2339005..2339814	+	269	119963510	-	AAur_2127	-	TrmH family RNA methyltransferase
2039	 55.14	-2	2339815..2340213	+	132	119962116	rpmE	AAur_2128	-	ribosomal protein L31
2040	 61.57	0	2340263..2341399	+	378	119961540	-	AAur_2129	-	putative lipoate-protein ligase
2041	 62.71	0	2341410..2344013	-	867	119963796	pepN	AAur_2130	-	aminopeptidase N
2042	 64.86	0	2344018..2345067	-	349	119964080	-	AAur_2131	-	putative integral membrane protein
2043	 62.77	0	2345142..2346734	+	530	119960999	-	AAur_2132	-	hypothetical protein
2044	 60.00	0	2346667..2347716	+	349	119960946	-	AAur_2133	-	hypothetical protein
2045	 61.38	0	2347713..2348564	+	283	119962352	-	AAur_2134	-	putative protease, transglutaminase-like
2046	 61.91	0	2348637..2350088	-	483	119961899	-	AAur_2135	-	putative oxidoreductase
2047	 60.30	0	2350153..2351565	-	470	119962871	glgC	AAur_2136	-	glucose-1-phosphate adenylyltransferase
2048	 63.85	0	2351650..2352855	+	401	119964256	glgA	AAur_2137	-	glycogen synthase
2049	 63.49	0	2352999..2355104	-	701	119963632	-	AAur_2138	-	putative acyl-CoA oxidase
2050	 62.75	0	2356016..2357290	+	424	119963451	-	AAur_2140	-	acetyl-CoA acetyltransferase
2051	 64.22	0	2357253..2358641	+	462	119961993	fabG	AAur_2141	-	3-ketoacyl-(acyl-carrier-protein) reductase
2052	 63.00	0	2358638..2359564	+	308	119963292	-	AAur_2142	-	MaoC-like domain-containing protein
2053	 61.70	0	2360024..2361373	+	449	119963841	-	AAur_2144	-	hypothetical protein
2054	 62.09	0	2361402..2362559	+	385	119960653	-	AAur_2145	-	putative acyl-CoA dehydrogenase
2055	 60.68	0	2362570..2362803	-	77	119963631	-	AAur_2146	-	hypothetical protein
2056	 55.43	-2	2362843..2363100	+	85	119961204	-	AAur_2147	-	hypothetical protein
2057	 60.68	0	2363109..2363225	+	38	119961523	-	AAur_2148	-	hypothetical protein
2058	 62.38	0	2363368..2365047	+	559	119962112	-	AAur_2149	-	putative glucosyltransferase
2059	 61.44	0	2365105..2366214	+	369	119962575	-	AAur_2150	-	oxidoreductase family protein
2060	 61.08	0	2366211..2367230	+	339	119963758	-	AAur_2151	-	putative UDP-glucose 4-epimerase
2061	 64.00	0	2367227..2368390	+	387	119960908	-	AAur_2152	-	putative DegT/DnrJ/EryC1/StrS aminotransferase family protein
2062	 63.80	0	2368387..2369049	+	220	119964404	-	AAur_2153	-	putative acetyltransferase protein
2063	 61.72	0	2368983..2370236	+	417	119961518	-	AAur_2154	-	glycosyl transferase group 1 family protein
2064	 61.46	0	2370238..2372793	+	851	119961451	-	AAur_2155	-	glycosyl transferase/polysaccharide biosynthesis domain-containing protein
2065	 59.66	-1	2372897..2373709	+	270	119962773	-	AAur_2156	-	hypothetical protein
2066	 60.82	0	2373706..2374953	+	415	119962390	-	AAur_2157	-	hypothetical protein
2067	 59.00	-1	2374938..2376398	+	486	119961983	-	AAur_2158	-	putative O-antigen polymerase family protein
2068	 56.77	-2	2376386..2377264	+	292	119961485	-	AAur_2159	-	chain length determinant domain-containing protein
2069	 59.72	-1	2377323..2378588	+	421	119964038	-	AAur_2160	-	putative glycosyl transferase, group 1 family protein
2070	 60.60	0	2378585..2379919	+	444	119963195	-	AAur_2161	-	hypothetical protein
2071	 62.84	0	2379920..2380756	-	278	119961821	-	AAur_2162	-	glycosyl transferase group 2 family protein
2072	 63.82	0	2380753..2382681	-	642	119963389	-	AAur_2163	-	putative glycosyl transferase, WecB/TagA/CpsF family protein
2073	 62.06	0	2382843..2384252	-	469	119962499	rfbC/rfbD	AAur_2164	-	dTDP-4-keto-L-rhamnose reductase/dTDP-4-keto-6-deoxyglucose-3,5-epimerase
2074	 57.01	-2	2384256..2385260	-	334	119962227	rfbB	AAur_2165	-	dTDP-glucose 4,6-dehydratase
2075	 57.55	-1	2385308..2386174	+	288	119961639	rfbA	AAur_2166	-	glucose-1-phosphate thymidylyltransferase
2076	 62.27	0	2386181..2387113	-	310	119963113	-	AAur_2167	-	aldo/keto reductase family oxidoreductase
2077	 59.83	0	2387166..2387999	+	277	119964101	-	AAur_2168	-	undecaprenyl pyrophosphate phosphatase
2078	 63.30	0	2388015..2389292	+	425	119964010	-	AAur_2169	-	cysteinyl-tRNA synthetase
2079	 61.59	0	2389364..2390269	-	301	119961406	-	AAur_2170	-	hypothetical protein
2080	 64.08	0	2390300..2391112	+	270	119960854	-	AAur_2171	-	putative haloacid dehalogenase-like hydrolase
2081	 61.18	0	2391113..2392279	+	388	119960770	-	AAur_2172	-	putative zinc metallopeptidase family protein
2082	 64.34	0	2392301..2393461	+	386	119964362	-	AAur_2173	-	hypothetical protein
2083	 60.31	0	2393559..2395367	+	602	119961474	-	AAur_2174	-	ATPase
2084	 64.22	0	2395364..2397037	+	557	119962140	-	AAur_2175	-	putative proteasome component
2085	 61.49	0	2397105..2397278	+	57	119962925	-	AAur_2176	-	hypothetical protein
2086	 62.15	0	2397275..2398249	+	324	119962637	-	AAur_2177	-	putative 20S proteasome beta-subunit precursor
2087	 60.22	0	2398215..2398958	+	247	119963080	-	AAur_2178	-	putative 20S proteasome alpha-subunit
2088	 59.56	-1	2398960..2400324	+	454	119964245	-	AAur_2179	-	putative proteasome component
2089	 60.63	0	2400370..2401380	+	336	119961909	-	AAur_2180	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
2090	 64.65	0	2401454..2401849	+	131	119963496	-	AAur_2181	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
62.44	MEAN

2.70	STD DEV
