IslandPathversion 1.0

IslandPath Analysis: Arthrobacter aurescens TC1

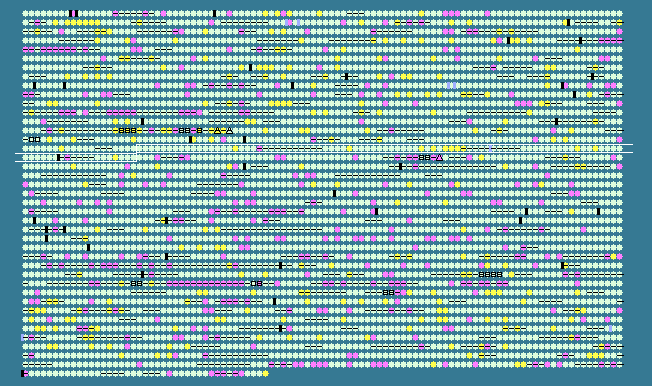

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.44 STD DEV: 2.70
Arthrobacter aurescens TC1, complete genome - 1..4597686
4041 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1520	 60.40	0	1731624..1733315	+	563	119961428	-	AAur_1587	-	metallo-beta-lactamase family protein
1521	 62.51	0	1733328..1736261	+	977	119962736	-	AAur_1588	-	putative FtsK/SpoIIIE family protein
1522	 62.85	0	1736300..1736902	+	200	119961894	pgsA	AAur_1589	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
1523	 61.94	0	1737052..1737411	+	119	119963637	-	AAur_1590	-	putative competence/damage-inducible protein CinA
1524	 61.11	0	1737642..1737983	+	113	119960859	-	AAur_1591	-	helix-turn-helix domain-containing protein
1525	 62.61	0	1738077..1738667	-	196	119962582	-	AAur_1592	-	MarR family transcriptional regulator
1526	 61.78	0	1738658..1738882	+	74	119962131	-	AAur_1593	-	hypothetical protein
1527	 60.73	0	1739141..1740184	+	347	119961491	recA	AAur_1594	-	recA protein
1528	 60.41	0	1740174..1740716	+	180	119963662	-	AAur_1595	-	putative regulatory protein RecX
1529	 60.53	0	1740716..1742263	+	515	119960909	miaB	AAur_1596	-	tRNA-i(6)A37 thiotransferase
1530	 61.49	0	1742283..1743209	+	308	119962539	miaA	AAur_1597	-	tRNA delta(2)-isopentenylpyrophosphate transferase
1531	 64.09	0	1743256..1744224	+	322	119964081	dapF	AAur_1599	-	diaminopimelate epimerase
1532	 63.09	0	1744205..1744819	-	204	119961880	-	AAur_1598	-	methyltransferase small subunit
1533	 61.32	0	1745033..1746922	+	629	119961109	-	AAur_1600	-	putative GTP-binding protein
1534	 64.19	0	1746915..1748975	+	686	119963971	-	AAur_1601	-	ATP-dependent helicase,-like protein
1535	 62.23	0	1749056..1749799	-	247	119962894	lexA	AAur_1602	-	LexA repressor
1536	 66.11	+1	1750149..1750508	+	119	119963353	-	AAur_1603	-	LysM domain-containing protein
1537	 62.20	0	1750587..1751705	+	372	119960831	hisC	AAur_1604	-	histidinol-phosphate aminotransferase
1538	 62.36	0	1751752..1752378	+	208	119960952	hisB	AAur_1605	-	imidazoleglycerol-phosphate dehydratase
1539	 63.31	0	1752375..1753118	+	247	119963657	hisH	AAur_1606	-	imidazole glycerol phosphate synthase subunit HisH
1540	 57.86	-1	1753119..1753277	+	52	119961946	-	AAur_1607	-	hypothetical protein
1541	 62.50	0	1753327..1754070	+	247	119963543	-	AAur_1608	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
1542	 63.93	0	1754070..1754981	+	303	119963368	-	AAur_1609	-	hypothetical protein
1543	 63.98	0	1755033..1756337	+	434	119963201	-	AAur_1610	-	major facilitator transporter
1544	 61.24	0	1756423..1757049	-	208	119962880	-	AAur_1611	-	hypothetical protein
1545	 63.67	0	1757216..1758250	+	344	119961908	infC	AAur_1612	-	translation initiation factor IF-3
1546	 59.49	-1	1758368..1758562	+	64	119962218	rpmI	AAur_1613	-	ribosomal protein L35
1547	 62.93	0	1758682..1759350	+	222	119964246	rplT	AAur_1614	-	ribosomal protein L20
1548	 64.47	0	1759377..1760288	+	303	119960734	-	AAur_1615	-	putative 23S rRNA methyltransferase
1549	 61.27	0	1760389..1761315	+	308	119961422	-	AAur_1616	-	putative cation efflux family protein
1550	 61.97	0	1761415..1762734	-	439	119963689	-	AAur_1617	-	major facilitator transporter
1551	 63.77	0	1762778..1763191	+	137	119964216	-	AAur_1618	-	MutT/nudix family protein
1552	 62.25	0	1763202..1764332	-	376	119962544	-	AAur_1619	-	radical SAM domain-containing protein
1553	 61.06	0	1764388..1765029	+	213	119963081	pcp	AAur_1621	-	pyrrolidone-carboxylate peptidase
1554	 63.97	0	1765026..1765655	-	209	119961292	-	AAur_1620	-	putative protein of unknown function (DUF541)
1555	 66.00	+1	1765658..1766104	-	148	119964357	-	AAur_1622	-	hypothetical protein
1556	 63.18	0	1766263..1767324	+	353	119960852	pheS	AAur_1623	-	phenylalanyl-tRNA synthetase subunit alpha
1557	 64.23	0	1767327..1769870	+	847	119962268	pheT	AAur_1624	-	phenylalanyl-tRNA synthetase, beta subunit
1558	 61.94	0	1770097..1770921	+	274	119961745	-	AAur_1625	-	trypsin-like serine protease
1559	 64.97	0	1771052..1771699	+	215	119962628	-	AAur_1626	-	putative phosphopantetheinyl transferase
1560	 63.39	0	1771704..1773047	-	447	119963016	-	AAur_1627	-	putative metallopeptidase
1561	 65.10	0	1773060..1777016	-	1318	119962414	-	AAur_1628	-	putative non-ribosomal peptide synthetase
1562	 64.39	0	1777128..1778093	-	321	119962440	-	AAur_1629	-	quinone oxidoreductase
1563	 61.43	0	1778179..1779267	-	362	119964162	-	AAur_1630	-	putative delta 6 fatty acid desaturase
1564	 64.53	0	1779435..1780466	+	343	119964400	argC	AAur_1631	-	N-acetyl-gamma-glutamyl-phosphate reductase
1565	 64.61	0	1780463..1781629	+	388	119960641	argJ	AAur_1632	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1566	 63.20	0	1781634..1782584	+	316	119961526	argB	AAur_1633	-	acetylglutamate kinase
1567	 65.96	+1	1782581..1783858	+	425	119961662	argD	AAur_1634	-	acetylornithine aminotransferase
1568	 63.19	0	1783855..1784862	+	335	119961815	argF	AAur_1635	-	ornithine carbamoyltransferase
1569	 66.85	+1	1784862..1785398	+	178	119962828	argR	AAur_1636	-	arginine repressor
1570	 64.34	0	1785470..1786675	+	401	119964149	argG	AAur_1637	-	argininosuccinate synthase
1571	 66.26	+1	1786672..1788147	+	491	119962867	argH	AAur_1638	-	argininosuccinate lyase
1572	 66.40	+1	1788230..1788967	+	245	119964012	-	AAur_1639	-	hypothetical protein
1573	 66.15	+1	1788983..1790542	-	519	119961410	-	AAur_1640	-	putative DNA methylation and regulatory protein (ADA)
1574	 67.62	+1	1790665..1791291	+	208	119962753	-	AAur_1641	-	putative 3-methyladenine DNA glycosylase
1575	 64.69	0	1791423..1793651	+	742	119964066	-	AAur_1642	-	DNA or RNA helicase superfamily protein I
1576	 62.70	0	1793689..1794999	+	436	119960707	tyrS	AAur_1643	-	tyrosyl-tRNA synthetase
1577	 65.33	+1	1795038..1795262	-	74	119963198	-	AAur_1644	-	hypothetical protein
1578	 61.24	0	1795323..1795451	-	42	119963883	-	AAur_1645	-	hypothetical protein
1579	 65.57	+1	1801796..1803892	+	698	119962017	-	AAur_1649	-	hypothetical protein
1580	 64.54	0	1803885..1804871	+	328	119962415	-	AAur_1650	-	putative haloacid dehalogenase-like hydrolase
1581	 63.98	0	1804881..1805141	+	86	119962690	-	AAur_1651	-	hypothetical protein
1582	 63.10	0	1805145..1805957	+	270	119961881	-	AAur_1652	-	hemolysin A
1583	 62.06	0	1805971..1807011	+	346	119963285	ppnK	AAur_1653	-	inorganic polyphosphate/ATP-NAD kinase
1584	 65.23	+1	1807015..1808754	+	579	119963599	recN	AAur_1654	-	DNA repair protein RecN
1585	 61.11	0	1808882..1810627	+	581	119960911	pyrG	AAur_1655	-	CTP synthetase
1586	 63.90	0	1810703..1811317	+	204	119961700	-	AAur_1656	-	putative mutT/nudix family protein
1587	 64.38	0	1811320..1812279	+	319	119964153	xerD	AAur_1657	-	tyrosine recombinase XerD
1588	 62.85	0	1812303..1813061	-	252	119963036	-	AAur_1658	-	hypothetical protein
1589	 61.45	0	1813118..1813615	+	165	119962617	-	AAur_1659	-	putative mutT/nudix family protein
1590	 63.25	0	1813689..1814828	-	379	119962463	gltA	AAur_1660	-	methylcitrate synthase
1591	 62.80	0	1814906..1815811	-	301	119961999	prpB	AAur_1661	-	methylisocitrate lyase
1592	 64.89	0	1815812..1817332	-	506	119960730	-	AAur_1662	-	putative 2-methylcitrate dehydratase
1593	 68.22	+2	1817343..1817984	-	213	119961388	-	AAur_1663	-	GntR family transcriptional regulator
1594	 60.61	0	1818053..1819141	-	362	119963127	-	AAur_1664	-	hypothetical protein
1595	 64.92	0	1819284..1820939	-	551	119962528	-	AAur_1665	-	LuxR family transcriptional regulator
1596	 66.67	+1	1820997..1821710	-	237	119963731	-	AAur_1666	-	putative two-component response regulator
1597	 63.45	0	1821707..1823353	-	548	119960794	-	AAur_1667	-	putative signal transduction histidine kinase
1598	 60.50	0	1823493..1824839	+	448	119964420	-	AAur_1668	-	putative sodium:dicarboxylate symporter family protein
1599	 62.22	0	1825094..1825993	+	299	119961272	-	AAur_1669	-	putative ParA-family protein
1600	 62.45	0	1826000..1826923	+	307	119964137	scpA	AAur_1670	-	segregation and condensation protein A
1601	 61.49	0	1826916..1827572	+	218	119962118	-	AAur_1671	-	putative segregation and condensation protein B
1602	 65.02	0	1827724..1828938	+	404	119962911	-	AAur_1672	-	putative RNA pseudouridine synthase
1603	 62.42	0	1828942..1830048	+	368	119963797	-	AAur_1673	-	prephenate dehydrogenase
1604	 60.64	0	1830048..1830761	+	237	119962716	cmk	AAur_1674	-	cytidylate kinase
1605	 63.80	0	1830754..1831485	+	243	119963651	-	AAur_1675	-	putative 1-acyl-sn-glycerol-3-phosphate acyltransferases
1606	 65.18	+1	1831571..1833046	+	491	119964121	engA	AAur_1676	-	GTP-binding protein EngA
1607	 64.65	0	1833391..1833837	-	148	119960524	-	AAur_1678	-	MarR family transcriptional regulator
1608	 56.07	-2	1835744..1836130	+	128	119962802	gcvH	AAur_1680	-	glycine cleavage system H protein
1609	 61.43	0	1836268..1836744	+	158	119963588	-	AAur_1681	-	FHA domain-containing protein
1610	 63.46	0	1836765..1837481	+	238	119962491	-	AAur_1682	-	MerR family transcriptional regulator
1611	 60.32	0	1837481..1837984	+	167	119962554	-	AAur_1683	-	hypothetical protein
1612	 64.48	0	1838220..1838813	+	197	119961350	-	AAur_1684	-	hypothetical protein
1613	 63.75	0	1838936..1839757	-	273	119963103	-	AAur_1685	-	putative ParA-family protein
1614	 64.05	0	1840049..1843444	+	1131	119962530	pyc	AAur_1686	-	pyruvate carboxylase
1615	 62.09	0	1843513..1845324	-	603	119961925	-	AAur_1687	-	putative long-chain-fatty-acid-CoA ligase
1616	 68.37	+2	1845512..1846570	+	352	119962149	glk	AAur_1688	-	glucokinase
1617	 65.05	0	1846600..1847154	-	184	119961537	-	AAur_1689	-	hypothetical protein
1618	 62.36	0	1847941..1848729	-	262	119962807	-	AAur_1691	-	putative esterase/lipase
1619	 59.60	-1	1848840..1849631	+	263	119961643	-	AAur_1692	-	putative 1-acylglycerol-3-phosphate O-acyltransferase
62.44	MEAN

2.70	STD DEV
