IslandPathversion 1.0

IslandPath Analysis: Arthrobacter aurescens TC1

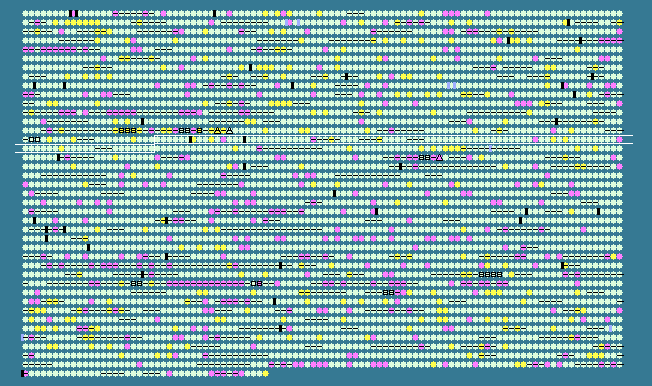

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.44 STD DEV: 2.70
Arthrobacter aurescens TC1, complete genome - 1..4597686
4041 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1423	 61.83	0	1624253..1625638	+	461	119963161	glyS	AAur_1482	-	glycyl-tRNA synthetase
1424	 65.01	0	1625641..1626603	+	320	119962790	-	AAur_1483	-	hypothetical protein
1425	 64.05	0	1628233..1629720	+	495	119961626	-	AAur_1485	-	YibE/F-like family protein
1426	 65.01	0	1629810..1631015	+	401	119963532	-	AAur_1486	-	IMP dehydrogenase/GMP reductase domain-containing protein
1427	 62.87	0	1631080..1632396	+	438	119963858	-	AAur_1487	-	putative deoxyguanosinetriphosphate triphosphohydrolase
1428	 64.54	0	1632455..1634338	+	627	119962293	dnaG	AAur_1488	-	DNA primase
1429	 67.89	+2	1634703..1635110	-	135	119962233	-	AAur_1491	-	hypothetical protein
1430	 61.99	0	1635155..1636438	-	427	119963493	-	AAur_1492	-	esterase family protein
1431	 62.91	0	1636461..1638959	-	832	119964070	-	AAur_1493	-	putative integral membrane protein (DUF470, DUF471, DUF472)
1432	 67.20	+1	1639083..1639268	-	61	119960961	-	AAur_1494	-	hypothetical protein
1433	 61.95	0	1639286..1640515	-	409	119961166	-	AAur_1495	-	Bcr/CflA family drug resistance transporter
1434	 58.89	-1	1640690..1641538	+	282	119961642	-	AAur_1496	-	putative protein of unknown function (DUF1469)
1435	 59.62	-1	1641586..1642209	+	207	119962593	-	AAur_1497	-	putative CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
1436	 61.81	0	1642209..1643114	+	301	119963116	-	AAur_1498	-	putative integral membrane protein
1437	 61.15	0	1643222..1644418	+	398	119962484	-	AAur_1499	-	putative glycosyl transferase, group 1 family protein
1438	 62.70	0	1647595..1649358	-	587	119964040	-	AAur_1502	-	M23 peptidase domain-containing protein
1439	 62.01	0	1650758..1651594	+	278	119963267	tsf	AAur_1504	-	translation elongation factor Ts
1440	 61.97	0	1651623..1652453	+	276	119964115	pyrH	AAur_1505	-	uridylate kinase
1441	 61.65	0	1652555..1653112	+	185	119963211	frr	AAur_1506	-	ribosome recycling factor
1442	 64.10	0	1653112..1654047	+	311	119964036	-	AAur_1507	-	putative phosphatidate cytidylyltransferase
1443	 63.08	0	1654069..1654653	+	194	119963626	-	AAur_1508	-	hypothetical protein
1444	 59.71	-1	1654672..1655217	-	181	119963919	-	AAur_1509	-	hypothetical protein
1445	 63.87	0	1655419..1656885	-	488	119961360	-	AAur_1510	-	putative sodium:solute symporter family protein
1446	 64.46	0	1656882..1657244	-	120	119960927	-	AAur_1511	-	putative integral membrane protein
1447	 64.56	0	1657241..1657951	-	236	119963845	-	AAur_1512	-	two-component system regulatory protein
1448	 64.09	0	1657982..1659184	-	400	119964352	-	AAur_1513	-	putative signal transduction histidine kinase
1449	 56.17	-2	1659393..1659773	+	126	119964226	-	AAur_1514	-	hypothetical protein
1450	 61.91	0	1659770..1661389	+	539	119960626	-	AAur_1515	-	putative sodium:solute symporter family protein
1451	 60.78	0	1661508..1662527	-	339	119962368	-	AAur_1516	-	hypothetical protein
1452	 66.49	+1	1662601..1663182	-	193	119960556	-	AAur_1517	-	hypothetical protein
1453	 60.54	0	1663224..1663631	-	135	119962267	-	AAur_1518	-	hypothetical protein
1454	 61.52	0	1663773..1664471	-	232	119961043	-	AAur_1519	-	hypothetical protein
1455	 62.21	0	1664620..1665090	-	156	119962043	-	AAur_1520	-	AsnC family transcriptional regulator
1456	 61.02	0	1665358..1666455	+	365	119960563	-	AAur_1521	-	pyruvate dehydrogenase E1 component, alpha subunit
1457	 61.42	0	1666455..1667465	+	336	119960874	-	AAur_1522	-	putative pyruvate dehydrogenase E1 component, beta subunit
1458	 63.69	0	1667462..1668874	+	470	119963490	-	AAur_1523	-	pyruvate dehydrogenase E2 (dihydrolipoamide acetyltransferase)
1459	 62.43	0	1668952..1669824	-	290	119963191	-	AAur_1524	-	putative UDP-galactose 4-epimerase
1460	 66.54	+1	1670077..1671693	-	538	119960972	-	AAur_1525	-	HNH endonuclease domain-containing protein
1461	 61.90	0	1671842..1672156	-	104	119961883	-	AAur_1526	-	hypothetical protein
1462	 61.89	0	1673011..1674621	+	536	119963214	-	AAur_1528	-	putative acetyl/propionyl CoA carboxylase, beta subunit
1463	 65.70	+1	1674747..1676819	+	690	119963622	accA	AAur_1529	-	Acetyl-CoA carboxylase alpha chain
1464	 61.08	0	1676816..1677979	+	387	119961544	-	AAur_1530	-	putative Acyl-CoA dehydrogenase
1465	 61.78	0	1678017..1678835	+	272	119962865	-	AAur_1531	-	3-oxoacid CoA-transferase, A subunit
1466	 61.49	0	1678832..1679584	+	250	119963312	-	AAur_1532	-	3-oxoacid CoA-transferase, B subunit
1467	 60.49	0	1679581..1680066	+	161	119963315	-	AAur_1533	-	MaoC-like domain-containing protein
1468	 63.91	0	1680107..1680976	+	289	119961034	-	AAur_1534	-	putative citrate lyase beta-subunit
1469	 64.72	0	1681064..1682194	-	376	119962200	-	AAur_1535	-	oxidoreductase family protein
1470	 60.91	0	1682179..1682907	-	242	119960587	-	AAur_1536	-	hypothetical protein
1471	 64.46	0	1682913..1684133	-	406	119961403	-	AAur_1537	-	oxidoreductase family protein
1472	 59.67	-1	1684147..1685046	-	299	119961634	-	AAur_1538	-	putative ABC-type sugar transport system, permease component
1473	 63.15	0	1685046..1685984	-	312	119961732	-	AAur_1539	-	putative sugar ABC transporter, permease protein
1474	 59.77	0	1685989..1687308	-	439	119962665	-	AAur_1540	-	putative extracellular sugar-binding protein
1475	 63.86	0	1687593..1688660	+	355	119963242	-	AAur_1542	-	LacI family transcriptional regulator
1476	 62.97	0	1688632..1690092	-	486	119961097	-	AAur_1541	-	putative integral membrane protein
1477	 63.88	0	1690196..1691380	+	394	119962940	dxr	AAur_1543	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1478	 62.01	0	1691413..1692744	+	443	119961823	-	AAur_1544	-	zinc metalloprotease
1479	 62.24	0	1692809..1693102	+	97	119963419	-	AAur_1545	-	YCII-related domain-containing protein
1480	 62.21	0	1693151..1694317	+	388	119962180	ispG	AAur_1546	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
1481	 64.26	0	1694328..1695158	+	276	119961012	-	AAur_1547	-	putative acetyltransferase, GNAT family protein
1482	 61.73	0	1695234..1695962	+	242	119960507	-	AAur_1548	-	putative lipoprotein
1483	 64.38	0	1695975..1696631	-	218	119962543	-	AAur_1549	-	transcriptional regulator
1484	 60.35	0	1696628..1697371	-	247	119964004	-	AAur_1550	-	DrrB family ABC transporter
1485	 64.59	0	1697380..1698150	-	256	119961462	-	AAur_1551	-	putative ABC transporter, ATP-binding protein
1486	 57.02	-2	1698327..1698440	+	37	119964058	-	AAur_1552	-	hypothetical protein
1487	 63.96	0	1698658..1700469	+	603	119963667	proS	AAur_1553	-	prolyl-tRNA synthetase
1488	 61.90	0	1700466..1701263	+	265	119963633	-	AAur_1554	-	putative integral membrane protein
1489	 66.77	+1	1701455..1702465	-	336	119962343	sph	AAur_1555	-	streptomycin 6-kinase
1490	 64.47	0	1702515..1703243	-	242	119961762	-	AAur_1556	-	putative integral membrane protein
1491	 65.98	+1	1703295..1704461	-	388	119963865	-	AAur_1557	-	hypothetical protein
1492	 60.29	0	1704492..1705103	+	203	119963357	-	AAur_1558	-	putative uncharacterized Bcr YhbC family protein
1493	 62.39	0	1705103..1706083	+	326	119962022	nusA	AAur_1559	-	transcription termination factor NusA
1494	 64.44	0	1706172..1706621	+	149	119960833	-	AAur_1560	-	putative protein of unknown function (DUF448)
1495	 65.73	+1	1706774..1709650	+	958	119964199	infB	AAur_1561	-	translation initiation factor IF-2
1496	 62.30	0	1709728..1710231	+	167	119963960	rbfA	AAur_1562	-	ribosome-binding factor A
1497	 64.60	0	1710320..1710802	+	160	119962643	guaD	AAur_1563	-	guanine deaminase
1498	 63.23	0	1710816..1711979	-	387	119963013	aspC	AAur_1564	-	aspartate aminotransferase
1499	 63.35	0	1712005..1712940	+	311	119964316	truB	AAur_1565	-	tRNA pseudouridine synthase B
1500	 57.63	-1	1712943..1713296	+	117	119964258	-	AAur_1566	-	putative integral membrane protein
1501	 61.59	0	1713299..1713751	+	150	119963754	-	AAur_1567	-	putative integral membrane protein
1502	 62.91	0	1713841..1714824	+	327	119962882	ribF	AAur_1568	-	riboflavin biosynthesis protein RibF
1503	 59.26	-1	1714984..1715253	+	89	119961383	rpsO	AAur_1569	-	ribosomal protein S15
1504	 63.07	0	1715494..1717746	+	750	119960529	-	AAur_1570	-	polynucleotide phosphorylase/polyadenylase
1505	 62.73	0	1717825..1719171	+	448	119964387	-	AAur_1571	-	Zn-dependent peptidase
1506	 64.72	0	1719260..1719721	+	153	119964079	-	AAur_1572	-	hypothetical protein
1507	 67.79	+1	1719753..1720019	-	88	119961032	-	AAur_1573	-	putative molybdopterin cofactor synthesis protein moaD
1508	 64.91	0	1720024..1721163	-	379	119962194	moaA	AAur_1574	-	molybdenum cofactor biosynthesis protein A
1509	 60.61	0	1721257..1722081	+	274	119961724	-	AAur_1575	-	two-component system response regulator
1510	 63.88	0	1722068..1723321	+	417	119964150	-	AAur_1576	-	putative signal transduction histidine kinase
1511	 64.90	0	1723318..1724898	+	526	119962713	-	AAur_1577	-	molybdopterin oxidoreductase domain-containing protein
1512	 65.61	+1	1724958..1726184	+	408	119961099	moeA	AAur_1578	-	molybdopterin cofactor synthesis protein moeA
1513	 62.52	0	1726172..1726702	+	176	119961386	moaC	AAur_1579	-	molybdenum cofactor biosynthesis protein C
1514	 61.40	0	1727186..1727641	+	151	119962874	moaE	AAur_1581	-	molybdopterin converting factor, subunit 2
1515	 64.30	0	1727693..1728451	+	252	119963168	dapB	AAur_1582	-	dihydrodipicolinate reductase
1516	 61.76	0	1728456..1728944	+	162	119960627	-	AAur_1584	-	TPR repeat-containing protein
1517	 64.97	0	1728920..1730155	-	411	119964475	-	AAur_1583	-	putative integral membrane protein
1518	 65.18	+1	1730245..1730580	+	111	119961901	-	AAur_1585	-	hypothetical protein
1519	 62.49	0	1730685..1731617	+	310	119962380	dapA	AAur_1586	-	dihydrodipicolinate synthase
1520	 60.40	0	1731624..1733315	+	563	119961428	-	AAur_1587	-	metallo-beta-lactamase family protein
1521	 62.51	0	1733328..1736261	+	977	119962736	-	AAur_1588	-	putative FtsK/SpoIIIE family protein
1522	 62.85	0	1736300..1736902	+	200	119961894	pgsA	AAur_1589	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
62.44	MEAN

2.70	STD DEV
