IslandPathversion 1.0

IslandPath Analysis: Arthrobacter aurescens TC1

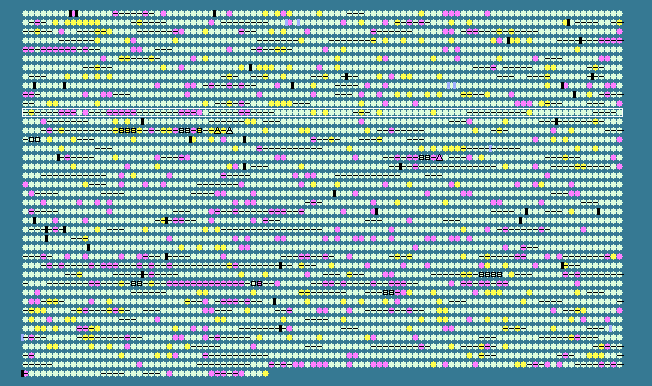

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.44 STD DEV: 2.70
Arthrobacter aurescens TC1, complete genome - 1..4597686
4041 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1101	 64.98	0	1220251..1221615	+	454	119963885	-	AAur_1146	-	major facilitator transporter
1102	 66.10	+1	1221672..1222199	+	175	119961862	-	AAur_1147	-	transcriptional regulator
1103	 62.55	0	1222259..1223254	+	331	119962301	-	AAur_1148	-	oxidoreductase
1104	 60.00	0	1223281..1224135	+	284	119961857	-	AAur_1149	-	hydrolase alpha/beta fold domain-containing protein
1105	 59.70	-1	1224164..1224766	+	200	119962351	-	AAur_1150	-	TetR family transcriptional regulator
1106	 59.18	-1	1224780..1225967	-	395	119963252	-	AAur_1151	-	putative membrane protein, tellurium resistance
1107	 58.75	-1	1227573..1228355	-	260	119962719	-	AAur_1153	-	hypothetical protein
1108	 57.69	-1	1229260..1229994	-	244	119964330	-	AAur_1155	-	hypothetical protein
1109	 55.68	-2	1230063..1230881	-	272	119963500	-	AAur_1156	-	hypothetical protein
1110	 61.90	0	1231272..1231775	-	167	119962996	-	AAur_1157	-	ArsR family transcriptional regulator
1111	 57.19	-1	1231912..1233558	-	548	119962614	-	AAur_1158	-	putative RNA polymerase sigma (70) factor
1112	 61.90	0	1233683..1234186	-	167	119962175	-	AAur_1159	-	MarR family transcriptional regulator
1113	 63.21	0	1234274..1235200	+	308	119960494	-	AAur_1160	-	putative transmembrane protein
1114	 60.00	0	1235434..1235838	-	134	119963366	-	AAur_1161	-	hypothetical protein
1115	 52.58	-2	1235937..1236227	-	96	119962224	-	AAur_1162	-	hypothetical protein
1116	 51.25	-2	1236528..1237604	-	358	119964326	-	AAur_1163	-	hypothetical protein
1117	 55.74	-2	1237619..1240447	-	942	119962574	-	AAur_1164	-	hypothetical protein
1118	 51.00	-2	1240431..1242338	-	635	119962382	-	AAur_1165	-	hypothetical protein
1119	 57.58	-1	1244453..1244551	+	32	119963935	-	AAur_1166	-	hypothetical protein
1120	 61.06	0	1244627..1246018	+	463	119961352	-	AAur_1167	-	putative amino acid permease
1121	 63.36	0	1246049..1246684	-	211	119961676	-	AAur_1168	-	putative oxidoreductase, short chain dehydrogenase/reductase family protein
1122	 61.33	0	1246772..1247146	-	124	119962183	-	AAur_1169	-	hypothetical protein
1123	 64.34	0	1247192..1248436	-	414	119961653	-	AAur_1170	-	putative flavin-binding monooxygenase-like
1124	 61.67	0	1249104..1249703	-	199	119960601	-	AAur_1171	-	hypothetical protein
1125	 62.32	0	1249712..1250056	-	114	119964376	-	AAur_1172	-	hypothetical protein
1126	 61.46	0	1250112..1250495	+	127	119961742	-	AAur_1173	-	hypothetical protein
1127	 54.90	-2	1250886..1251089	+	67	119962819	-	AAur_1174	-	putative cold shock protein
1128	 57.22	-1	1251167..1252108	-	313	119963972	-	AAur_1175	-	putative integral membrane protein
1129	 49.76	-2	1252101..1252727	-	208	119964501	-	AAur_1176	-	putative ABC transporter, ATP-binding protein
1130	 51.52	-2	1252794..1253486	-	230	119960904	-	AAur_1177	-	hypothetical protein
1131	 59.41	-1	1253887..1256490	+	867	119961557	-	AAur_1178	-	LuxR family transcriptional regulator
1132	 63.24	0	1256512..1257765	+	417	119963043	-	AAur_1180	-	putative amino acid permease
1133	 61.93	0	1257762..1259048	-	428	119962710	-	AAur_1179	-	putative transmembrane efflux protein (MFS)
1134	 61.02	0	1259413..1259979	-	188	119963386	-	AAur_1181	-	alpha/Beta hydrolase family protein
1135	 65.30	+1	1260030..1261415	-	461	119961344	-	AAur_1182	-	UDP-glucose 6-dehydrogenase
1136	 62.91	0	1261412..1262581	-	389	119960778	-	AAur_1183	-	putative glycosyl transferase, group 1 family protein
1137	 48.83	-2	1263248..1263886	-	212	119961450	-	AAur_1184	-	HNH endonuclease family protein
1138	 49.36	-2	1263883..1265217	-	444	119962983	-	AAur_1185	-	hypothetical protein
1139	 65.14	+1	1265322..1265714	-	130	119961592	-	AAur_1186	-	MerR family transcriptional regulator
1140	 61.94	0	1265868..1266290	+	140	119963276	-	AAur_1187	-	putative heat shock protein
1141	 65.83	+1	1266424..1266900	+	158	119961877	-	AAur_1188	-	DnaJ domain-containing protein
1142	 65.08	0	1266897..1267274	+	125	119963861	-	AAur_1189	-	hypothetical protein
1143	 65.13	0	1267422..1268459	+	345	119961359	-	AAur_1190	-	glyoxalase family protein
1144	 65.54	+1	1268934..1270265	+	443	119962968	-	AAur_1191	-	putative integral membrane protein
1145	 60.00	0	1270320..1270769	-	149	119964165	-	AAur_1192	-	hypothetical protein
1146	 61.75	0	1270781..1271350	+	189	119960779	purN	AAur_1193	-	phosphoribosylglycinamide formyltransferase
1147	 63.98	0	1271408..1272712	-	434	119964278	-	AAur_1194	-	putative transmembrane efflux protein (MFS)
1148	 64.06	0	1272812..1273771	-	319	119960726	murQ	AAur_1195	-	N-acetylmuramic acid-6-phosphate etherase
1149	 67.09	+1	1273746..1274693	-	315	119963082	-	AAur_1196	-	putative BadF/BadG/BcrA/BcrD ATPase family protein
1150	 62.05	0	1275044..1276018	+	324	119964262	-	AAur_1197	-	hypothetical protein
1151	 67.27	+1	1276379..1278049	+	556	119960764	purH	AAur_1198	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
1152	 61.35	0	1278148..1279257	-	369	119961997	-	AAur_1199	-	hypothetical protein
1153	 64.36	0	1279364..1279666	-	100	119963153	-	AAur_1200	-	hypothetical protein
1154	 63.33	0	1279730..1281949	+	739	119960973	-	AAur_1201	-	isocitrate dehydrogenase, NADP-dependent
1155	 65.32	+1	1282013..1283122	-	369	119962493	soxA	AAur_1202	-	sarcosine oxidase, monomeric form
1156	 64.68	0	1283214..1284068	-	284	119963848	phnE	AAur_1203	-	phosphonate ABC transporter, permease protein
1157	 66.17	+1	1284065..1284871	-	268	119961385	phnC	AAur_1204	-	phosphonate ABC transporter, ATP-binding protein
1158	 65.46	+1	1284871..1285785	-	304	119963775	phnD	AAur_1205	-	phosphate-binding protein of phosphonate ABC transporter
1159	 65.55	+1	1285828..1287081	-	417	119960624	-	AAur_1206	-	FAD dependent oxidoreductase domain-containing protein
1160	 66.28	+1	1287209..1287976	+	255	119961179	-	AAur_1207	-	GntR family transcriptional regulator
1161	 65.18	+1	1287973..1288644	+	223	119960741	-	AAur_1208	-	putative phosphonoacetaldehyde hydrolase
1162	 65.56	+1	1288685..1289134	+	149	119961331	-	AAur_1209	-	DoxX family protein
1163	 62.48	0	1290475..1291167	-	230	119963275	-	AAur_1211	-	putative ABC transporter, ATP-binding protein
1164	 65.02	0	1291170..1292627	-	485	119961536	-	AAur_1212	-	putative ABC transporter permease protein
1165	 61.98	0	1292800..1293909	-	369	119960655	-	AAur_1213	-	putative sugar ABC transporter
1166	 61.31	0	1293952..1295220	-	422	119962948	-	AAur_1214	-	putative sugar ABC transporter permease protein
1167	 59.28	-1	1295265..1296821	-	518	119962256	-	AAur_1215	-	putative sugar ABC transporter, ATP-binding protein
1168	 63.14	0	1296952..1298142	-	396	119960677	-	AAur_1216	-	ROK family transcriptional regulator
1169	 66.42	+1	1298457..1299260	+	267	119964300	-	AAur_1218	-	carbon-nitrogen family hydrolase
1170	 65.80	+1	1299257..1300870	-	537	119963839	-	AAur_1217	-	putative regulatory protein
1171	 65.90	+1	1300860..1302032	-	390	119963624	alr	AAur_1219	-	alanine racemase
1172	 62.90	0	1302203..1303717	+	504	119963184	-	AAur_1220	-	putative amino acid permease
1173	 63.79	0	1303789..1305420	+	543	119962720	-	AAur_1221	-	putative tryptophan 2-monooxygenase
1174	 59.94	0	1305532..1306245	-	237	119960632	-	AAur_1222	-	hypothetical protein
1175	 63.80	0	1306242..1306625	-	127	119964469	-	AAur_1223	-	PadR family transcriptional regulator
1176	 63.79	0	1306737..1307258	-	173	119963798	-	AAur_1224	-	hexapeptide repeat-containing transferase
1177	 63.81	0	1307332..1307997	-	221	119963017	-	AAur_1225	-	hypothetical protein
1178	 62.93	0	1308019..1308954	-	311	119964276	purU	AAur_1226	-	formyltetrahydrofolate deformylase
1179	 65.12	0	1309108..1310400	+	430	119962515	glyA	AAur_1227	-	serine hydroxymethyltransferase
1180	 65.77	+1	1310550..1311443	+	297	119960888	-	AAur_1228	-	putative tetrahydrofolate dehydrogenase/cyclohydrolase
1181	 63.68	0	1311562..1312599	+	345	119963373	-	AAur_1229	-	putative ABC transporter, ATP-binding protein
1182	 62.16	0	1312649..1313446	+	265	119964037	-	AAur_1230	-	putative ABC-2 type transporter
1183	 61.51	0	1313443..1314276	+	277	119960898	-	AAur_1231	-	putative ABC-type multidrug transport system, permease component
1184	 63.05	0	1314303..1315628	-	441	119963669	-	AAur_1232	-	major facilitator transporter
1185	 66.02	+1	1315669..1316748	-	359	119961832	-	AAur_1233	-	hypothetical protein
1186	 64.16	0	1316915..1317952	+	345	119960788	-	AAur_1234	-	LacI family transcriptional regulator
1187	 62.08	0	1318033..1318599	+	188	119961941	-	AAur_1235	-	hypothetical protein
1188	 60.79	0	1318610..1319443	+	277	119962536	xth	AAur_1236	-	exodeoxyribonuclease III
1189	 62.04	0	1319464..1320588	+	374	119963213	trpS	AAur_1237	-	tryptophanyl-tRNA synthetase
1190	 60.14	0	1320704..1321270	+	188	119961268	-	AAur_1238	-	putative 2',5' RNA ligase family protein
1191	 61.06	0	1321356..1322282	+	308	119962009	-	AAur_1239	-	ribonuclease BN-like family protein
1192	 65.23	+1	1322477..1324699	-	740	119961924	-	AAur_1240	-	hypothetical protein
1193	 61.27	0	1324831..1325793	-	320	119961310	-	AAur_1241	-	glycoside hydrolase family protein
1194	 60.95	0	1325962..1327203	+	413	119960819	-	AAur_1242	-	putative extracellular sugar-binding protein
1195	 62.45	0	1328140..1328922	-	260	119961009	sdhB	AAur_1244	-	succinate dehydrogenase iron-sulfur subunit
1196	 61.81	0	1328922..1330670	-	582	119960553	sdhA	AAur_1245	-	succinate dehydrogenase flavoprotein subunit
1197	 60.59	0	1330822..1331298	-	158	119964495	-	AAur_1246	-	putative succinate dehydrogenase, membrane subunit (sdhD)
1198	 59.84	0	1331302..1331682	-	126	119963360	sdhC	AAur_1247	-	succinate dehydrogenase, cytochrome b556 subunit
1199	 63.58	0	1331936..1333069	+	377	119962057	-	AAur_1248	-	putative mannose-1-phosphate guanylyltransferase/mannose-6-phosphate isomerase
1200	 64.26	0	1333180..1334385	+	401	119961922	-	AAur_1249	-	putative metal-dependent amidase/aminoacylase/carboxypeptidase
62.44	MEAN

2.70	STD DEV
