IslandPath Analysis: Aquifex aeolicus VF5

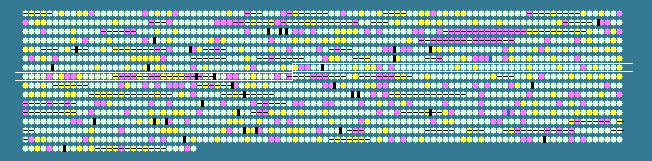

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 43.45 STD DEV: 3.70
Aquifex aeolicus VF5, complete genome - 1..1551335
1529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
646	 47.92	+1	639612..640379	+	255	15606253	rnpH	aq_924	-	RNase PH
647	 36.89	-1	640337..641095	+	252	15606254	-	aq_926	-	hypothetical protein
648	 39.42	-1	641141..641731	+	196	15606255	-	aq_928	-	hypothetical protein
649	 44.82	0	641743..642969	+	408	15606256	napA2	aq_929	-	Na(+)/H(+) antiporter
650	 44.62	0	643202..643591	+	129	15606257	-	aq_931	-	hypothetical protein
651	 42.69	0	643713..644321	-	202	15606258	dnaQ	aq_932	-	DNA polymerase III epsilon subunit
652	 43.16	0	644296..644529	-	77	15607138	purS	aq_932a	-	phosphoribosylformylglycinamidine (FGAM) synthase, PurS component
653	 45.28	0	644552..645313	-	253	15606259	-	aq_933	-	hypothetical protein
654	 41.77	0	645310..645783	-	157	15606260	-	aq_935	-	hypothetical protein
655	 46.72	0	645833..647737	+	634	15606261	ftsH	aq_936	-	cell division protein FtsH
656	 49.04	+1	647737..649035	+	432	15606262	leuC	aq_940	-	3-isopropylmalate dehydratase large subunit
657	 42.90	0	650221..650544	+	107	15606263	-	aq_943	-	hypothetical protein
658	 48.56	+1	650617..651102	+	161	15606264	gcsH3	aq_944	-	glycine cleavage system protein H
659	 46.97	0	651393..652250	+	285	15606265	glyQ	aq_945	-	glycyl-tRNA synthetase subunit alpha
660	 37.54	-1	652228..652893	+	221	15606266	rnc	aq_946	-	RNase III
661	 40.75	0	652890..653819	+	309	15606267	hemH	aq_948	-	ferrochelatase
662	 33.33	-2	654176..654538	+	120	15606268	-	aq_950	-	hypothetical protein
663	 44.17	0	654542..655630	-	362	15606269	pheA	aq_951	-	chorismate mutase/prephenate dehydratase
664	 44.82	0	655685..656041	+	118	15606270	rplT	aq_952	-	50S ribosomal protein L20
665	 45.62	0	656041..657057	+	338	15606271	pheS	aq_953	-	phenylalanyl-tRNA synthetase alpha subunit
666	 44.88	0	657066..657836	+	256	15606272	lepB	aq_955	-	type-I signal peptidase
667	 44.16	0	657836..658306	+	156	15606273	-	aq_957	-	hypothetical protein
668	 45.75	0	658313..659230	+	305	15606274	pgsA2	aq_958	-	phosphotidylglycerophosphate synthase
669	 45.77	0	658796..660499	-	567	15606275	nadE	aq_959	-	NH(3)-dependent NAD+ synthetase
670	 45.37	0	660510..662204	-	564	15606276	mbhL2	aq_960	-	hydrogenase large subunit
671	 44.44	0	662201..663505	-	434	15606277	hdrD	aq_961	-	heterodisulfide reductase
672	 44.49	0	663518..664198	-	226	15606278	-	aq_963	-	hypothetical protein
673	 48.10	+1	664198..665247	-	349	15606279	mbhS2	aq_965	-	hydrogenase small subunit
674	 42.94	0	666041..666550	+	169	15606280	-	aq_966	-	hypothetical protein
675	 40.37	0	666538..668499	+	653	15606281	ostA	aq_967	-	organic solvent tolerance protein
676	 47.23	+1	668496..669164	-	222	15606282	cbbE2	aq_968	-	ribulose-5-phosphate 3-epimerase
677	 41.16	0	669174..669761	+	195	15606283	tmk	aq_969	-	thymidylate kinase
678	 46.32	0	669738..670877	-	379	15606284	argJ	aq_970	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
679	 46.01	0	670887..672164	-	425	15606285	-	aq_972	-	hypothetical protein
680	 44.02	0	672190..673695	+	501	15606286	secD	aq_973	-	protein export membrane protein SecD
681	 42.97	0	673738..674661	+	307	15606287	cphA2	aq_974	-	beta lactamase precursor
682	 44.64	0	674673..675671	+	332	15606288	bioB	aq_975	-	biotin synthetase
683	 43.98	0	675750..676754	+	334	15606289	-	aq_977	-	hypothetical protein
684	 40.18	0	676751..677188	+	145	15606290	-	aq_978	-	hypothetical protein
685	 47.26	+1	677185..677787	-	200	15606291	-	aq_979	-	hypothetical protein
686	 44.74	0	677905..680139	+	744	15606292	gyrA	aq_980	-	DNA gyrase A subunit
687	 42.09	0	680212..681090	+	292	15606293	-	aq_983	-	hypothetical protein
688	 44.72	0	681087..682298	-	403	15606294	-	aq_985	-	hypothetical protein
689	 40.87	0	682302..682805	-	167	15606295	-	aq_986	-	hypothetical protein
690	 47.59	+1	682778..683275	-	165	15606296	-	aq_987	-	hypothetical protein
691	 40.24	0	683288..683881	-	197	15606297	-	aq_988	-	hypothetical protein
692	 43.92	0	683881..684636	-	251	15606298	-	aq_990	-	hypothetical protein
693	 43.69	0	684685..685872	+	395	15606299	trpS	aq_992	-	tryptophanyl-tRNA synthetase
694	 37.31	-1	685872..686903	+	343	15606300	-	aq_993	-	hypothetical protein
695	 45.73	0	686941..687537	+	198	15606301	pncA	aq_994	-	pyrazinamidase/nicotinamidase
696	 48.18	+1	687606..689504	+	632	15606302	dnaK	aq_996	-	Hsp70 chaperone DnaK
697	 41.26	0	689521..691992	-	823	15606303	fadD	aq_999	-	long-chain-fatty-acid CoA ligase
698	 42.96	0	692496..693170	-	224	15606304	motB2	aq_1001	-	flagellar motor protein MotB-like
699	 46.75	0	693181..693888	-	235	15606305	motB1	aq_1002	-	flagellar motor protein MotB
700	 47.32	+1	693892..694656	-	254	15606306	motA	aq_1003	-	flagellar motor protein MotA
701	 43.49	0	694699..695013	+	104	15606307	cutA	aq_1005	-	periplasmic divalent cation tolerance protein
702	 41.37	0	695010..697946	+	978	15606308	-	aq_1006	-	hypothetical protein
703	 46.50	0	697943..701428	-	1161	15606309	dnaE	aq_1008	-	DNA polymerase III alpha subunit
704	 46.93	0	701440..702204	-	254	15606310	udh	aq_1010	-	dehydrogenase
705	 32.26	-2	702179..702643	+	154	15606311	-	aq_1012	-	hypothetical protein
706	 43.40	0	702655..703965	+	436	15606312	-	aq_1013	-	hypothetical protein
707	 47.07	0	703949..705178	-	409	15606313	col	aq_1015	-	collagenase
708	 38.24	-1	705255..705662	+	135	15606314	-	aq_1017	-	hypothetical protein
709	 33.86	-2	705653..706033	+	126	15606315	-	aq_1018	-	hypothetical protein
710	 48.15	+1	706456..707454	+	332	15606316	hypE	aq_1019	-	hydrogenase expression/formation protein
711	 43.68	0	707454..707801	+	115	15606317	hypA	aq_1021	-	hydrogenase accessory protein HypA
712	 41.84	0	707801..708835	+	344	15606318	-	aq_1022	-	hypothetical protein
713	 46.10	0	708832..709959	-	375	15606319	acuC1	aq_1023	-	acetoin utilization protein
714	 45.63	0	709946..710791	-	281	15606320	-	aq_1024	-	hypothetical protein
715	 46.91	0	710781..713159	-	792	15606321	gyrB	aq_1026	-	gyrase B
716	 47.22	+1	713175..713570	-	131	15606322	-	aq_1029	-	hypothetical protein
717	 34.72	-2	713839..714774	-	311	15606323	selD	aq_1030	-	selenophosphate synthase
718	 33.41	-2	714928..716286	-	452	15606324	selA	aq_1031	-	selenocysteine synthase
719	 33.10	-2	716314..718062	+	582	15606325	selB	aq_1033	-	elongation factor SelB
720	 51.79	+2	718059..718616	-	185	15606326	-	aq_1035	-	hypothetical protein
721	 41.87	0	718766..719140	-	124	15606327	-	aq_1036	-	hypothetical protein
722	 39.19	-1	719238..719681	-	147	15606328	-	aq_1037	-	hypothetical protein
723	 30.40	-2	719732..720652	+	306	15606329	lysR2	aq_1038	-	LysR family transcriptional regulator
724	 47.44	+1	720865..723912	+	1015	15606330	fdoG	aq_1039	-	formate dehydrogenase alpha subunit
725	 48.36	+1	723927..724838	+	303	15606331	fdoH	aq_1046	-	formate dehydrogenase beta subunit
726	 51.10	+2	724841..725476	+	211	15606332	fdoI	aq_1049	-	formate dehydrogenase gamma subunit
727	 48.24	+1	725496..726005	+	169	15606333	sodC1	aq_1050	-	superoxide dismutase (Cu/Zn)
728	 31.10	-2	725987..726838	+	283	15606334	fdhE	aq_1051	-	formate dehydrogenase formation protein FdhE
729	 36.11	-1	726937..727368	+	143	15606335	gcsH1	aq_1052	-	glycine cleavage system protein H
730	 31.72	-2	727480..728592	+	370	15606336	nifS1	aq_1053	-	FeS cluster formation protein NifS
731	 45.42	0	728999..729784	+	261	15606337	-	aq_1054	-	hypothetical protein
732	 46.12	0	729781..730554	-	257	15606338	pstB	aq_1055	-	phosphate transport ATP binding protein
733	 46.06	0	730704..731984	+	426	15606339	-	aq_1056	-	nicotinate phosphoribosyltransferase
734	 43.31	0	731970..732470	-	166	15606340	-	aq_1057	-	hypothetical protein
735	 37.78	-1	732523..733062	+	179	15606341	acrR1	aq_1058	-	TetR/AcrR family transcriptional regulator
736	 39.71	-1	733053..734306	+	417	15606342	-	aq_1059	-	hypothetical protein
737	 42.04	0	734303..735427	+	374	15606343	-	aq_1060	-	hypothetical protein
738	 44.66	0	735424..736959	+	511	15606344	emrB	aq_1062	-	major facilitator family transporter
739	 48.01	+1	736956..737984	-	342	15606345	gap	aq_1065	-	glyceraldehyde-3-phosphate dehydrogenase
740	 39.98	0	738025..738942	+	305	15606346	miaA	aq_1067	-	tRNA delta-2-isopentenylpyrophosphate (IPP) transferase
741	 46.44	0	739746..741233	-	495	15606347	cysS	aq_1068	-	cysteinyl-tRNA synthetase
742	 46.75	0	741238..742221	-	327	15606348	galE	aq_1069	-	UDP-glucose-4-epimerase
743	 36.85	-1	742238..742948	+	236	15606349	-	aq_1070	-	hypothetical protein
744	 45.57	0	742979..744310	+	443	15606350	proA	aq_1071	-	gamma-glutamyl phosphate reductase
745	 39.54	-1	744320..744754	+	144	15606351	-	aq_1072	-	hypothetical protein
43.45	MEAN

3.70	STD DEV
